Technical Specifications
| Parameter | Description |
|---|---|

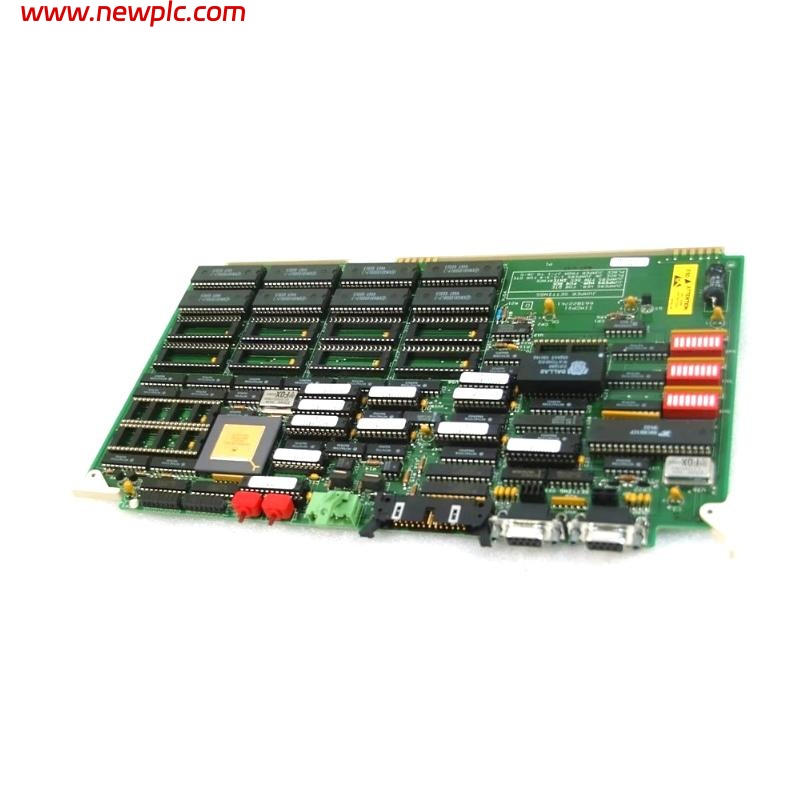

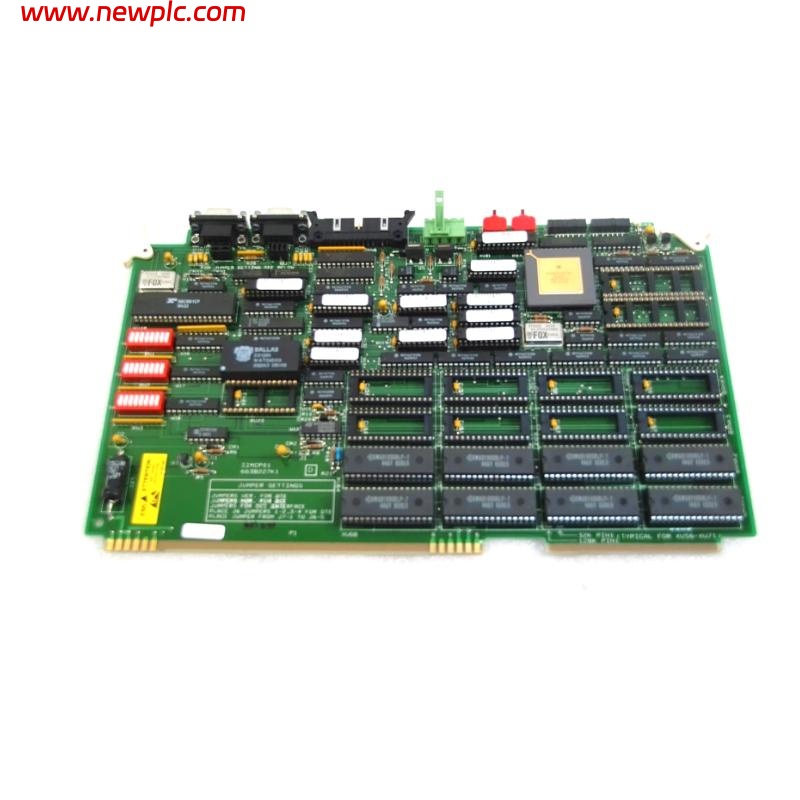

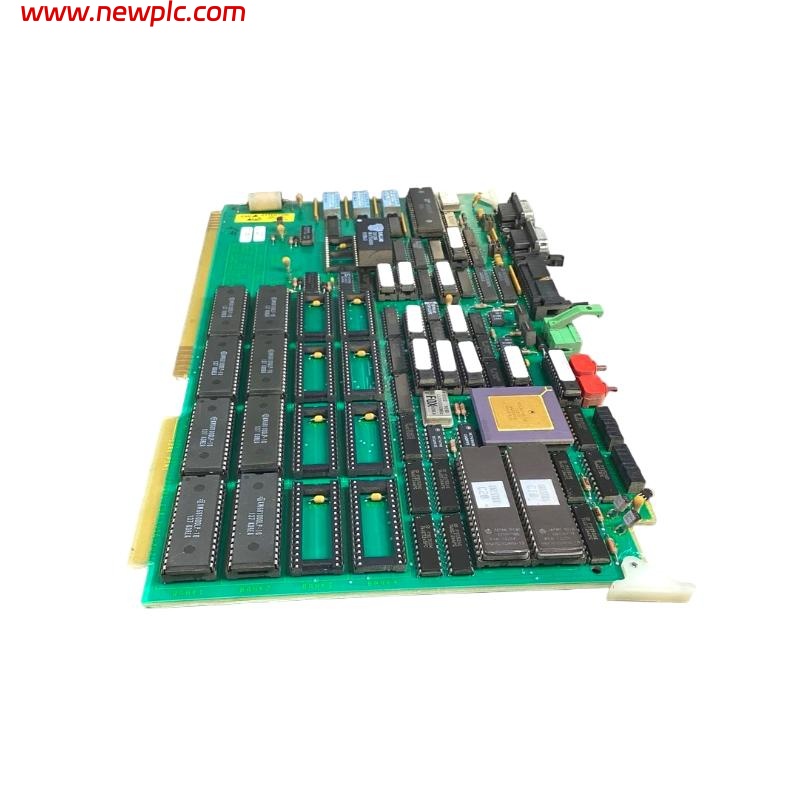

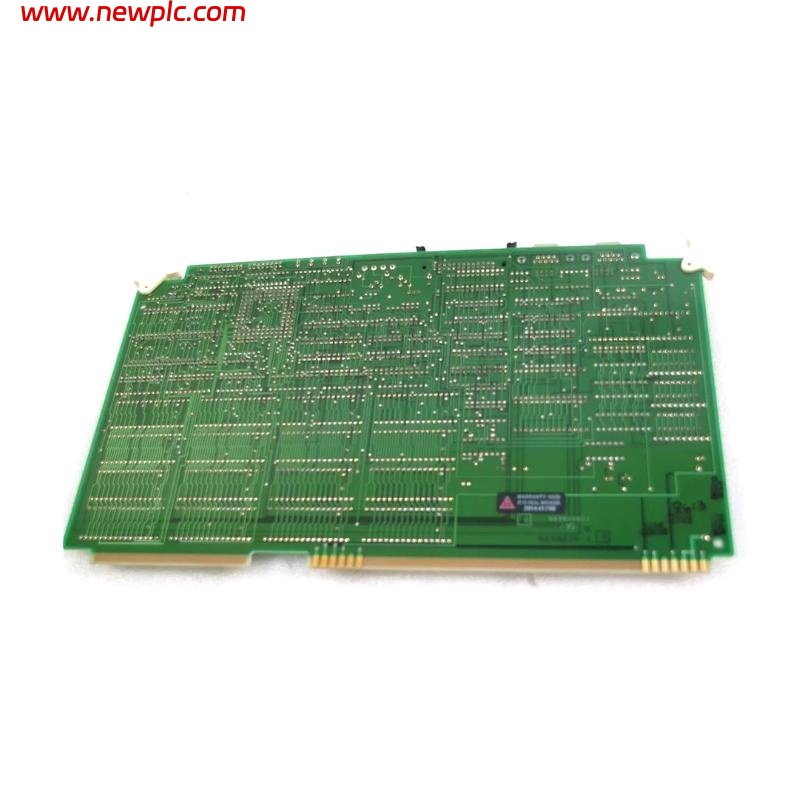

| Model | ABB Bailey IIMCP01 |
| Product Code | 6638227D1 |
| System Compatibility | INFI 90 / Net 90 / Plant Loop |
| Supported Protocols | RS-232 (serial), supports up to 10,000 tags |
| Modules Included | IIMLM01 (Loop Module), IIMCP01 (Comm Processor), IIMCL01 (Termination) |
| Communication Ports | 9-pin D-sub connector (PORT-B for RS-232) |
| Typical Applications | DCS data communication, multi-bus processor connectivity |
| DIP Switch Settings | Customizable for baud rate, parity, checksums, diagnostics, loop type |
| SCSI Support | Not supported (only available in IIMCP02) |
| Power Supply | Supplied via multi-bus backplane |
| Installation | Installed in a standard Bailey DCS rack |
| Dimensions | 160 x 120 x 45 mm |
| Weight | 1.2 kg |
FAQ
FAQ
Q1: What is the function of the IIMCP01 module?
A1: The IIMCP01 is a multibus communications processor that enables serial communication between Bailey DCS systems and external interfaces like OPC servers.
Q2: How many tags can the IIMCP01 support?
A2: It supports up to 10,000 Bailey tags for monitoring and control purposes.
Q3: Does the IIMCP01 support SCSI communication?
A3: No, SCSI communication is only supported by the IIMCP02 model.
Q4: What type of communication interface is used by IIMCP01?
A4: It uses RS-232 serial communication through a 9-pin D-sub connector labeled PORT-B.
Q5: Can the DIP switches be configured for baud rate and parity?
A5: Yes, DIP switches allow configuration of baud rate (9600 or 19200), parity (even, odd, or none), and other communication parameters.
Q6: What modules are required for a complete IIMCP01 setup?
A6: The system includes IIMLM01 (loop module), IIMCP01 (processor), and IIMCL01 (termination module).
Q7: What is the installation format of the IIMCP01?
A7: It is installed in a standard ABB Bailey multi-bus card cage within the DCS system.
Q8: What industries typically use the IIMCP01 module?
A8: It is widely used in power generation, chemical, pulp and paper, and other process industries requiring robust DCS communication.
