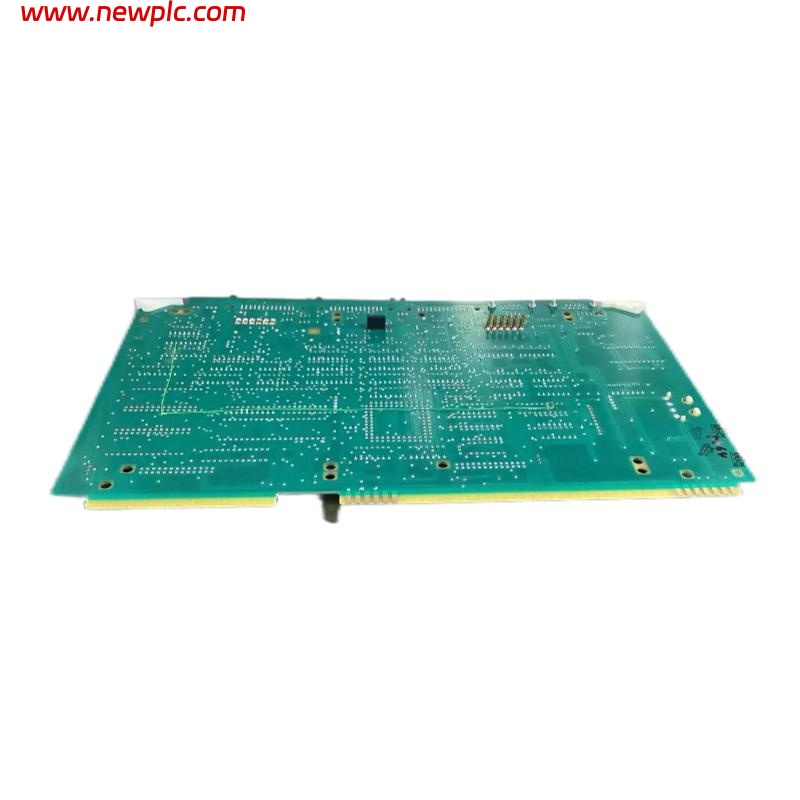

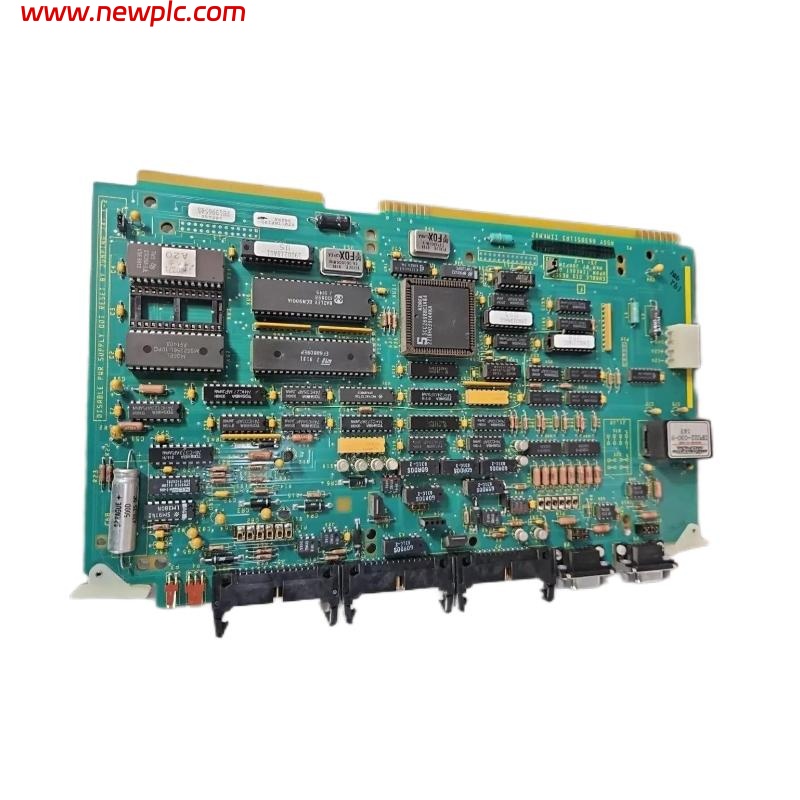

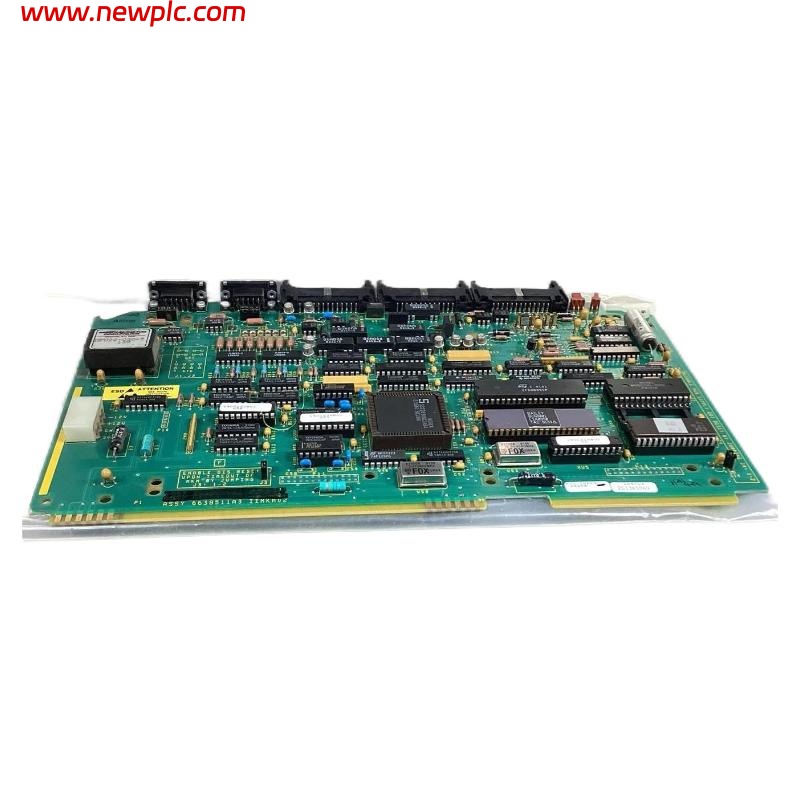

ABB Bailey IIMKM02 6638511A3 Multibus Keyboard Module

FAQ

Q1: What is the primary function of the ABB Bailey IIMKM02 module?
A1: The IIMKM02 functions as an interface between the console’s keyboards (operator and engineering) and the annunciator display panels. It also manages alarm tones and supports touchscreen input.

Q2: Is the IIMKM02 compatible with touchscreens?
A2: Yes, it includes a touch controller board that allows interfacing with optional touchscreen devices.

Q3: How many annunciator alarm outputs does the module support?
A3: The module controls six solid-state alarm output relays and five keyboard alarm tone annunciators.

Q4: Where is the IIMKM02 module installed within the system?
A4: It is installed in the multibus card cage at the front lower section of the operator console.

Q5: What systems is the IIMKM02 designed to integrate with?
A5: It is designed for integration with ABB Bailey’s INFI 90 OPEN system and 40 Series Operator Interface Stations.

Q6: Can the IIMKM02 module operate independently?
A6: No, it functions as a subsystem within the console and requires connection to the multibus architecture and related system components.

Q7: What kind of keyboard connections does the IIMKM02 support?
A7: It supports operator flat panel keyboards and auxiliary QWERTY-style engineering keyboards.

Q8: How does the IIMKM02 contribute to system safety?
A8: By managing alarm outputs and annunciators, it helps alert operators to process abnormalities, contributing to timely responses and system integrity.

6638511A3 ABB Bailey IIMKM02 Multibus Keyboard Module
