Technical Specifications
| Parameter | Description |
|---|---|

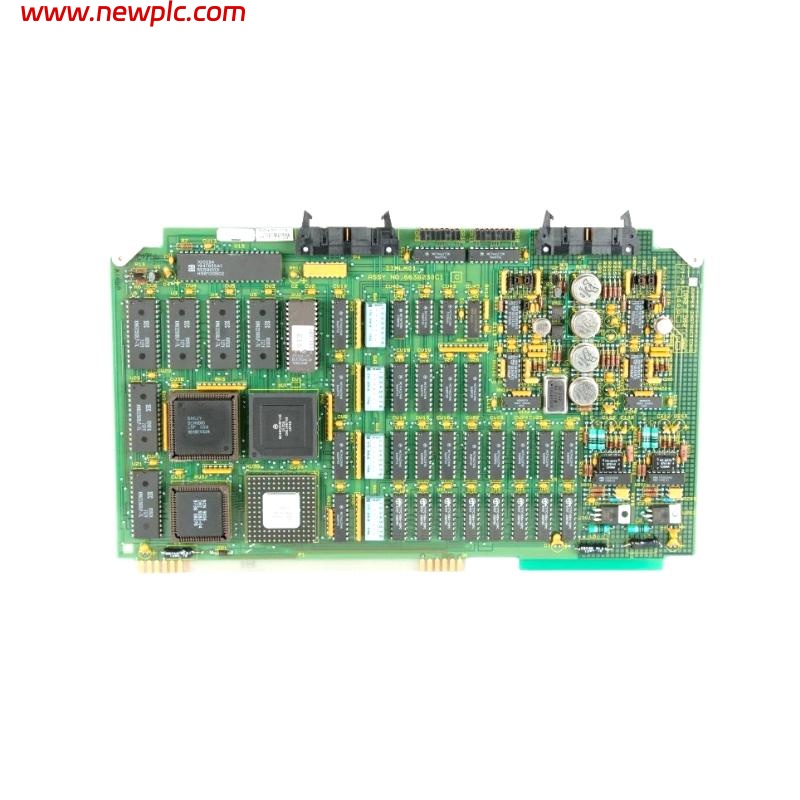

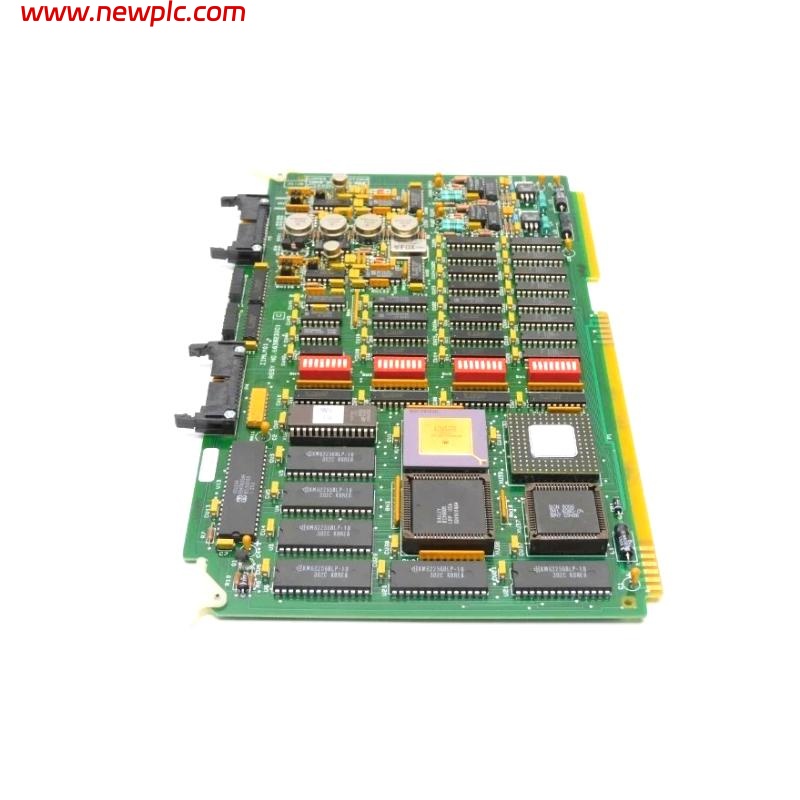

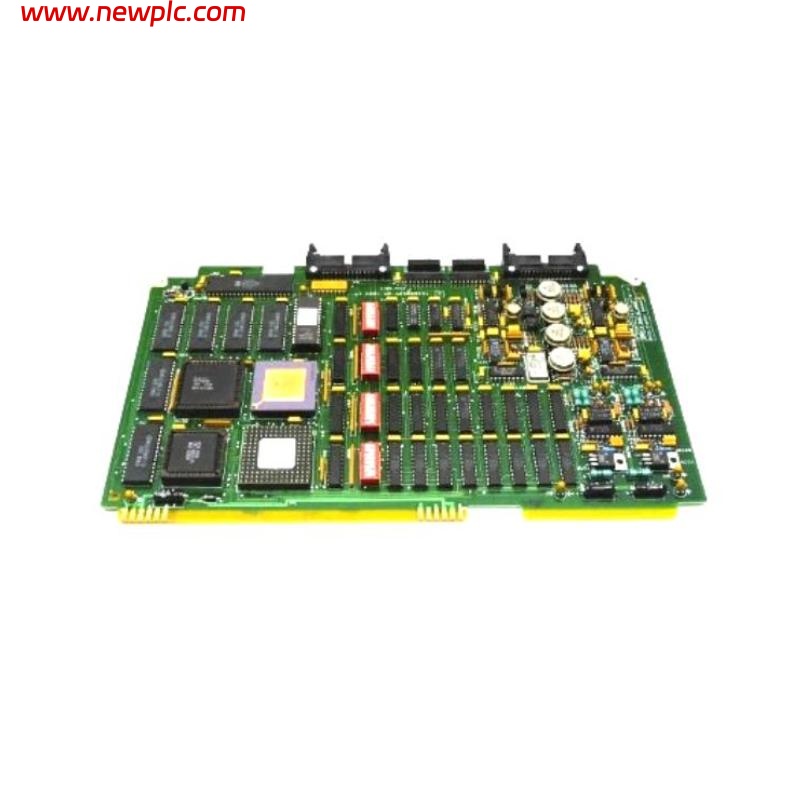

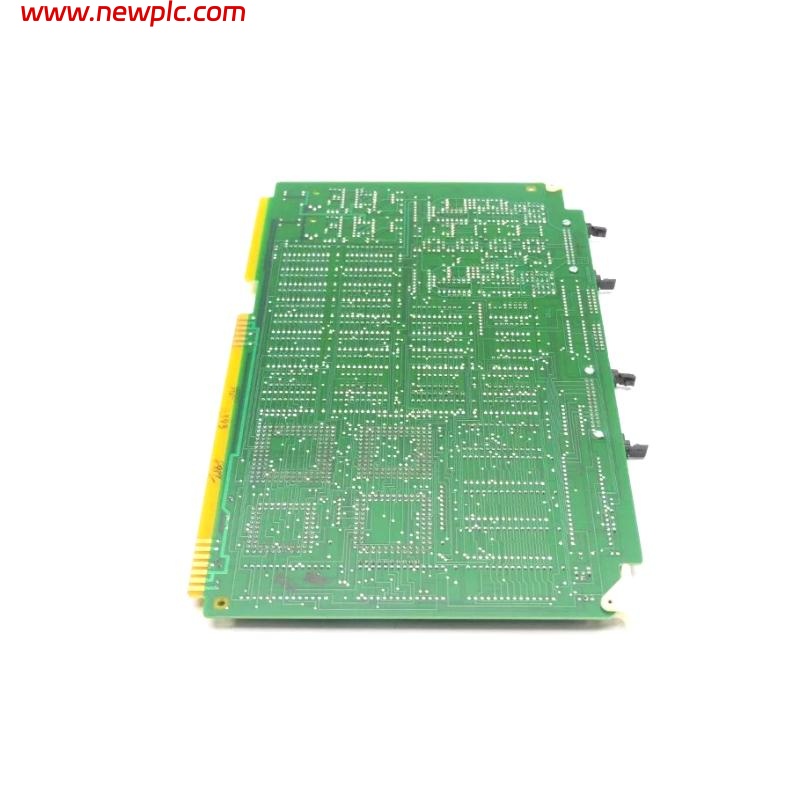

| Product Name | ABB Bailey IIMLM01 Infi 90 Communication Module |
| System Compatibility | Symphony™ Enterprise Management and Control System |
| Communication Function | Cnet-to-Computer interface (dedicated version for Conductor VMS workstations) |
| Interface Type | RS-232-C serial communication |
| Protocol Support | Exception reporting, CRC, checksums, positive message acknowledgment |
| Redundancy Support | Yes, automatic failover without operator intervention |
| Installation Method | Mounted in Harmony Rack MMU with field termination panels |
| Mounting Unit Compatibility | IEMMU11, IEMMU12, IEMMU21, IEMMU22 |
| Cable Termination | NTMP01 termination unit (RS-232-C connection) |
| Communication Rate | Up to 19.2 kilobaud |
| Dimensions | 160 x 120 x 40 mm |
| Weight | 1 kg |
FAQ
FAQ
Q1: What is the primary function of the IIMLM01 module?
A1: The IIMLM01 module connects Conductor VMS workstations to the ABB Cnet communication network for data acquisition, monitoring, and control.
Q2: What type of communication interface does the IIMLM01 use?
A2: It uses an RS-232-C serial communication interface.
Q3: Does the IIMLM01 support redundancy?
A3: Yes, it supports redundancy with automatic failover without operator intervention.
Q4: What is the maximum communication rate supported by IIMLM01?
A4: It supports communication rates up to 19.2 kilobaud.
Q5: How is the IIMLM01 module installed?
A5: It is installed in a Harmony rack MMU and connects to the NTMP01 termination unit.
Q6: What is the system capacity supported by the IIMLM01?
A6: Each Cnet network supports up to 250 nodes, and the system can expand to over 62,000 nodes with satellite networks.
Q7: Does the IIMLM01 support time synchronization?
A7: Yes, it provides plant-wide time synchronization ensuring accurate timestamping of data.
Q8: Is IIMLM01 compatible with standard computer interfaces like INICI03 or INICI12?
A8: No, it is a dedicated module for Conductor VMS workstations and is not interchangeable with INICI03 or INICI12.
