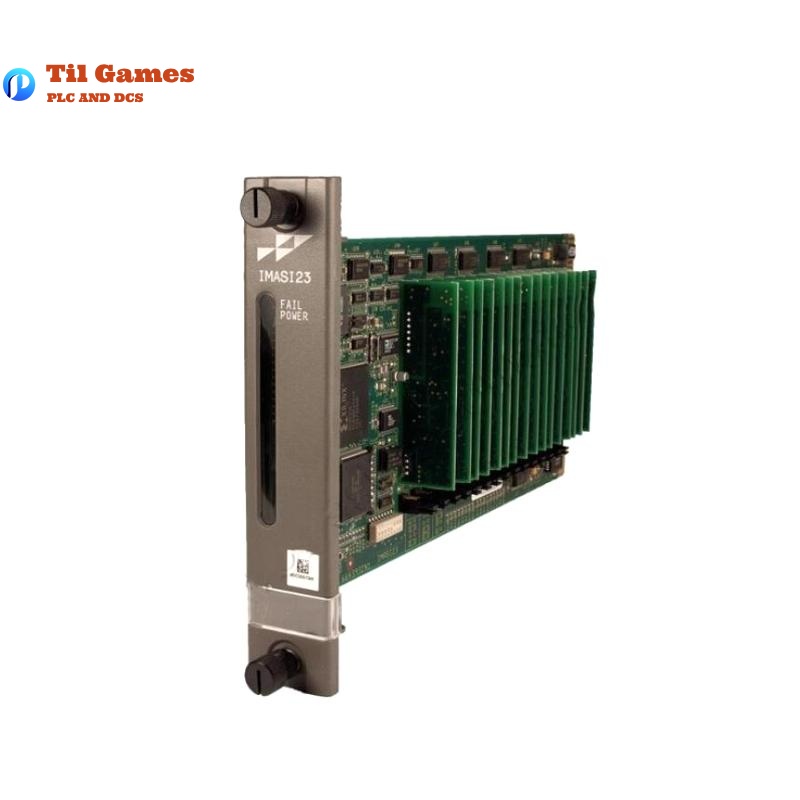

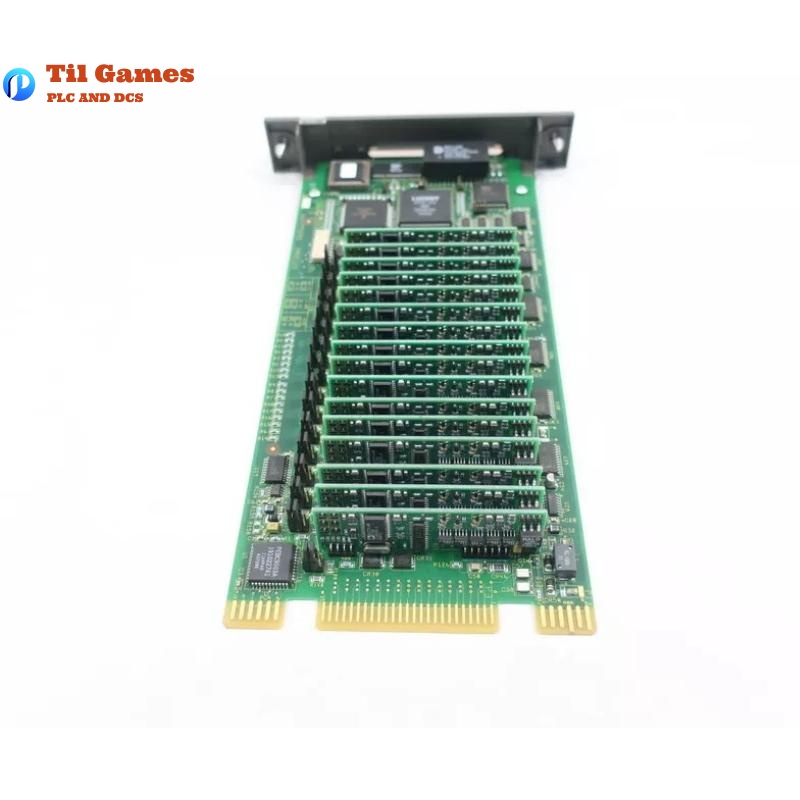

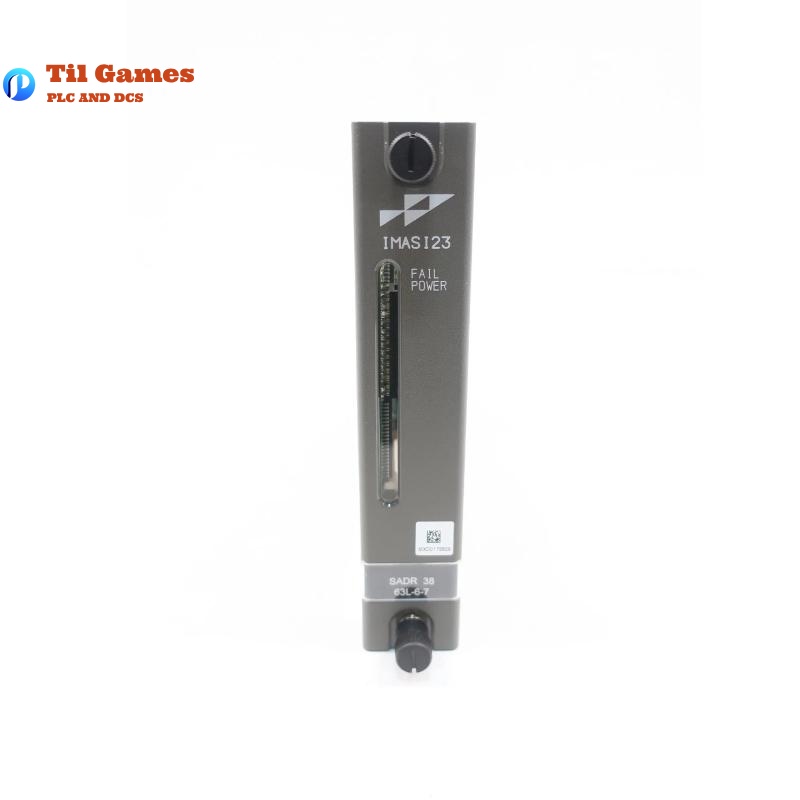

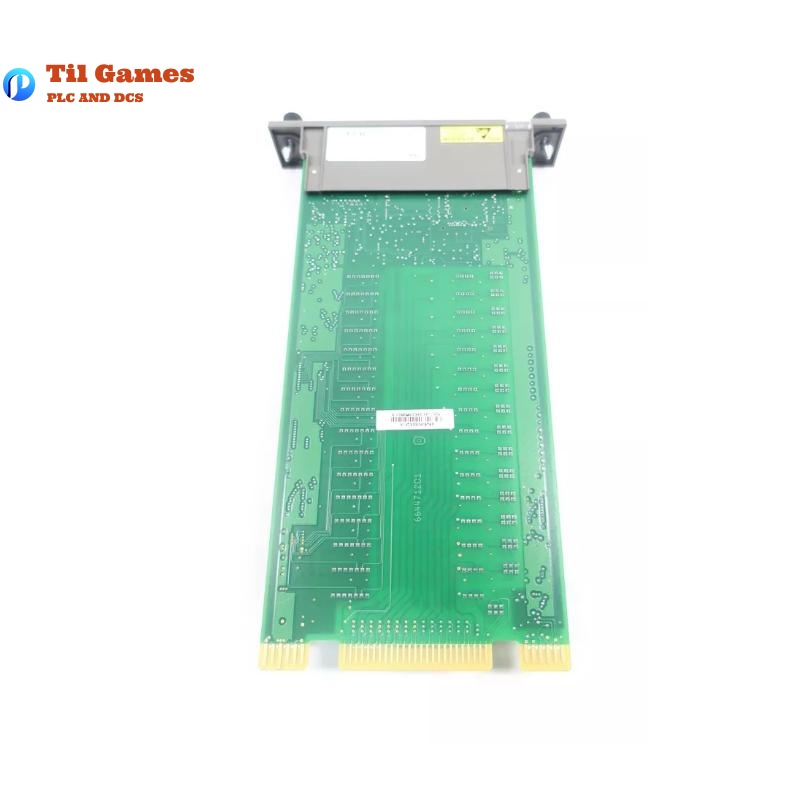

ABB Bailey IMASI23 Infi 90 Analog Input Module

Frequently Asked Questions (FAQ)

Q1: What is the maximum number of analog input channels supported by the IMASI23 module?
A1: The IMASI23 module supports up to 16 isolated analog input channels.

Q2: What types of analog signals are compatible with this module?
A2: It supports millivolt, thermocouple, RTD, 1 to 5 VDC, and 4 to 20 mA signals.

Q3: Does the module provide cold junction compensation for thermocouple inputs?
A3: Yes, the module uses built-in RTDs in the termination unit for accurate cold junction compensation.

Q4: What diagnostic capabilities are included in the IMASI23?
A4: The module includes power-up self-tests, reset diagnostics, real-time monitoring, and watchdog timers.

Q5: How is configuration data set for the module?
A5: Through function codes: FC 215 for module configuration, FC 216 for channel configuration, and FC 217 for user calibration.

Q6: Is field calibration required for this module?
A6: Normally not required, as the module is factory-calibrated. Field calibration is optional if precision references are available.

Q7: What happens if a field wire is disconnected or input is open?
A7: The module detects and reports open input conditions as bad quality on the corresponding channels.

Q8: What termination unit and cable are required for connection to field wiring?
A8: The NTAI06 termination unit and either NKAS01 or NKAS11 cable are required for field signal connection.
