Technical Specifications
| Item | Specification |
|---|---|

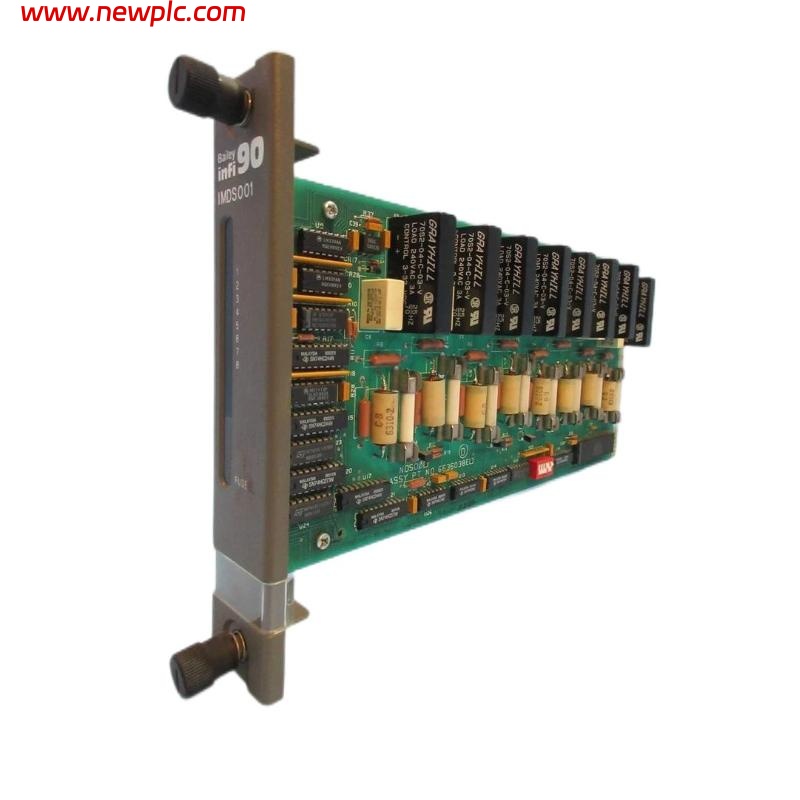

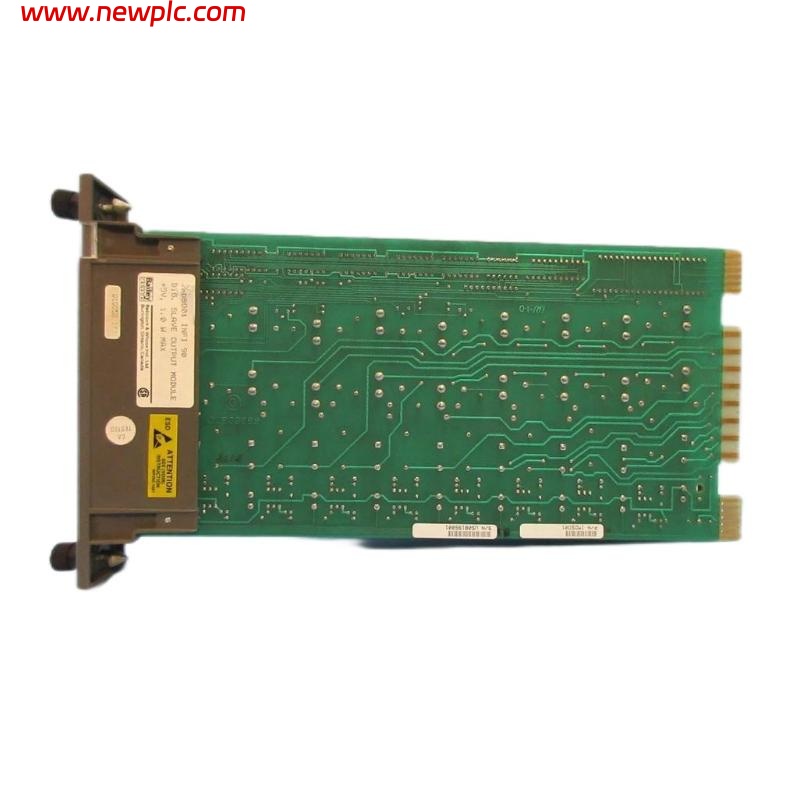

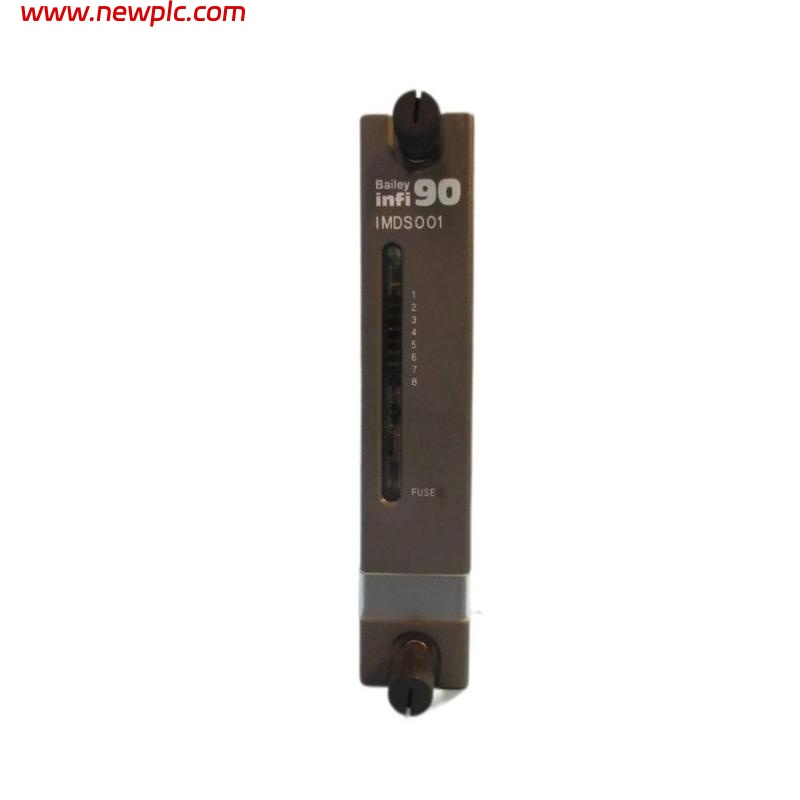

| Product Model | ABB Bailey IMDSO01 Digital Output Slave Module |
| Model Number | 6636038E1 |
| Type | Digital Output Slave Module |
| Compatible Devices | ABB Bailey Infi 90 / DCS systems |
| Number of Output Channels | 8 channels |
| Output Voltage | 24–240 V AC |
| Output Current | Up to 3 A per channel |
| Response Time | ≤ 8.5 ms |
| Logic / Input Power | +5 V DC |
| I/O Power | 24 V DC |
| Isolation | Channel-to-channel and output-to-logic isolation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 130 x 140 x 100 mm |
| Weight | 0.454 kg |
FAQ
FAQ
Q1: What is the primary use of the IMDSO01 module?
A1: It converts control signals into digital outputs in ABB / Bailey Infi systems to drive field devices.
Q2: How many output channels does the module provide?
A2: Provides 8 digital output channels.
Q3: What is the output voltage and current?
A3: Output voltage 24–240 V AC, maximum current 3 A per channel.
Q4: What is the response time of the module?
A4: Typical on/off response time ≤ 8.5 ms.
Q5: What power is required for the module?
A5: Logic power +5 V DC, I/O power 24 V DC.
Q6: Does the module provide isolation protection?
A6: Yes, channels are isolated from each other, and outputs are isolated from logic.
Q7: What are the dimensions and weight of the module?
A7: Dimensions 130 x 140 x 100 mm, weight 0.454 kg.
Q8: What applications is this module suitable for?
A8: Suitable for digital output control and I/O expansion in ABB Infi 90 or DCS systems.
