Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Multifunction Controller Module |

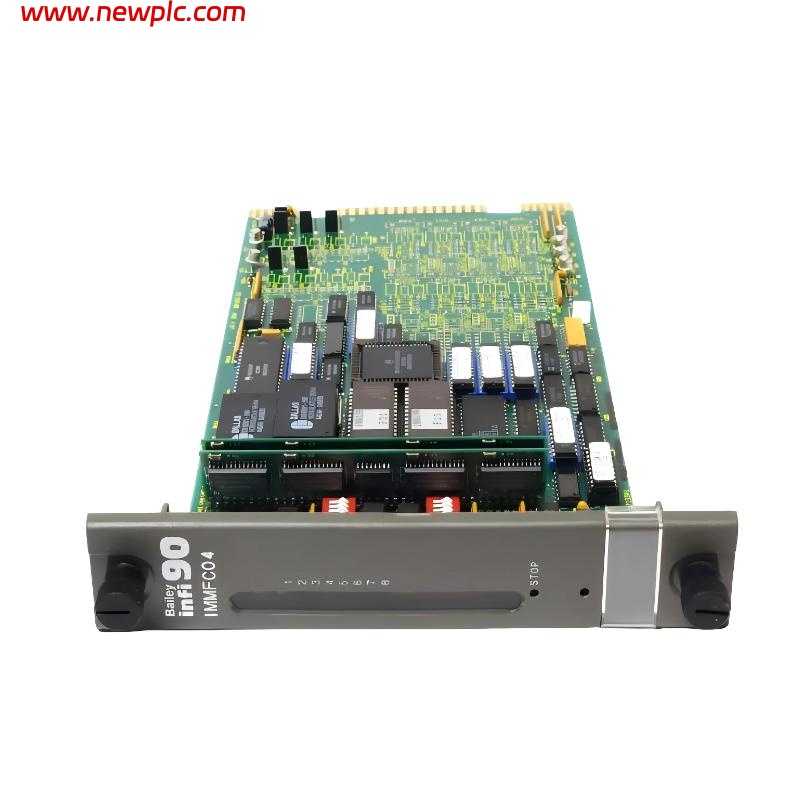

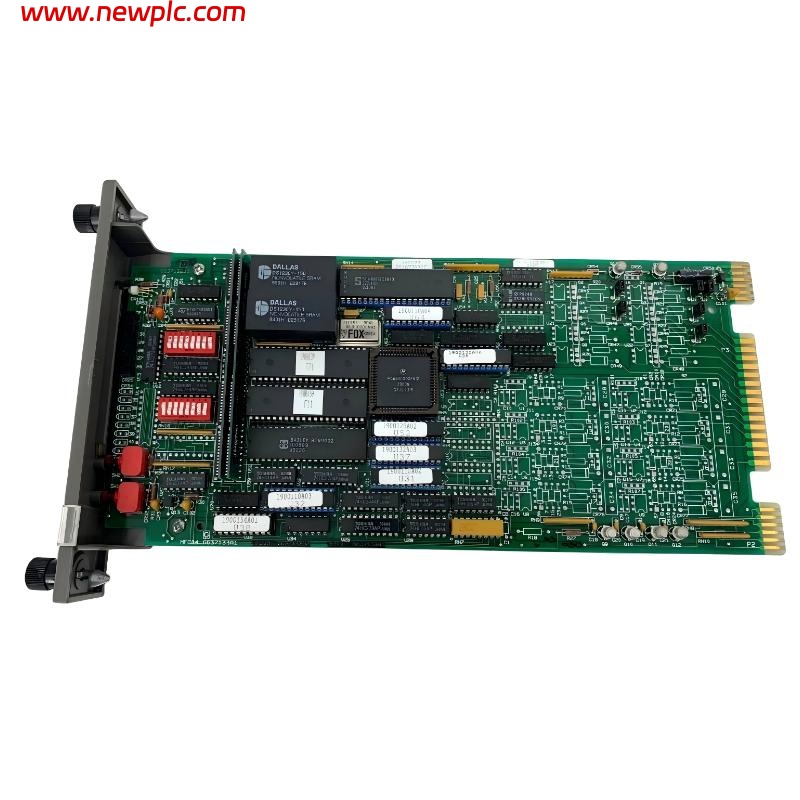

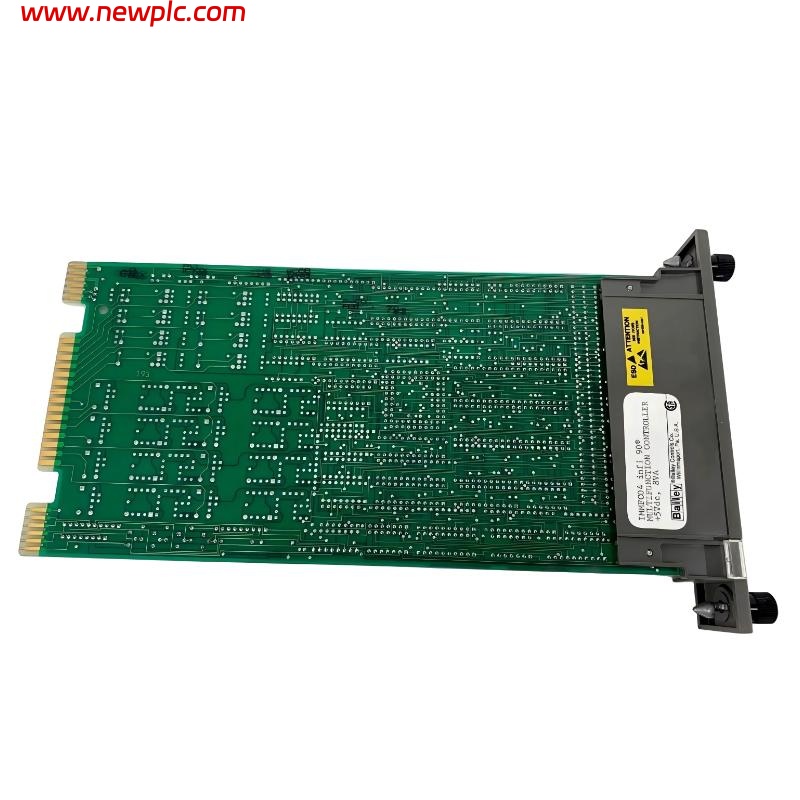

| Model | ABB Bailey IMMFC04 |
| Dimensions | 250 × 120 × 50 mm |
| Weight | 0.3 kg |
| Function | Executes process control strategies, manages communication, and coordinates I/O operations in the INFI 90 system |
| Processor Type | High-performance 16-bit microprocessor |
| Memory | 256 KB RAM, 512 KB EPROM, expandable memory supported |
| Power Supply | 24 VDC nominal |
| Input/Output Interface | Supports both analog and digital I/O modules via system backplane |
| Communication Interface | INFI 90/Network 90 communication bus |
| Communication Speed | Up to 1 Mbps |
| Control Capabilities | PID, logic, sequence, and arithmetic control functions |
| Diagnostics | Self-diagnostics, watchdog timer, and error reporting |
| Backup and Redundancy | Supports redundant controller configuration for high availability |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95%, non-condensing |
| Mounting | Plug-in type for INFI 90 system rack |
| Certifications | CE, UL, CSA, and industrial EMC standards compliant |
FAQ
FAQ
Q1: What is the main function of the ABB Bailey IMMFC04 module?
A1: The IMMFC04 acts as the core control processor within the ABB INFI 90 system, handling all control logic, I/O coordination, and communication between process modules and higher-level control systems.
Q2: What types of control functions can the IMMFC04 perform?
A2: It supports multiple control strategies including PID, logic, sequence, and arithmetic functions, allowing it to manage complex industrial automation processes efficiently.
Q3: How does the IMMFC04 communicate with other system components?
A3: The module uses the INFI 90 communication bus, enabling high-speed data exchange with input/output modules, communication interfaces, and system controllers.
Q4: Does the IMMFC04 support redundant operation?
A4: Yes, the module can be configured in a redundant setup with another IMMFC04 to ensure continuous operation and system reliability in case of hardware failure.
Q5: What kind of diagnostic features does the IMMFC04 include?
A5: The module features built-in self-diagnostics, a watchdog timer, and fault reporting functions to detect and alert operators to any operational or communication issues.
Q6: Can the IMMFC04 be integrated with both analog and digital I/O modules?
A6: Yes, it supports a wide range of analog and digital I/O modules connected through the INFI 90 backplane, providing flexibility for various process control applications.
Q7: What type of memory does the IMMFC04 use for program and data storage?
A7: It uses RAM for real-time processing and EPROM for firmware and configuration storage, ensuring reliable and stable long-term operation.
Q8: In which environments can the IMMFC04 operate reliably?
A8: The module is designed to operate in demanding industrial environments, withstanding a temperature range from 0°C to +60°C and high humidity conditions without performance degradation.
