Technical Specifications
| Parameter | Specification |
|---|---|

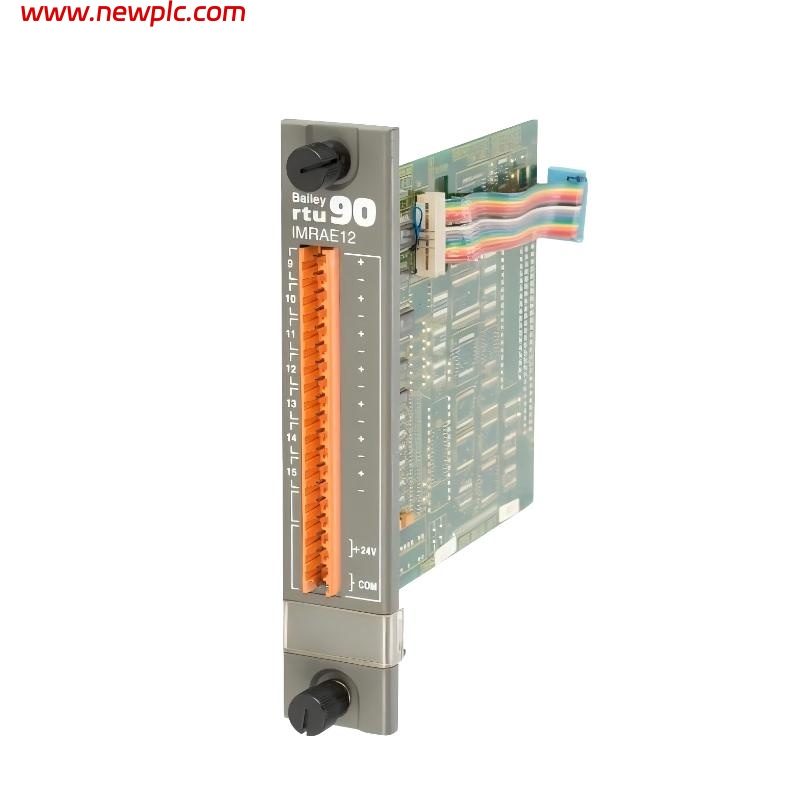

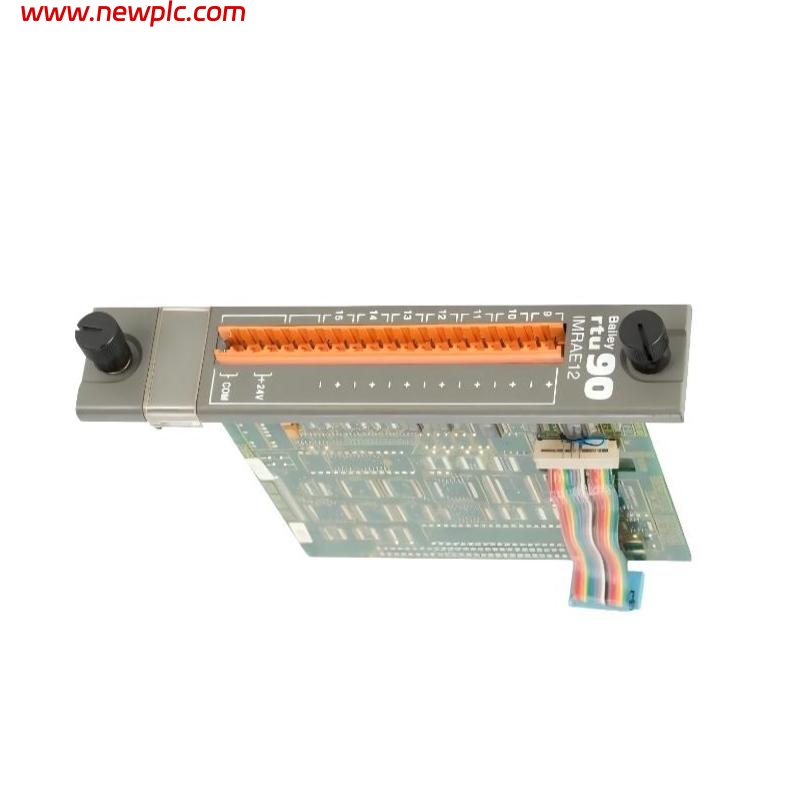

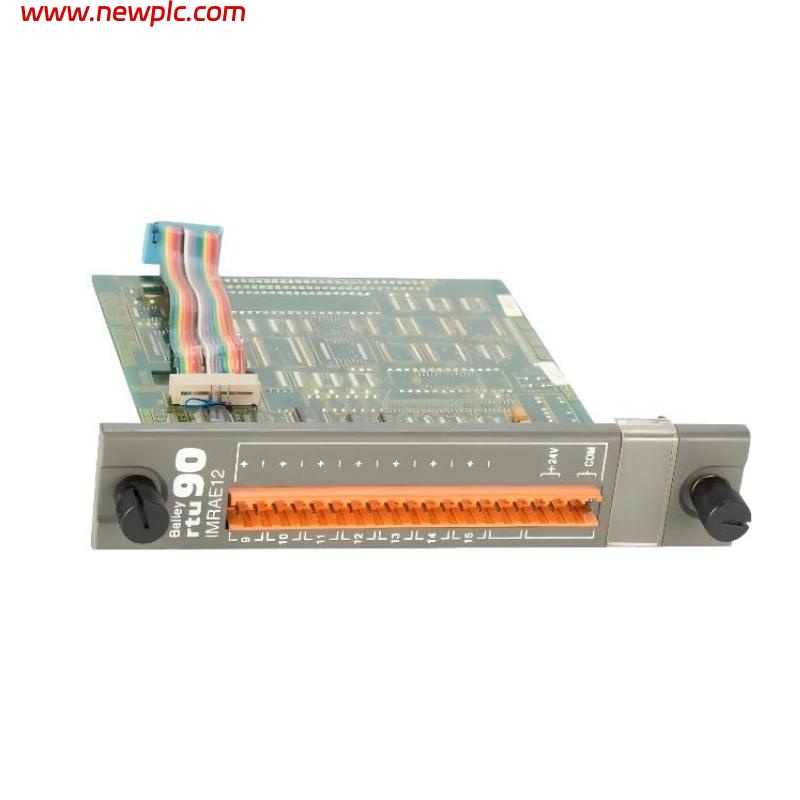

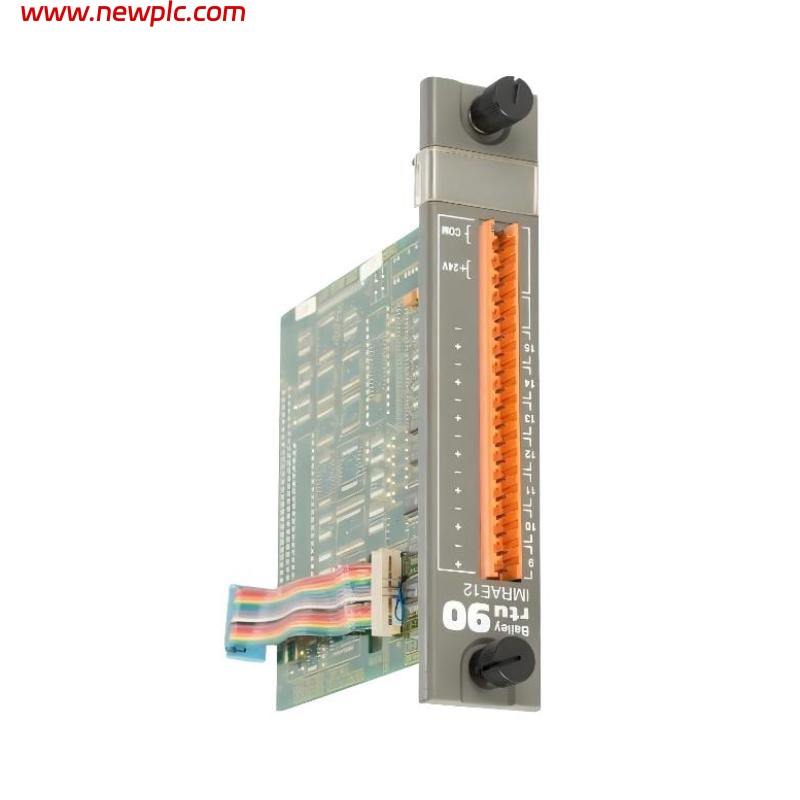

| Model | ABB Bailey IMRAE12 |
| Type | Isolated Analog Input Module |
| System Compatibility | INFI-90 Distributed Control System |
| Function | Acquires isolated analog signals from field devices for processing in the control system |
| Power Supply Voltage | 15 V DC nominal |
| Power Consumption | Approx. 6 W |
| Input Type | Analog voltage/current signals |
| Signal Range | 0–10 V, 0–20 mA, 4–20 mA |
| Number of Channels | 12 isolated analog input channels |
| Resolution | 12-bit or higher |
| Input Impedance | >100 kΩ for voltage inputs |
| Communication Interface | INFI-90 system bus |
| Isolation | Full channel-to-bus galvanic isolation |
| Diagnostic Functions | Channel monitoring, fault detection, signal validation |
| Redundancy Support | Supported through system configuration |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% – 95% RH, non-condensing |
| Protection Class | IP20 |
| Compliance Standards | IEC, CE, and ANSI industrial standards |
| Dimensions | 250 × 120 × 50 mm |
| Weight | 0.9 kg |
FAQ
FAQ
Q1: What is the main function of the ABB Bailey IMRAE12 module?
A1: The IMRAE12 is an isolated analog input module that acquires and transmits analog signals from field devices to the INFI-90 control system for processing.
Q2: How many input channels does the IMRAE12 provide?
A2: The module provides 12 fully isolated analog input channels for signal acquisition.
Q3: What types of signals can the IMRAE12 handle?
A3: It supports voltage signals (0–10 V) and current signals (0–20 mA, 4–20 mA).
Q4: Does the IMRAE12 provide galvanic isolation?
A4: Yes, all input channels are fully isolated from the system bus to ensure signal integrity and protection.
Q5: What diagnostic functions are included in the IMRAE12?
A5: The module provides channel monitoring, fault detection, and signal validation diagnostics.
Q6: Can the IMRAE12 be used in redundant system configurations?
A6: Yes, redundancy is supported through the INFI-90 system configuration for increased reliability.
Q7: What communication interface does the IMRAE12 use?
A7: It communicates via the INFI-90 system bus, enabling integration with other modules in the control system.
Q8: What are the operating environmental conditions for the IMRAE12?
A8: The module operates effectively between 0°C and +60°C with 5%–95% relative humidity, non-condensing.
