Technical Specifications
| Parameter | Specification |
|---|---|

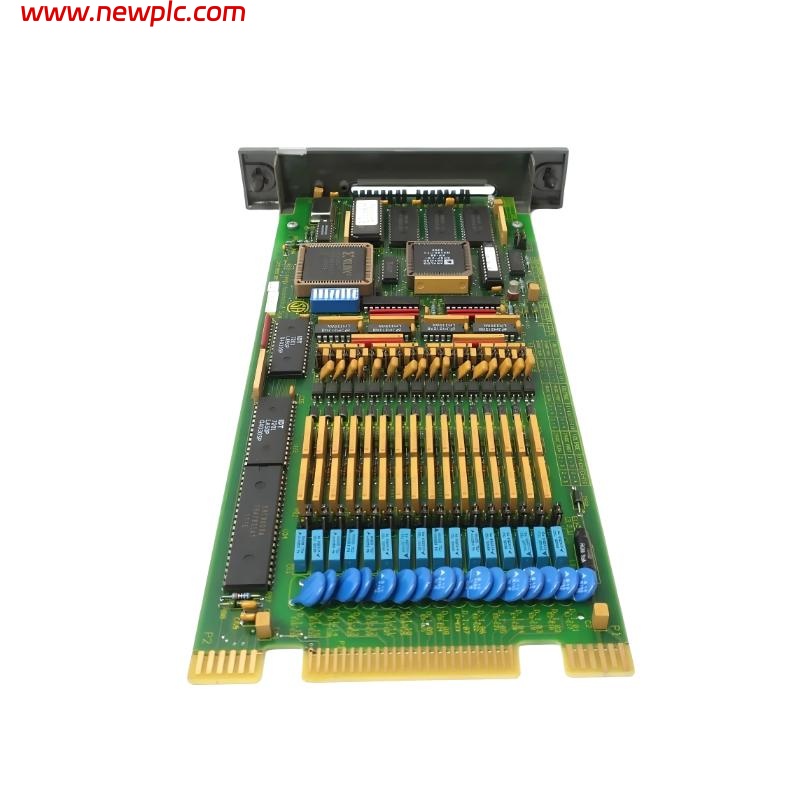

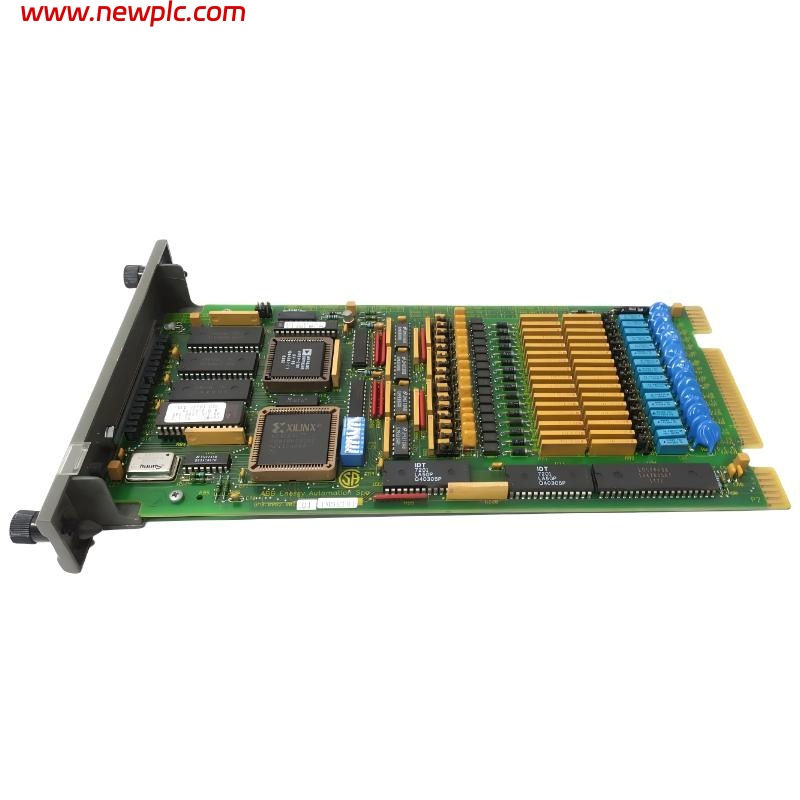

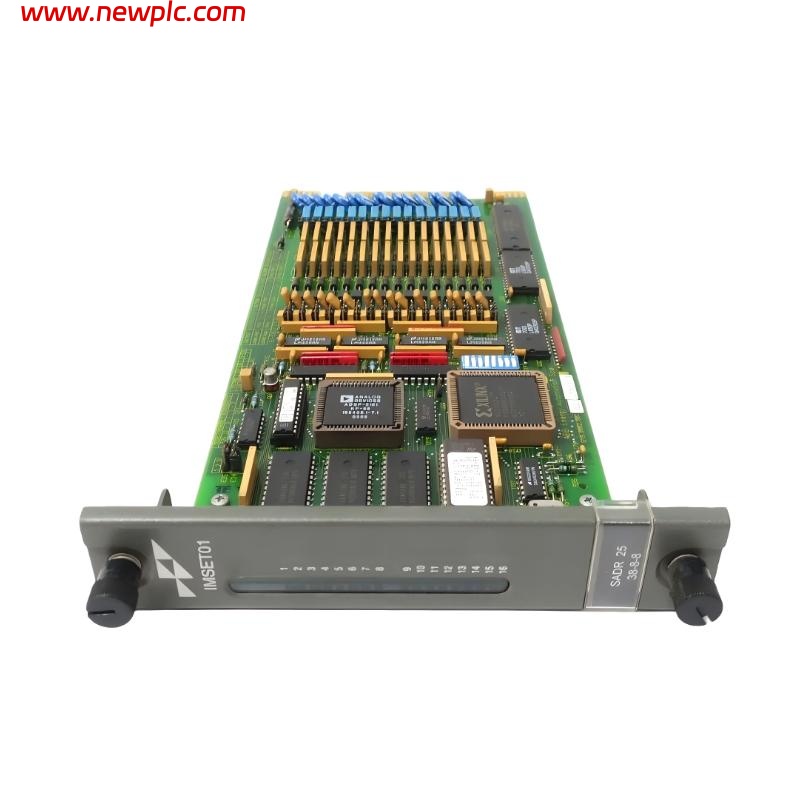

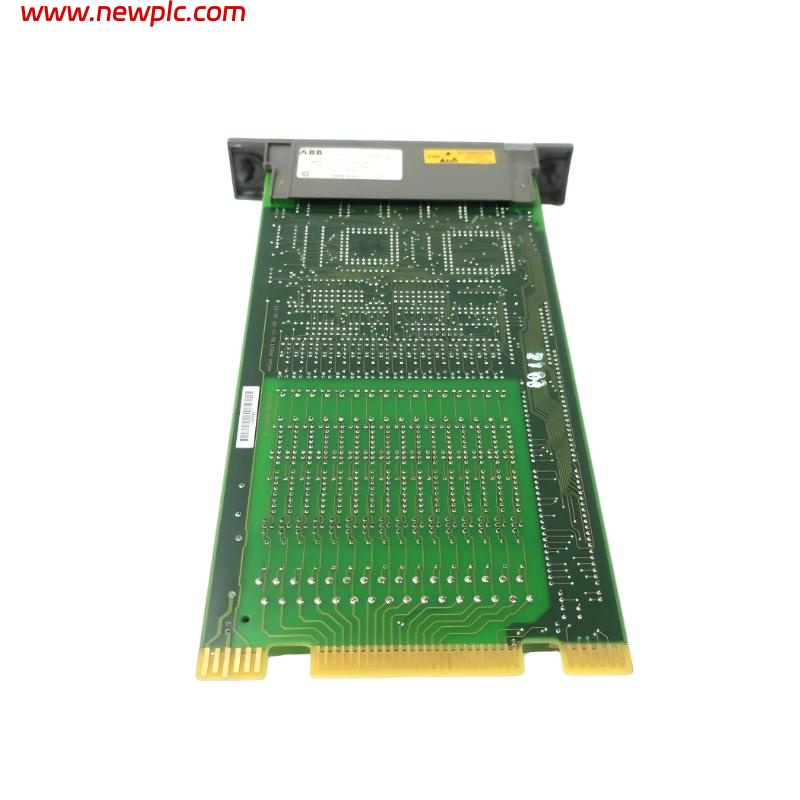

| Model | ABB Bailey IMSET01 |
| Type | Sequence of Event Time Keeper Module |
| System Compatibility | INFI-90 Distributed Control System |
| Function | Provides precise time synchronization and event timestamping for SOE modules |
| Power Supply Voltage | 15 V DC nominal |
| Power Consumption | Approx. 3 W |
| Communication Interface | INFI-90 communication bus |
| Time Synchronization Accuracy | ±1 millisecond |
| Time Reference Sources | External clock, GPS, or master controller |
| Supported Modules | Works with IMSED01 and other SOE modules |
| Diagnostic Functions | Clock status monitoring, synchronization error detection |
| Backup Battery | Yes, retains time during power loss |
| Redundancy Support | Supported via dual time keeper configuration |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% – 95% RH, non-condensing |
| Protection Class | IP20 |
| Compliance Standards | IEC, CE, and ANSI industrial standards |
| Dimensions | 330.2 × 177.8 × 50.8 mm |
| Weight | 0.37 kg |
FAQ
FAQ
Q1: What is the primary function of the ABB Bailey IMSET01 module?
A1: The IMSET01 serves as a time keeper module that provides accurate system-wide time synchronization for sequence of events (SOE) recording within the INFI-90 control system.
Q2: Which modules does the IMSET01 synchronize with?
A2: It synchronizes with SOE modules such as the IMSED01 and other INFI-90 components requiring precise time stamping.
Q3: What is the accuracy of the IMSET01’s time synchronization?
A3: The module maintains a synchronization accuracy of ±1 millisecond for reliable event sequencing.
Q4: What are the available time reference sources for the IMSET01?
A4: It can synchronize with external clocks, GPS signals, or the master system controller.
Q5: Does the IMSET01 include a backup power feature?
A5: Yes, it includes an internal battery to maintain timekeeping during power interruptions.
Q6: What diagnostic capabilities does the IMSET01 provide?
A6: It monitors clock status, synchronization quality, and reports any time drift or error conditions.
Q7: Can the IMSET01 be used in redundant configurations?
A7: Yes, it supports dual time keeper setups for redundancy and enhanced system reliability.
Q8: What is the typical operating temperature range for the IMSET01?
A8: The module operates effectively between 0°C and +60°C and can be safely stored from -40°C to +85°C.
