Technical Specifications
| Item | Specification |
|---|---|

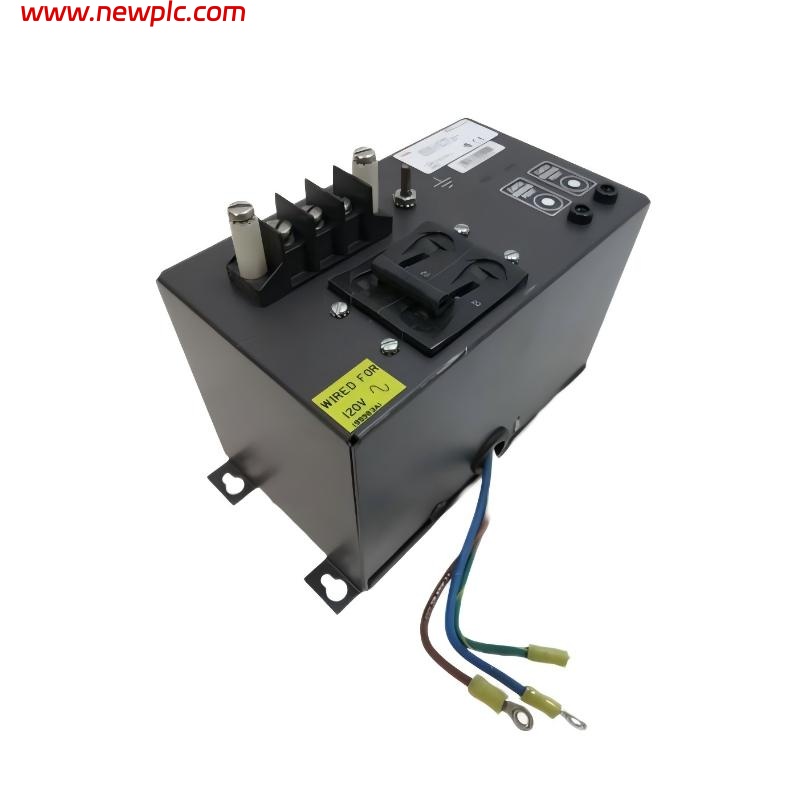

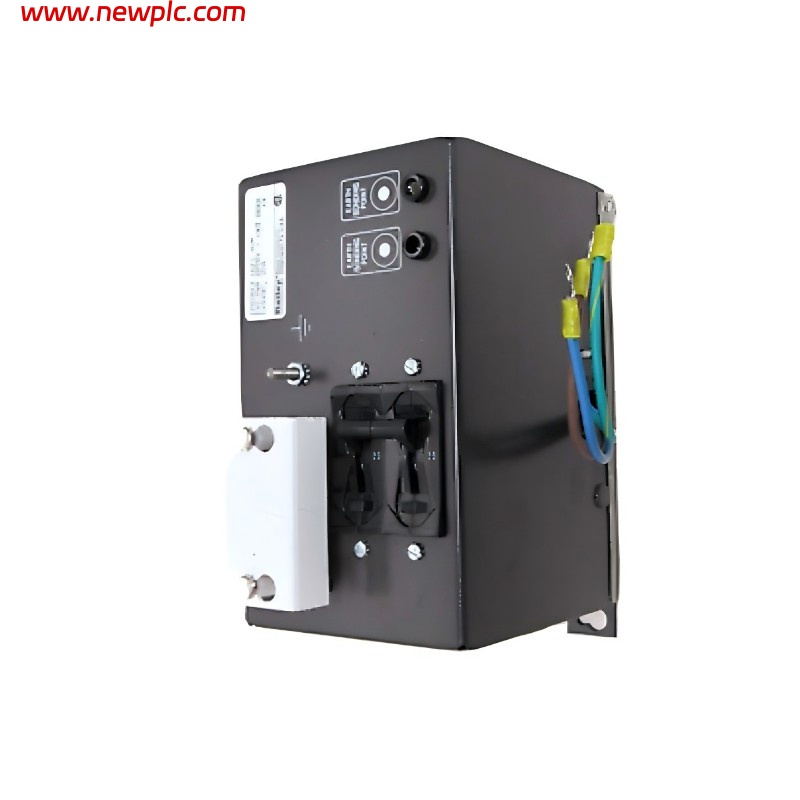

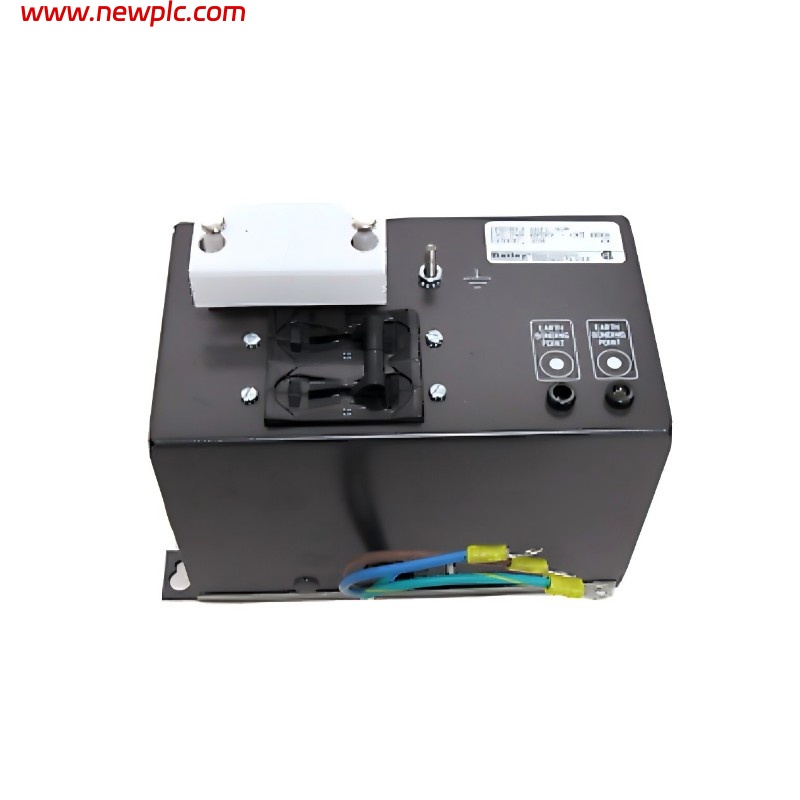

| Model | ABB Bailey IPECB13 |
| Product Type | Power Input Circuit Breaker |
| System | ABB Bailey Control System |
| Function | Protects the control system’s power input circuits from overload, short circuit, and electrical faults |
| Rated Voltage | 125 VDC (typical) |
| Rated Current | 20 A |
| Poles | 2 poles |
| Mounting Location | Power module chassis input |
| Material | Industrial-grade metal and composite housing |
| Mounting Type | Rack-mounted or DIN rail installation |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 114.3 x 193.04 x 162.56 mm |
| Weight | 2.55 kg |
FAQ
FAQ
Q1: What is the main function of the IPECB13?
A: It protects the control system’s power input circuits from overload, short circuit, and electrical faults.
Q2: What input voltage does it support?
A: Typically 125 VDC.
Q3: What is the rated current?
A: 20 A standard.
Q4: How many poles does the breaker have?
A: Two poles (2 P).
Q5: Where is it installed?
A: At the power module chassis input.
Q6: What should be considered during installation?
A: Disconnect the main power, ensure proper mounting, secure wiring, and avoid overload.
Q7: What is the operating temperature range?
A: 0°C to 60°C.
Q8: What are the dimensions and weight?
A: Dimensions: 114.3 x 193.04 x 162.56 mm; weight: 2.55 kg.
