Technical Specifications
| Item | Specification |
|---|---|

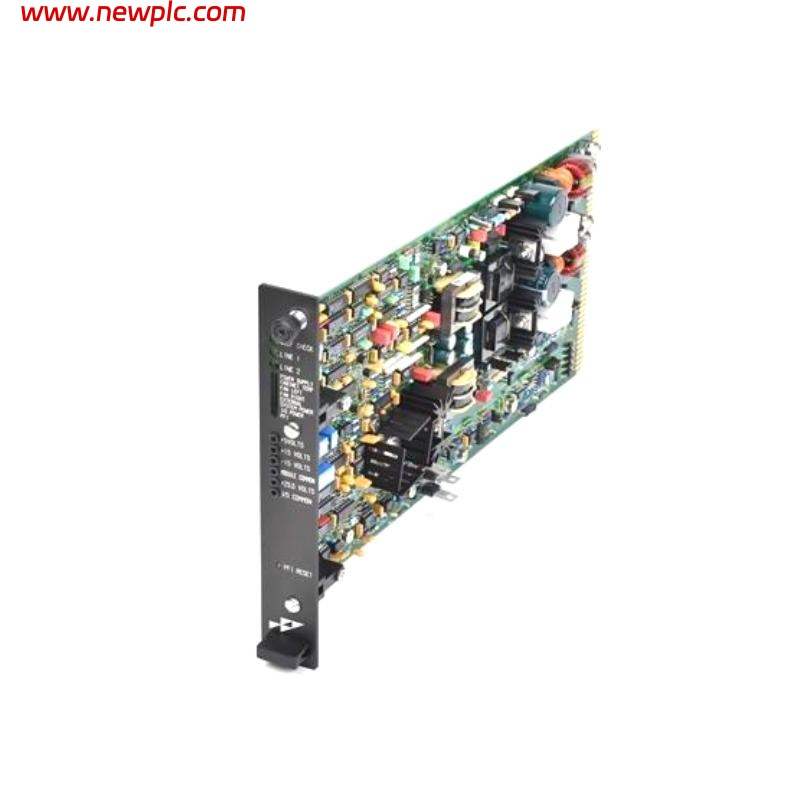

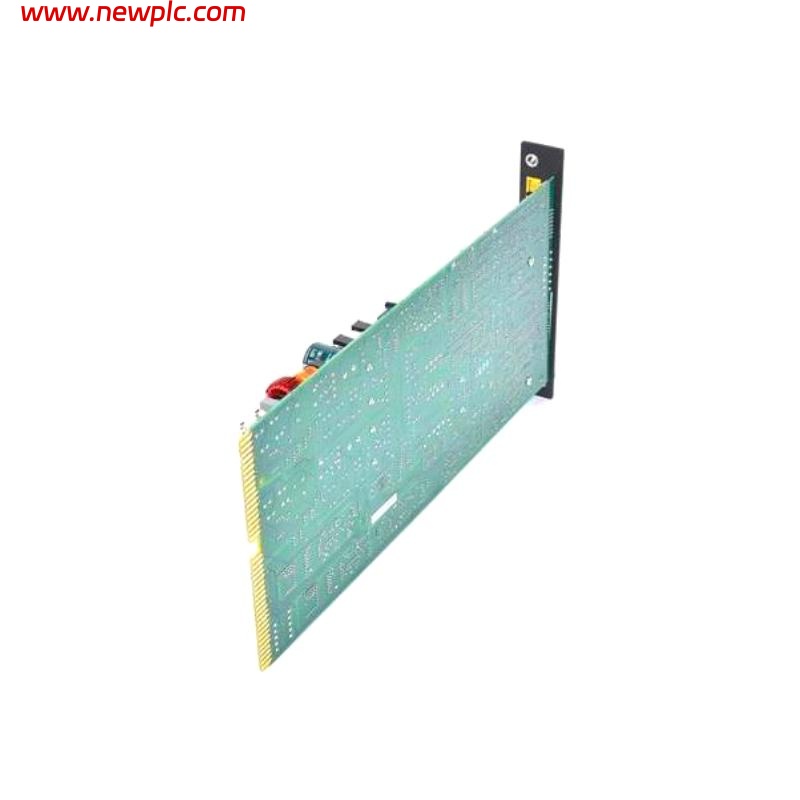

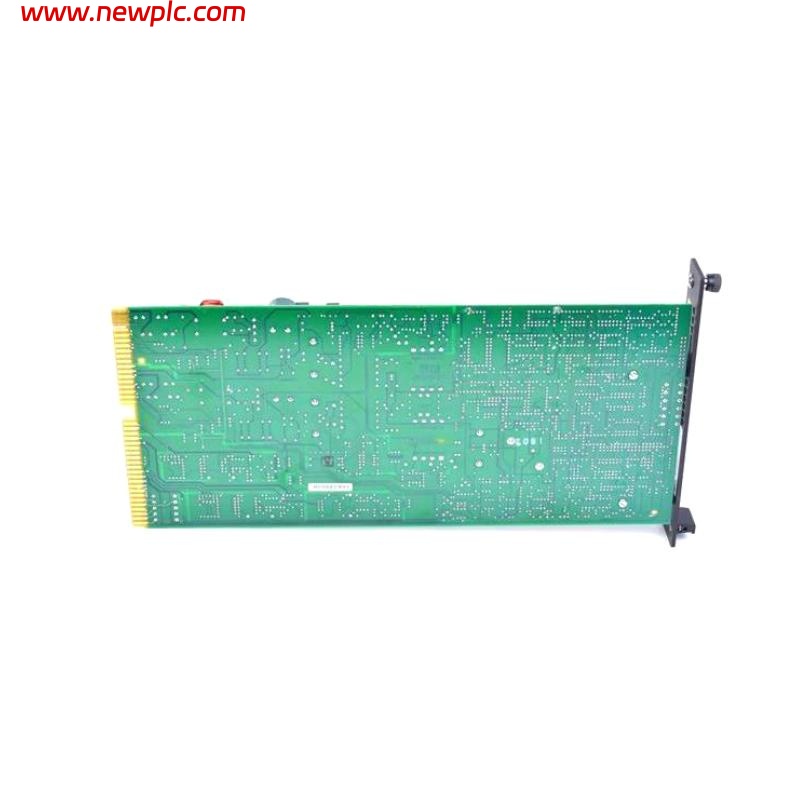

| Model | ABB Bailey IPMON01 |
| Type | Power Monitoring Module |
| Function | Monitors three-phase voltage, current, active power, reactive power, and power factor |
| Measurement Range | 0–600 V AC (voltage), 0–10 A AC (current) |
| Resolution | 16-bit |
| Accuracy | ±0.2% FS |
| Update Rate | 1 second |
| Communication Interface | MODBUS RTU / ABB industrial bus protocol |
| Supply Voltage | 24 V DC |
| Power Consumption | 3 W |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 218.4 × 35.56 × 401.32 mm |
| Weight | 0.71 kg |
FAQ
FAQ
Q1: What electrical parameters can the IPMON01 monitor?
A1: It monitors three-phase voltage, current, active power, reactive power, and power factor.
Q2: What are the voltage and current measurement ranges?
A2: Voltage: 0–600 V AC, Current: 0–10 A AC.
Q3: What are the resolution and accuracy?
A3: Resolution is 16-bit, accuracy is ±0.2% FS.
Q4: What is the data update rate?
A4: The module updates measurements every 1 second.
Q5: Which communication interface does the module use?
A5: Supports MODBUS RTU or ABB industrial bus protocol.
Q6: What are the supply voltage and power consumption?
A6: Supply voltage is 24 V DC, power consumption is 3 W.
Q7: What is the operating temperature range?
A7: –20 °C to +70 °C.
Q8: What are the module’s dimensions and weight?
A8: Dimensions are 218.4 × 35.56 × 401.32 mm, weight is 0.71 kg.
