Technical Specifications
| Item | Specification |
|---|---|

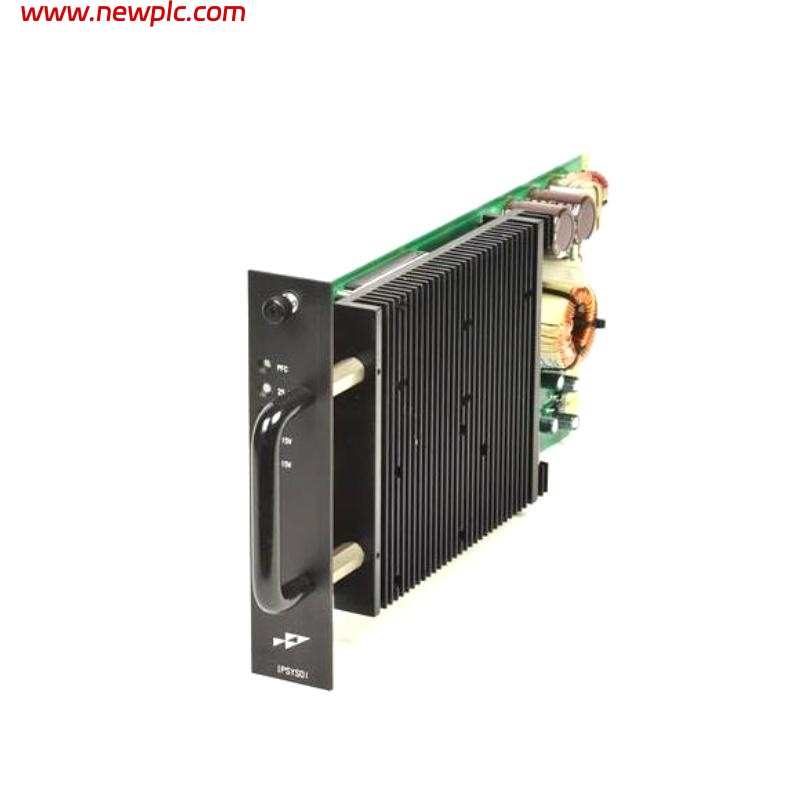

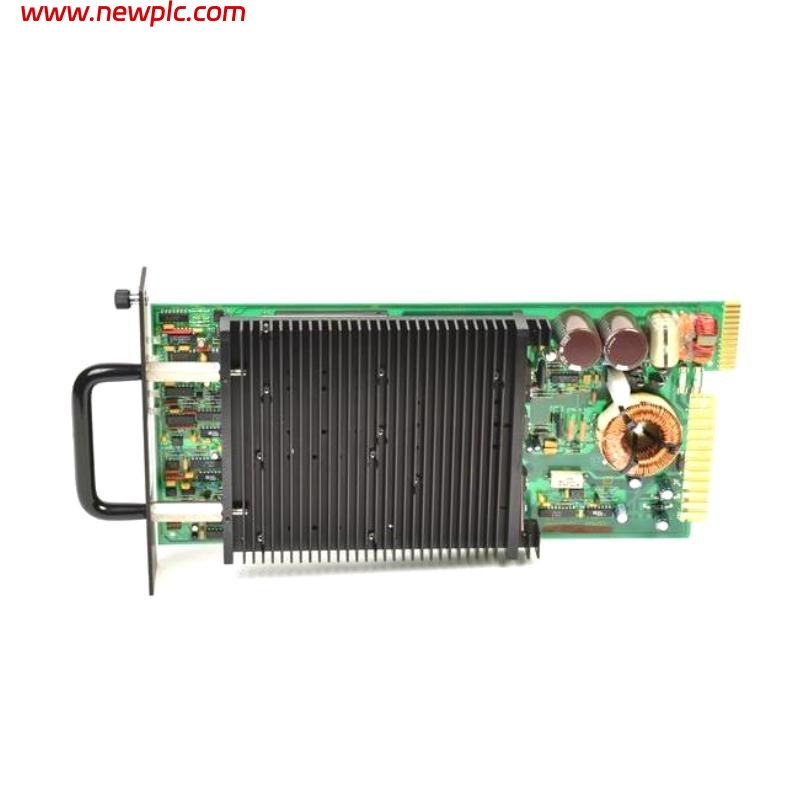

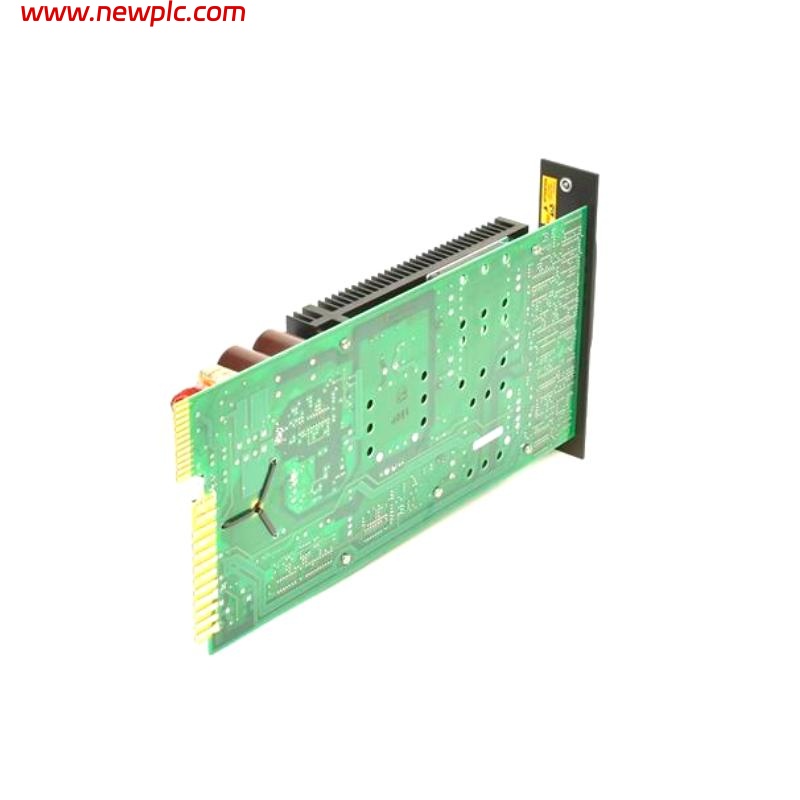

| Model | ABB Bailey IPSYS01 |
| Type | System Power Module |
| Function | Provides stable power for ABB Bailey system modules |
| Output Voltage | 24 V DC ±5% |
| Output Current | 2 A |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Power Consumption | 10 W |
| Output Protection | Overload and short-circuit protection |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 218.4 x 48.3 x 444.5 mm |
| Weight | 2.55 kg |
FAQ
FAQ
Q1: What is the main function of the IPSYS01?
A1: It provides a stable and reliable 24 V DC power supply for ABB Bailey system modules.
Q2: What are the output voltage and current?
A2: Output voltage is 24 V DC ±5%, maximum output current is 2 A.
Q3: What input voltage range is supported?
A3: Supports 100–240 V AC, 50/60 Hz.
Q4: Does the module have protection features?
A4: Yes, it has overload and short-circuit protection.
Q5: What is the operating temperature range?
A5: –20 °C to +70 °C.
Q6: What is the power consumption?
A6: Power consumption is 10 W.
Q7: What are the module’s dimensions and weight?
A7: Dimensions are 218.4 x 48.3 x 444.5 mm, weight is 2.55 kg.
Q8: Which systems is it suitable for?
A8: Suitable for various modules in ABB Bailey control systems.
