Technical Specifications
| Parameter | Specification |
|---|---|

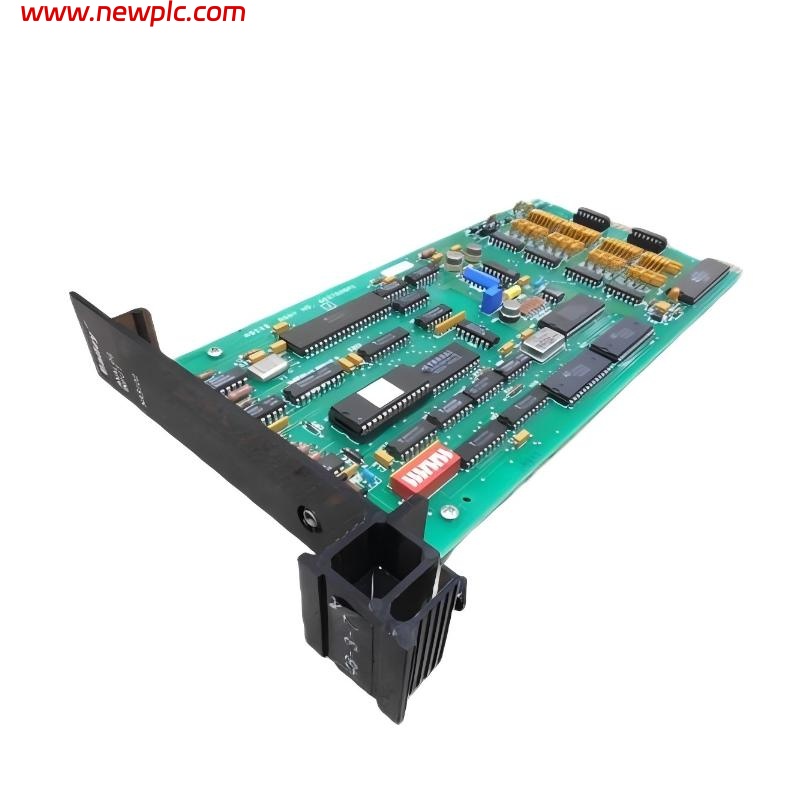

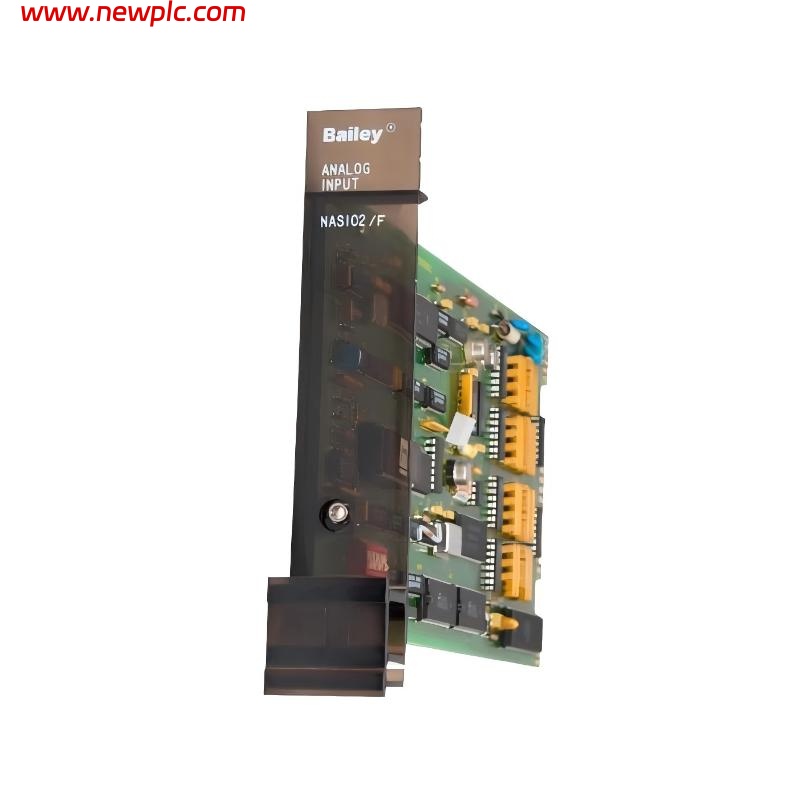

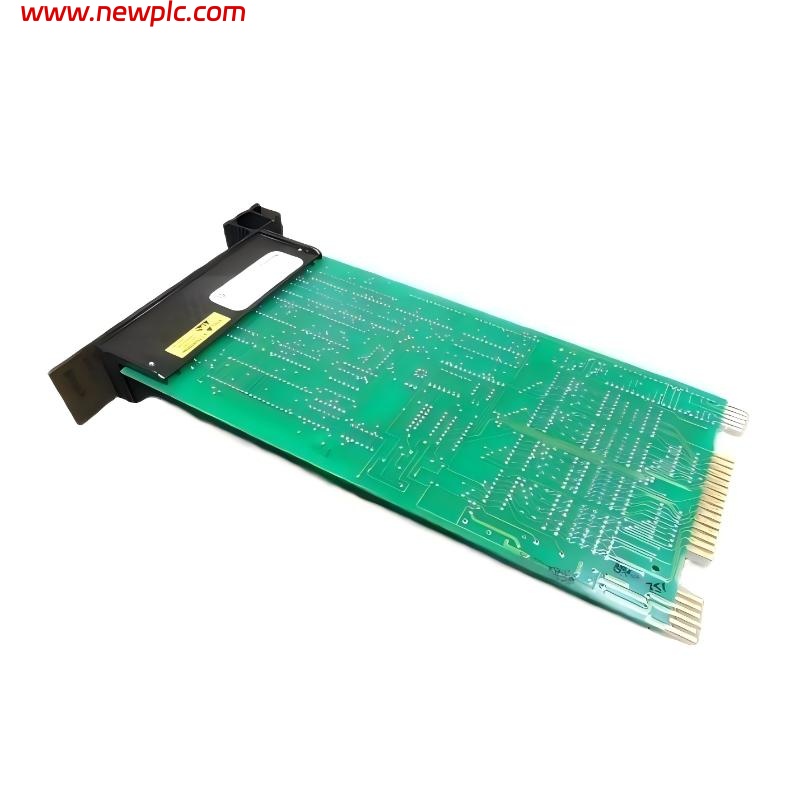

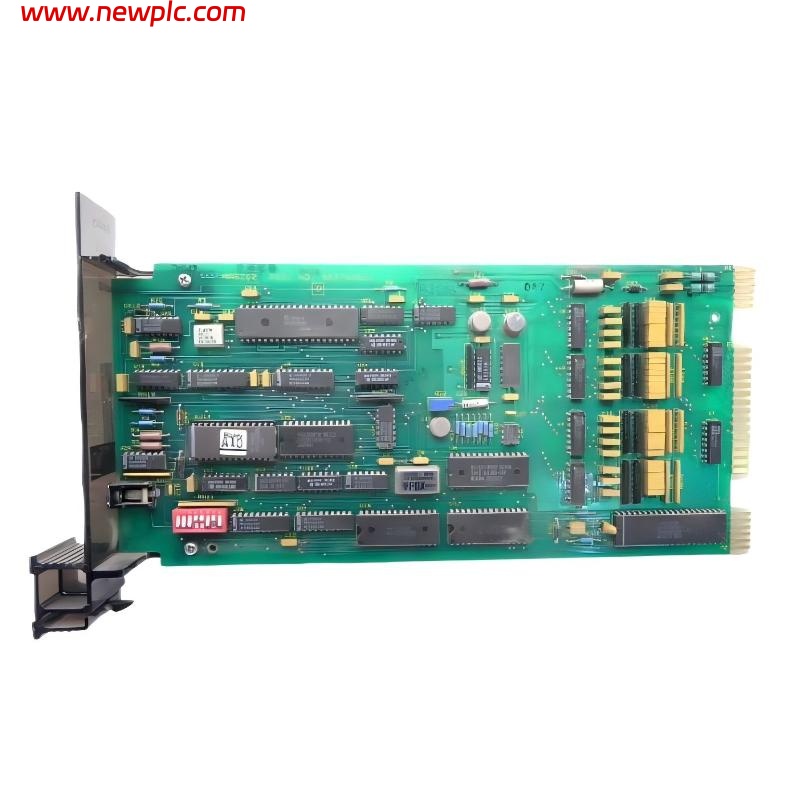

| Model | ABB Bailey NASI02/F |
| Type | Analog Input Module |
| Function | Provides accurate analog signal acquisition for process control systems |
| Application | Used in ABB Bailey INFI 90 distributed control systems |
| Input Channels | 8 isolated analog input channels |
| Input Signal Type | 4–20 mA, 0–10 VDC |
| Input Impedance | 250 Ω nominal (for current inputs) |
| Resolution | 12-bit A/D conversion |
| Sampling Rate | 10 samples per second per channel |
| Accuracy | ±0.1% of full scale |
| Common Mode Rejection Ratio | >100 dB at 50/60 Hz |
| Isolation Voltage | 1500 V RMS channel-to-ground |
| Power Supply Voltage | 24 VDC nominal |
| Power Consumption | <6 W |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Cooling Method | Natural convection |
| Mounting Type | DIN-rail or backplane mount |
| PCB Material | Multilayer FR-4 with protective coating |
| Dimensions (HxWxD) | 138 × 40 × 120 mm |
| Weight | 0.454 kg |
FAQ
FAQ
Q1: What is the primary role of the ABB Bailey NASI02/F module?
A1: The NASI02/F serves as an analog input interface, converting analog process signals into digital values for use within ABB Bailey INFI 90 control systems.
Q2: What types of analog signals can this module accept?
A2: It supports both current (4–20 mA) and voltage (0–10 VDC) input signals, providing flexibility for various field sensors.
Q3: How many input channels are available on the NASI02/F?
A3: The module provides 8 isolated analog input channels, allowing simultaneous multi-point signal acquisition.
Q4: How does the NASI02/F ensure signal accuracy and reliability?
A4: It uses 12-bit A/D conversion with high noise immunity and channel isolation rated at 1500 V RMS for precise and stable signal processing.
Q5: Can the NASI02/F be integrated into other ABB Bailey systems?
A5: Yes, it is fully compatible with ABB Bailey INFI 90 Series systems and can communicate seamlessly with other control and I/O modules.
Q6: What is the power requirement of this analog input module?
A6: The module operates on a 24 VDC power supply and consumes less than 6 watts during normal operation.
Q7: Is calibration required for the NASI02/F module?
A7: Calibration is recommended during initial installation or after extended operation to maintain optimal measurement accuracy.
Q8: In what kind of industrial environments can the NASI02/F be used?
A8: It is designed for harsh industrial conditions including process automation, power generation, and oil & gas control systems, where stable analog input measurement is critical.
