Technical Specifications
| Parameter | Description |
|---|---|

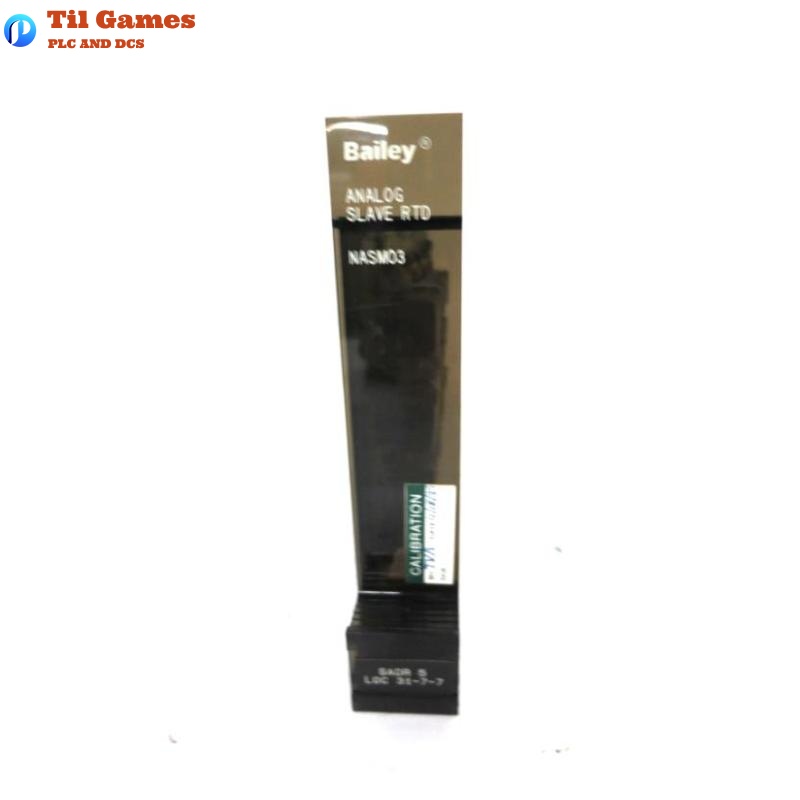

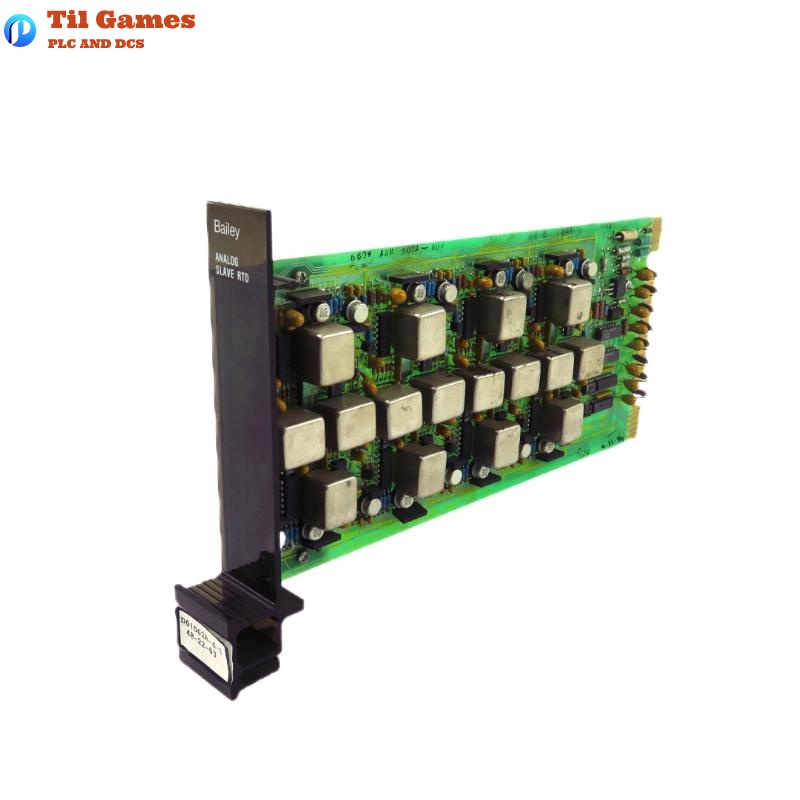

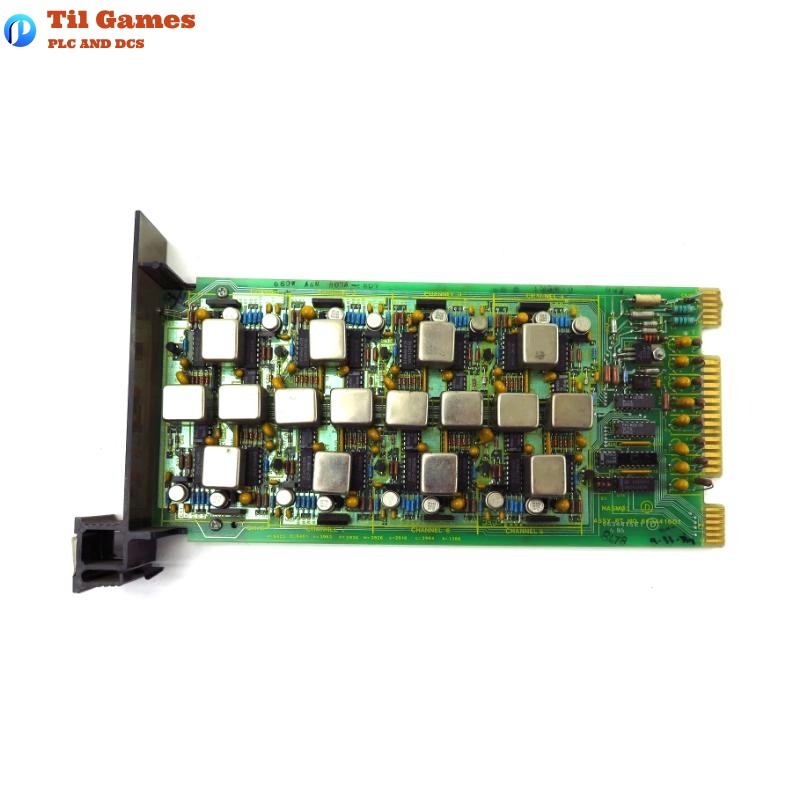

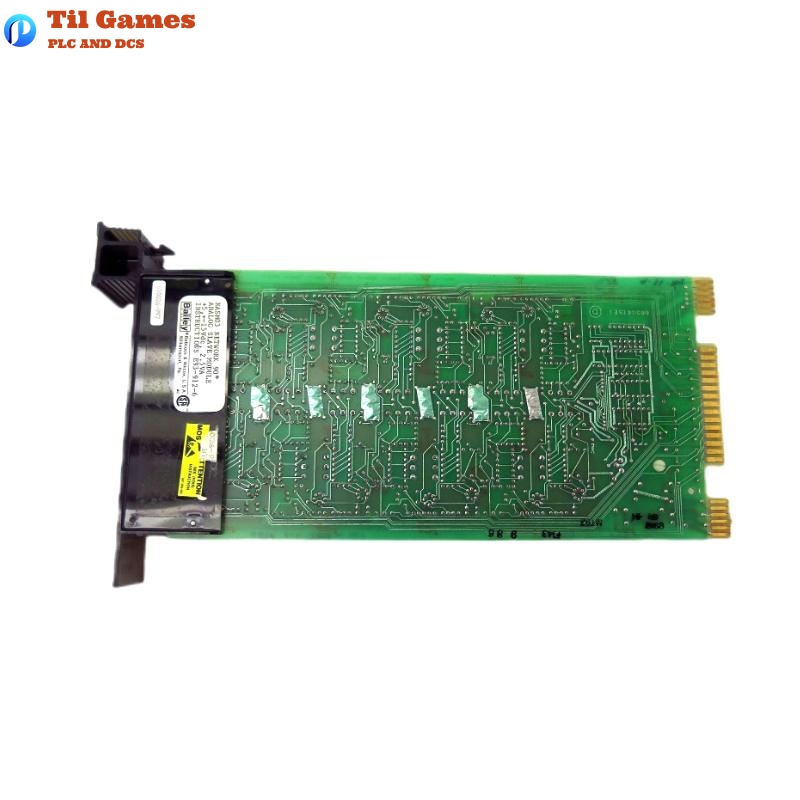

| Product Model | ABB Bailey NASM03 |
| Module Type | Analog Slave Module |
| System Series | Network 90 |
| Number of Channels | 8 analog input channels |
| Input Type | Voltage/Current (configurable) |
| Resolution | 12-bit |
| Data Format | Binary two’s complement |
| Input Impedance | Voltage: 1 MΩ; Current: 250 Ω |
| Isolation | Channel-to-system isolation |
| Power Requirements | +5 VDC, +15 VDC, -15 VDC |
| Power Consumption | Approx. 5 W |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Mounting | Slot-mounted in I/O rack |
| Dimensions | 178 x 51 x 330 mm |
| Weight | 0.689 kg |
FAQ
FAQ
Q1: What is the primary function of the NASM03 module?
A1: The NASM03 is an analog input slave module designed to acquire analog signals and convert them into digital form for the control system.
Q2: What types of input signals does the NASM03 support?
A2: It supports standard voltage and current signals, such as 0-10V and 4-20mA.
Q3: Which systems is this module compatible with?
A3: The NASM03 is designed specifically for ABB Bailey Network 90 systems, commonly used in industrial process control.
Q4: How is the isolation feature implemented in this module?
A4: Each input channel is optically isolated from the system bus to enhance noise immunity.
Q5: How is the NASM03 module installed?
A5: It is slot-mounted into a standard Network 90 I/O rack, requiring no additional tools.
Q6: Is hot-swapping supported for this module?
A6: No, hot-swapping is not supported. Installation or removal must be done with power off to avoid damage.
Q7: What environmental conditions are required for operation?
A7: The module operates between 0°C and 60°C, and can be stored from -40°C to 85°C, making it suitable for most industrial settings.
Q8: What are typical applications of the NASM03?
A8: It is typically used to acquire temperature, pressure, level, and flow signals in industries such as petrochemical, power generation, and water treatment.
