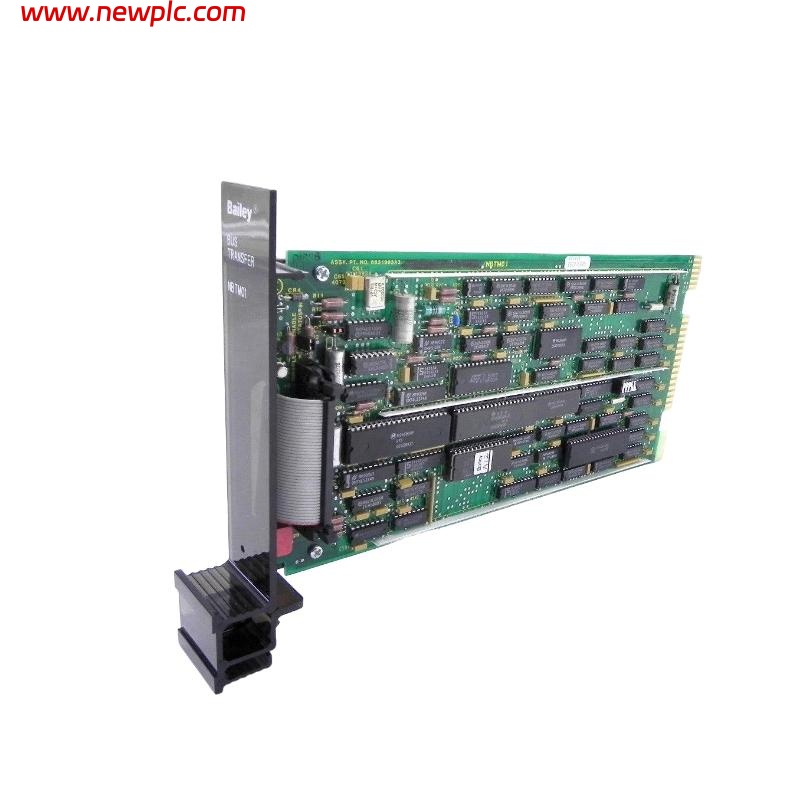

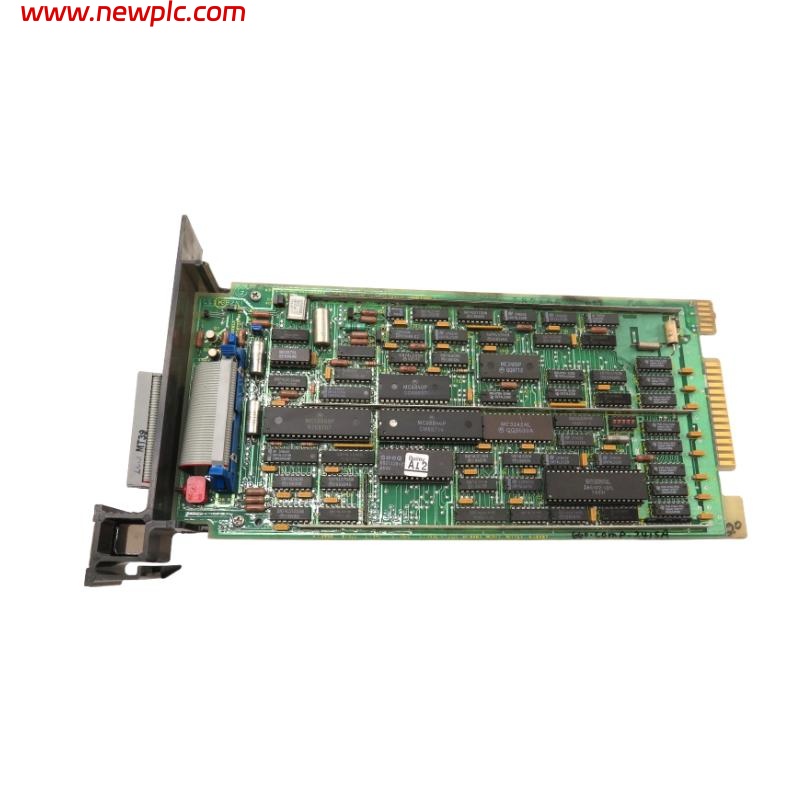

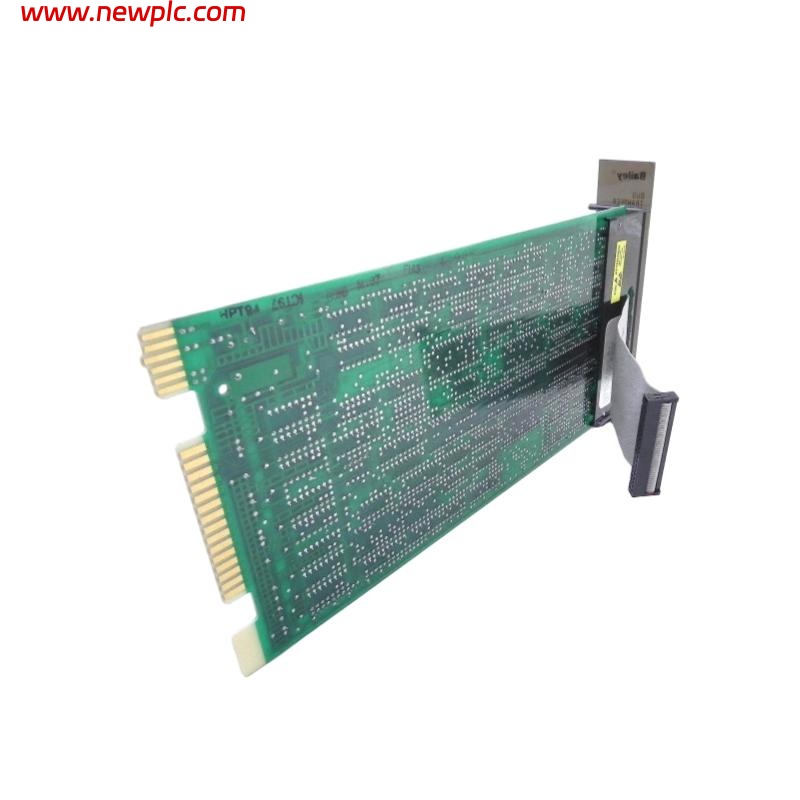

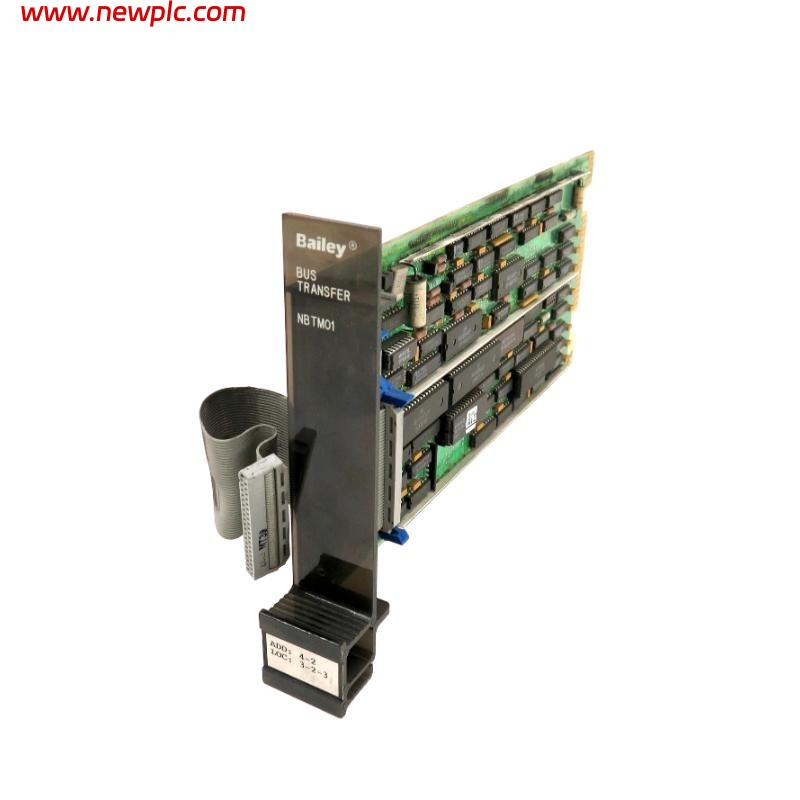

ABB Bailey NBTM01 Network 90 Bus Transfer Module

FAQ

Q1: What is the function of the ABB Bailey NBTM01 module?
A1: The NBTM01 is a Network 90 Bus Transfer Module designed to enable communication between process control units and the INFI-NET network, managing message routing, synchronization, and redundancy.

Q2: What kind of redundancy does the NBTM01 support?
A2: The module supports hardware redundancy with primary and backup units to ensure continuous operation even if the primary fails.

Q3: What type of mounting does the NBTM01 require?
A3: It is designed to be mounted in a standard INFI 90 OPEN module mounting unit, occupying one slot.

Q4: What is the maximum communication speed supported?
A4: The NBTM01 supports configurable communication speeds of either 2 Mbaud or 10 Mbaud.

Q5: What are the environmental operating conditions?
A5: The module operates within 0°C to 70°C, 5–90% relative humidity (non-condensing), and up to 3000 m altitude.

Q6: Is the NBTM01 certified for hazardous locations?
A6: Yes, it is CSA certified and FM approved for use in Class I, Division 2 hazardous locations.

Q7: How is the module powered?
A7: The module requires +5 VDC at 900 mA, +15 VDC at 5 mA, and -15 VDC at 200 mA.

Q8: What are the physical dimensions and weight of the module?
A8: The module measures 120 × 80 × 40 mm and weighs 0.2 kg.

ABB Bailey Bus Transfer Module NBTM01 Network 90
