Technical Specifications
| Parameter | Specification |
|---|---|

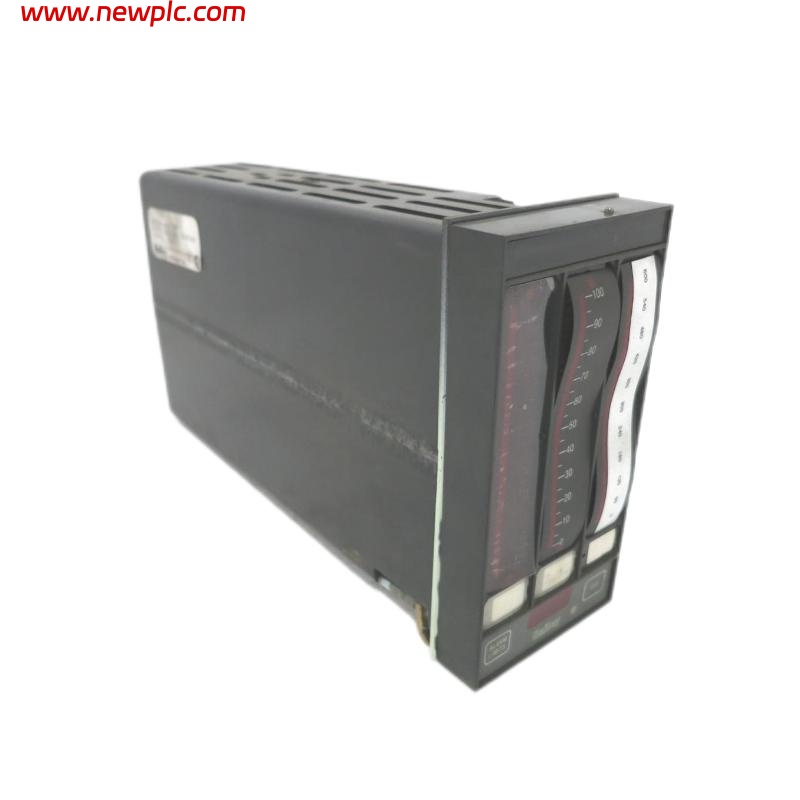

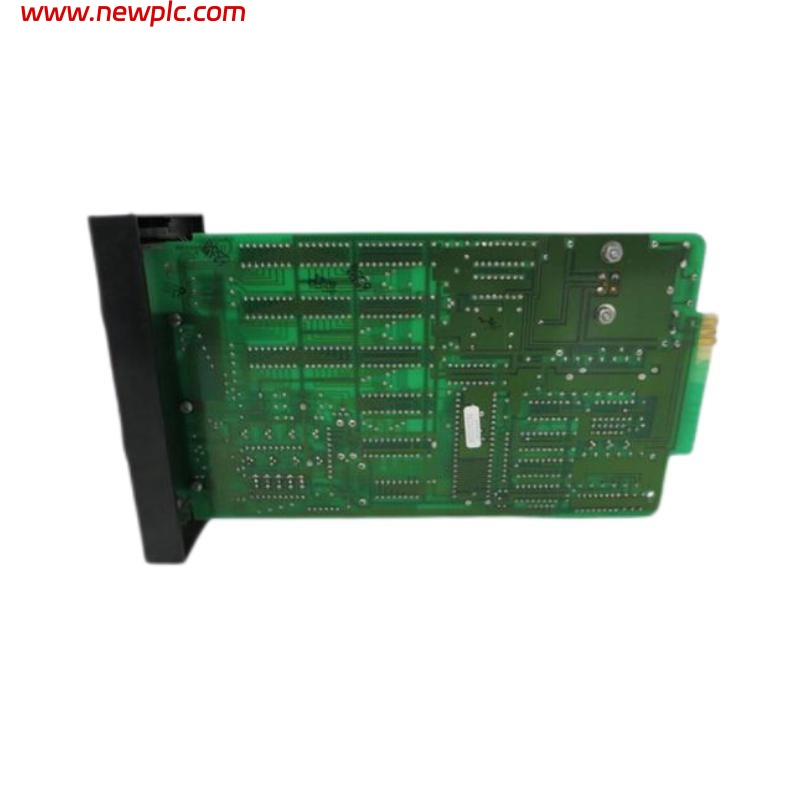

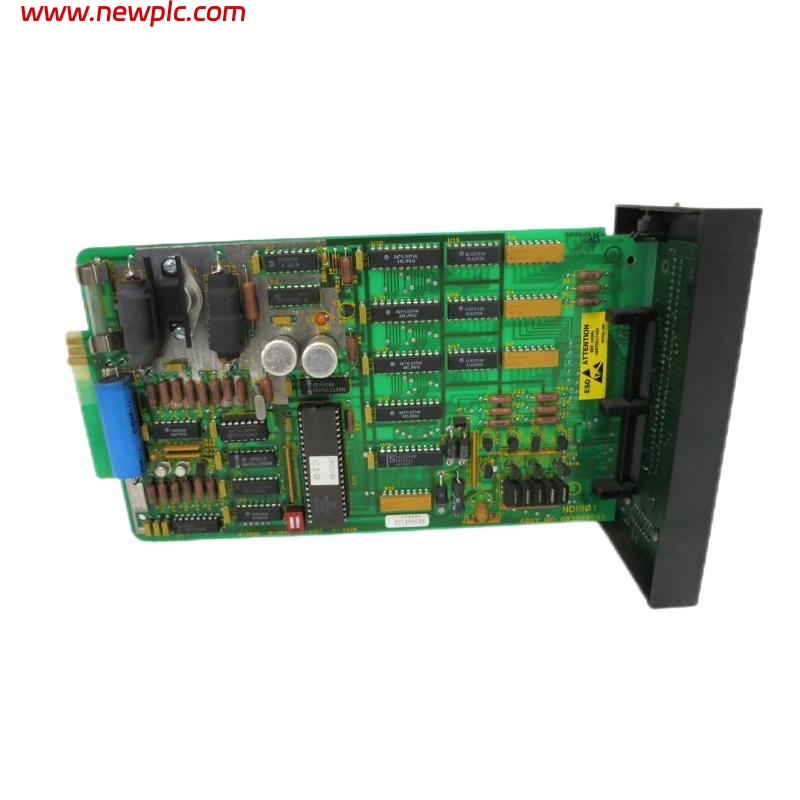

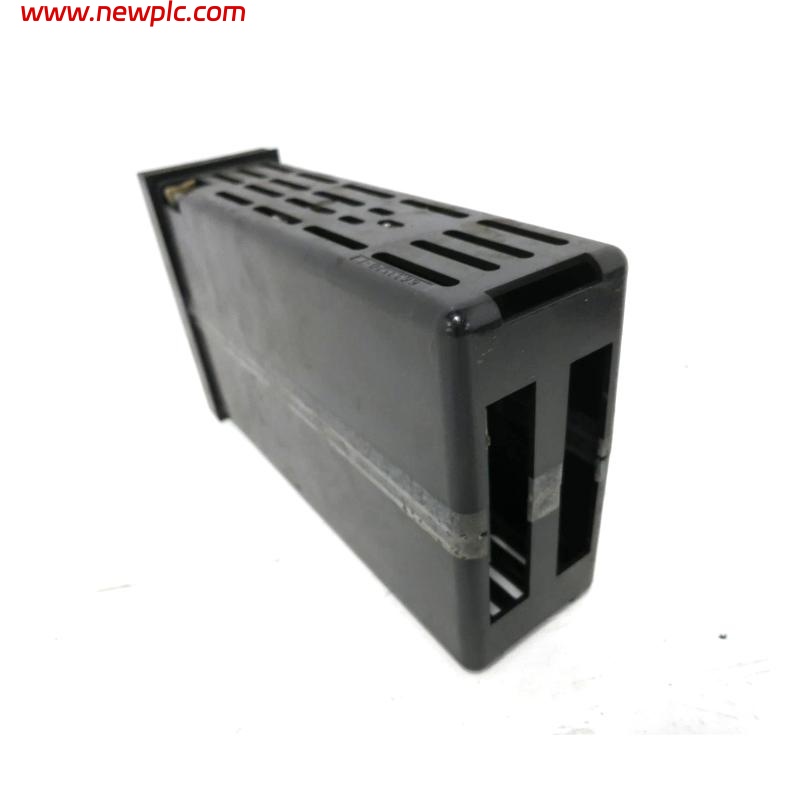

| Model | NDIS01 Digital Station Termination Module |
| Power Supply | +24 VDC (from termination mounting unit bus bar) |
| Outputs | Manual raise/lower signals and 0/24 VDC mode signals for electric drives |
| Mounting | Occupies one slot in INFI 90 termination mounting unit |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Relative Humidity | 0–95% up to 55°C (non-condensing); 0–45% up to 70°C (non-condensing) |
| Air Quality | Non-corrosive |
| Certification | CSA certified for ordinary (non-hazardous) locations |
| Dimensions (W x H x D) | 335 × 189 × 96 mm |
| Weight | 0.612 kg |
FAQ
FAQ
Q1: What is the main function of the NDIS01 module?
A1: It provides digital termination connections for IISAC01, NDCS03, and NDIS01 stations, enabling manual raise/lower and mode control signals.
Q2: Where is the module installed?
A2: It is installed in one slot of a standard INFI 90 termination mounting unit.
Q3: Does the module require a separate power supply?
A3: No, it is powered via the 24VDC bus of the mounting unit.
Q4: What are the characteristics of the output signals?
A4: The outputs include manual raise/lower signals and 0VDC or 24VDC signals depending on automatic or manual mode.
Q5: Can the module operate in high temperature and humidity environments?
A5: Yes, within 0–70°C and humidity up to 95% at 55°C or 45% at 70°C (non-condensing).
Q6: Are there specific environmental requirements?
A6: Yes, it must operate and be stored in a non-corrosive environment.
Q7: What is the certification status of the module?
A7: It is CSA certified for use in ordinary, non-hazardous locations.
Q8: What are the dimensions and weight of the module?
A8: It measures 335×189×96 mm and weighs 0.612 kg.
