Technical Specifications
| Parameter | Specification |
|---|---|

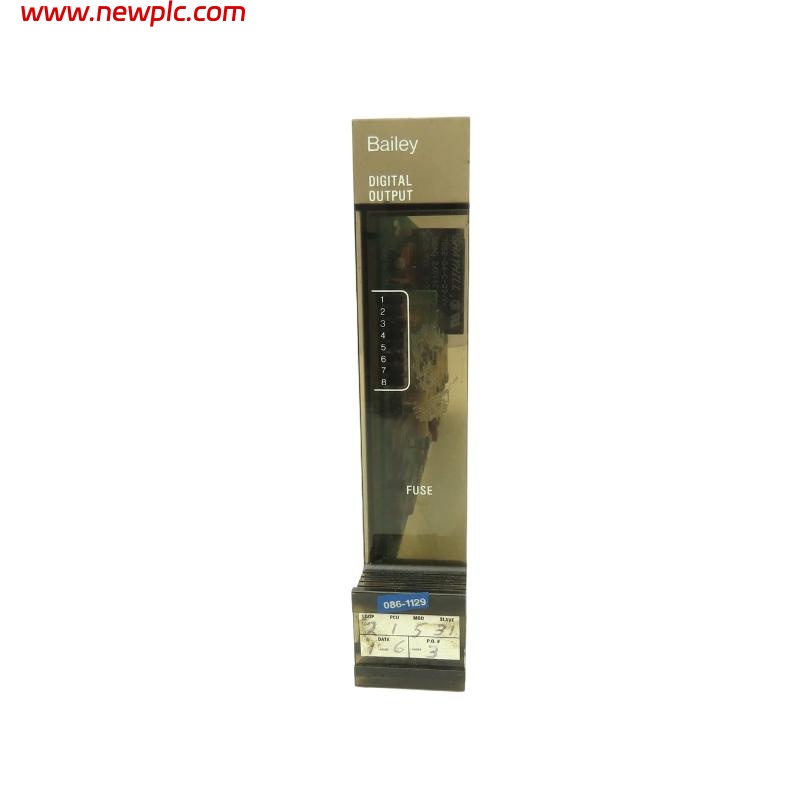

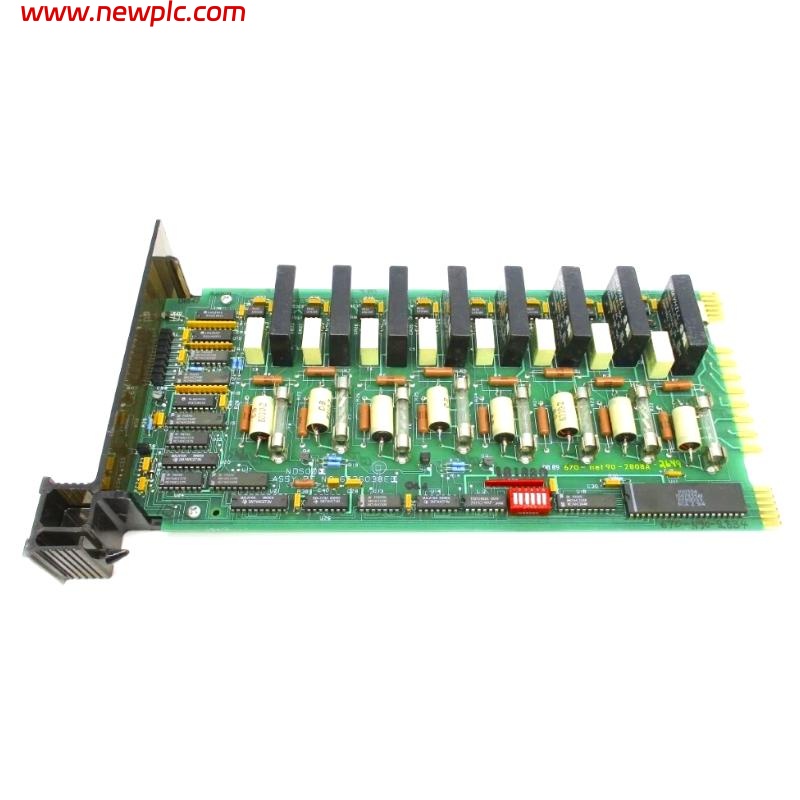

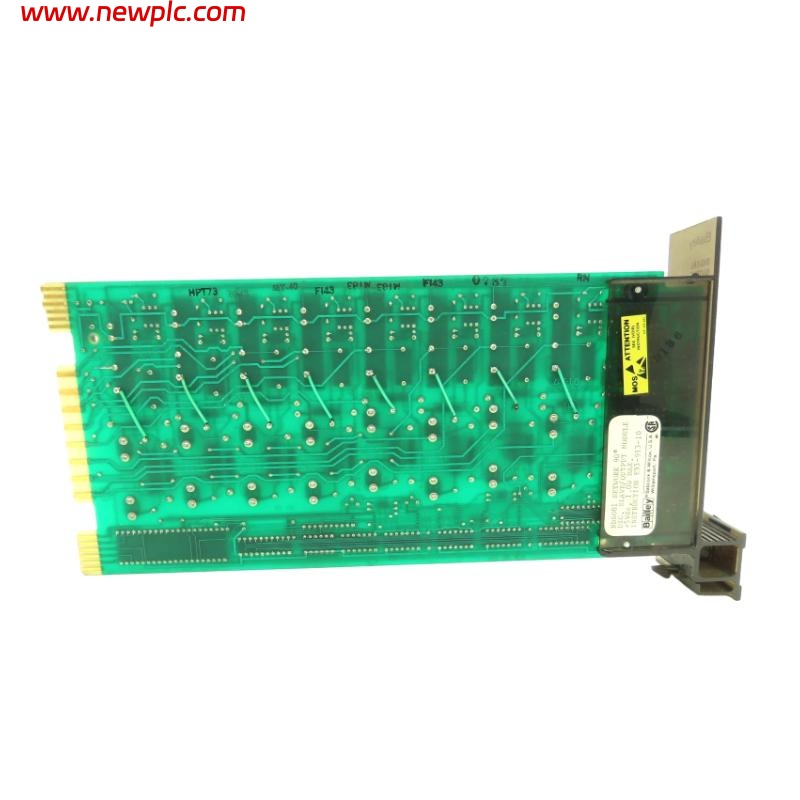

| Model | ABB Bailey NDSO01 |
| Type | Digital Slave Output Module |
| Function | Provides discrete digital output signals from the INFI 90 control system to field devices |
| Number of Output Channels | 32 isolated digital output channels |
| Output Type | DC voltage or dry contact |
| Output Voltage Range | 0–32 VDC |
| Output Current | 0–500 mA per channel (typical) |
| Logic Level (ON/OFF) | ON > 15 VDC, OFF < 5 VDC |
| Isolation Voltage | 1500 V RMS channel-to-ground |
| Update Rate | 10 ms typical |
| Communication Interface | Module Bus compatible with INFI-NET |
| Power Supply Voltage | 24 VDC nominal |
| Power Consumption | <12 W |
| Signal Conditioning | Integrated protection against short-circuit and overcurrent |
| Diagnostic Features | Channel fault detection, self-test diagnostics, LED fault indication |
| Status Indication | Individual LED indicators per output channel |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| Cooling Method | Natural convection |
| Mounting Type | DIN-rail or card rack installation |
| Dimensions (HxWxD) | 150 × 150 × 50 mm |
| Weight | 0.5 kg |
FAQ
FAQ
Q1: What is the primary function of the NDSO01 module?
A1: The NDSO01 module provides discrete digital output signals from the INFI 90 control system to actuators, alarms, or other field devices.
Q2: How many output channels are available on the NDSO01?
A2: It has 32 isolated digital output channels for controlling multiple devices.
Q3: What type of output signals does the NDSO01 support?
A3: The module supports DC voltage outputs as well as dry contact signals.
Q4: How does the NDSO01 ensure output protection?
A4: It incorporates short-circuit and overcurrent protection for each channel, ensuring reliable and safe operation.
Q5: Can the NDSO01 provide diagnostic feedback?
A5: Yes, the module features channel fault detection, self-test diagnostics, and individual LED indicators for each output.
Q6: What communication protocol is used by the NDSO01?
A6: It uses the INFI-NET Module Bus to communicate with the INFI 90 control system.
Q7: What are the power requirements of the NDSO01?
A7: The module requires a 24 VDC nominal supply and consumes less than 12 W during operation.
Q8: In which applications is the NDSO01 typically deployed?
A8: It is commonly used in process automation, power plants, and industrial systems for controlling relays, valves, alarms, and other discrete actuators.
