Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | NKAS01-30 |
| Manufacturer | ABB Bailey |
| Product Series | INFI 90 / Net 90 |

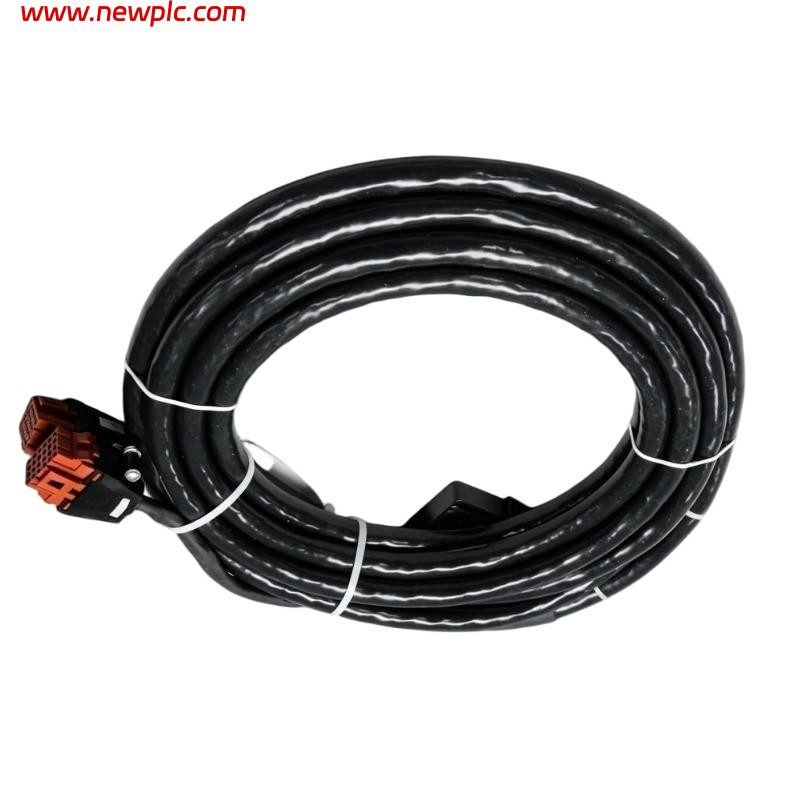

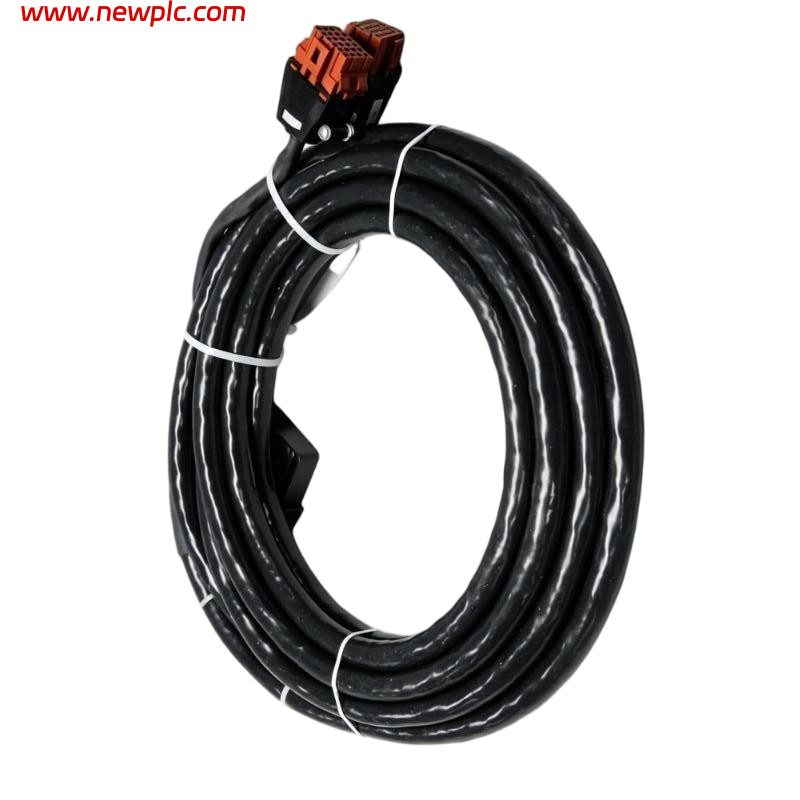

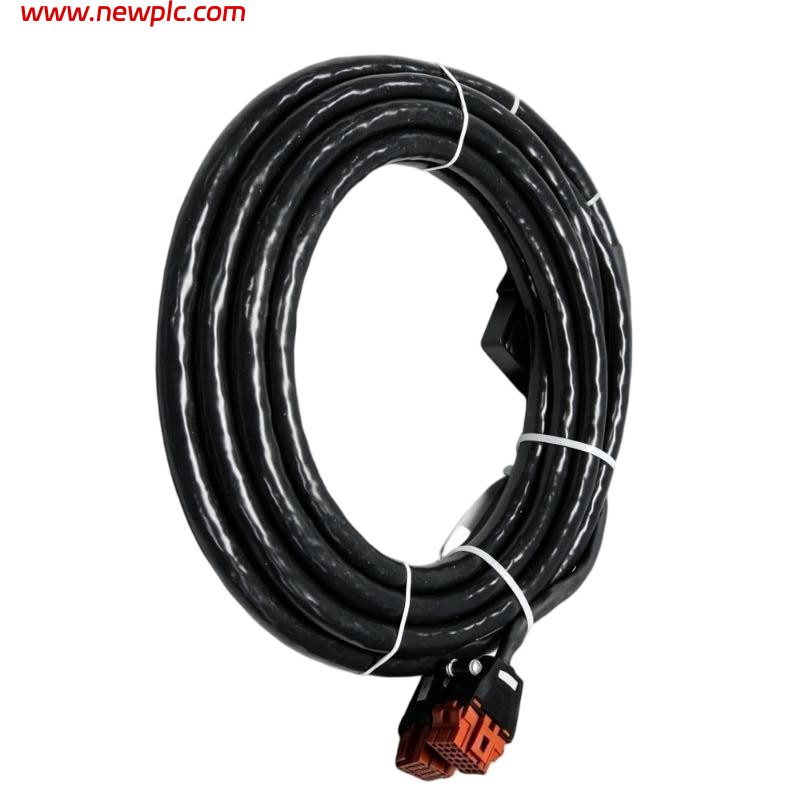

| Product Type | Analog Module Termination Unit Cable |
| Main Function | Connects the NTAI06 Analog Input Termination Unit to the analog input module |
| Compatible Termination Unit | NTAI06 |
| Compatible Module | IMASI03 / compatible ASI analog input modules |
| Cable Length | 30 ft (approx. 9.14 m) |
| Insulation | PVC |
| Cable Configuration | 1 connector at the I/O module end + 2 connectors at the termination-unit end |
| Rated Voltage | 300 V |
| Temperature Rating | 80°C maximum |
| Application | Analog input signal connection in ABB Bailey DCS |
| Maximum Available Length | Up to 200 ft (61 m) |
| Mounting | Cable connection between MMU/I/O module and termination unit |
| Product Status | Legacy / replacement part |
| Approx. Product Weight | Approx. 1.5–2.5 kg |
FAQ
FAQ
Q1: What is the ABB Bailey NKAS01-30 used for?
A: It is used to connect an analog input module to the NTAI06 analog input termination unit in ABB Bailey DCS systems.
Q2: How long is the NKAS01-30 cable?
A: It is 30 ft long, approximately 9.14 m.
Q3: Is NKAS01-30 a module?
A: No. It is a prefabricated cable assembly, not an electronic I/O module.
Q4: Which termination unit does it connect to?
A: The primary termination unit is the NTAI06.
Q5: Which analog input module is associated with NKAS01-30?
A: In the legacy INFI 90 system, it is associated with the IMASI03 Universal Analog Input Slave Module.
Q6: What type of insulation does NKAS01-30 have?
A: PVC insulation. The documented NKAS01 cable is rated for 80°C and 300 V, while the NKAS11 counterpart uses non-PVC insulation.
Q7: What is the difference between NKAS01-30 and NKAS11-30?
A: NKAS01-30 uses PVC insulation, while NKAS11-30 uses non-PVC insulation. They should not be substituted without checking the installation requirements.
Q8: What are the dimensions and weight of NKAS01-30?
A: The defining physical dimension is the 9.14 m cable length. Exact packaged dimensions and weight are not consistently published; for shipping quotation, approximately 1.5–2.5 kg is a reasonable planning estimate.
