Technical Specifications
| Parameter | Description |
|---|---|

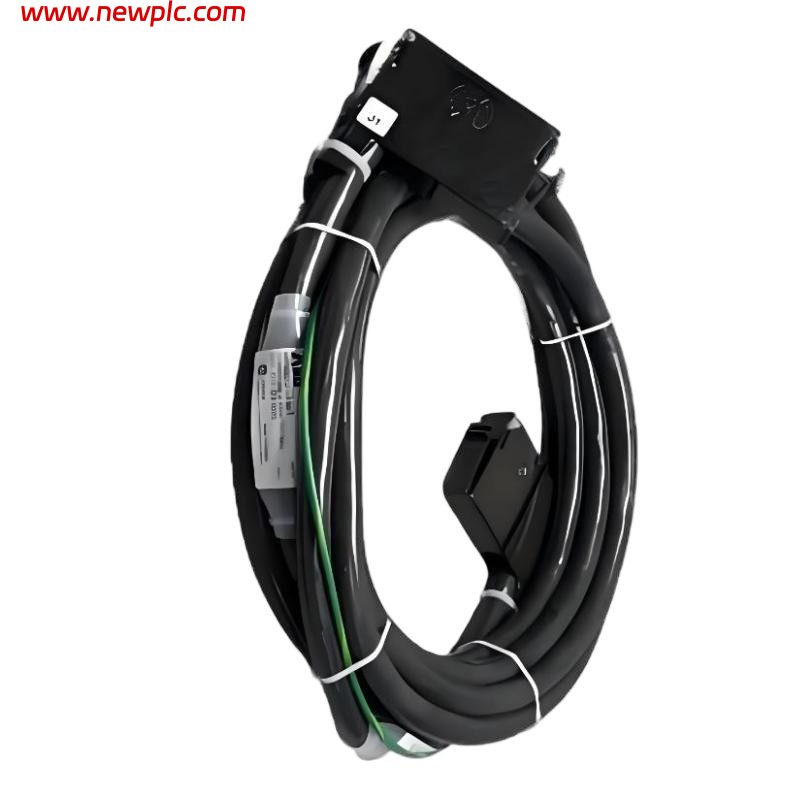

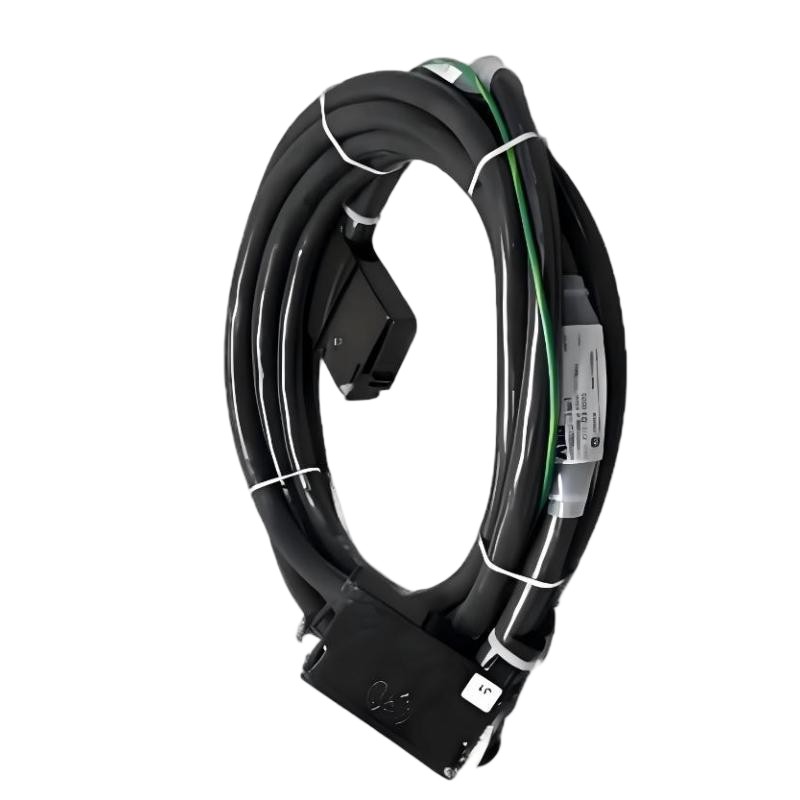

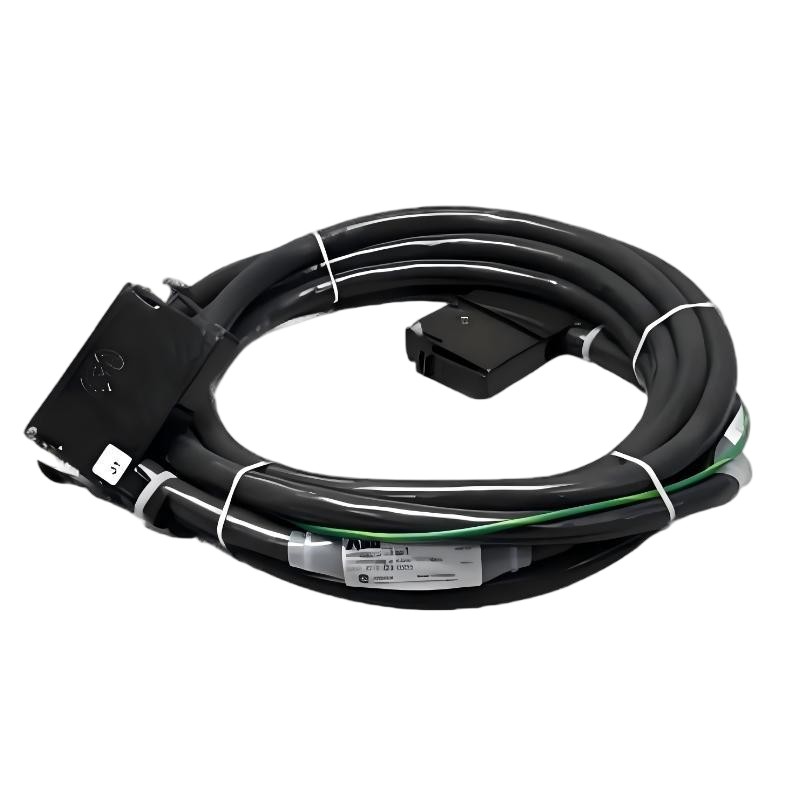

| Product Model | NKDO01-3 |
| Manufacturer | ABB Bailey |
| Product Series | INFI 90 / Net 90 |
| Product Type | Digital Output Cable |
| Main Function | Connects two NTDO02 Digital Output Termination Units |
| Compatible Termination Unit | NTDO02 |
| Associated Digital Output Module | IMDSO04 |
| Output Configuration | Provides 16 solid-state relay outputs through the IMDSO04/NTDO02 configuration |
| Cable Type | PVC-insulated |
| Cable Length | 3 ft (approx. 0.91 m) |
| Application | Digital output / relay signal interconnection |
| System | ABB Bailey INFI 90 / Net 90 DCS |
| Installation | Termination-unit-to-termination-unit connection |
| Approx. Product Dimensions | Approx. 30 × 20 × 5 cm packed |
| Approx. Product Weight | 0.5–1.0 kg |
FAQ
FAQ
Q1: What is the ABB Bailey NKDO01-3 used for?
A: It is a Digital Output Cable used to connect NTDO02 termination units in an ABB Bailey INFI 90/Net 90 system.
Q2: How long is the NKDO01-3?
A: It is 3 ft long, approximately 0.91 m.
Q3: Is NKDO01-3 an electronic module?
A: No. It is a prefabricated cable assembly.
Q4: Which termination unit does it connect to?
A: It connects NTDO02 to NTDO02 within the digital output configuration.
Q5: Which digital output module is associated with NKDO01?
A: The associated module is the IMDSO04 Digital Output Module, which can provide 16 solid-state relay outputs through the NTDO02 termination arrangement.
Q6: What type of insulation does NKDO01-3 use?
A: PVC insulation. The corresponding non-PVC version is NKDO11.
Q7: What is the difference between NKDO01-3 and NKDO01-5?
A: The primary difference is the cable length: NKDO01-3 = 3 ft, while NKDO01-5 = 5 ft.
Q8: What are the dimensions and weight of NKDO01-3?
A: The cable itself is approximately 0.91 m long. A precise bare-cable weight is not consistently published; for logistics, 0.5–1.0 kg can be used as a provisional estimate.
