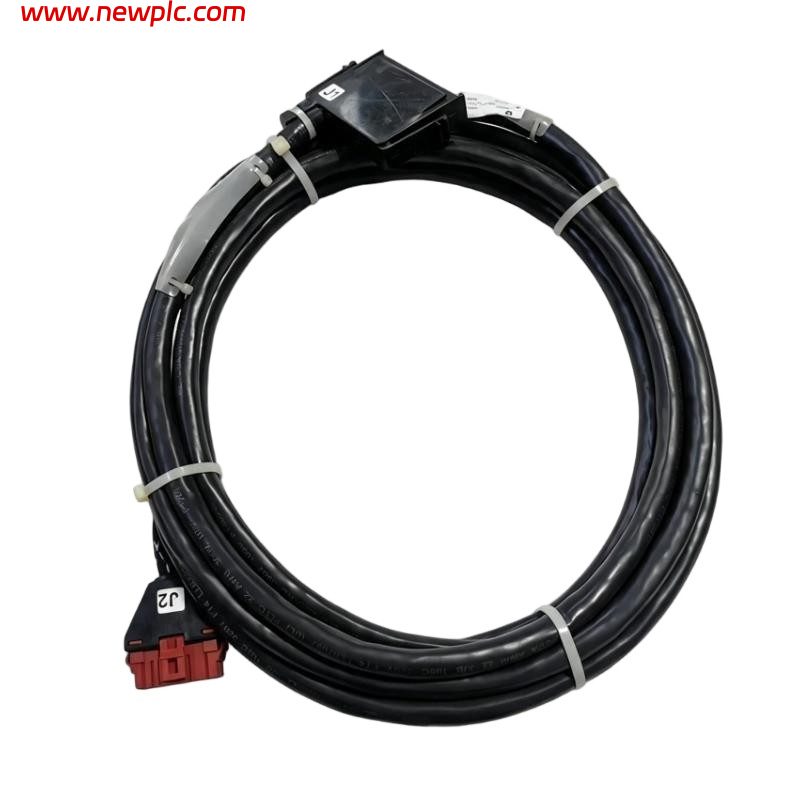

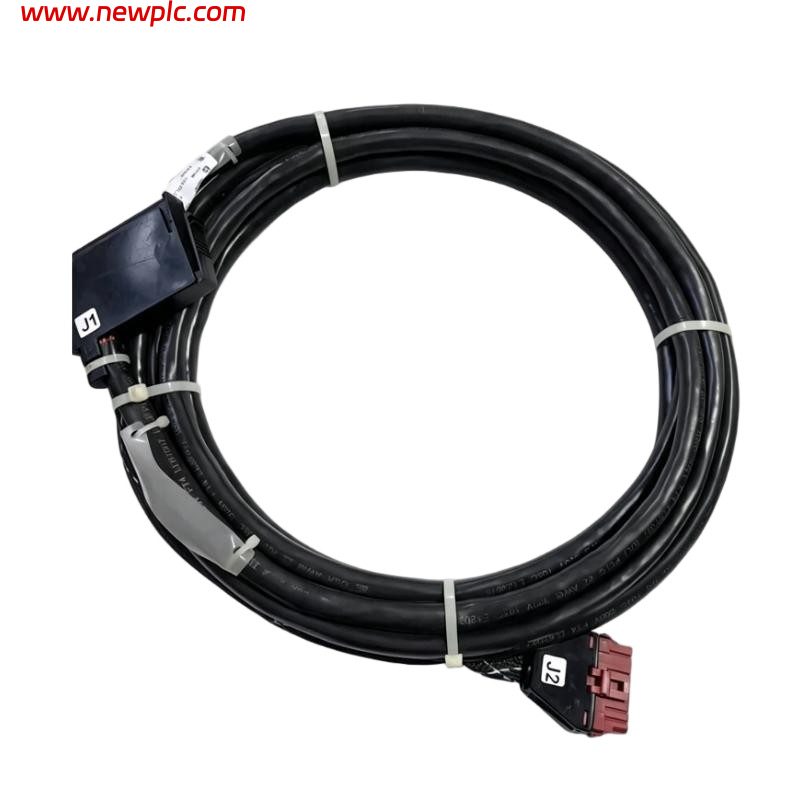

ABB Bailey NKSD01-20 SOE Digital Input Module Cable

FAQ

Q1: What is the ABB Bailey NKSD01-20 used for?
A: It is an SOE digital input cable used to connect the SPSED SOE module to the NTDI01 termination unit.

Q2: How long is the NKSD01-20?
A: It is 20 ft long, approximately 6.10 m.

Q3: Is NKSD01-20 an electronic module?
A: No. It is a prefabricated cable assembly.

Q4: Which termination unit does it connect to?
A: The specified termination unit is the NTDI01.

Q5: Which module is compatible with NKSD01-20?
A: It is designed for the SPSED SOE digital input module.

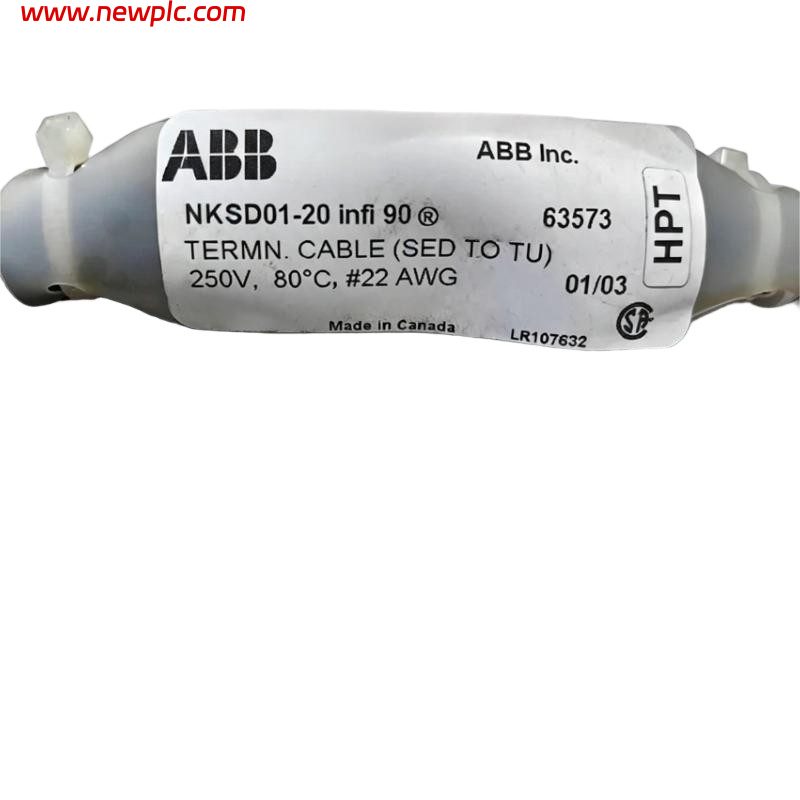

Q6: What type of cable is NKSD01-20?
A: It is a PVC-insulated cable. ABB identifies the NKSD01 as the PVC version; the related NKSD11 family uses non-PVC construction.

Q7: What is the difference between NKSD01-20 and NKSD01-10?
A: The main difference is cable length: NKSD01-20 = 20 ft (6.10 m), while NKSD01-10 = 10 ft (3.05 m).

Q8: What are the dimensions and weight of NKSD01-20?
A: The cable itself is approximately 6.10 m long. For shipping calculations, about 2 kg is a reasonable provisional weight based on supplier data for the NKSD01 family.
