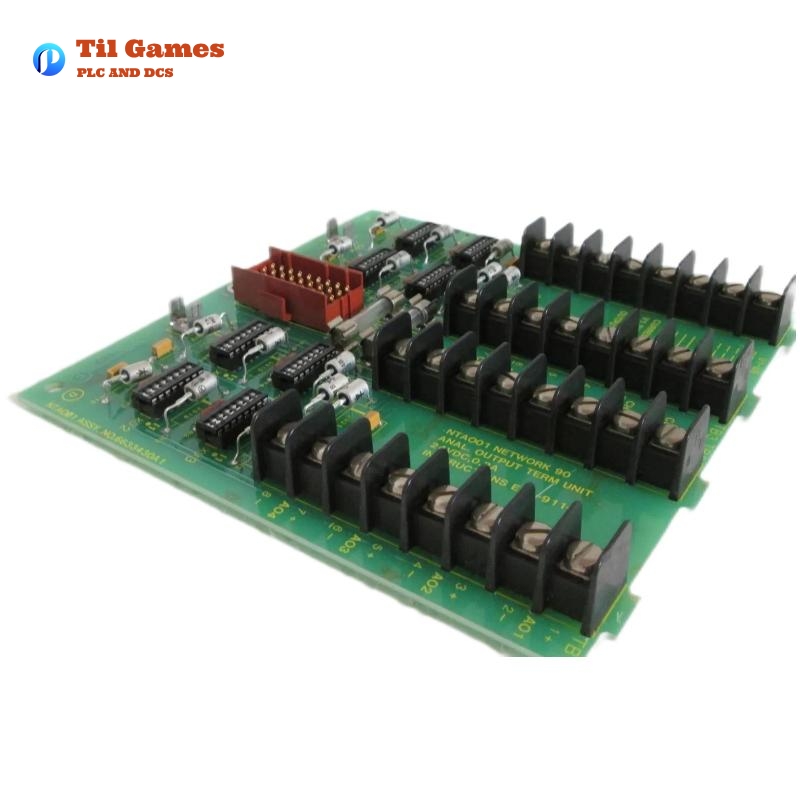

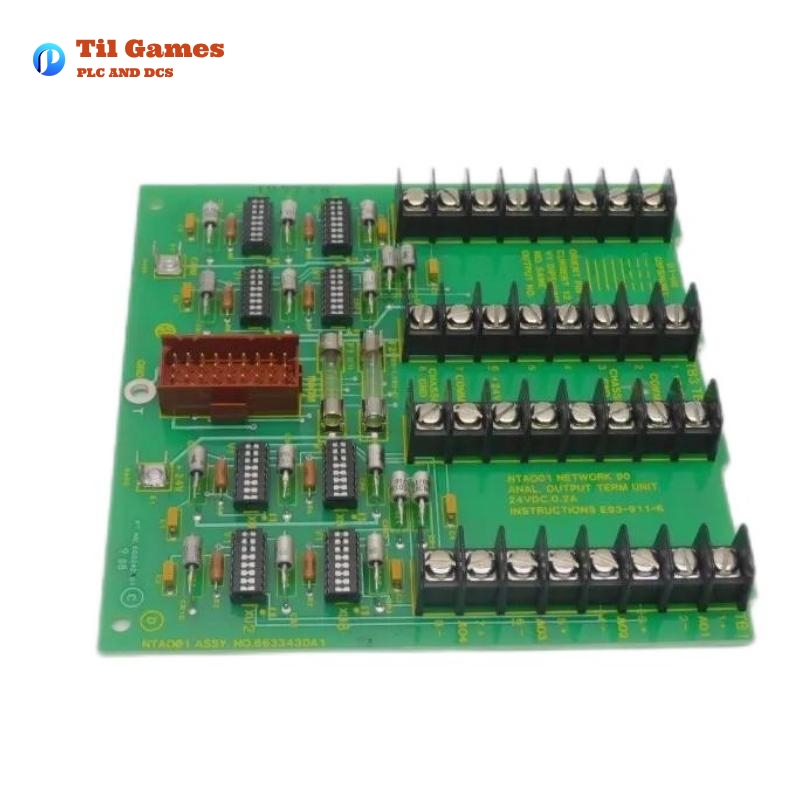

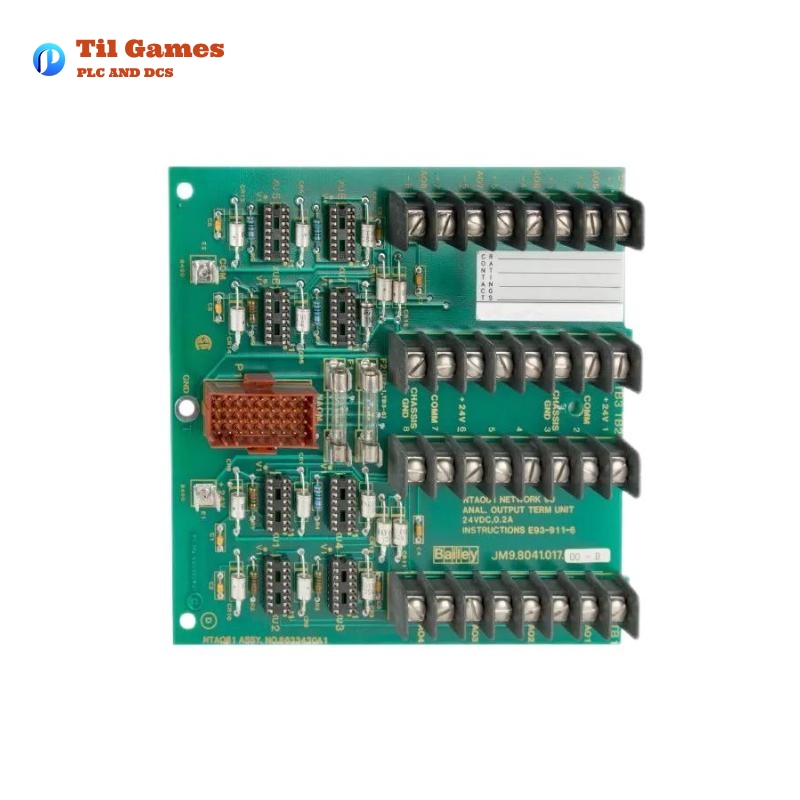

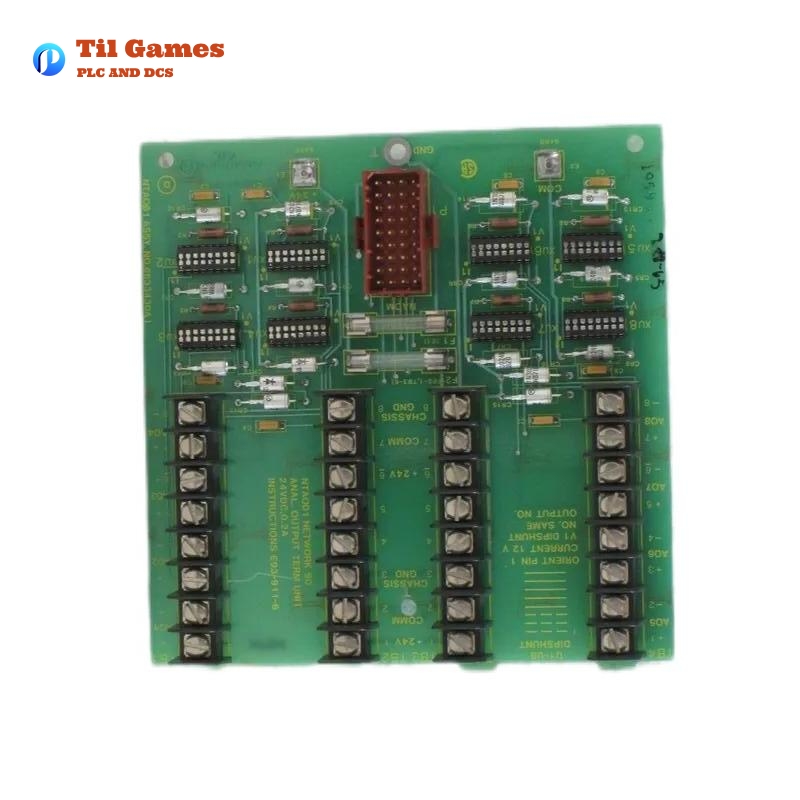

ABB Bailey NTAO01 Infi 90 Analog Output Termination Unit

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the NTAO01 unit?
A1: The NTAO01 serves as a termination interface for analog output signals from the IMAOM01 module to external field devices.

Q2: How many channels does the NTAO01 support?
A2: It supports eight analog output channels, each configurable for current or voltage output.

Q3: What analog signal types are supported by the NTAO01?
A3: It supports 4–20 mA current, 1–5 VDC, and 0–10 VDC voltage signals.

Q4: Can I configure each channel independently?
A4: Yes, each channel has individual dipshunts allowing separate current or voltage selection.

Q5: What type of cable is used with the NTAO01?
A5: The NKTU01 (PVC) or NKTU11 (non-PVC) termination cables are compatible with the unit.

Q6: Is the unit certified for use in hazardous areas?
A6: No, the NTAO01 is CSA certified for use in ordinary (nonhazardous) industrial environments.

Q7: What precautions should be taken during installation?
A7: Always power off the system before installation. Use static protection measures and ensure correct dipshunt settings.

Q8: Can the NTAO01 be field-repaired?
A8: No, failed units should be replaced entirely. Only fuse replacement is supported in the field.

ABB Bailey Analog Output Termination Unit Infi 90 NTAO01
