Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | NTRL02B |
| Manufacturer | ABB Bailey |
| Product Series | INFI 90 / Net 90 |

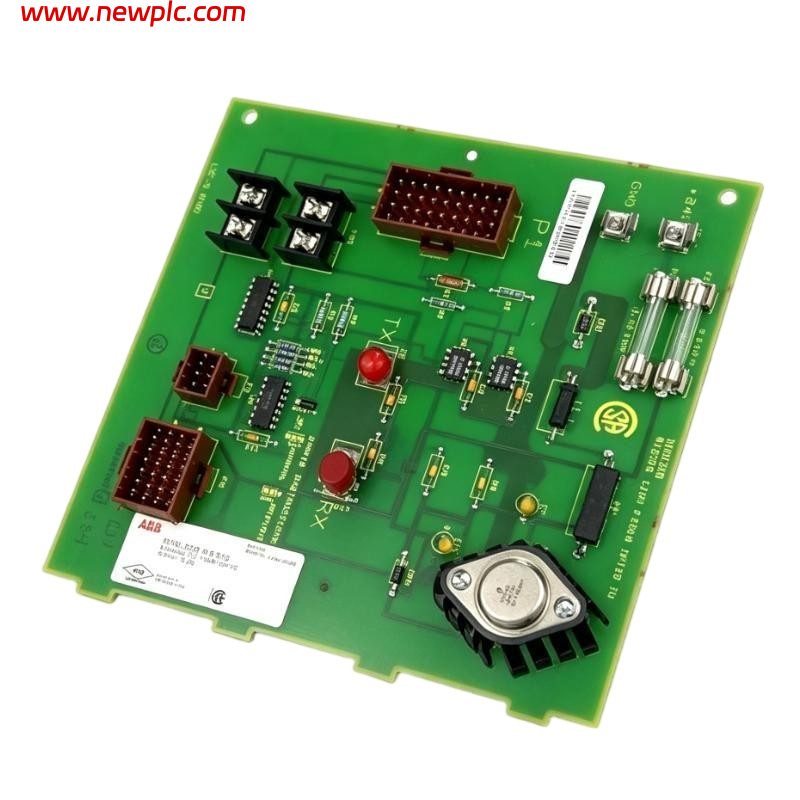

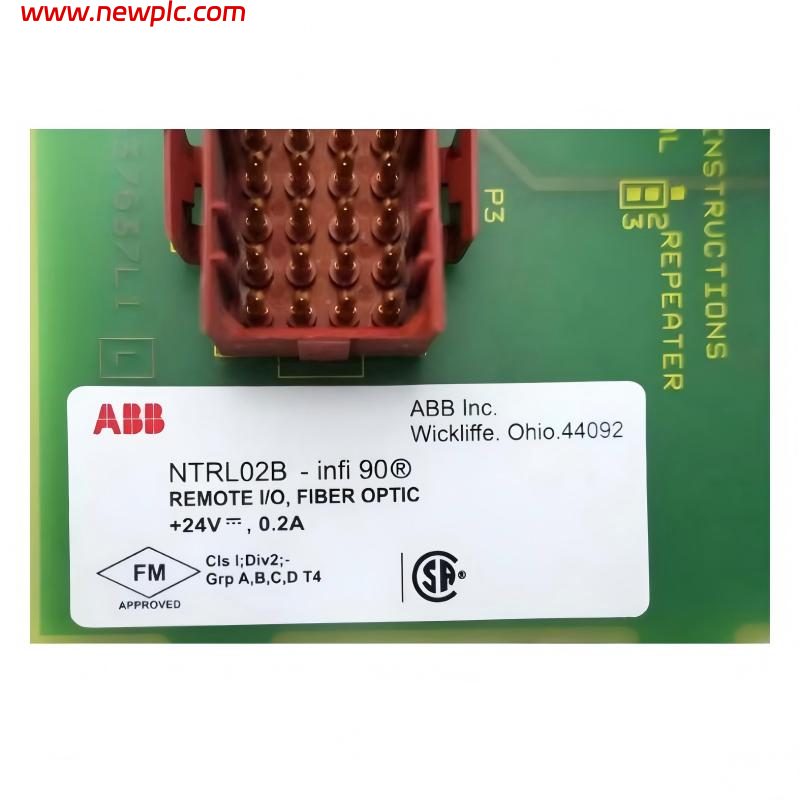

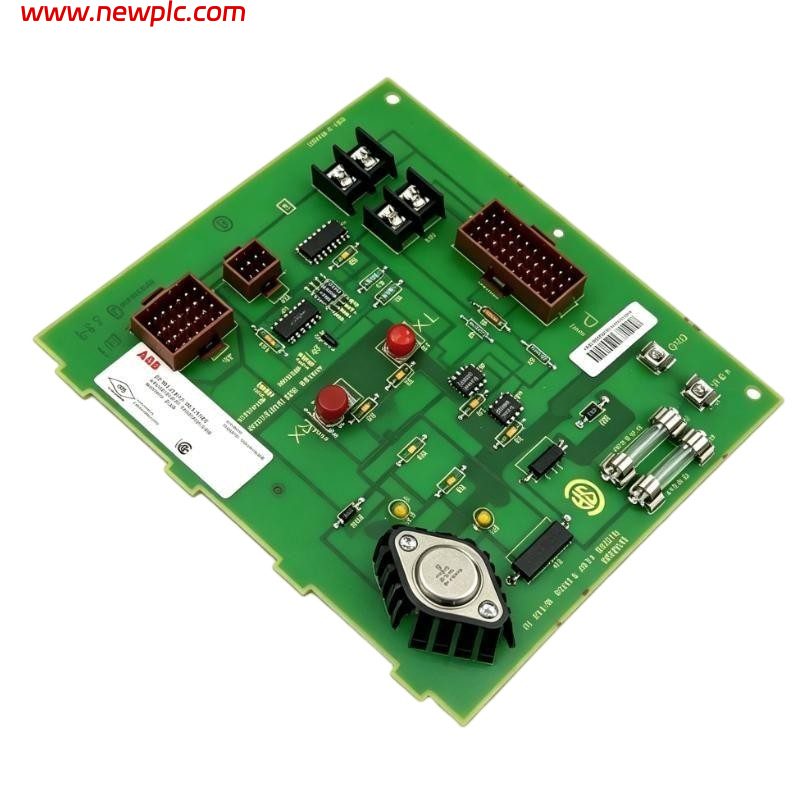

| Product Type | Fiber Optic Remote I/O Termination Unit |
| Main Function | Provides fiber-optic communication for remote I/O applications |
| Compatible Remote I/O Module | IMRIO02 |
| Compatible Cable/Assembly | NKLM01 |
| Communication Medium | Fiber optic |
| Power Supply | +24 VDC |
| Maximum Current | 170 mA |
| Fiber Receiver Signal Range | -30 dBm to -10 dBm |
| Ambient Temperature | 0 to 70°C (32 to 158°F) |
| Application | Remote I/O communication in ABB Bailey INFI 90 systems |
| Alternate Part Numbers | YNTRL02B, RNTRL02B, PNTRL02B, NTRL02BR, 6644811A1 |
| Approx. Dimensions | 20.3 × 10.2 × 22.9 cm |
| Approx. Net Weight | 0.3 kg |
FAQ
FAQ
Q1: What is the ABB Bailey NTRL02B used for?
A: It is a fiber-optic Remote I/O Termination Unit used to connect remote I/O equipment within an ABB Bailey INFI 90 system.
Q2: Which remote I/O module is compatible with NTRL02B?
A: The NTRL02 family is designed for use with the IMRIO02 Remote I/O module.
Q3: Does NTRL02B use fiber-optic communication?
A: Yes. The NTRL02B provides a fiber-optic interface for remote I/O communication.
Q4: What power supply does NTRL02B require?
A: It uses a +24 VDC supply, with a maximum current requirement of approximately 170 mA.
Q5: What is the operating temperature range?
A: The specified ambient operating range is 0 to 70°C (32 to 158°F).
Q6: What is the fiber-optic receiver signal range?
A: The specified receiver signal limits are approximately -30 dBm minimum to -10 dBm maximum.
Q7: Is NTRL02B the same as NTRL02A?
A: They are closely related fiber-optic remote I/O termination units, but they are distinct part numbers and should not be treated as direct replacements without checking the system configuration.
Q8: What are the dimensions and weight of NTRL02B?
A: Published supplier data gives approximately 20.3 × 10.2 × 22.9 cm and 0.3 kg net weight.
