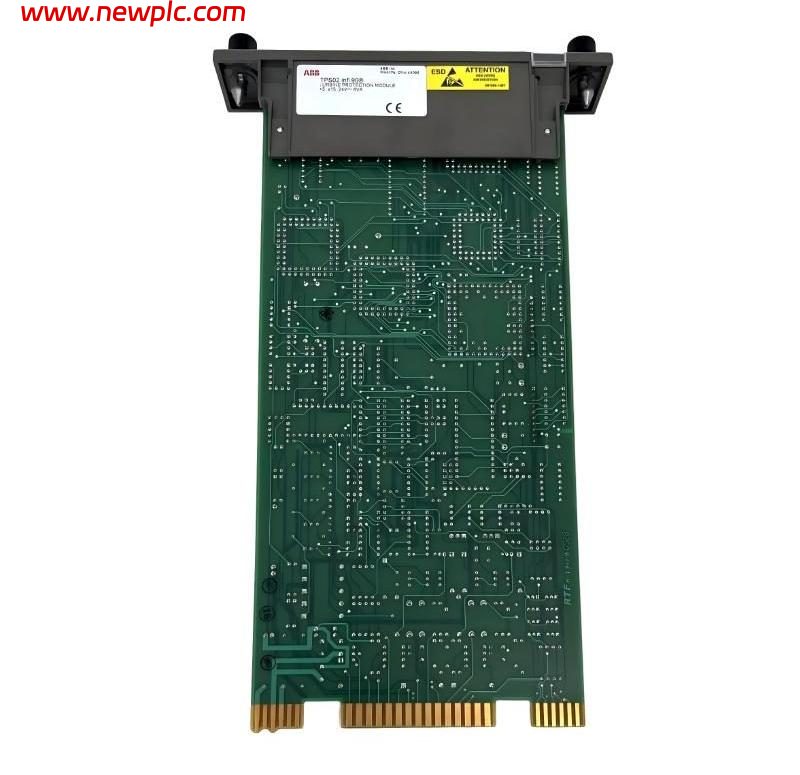

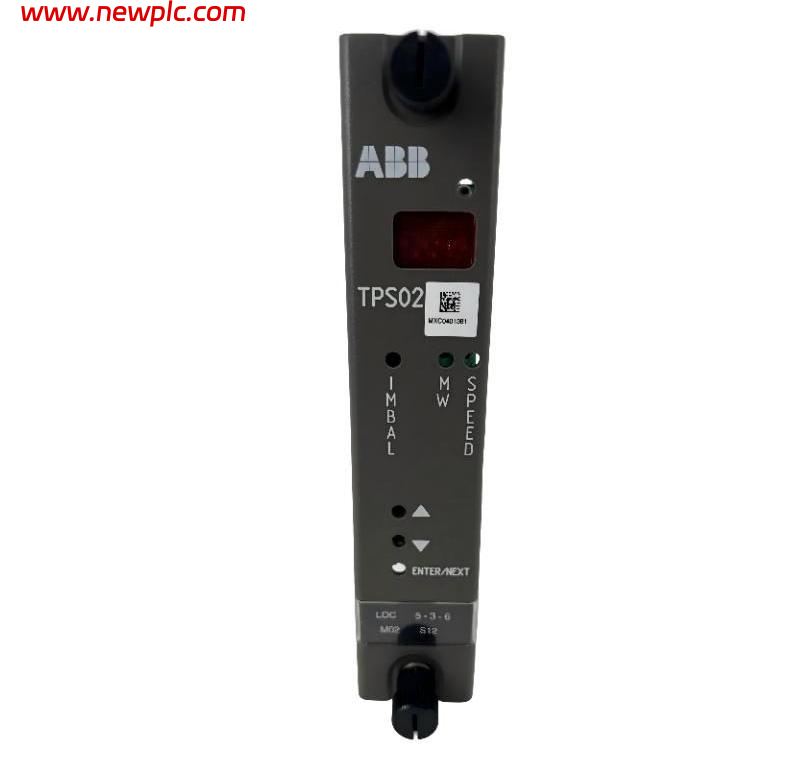

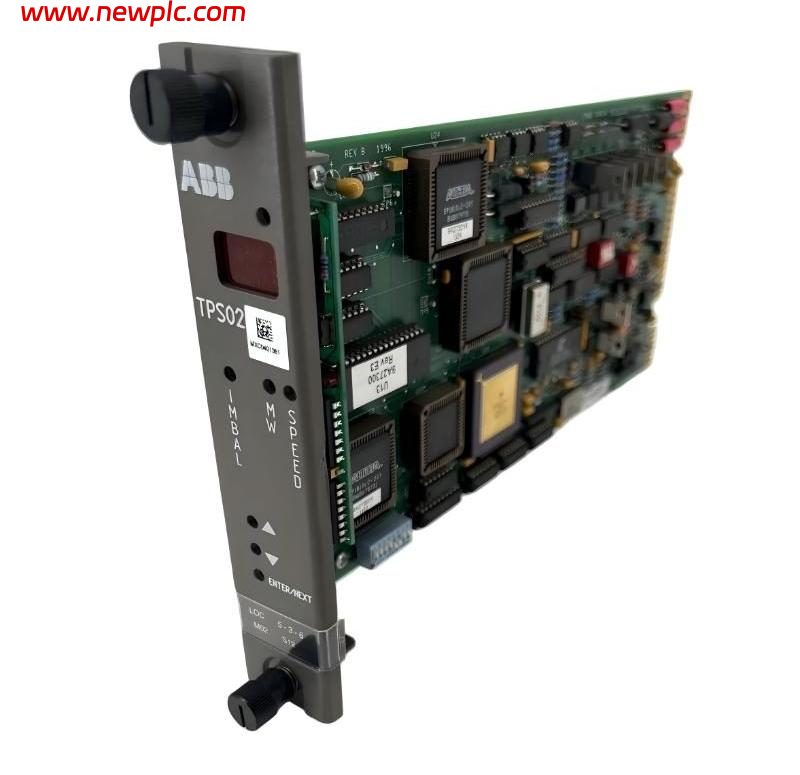

ABB Bailey TPS02 Turbine Protection Slave Module

FAQ

Q1: What is the ABB Bailey TPS02?
The TPS02 is a Turbine Protection Slave Module designed for ABB Bailey INFI 90 systems.

Q2: What is the main function of the TPS02?
It provides dedicated turbine protection functions, including speed monitoring and protective trip control.

Q3: What type of equipment is the TPS02 used with?
It is primarily used with steam and gas turbine protection systems integrated with ABB Bailey INFI 90 control systems.

Q4: Does the TPS02 provide overspeed protection?
Yes. Overspeed monitoring is one of its key protection functions, allowing the system to initiate protective action when turbine speed exceeds the configured limit.

Q5: Does the TPS02 operate as a standalone controller?
The TPS02 functions as a protection slave module within the INFI 90 architecture and works with the associated turbine protection system and control hardware.

Q6: What type of protection logic can be used with the TPS02?
The TPS02 is associated with redundant turbine protection architectures, including two-out-of-three voting arrangements for overspeed protection.

Q7: What are the approximate dimensions and weight?
The TPS02 is approximately 260 × 140 × 40 mm and weighs about 0.6 kg. Dimensions can vary slightly depending on the measurement method.

Q8: Is the TPS02 compatible with ABB Bailey INFI 90 systems?
Yes. The TPS02 is specifically identified as an INFI 90 Turbine Protection Slave Module and is commonly used as part of INFI 90 turbine protection installations.
