Technical Specifications
| Parameter | Description |
|---|---|

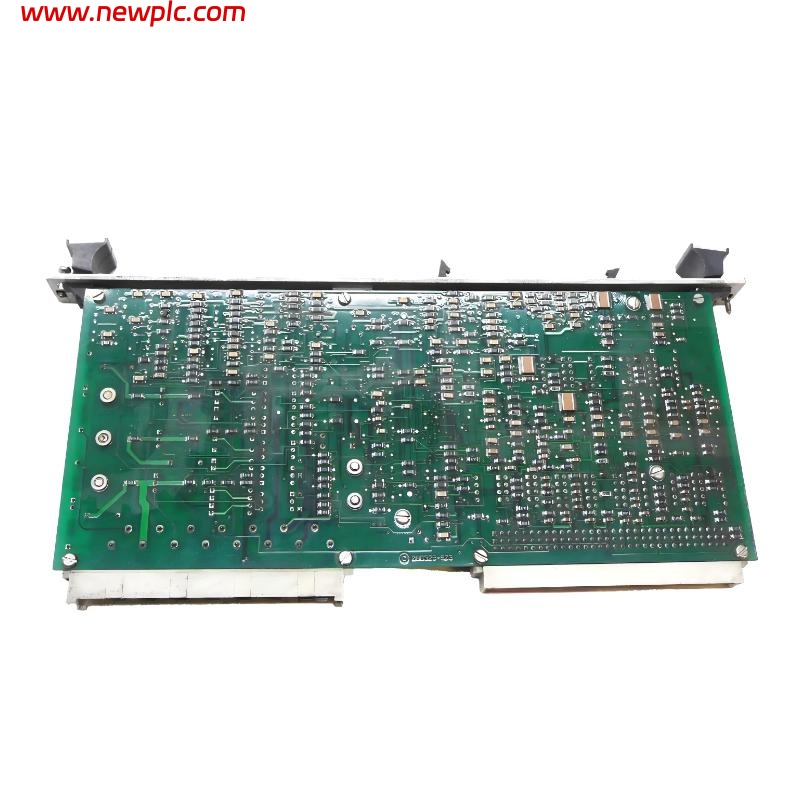

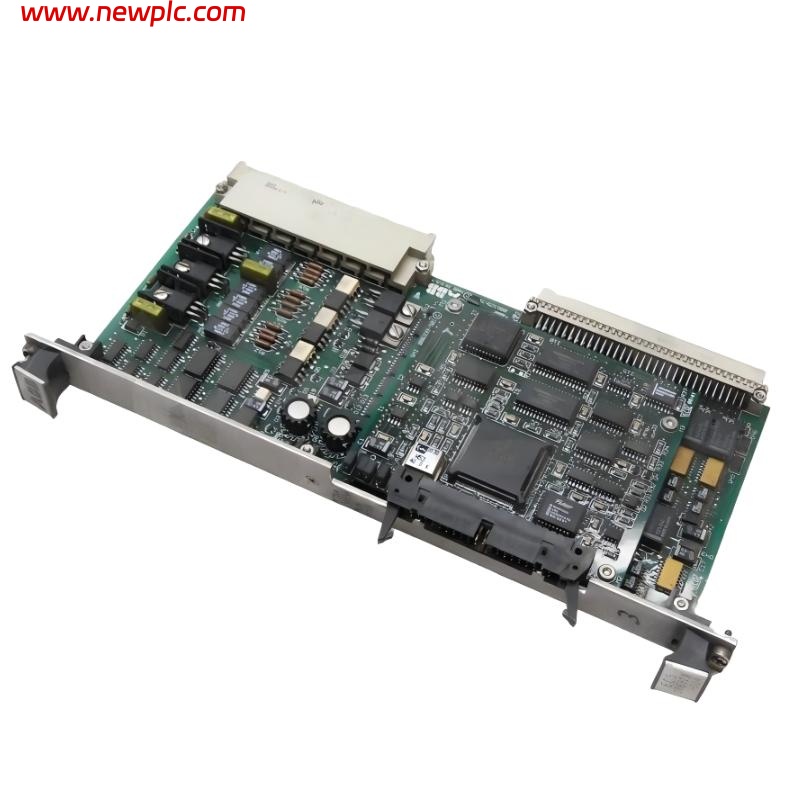

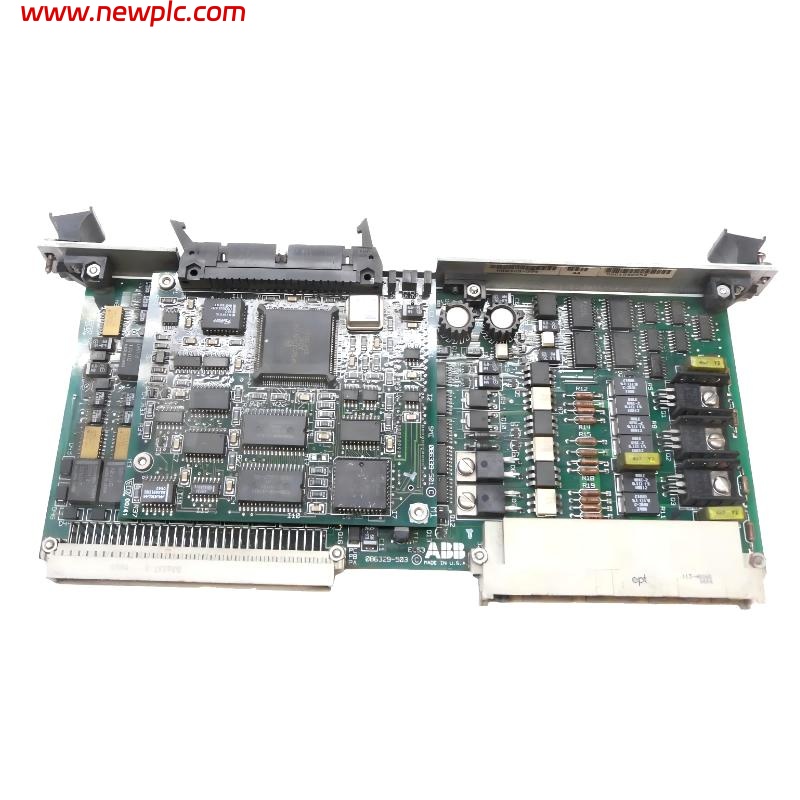

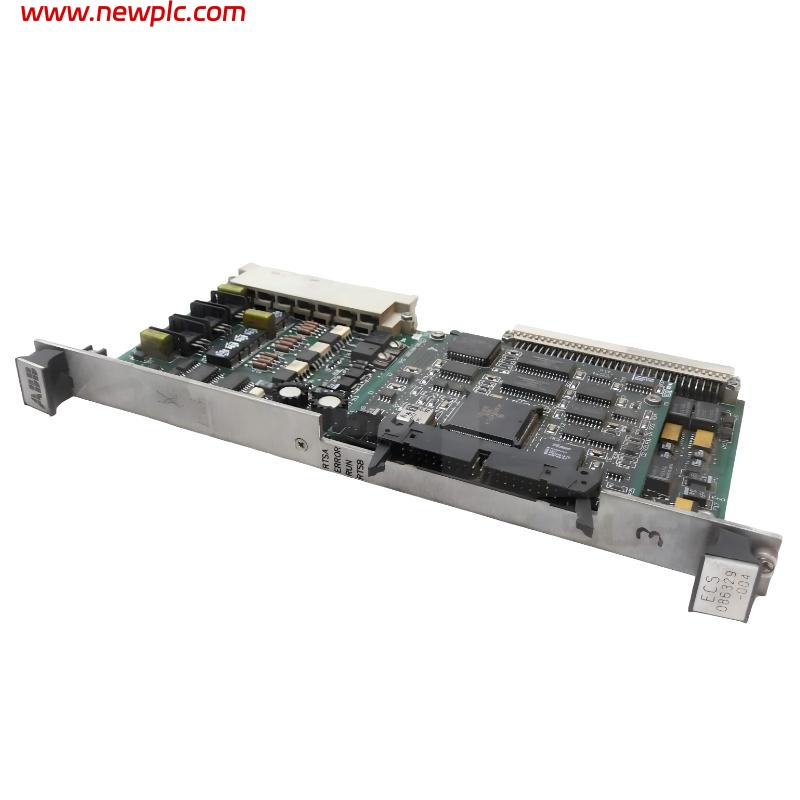

| Product Name | ABB End Column Sensor Module |
| Model Number | 086329-004 |
| Type | Sensor Interface and Monitoring Module |
| Function | Monitors and processes signals from end column sensors for control and safety applications |
| Input Voltage | 24 VDC nominal |
| Power Consumption | < 4 W |
| Interface Type | Multi-pin backplane connector |
| Communication Protocol | ABB proprietary bus |
| Signal Type | Analog and digital input from position or limit sensors |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting Type | Plug-in module for ABB rack systems |
| Dimensions | 153 × 5 × 10 mm |
| Weight | 0.26 kg |
FAQ
FAQ
Q1: What is the primary role of the ABB 086329-004 End Column Sensor Module?
A1: This module collects and interprets sensor data from end columns, providing signal feedback for system control and process safety monitoring.
Q2: Which ABB systems are compatible with the 086329-004 module?
A2: It is typically used in ABB Advant and similar automation platforms that require precision sensor integration for control and safety operations.
Q3: How does this module communicate with the main control system?
A3: The module connects through a backplane interface, transmitting processed sensor signals to the central processing unit for evaluation.
Q4: What type of sensors can be connected to this module?
A4: It supports both analog and digital end column sensors, including position, pressure, and limit sensors.
Q5: What protection features are included in the 086329-004 module?
A5: The module includes ESD protection, overvoltage protection, and short-circuit protection to ensure signal integrity and long-term stability.
Q6: How is the power supplied to the End Column Sensor Module?
A6: It receives a regulated 24 VDC power supply from the ABB rack’s integrated power distribution system.
Q7: What is the operating temperature range for the 086329-004 module?
A7: The module is designed to operate efficiently within a temperature range of 0°C to +60°C, ensuring reliability in standard industrial environments.
Q8: Can the module be replaced or serviced without shutting down the system?
A8: In most configurations, the 086329-004 allows for hot-swap replacement within compatible ABB racks, minimizing system downtime during maintenance.
