Technical Specifications
| Parameter | Specification |
|---|---|

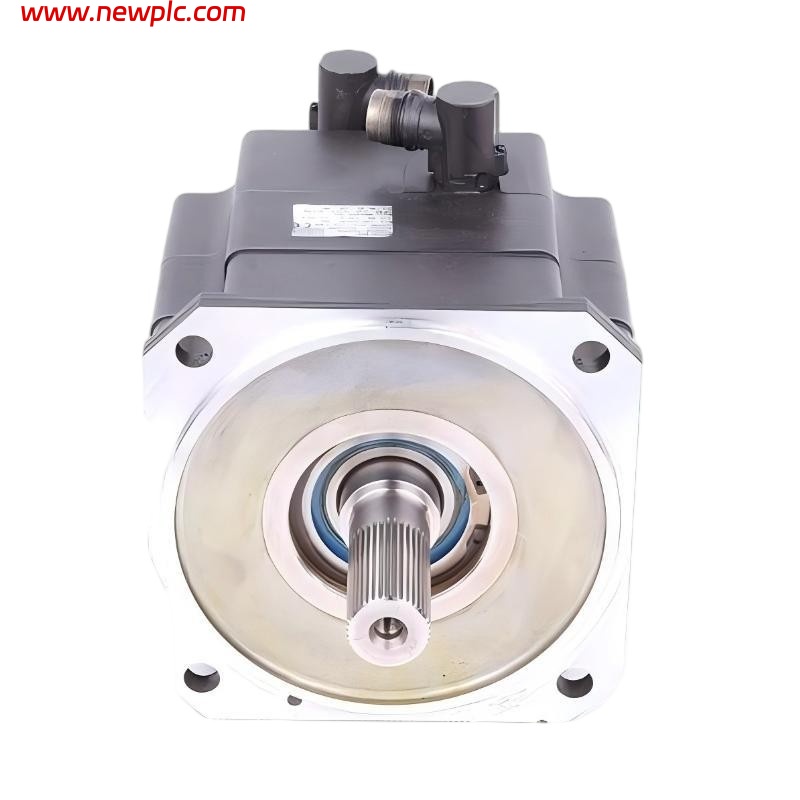

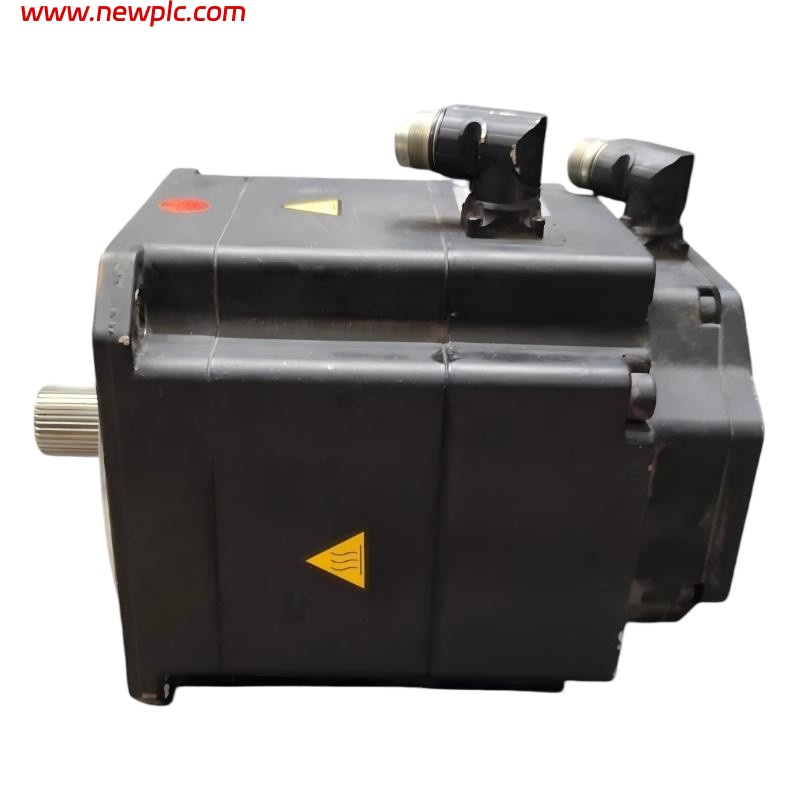

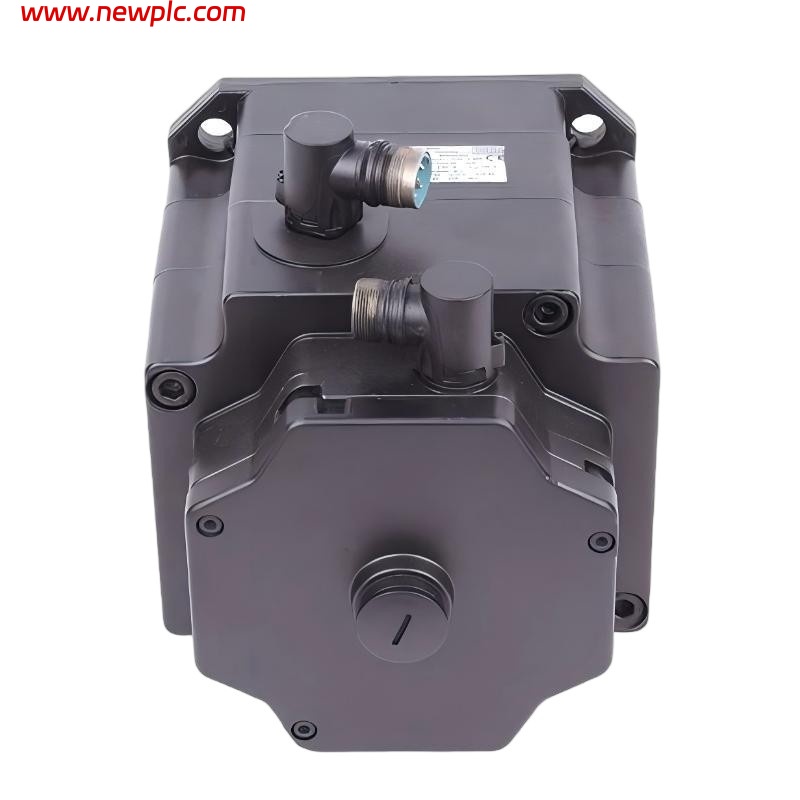

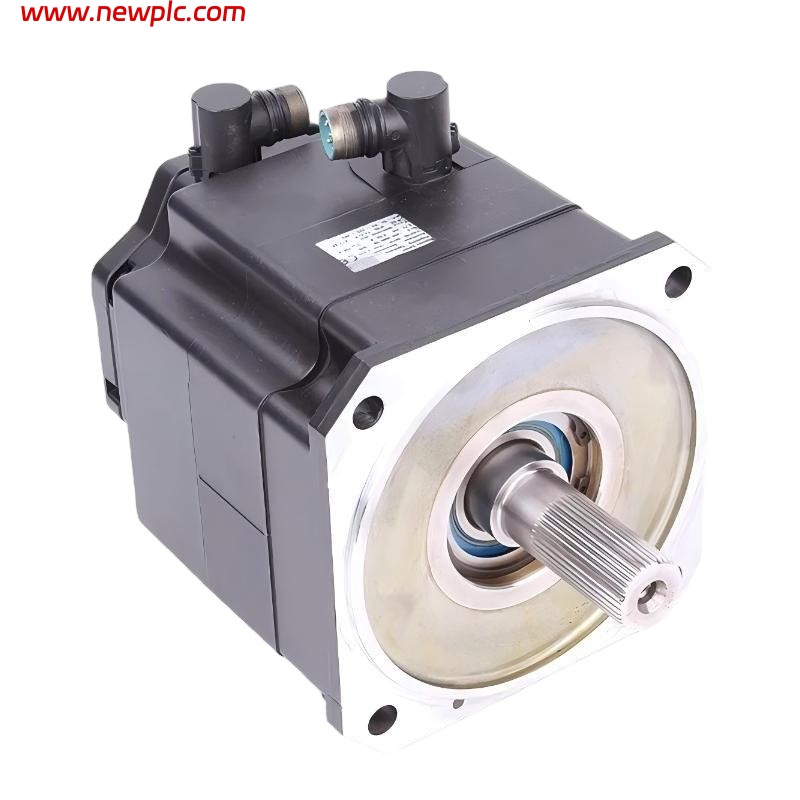

| Product Model | ABB 1FK6100-8AF91-1ZZ9-ZS49 |
| Product ID | 69-225-463 |
| Product Type | Servo Motor |
| Motor Series | ACSM 1FK6 Series |
| Motor Type | Synchronous AC Servo Motor |
| Rated Power | 0.75 kW |
| Rated Voltage | 230 V AC |
| Rated Current | 3.6 A |
| Rated Speed | 3000 rpm |
| Rated Torque | 2.4 Nm |
| Peak Torque | 7.2 Nm |
| Motor Feedback | Integrated incremental encoder / resolver |
| Connection | Motor cable with encoder connection |
| Mounting Type | Flange mount |
| Cooling Method | Natural convection / optional fan |
| Operating Temperature | -20°C to +40°C |
| Storage Temperature | -40°C to +70°C |
| Dimensions (Diameter × Length) | 80 × 160 mm |
| Weight | Approximately 4.2 kg |
| Protection Class | IP65 (sealed) |
| Compliance Standards | CE, UL, RoHS |
FAQ
FAQ
Q1. What type of motor is the 1FK6100-8AF91-1ZZ9-ZS49?
It is a synchronous AC servo motor designed for precise motion and position control in industrial applications.
Q2. What applications is this motor suitable for?
Ideal for CNC machines, robotics, automated assembly, packaging, and other precision-driven equipment.
Q3. What is the rated power and torque?
The motor provides 0.75 kW rated power, 2.4 Nm rated torque, and 7.2 Nm peak torque.
Q4. What type of feedback does the motor provide?
It includes an integrated incremental encoder or resolver for accurate speed and position feedback.
Q5. What is the rated speed of the motor?
The rated speed is 3000 rpm.
Q6. How is the motor mounted?
The motor uses a flange-mount design for easy integration into industrial machinery.
Q7. What environmental conditions can the motor operate in?
Operating temperature: -20°C to +40°C; storage temperature: -40°C to +70°C.
Q8. Does the motor have protection against dust and water?
Yes. It has an IP65 rating, providing full protection against dust and low-pressure water jets.
