Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product Number | 1VCF349767S0912 |

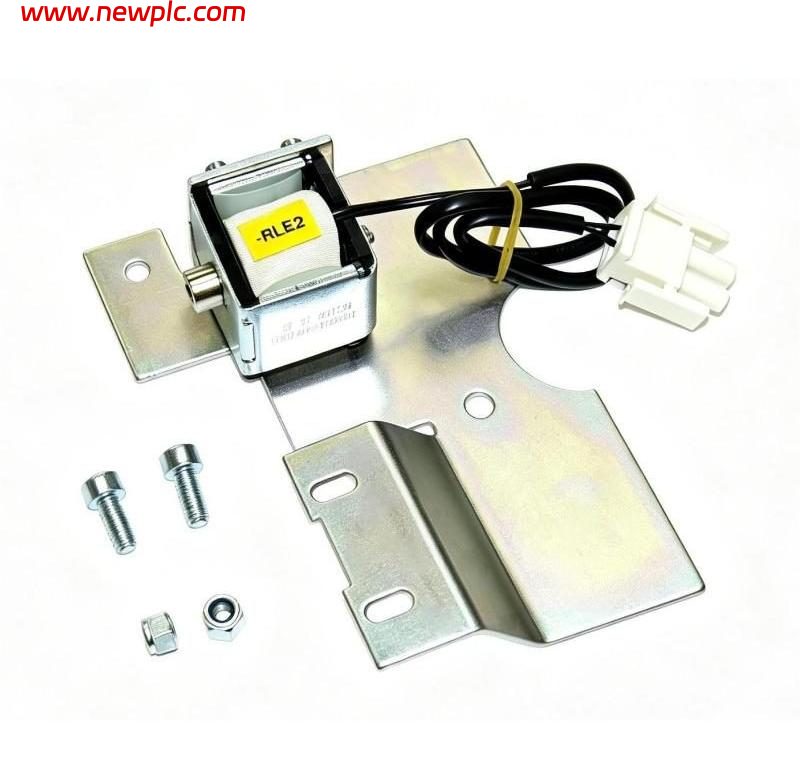

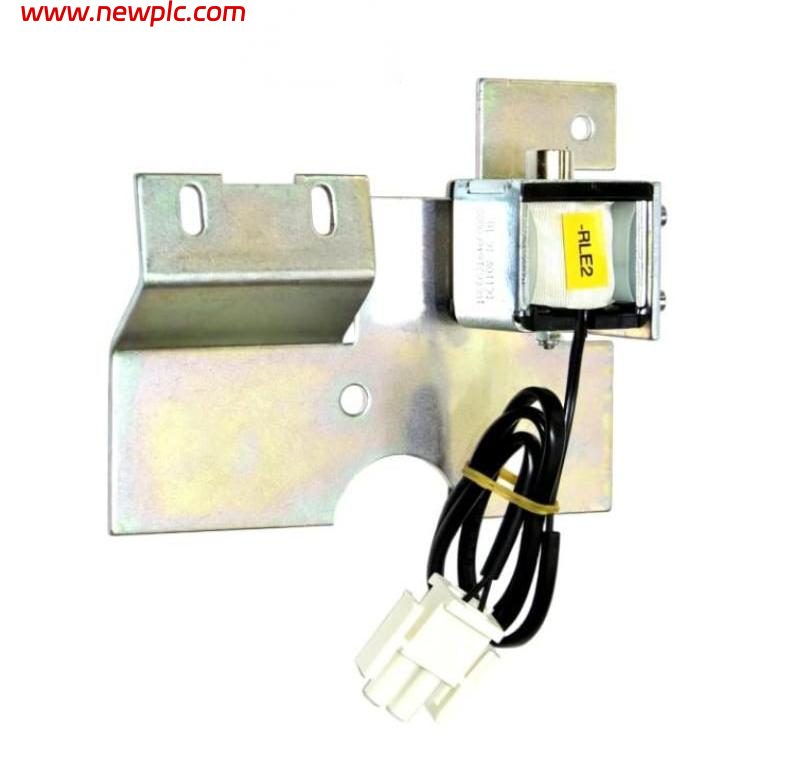

| Product Type | Electromechanical Locking Release |
| Short Description | Locking Coil RLE2 |
| Application | Circuit breaker truck / switchgear |
| Truck Configuration | YL2-RL2-RLE2 |
| Auxiliary Voltage | 125–132 V DC / 125 V AC |
| Compatible Equipment | VD4, Vmax, VSC, VM1, HD4 and related configurations up to 36 kV |
| Function | Electromechanical locking and release |
| Dimensions | 160 × 95 × 140 mm |
| Weight | 0.4 kg |
| Country of Origin | Italy (IT) |
| Replacement / Related Parts | Replaces 1VCF349767R0912, 1VCF349767R0914, 1VCF339750R1912 and 1VCF339750R1914 |
FAQ
FAQ
Q1: What is ABB 1VCF349767S0912?
It is an electromechanical locking release, also described as a locking coil, used in compatible ABB medium-voltage switchgear truck mechanisms.
Q2: What is the rated auxiliary voltage?
The specified auxiliary voltage is 125–132 V DC or 125 V AC.
Q3: What truck mechanism is it designed for?
It is designed for the YL2-RL2-RLE2 truck configuration.
Q4: Which ABB equipment can use this locking release?
It is specified for compatible VD4, Vmax, VSC, VM1 and HD4 configurations, among others, for applications up to 36 kV.
Q5: What does the locking release do?
It electrically controls a mechanical locking/release function in the circuit breaker truck mechanism, helping control the permitted mechanical position or movement of the truck.
Q6: What are the dimensions of 1VCF349767S0912?
The published dimensions are approximately 160 × 95 × 140 mm.
Q7: How much does the unit weigh?
Its listed net weight is approximately 0.4 kg.
Q8: Is 1VCF349767S0912 a battery or a magnetic component?
It is not a battery. It is an electrically actuated electromechanical locking/release coil assembly. As a coil-based electromechanical device, it contains magnetic components that operate when the specified auxiliary voltage is applied.
