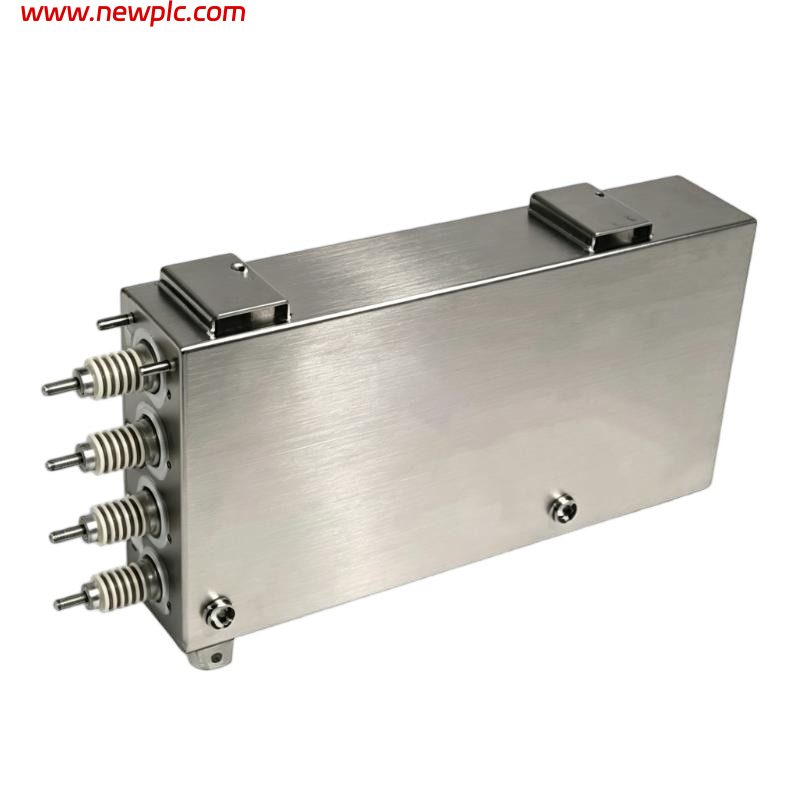

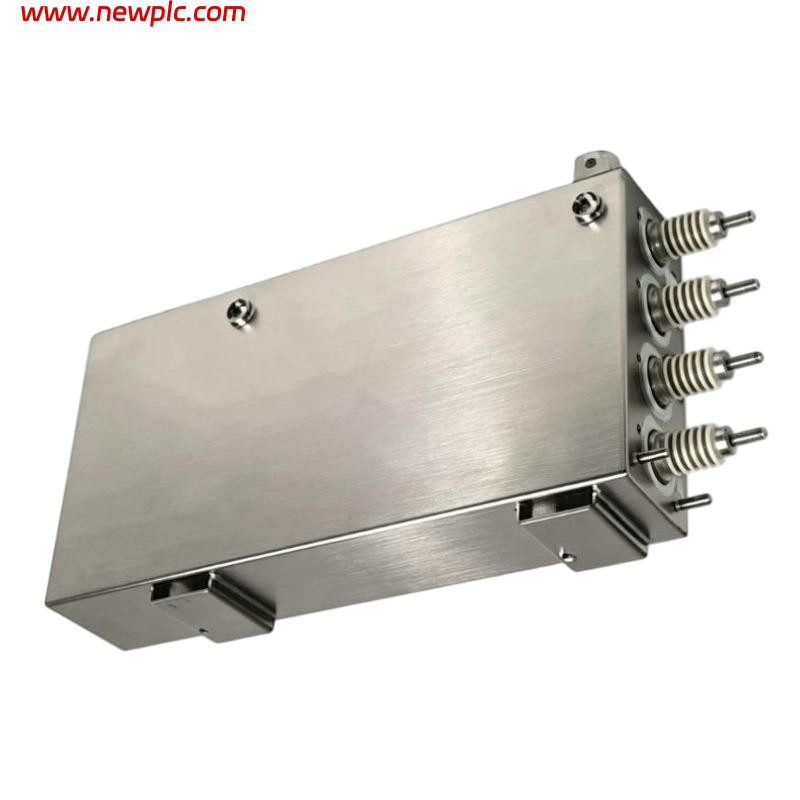

ABB 2*1300UF 3BHL000519P0001 DC Film Capacitor

FAQ

Q1: What is the ABB 3BHL000519P0001 used for?
The ABB 3BHL000519P0001 is a high-voltage DC film capacitor assembly used in ABB medium voltage drive systems. It provides DC bus energy storage and helps maintain stable voltage during converter operation.

Q2: What are the main specifications of the ABB 3BHL000519P0001?
The capacitor is rated at 2 × 1300 µF with a 2660 V DC voltage rating and uses film capacitor technology for reliable long-term operation.

Q3: Which ABB systems use the 3BHL000519P0001 capacitor?
This capacitor is mainly used in ABB ACS1000 medium voltage AC drive systems as a DC link capacitor component.

Q4: What are the dimensions and weight of the ABB 3BHL000519P0001?
The capacitor has approximate dimensions of 420 × 250 × 320 mm and weighs approximately 68 kg.

Q5: What is the function of a DC link capacitor in a drive system?
A DC link capacitor stores electrical energy, smooths DC voltage fluctuations, reduces ripple current, and supports stable operation of the inverter section.

Q6: Can the ABB 3BHL000519P0001 replace the older HL000519P0001 model?
Yes. The 3BHL000519P0001 is listed as a replacement for the previous HL000519P0001 product ID, but compatibility should be confirmed with the specific drive configuration before replacement.

Q7: What should be checked before installing the ABB 3BHL000519P0001?
Before installation, verify the capacitor part number, voltage rating, capacitance value, mechanical dimensions, mounting arrangement, and compatibility with the ABB drive system.

Q8: What are the advantages of the ABB 3BHL000519P0001?
The capacitor provides high voltage capability, stable DC energy storage, reliable film construction, long service life, and dependable performance in demanding medium voltage drive applications.

2*1300UF 3BHL000519P0001 ABB
