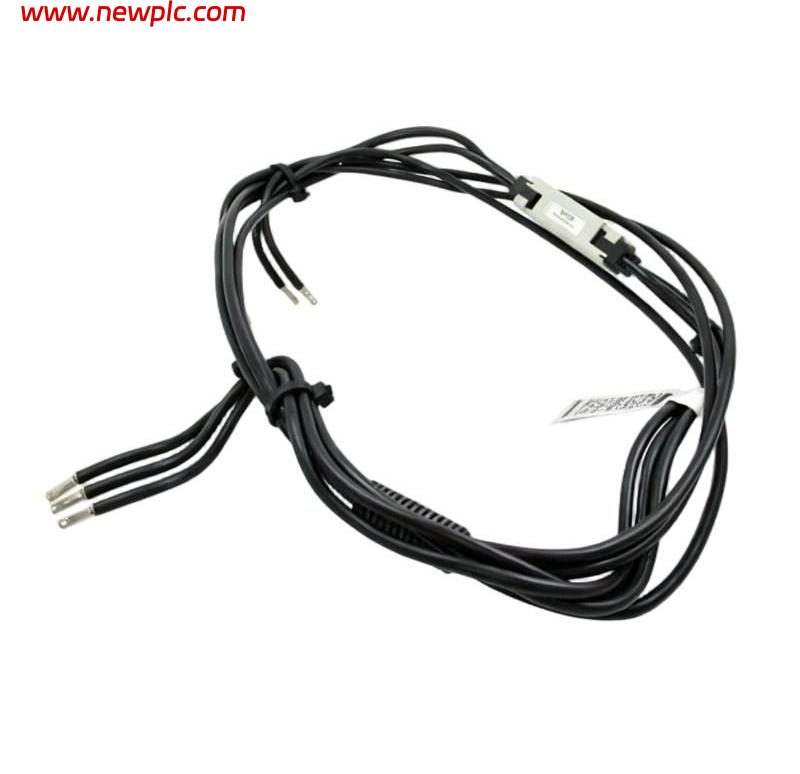

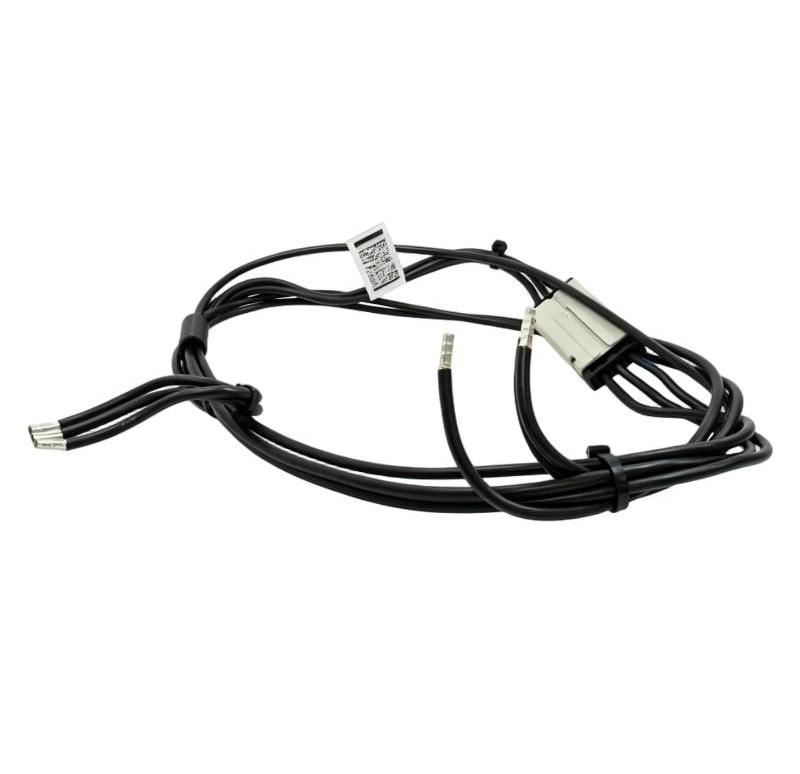

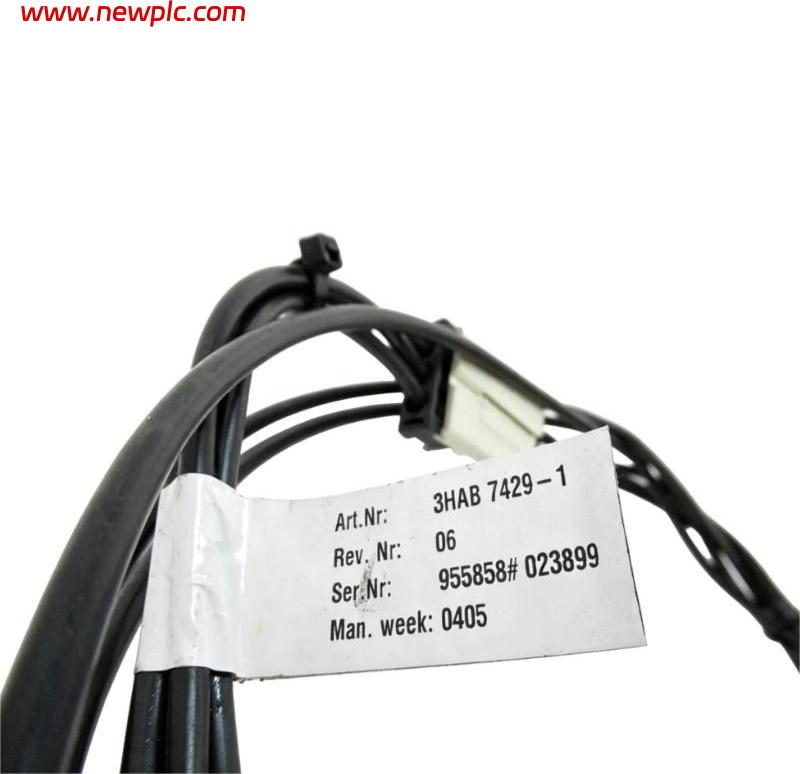

ABB 3HAB7429-1 C-Jib Switch / Circuit Breaker Cable

FAQ

Q1: What is ABB 3HAB7429-1?
A: It is an ABB C-Jib switch/circuit-breaker connection cable, identified in ABB documentation as “C-JIB SWITCH/CIRC B Q1/F1.”

Q2: What is the function of 3HAB7429-1?
A: It provides the electrical connection between the C-Jib switch and the associated circuit-breaker circuit, including Q1/F1.

Q3: Which ABB robot system uses 3HAB7429-1?
A: It is associated with ABB S4C/S4C+ robot systems and external-axis/Jib installations.

Q4: Is 3HAB7429-1 an electronic control board?
A: No. It is primarily a cable/connection assembly, not a PLC module or controller board.

Q5: What does “Q1/F1” refer to?
A: Q1 and F1 are circuit designations used in the robot/Jib electrical system. The part is intended to connect the C-Jib switch with that circuit.

Q6: What is the weight of 3HAB7429-1?
A: Available spare-part data lists approximately 0.12 kg (0.26 lb).

Q7: What are the dimensions of 3HAB7429-1?
A: A reliable manufacturer dimension drawing was not found. Since this is a cable assembly, the physical length and packed dimensions should be confirmed from the actual part or ABB configuration documentation.

Q8: Is ABB 3HAB7429-1 still available?
A: It is an older ABB robot spare part, but it remains available through the industrial spare-parts market. ABB’s historical After Sales Catalog confirms the original part number and its application.
