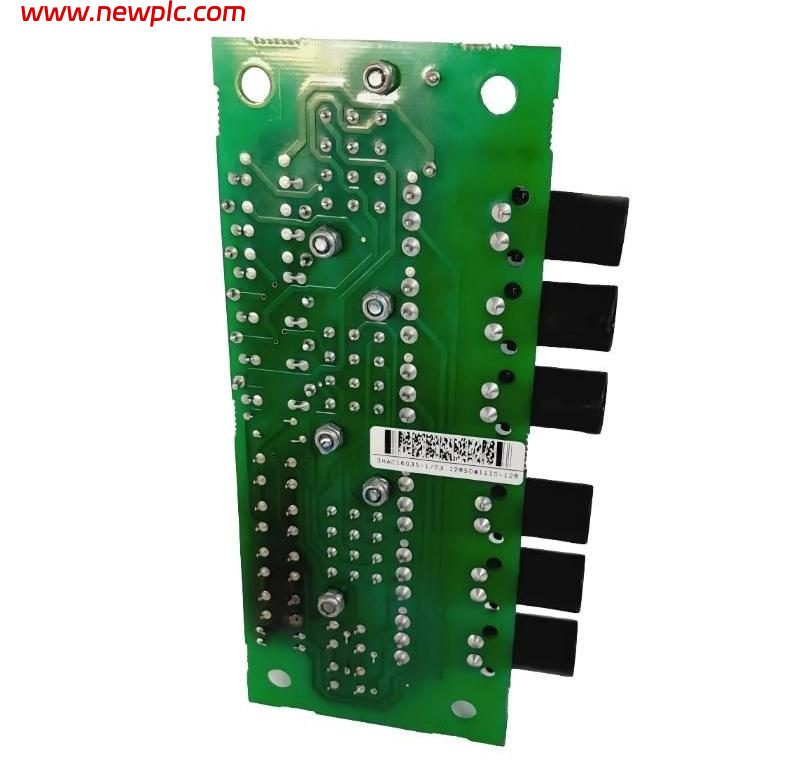

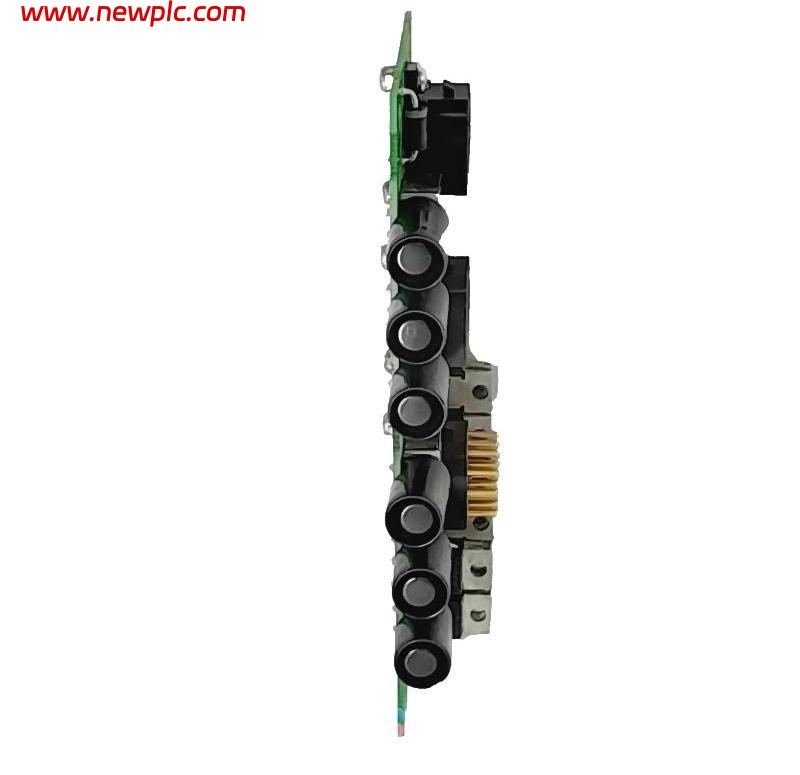

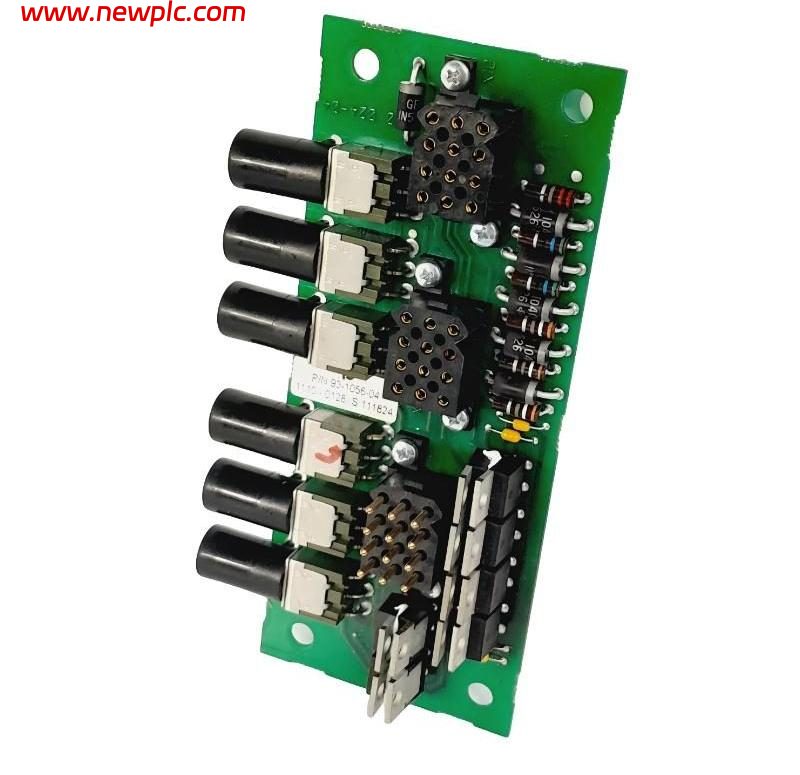

ABB 3HAC16035-1 Brake Release Board

FAQ

Q1: What is ABB 3HAC16035-1?
A: It is an ABB DSQC 563 Brake Release Board, used for manually releasing robot brakes during maintenance and service.

Q2: What is the main function of DSQC 563?
A: It controls the brake-release function of the robot, allowing technicians to release the mechanical brakes when repositioning or servicing the robot.

Q3: Which ABB robots use 3HAC16035-1?
A: ABB documentation lists it for robot families including IRB 460, IRB 660, IRB 2600, IRB 4600, IRB 6600, IRB 6640, IRB 6650S and IRB 6660.

Q4: What voltage does the brake release board use?
A: The board operates with a 24 V DC control supply.

Q5: Is 3HAC16035-1 still the current brake-release board?
A: It is an older DSQC 563 design. ABB has introduced replacement brake-release boards/kits for specific robot models. For example, ABB specifies 3HAC065020-001 for several IRB 460/660/2600/4600/6600/6640/6650S/6660 configurations.

Q6: What are the dimensions of 3HAC16035-1?
A: A supplier listing gives approximately 170 × 170 × 30 mm. This is a reference measurement rather than a confirmed ABB mechanical drawing.

Q7: How much does 3HAC16035-1 weigh?
A: ABB-related product data lists a net weight of approximately 0.14 kg, while another listing gives approximately 0.20 kg.

Q8: What should be checked before replacing this board?
A: Confirm the complete 3HAC16035-1 / DSQC 563 part number, robot model, controller generation and brake-release configuration. ABB replacement kits vary by robot model, so the correct replacement should be selected according to the specific robot.
