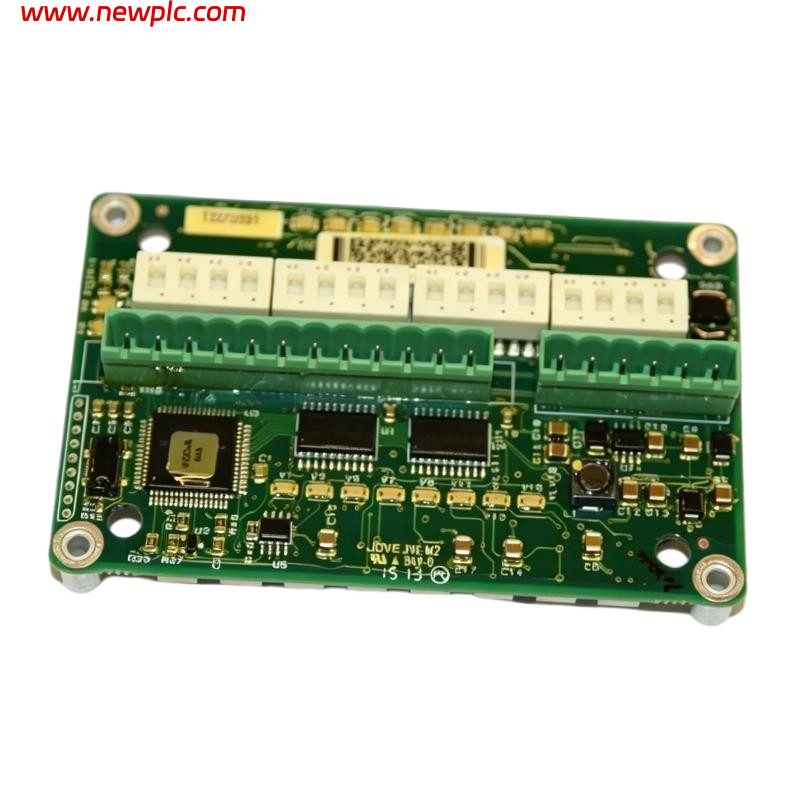

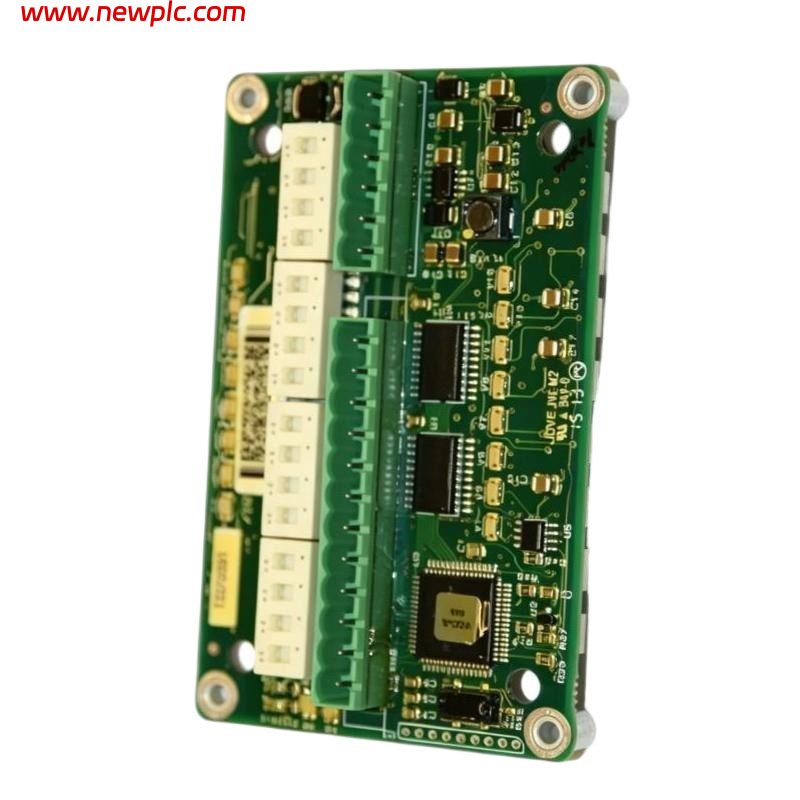

ABB 3HNA006565-001 Valve Control Interface Board

FAQ

Q1: What is the ABB 3HNA006565-001?
A1: The ABB 3HNA006565-001 is a VCDI-02 Valve Control Interface Board designed for ABB robotic systems, particularly paint automation applications.

Q2: What is the main function of the VCDI-02?
A2: It manages and monitors valve control signals, providing reliable communication between the robot controller and valve modules used in paint and process automation.

Q3: Which ABB controller is compatible with this board?
A3: The VCDI-02 spare part is commonly used with the ABB IRC5 robot controller in robotic automation systems.

Q4: What supply voltage does the board require?
A4: The board operates from a 24 V DC supply with a voltage tolerance of ±10%.

Q5: What is the operating temperature range?
A5: The recommended operating temperature is 0°C to +50°C, while the storage temperature range is -20°C to +70°C.

Q6: In which applications is this spare part used?
A6: It is primarily used in ABB robotic paint systems, automated spraying equipment, and valve control applications requiring precise fluid management.

Q7: What are the approximate dimensions of the VCDI-02?
A7: The approximate dimensions are 250 × 180 × 40 mm.

Q8: What is the approximate weight of the VCDI-02?
A8: The approximate net weight is 1.8 kg.
