Technical Specifications
| Item | Specification |
|---|---|

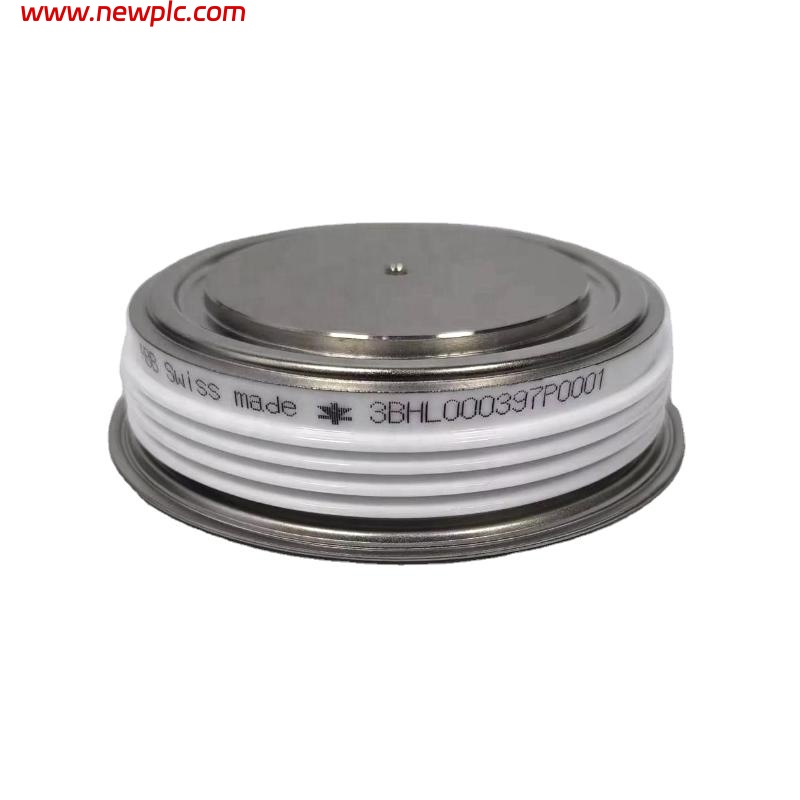

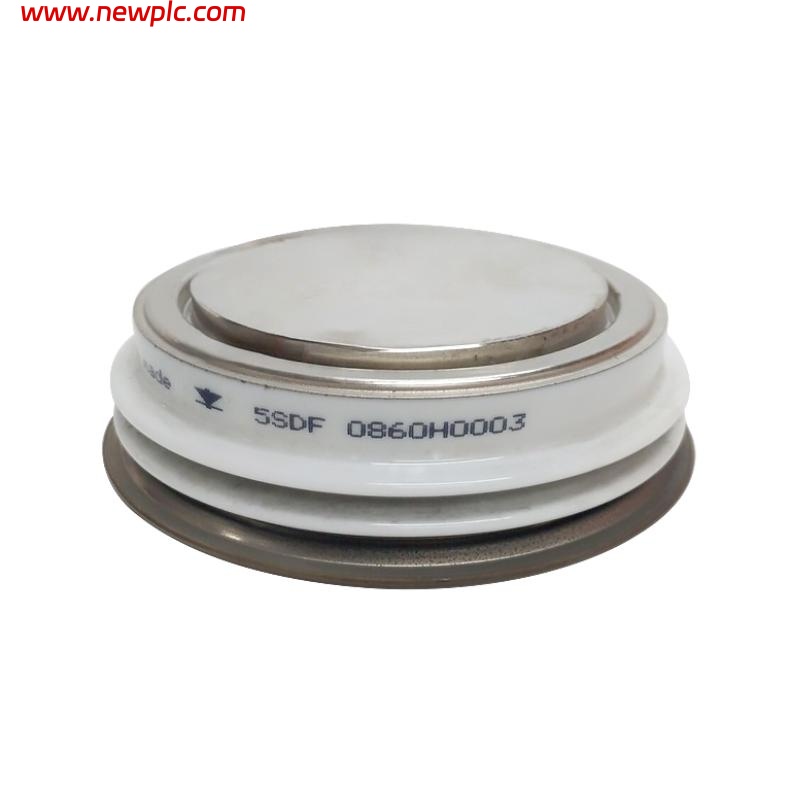

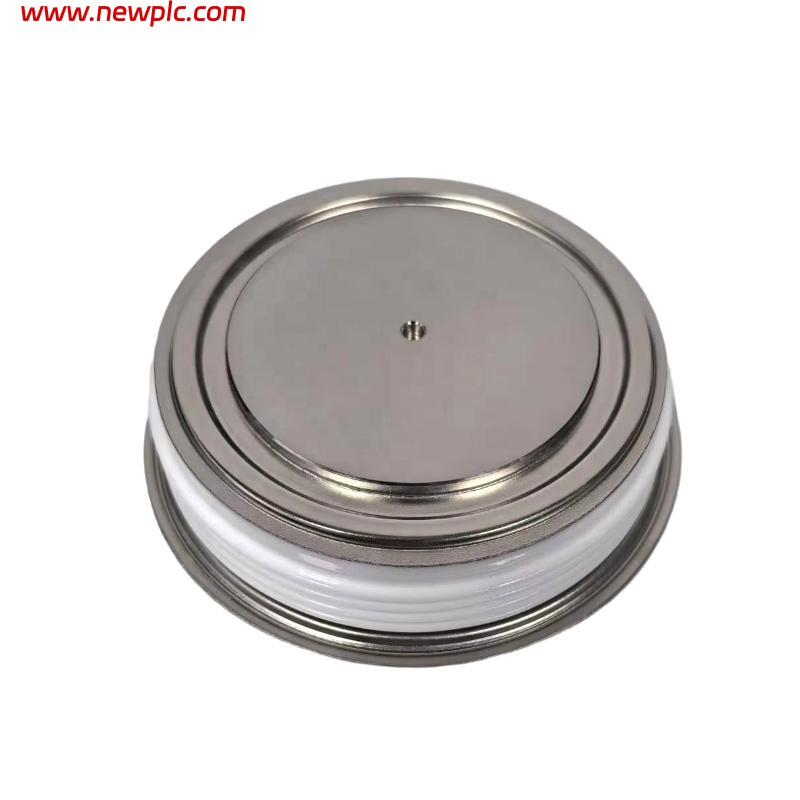

| Product Name | ABB 5SDF0860H0003 3BHL000397P0001 Diode |
| Product Type | High-Power Semiconductor Diode |
| Manufacturer | ABB |
| Application | Power conversion, rectifier circuits, industrial drives, and traction systems |
| Device Technology | Fast recovery power diode |
| Rated Repetitive Peak Reverse Voltage (VRRM) | 3600 V |
| Average Forward Current (IFAV) | 860 A |
| Surge Forward Current (IFSM) | 14,000 A |
| Reverse Recovery Time (trr) | 25 µs (typical) |
| Forward Voltage Drop (VF) | 1.3 V (at rated current) |
| Junction Temperature Range | –40°C to +150°C |
| Storage Temperature | –40°C to +125°C |
| Mounting Type | Press-pack (stud type) |
| Cooling Method | Air or liquid cooling via heat sink |
| Housing Material | Metal-ceramic structure |
| Dimensions | Diameter 68 mm |
| Weight | 1.11 kg |
| Compliance Standards | IEC 60747, RoHS, CE certified |
FAQ
FAQ
Q1: What is the ABB 5SDF0860H0003 3BHL000397P0001 used for?
It is used in high-power rectifier and inverter systems, such as motor drives, traction, and power conversion units.
Q2: What is the rated voltage and current of this diode?
It has a rated repetitive peak reverse voltage of 3600 V and an average forward current of 860 A.
Q3: What type of package does it use?
It uses a press-pack (stud type) structure for secure and reliable mounting.
Q4: Is this diode suitable for high surge currents?
Yes, it can handle surge currents up to 14,000 A.
Q5: What is the operating temperature range?
The junction temperature range is –40°C to +150°C.
Q6: Does it support fast recovery characteristics?
Yes, it is a fast-recovery power diode with a typical recovery time of 25 µs.
Q7: What are common applications for this diode?
It is commonly used in converters, rectifiers, and power electronics for industrial and railway systems.
Q8: What standards does it comply with?
It complies with IEC 60747, RoHS, and CE standards for quality and safety assurance.
