Technical Specifications
| Parameter | Specification |
|---|---|

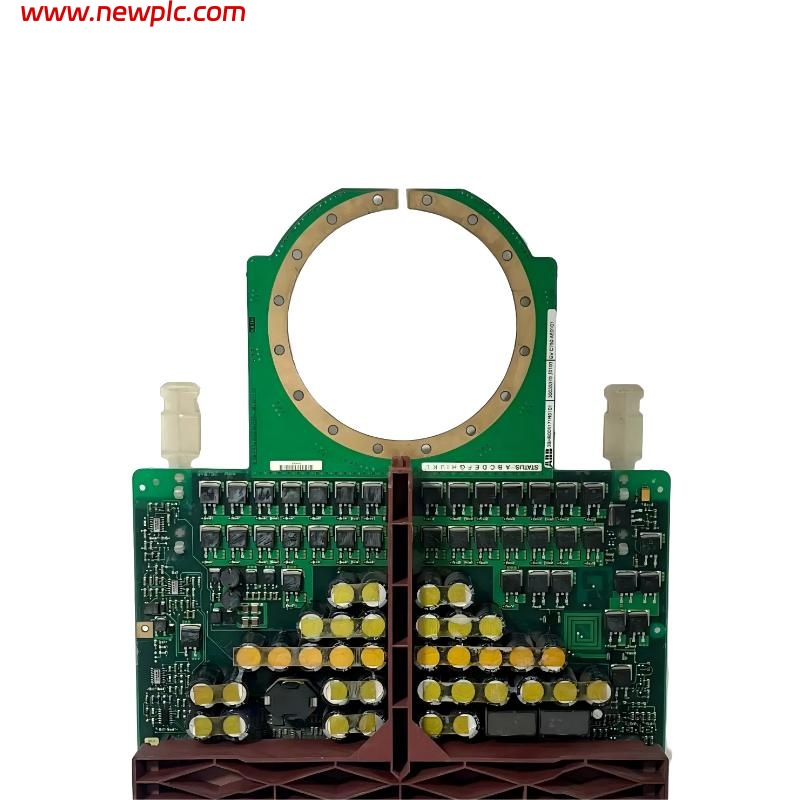

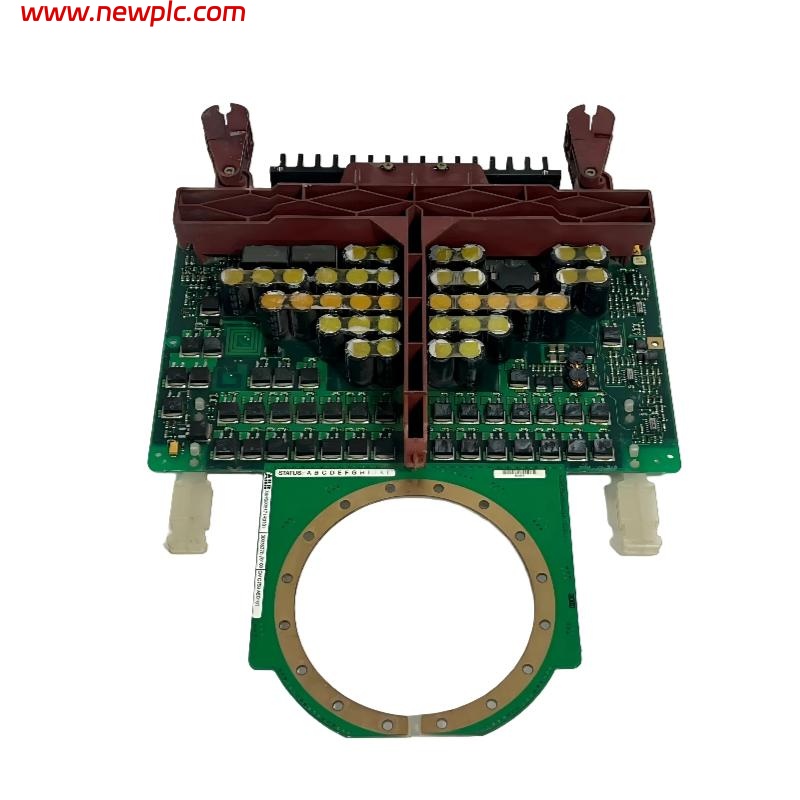

| Product Name | IGCT Module |
| Model Number | ABB 5SGY3545L0014 3BHB006485R0001 |
| Dimensions | 155 × 120 × 40 mm |
| Weight | 0.55 kg |
| Product Type | Integrated Gate-Commutated Thyristor (IGCT) Power Module |
| Rated Voltage | 4500 V |
| Rated Current | 3000 A |
| Switching Frequency | Up to 2 kHz |
| Gate Trigger Voltage | 15 V typical |
| On-State Voltage Drop | 2.8 V typical at rated current |
| Turn-On Time | ≤ 1 µs |
| Turn-Off Time | ≤ 10 µs |
| Junction Temperature Range | -40°C to +125°C |
| Storage Temperature | -55°C to +150°C |
| Thermal Resistance (Junction to Case) | ≤ 0.02 K/W |
| Isolation Voltage | 4000 V RMS |
| Power Loss | ≤ 1.8 W/A |
| Cooling Method | Forced air or liquid cooling |
| Protection Features | Overcurrent, overtemperature, and short-circuit protection |
| Mounting Configuration | Flat baseplate, screw-mounted |
| Application | Medium and high-power converters, traction drives, and industrial inverters |
| Compliance | CE, UL, and RoHS certified |
FAQ
FAQ
Q1: What is the main purpose of the ABB 5SGY3545L0014 IGCT module?
A1: The IGCT module is designed for high-power switching applications, combining the low conduction losses of a thyristor with the fast turn-off capabilities of an IGBT.
Q2: How does an IGCT differ from an IGBT?
A2: An IGCT integrates the gate drive with the device to reduce inductance, enabling faster turn-off times and higher efficiency compared to traditional IGBTs.
Q3: What type of cooling is recommended for this module?
A3: It can be used with either forced-air or liquid cooling systems, depending on the application’s power dissipation requirements.
Q4: What are typical applications of this IGCT module?
A4: Common applications include medium-voltage drives, power inverters, wind turbines, and traction systems for electric trains.
Q5: What protection mechanisms are integrated into the module?
A5: The module includes overcurrent, short-circuit, and overtemperature protection to ensure reliable operation in demanding environments.
Q6: What is the isolation capability of this device?
A6: It provides an isolation voltage of up to 4000 V RMS, ensuring safe electrical separation between control and power circuits.
Q7: How fast can the IGCT switch on and off?
A7: The typical turn-on time is ≤ 1 microsecond, while the turn-off time is ≤ 10 microseconds, supporting high-speed operation.
Q8: What maintenance practices are recommended for long-term reliability?
A8: Ensure proper thermal management, maintain clean connections, and periodically inspect for thermal compound degradation or mechanical loosening.
