Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | ABB |

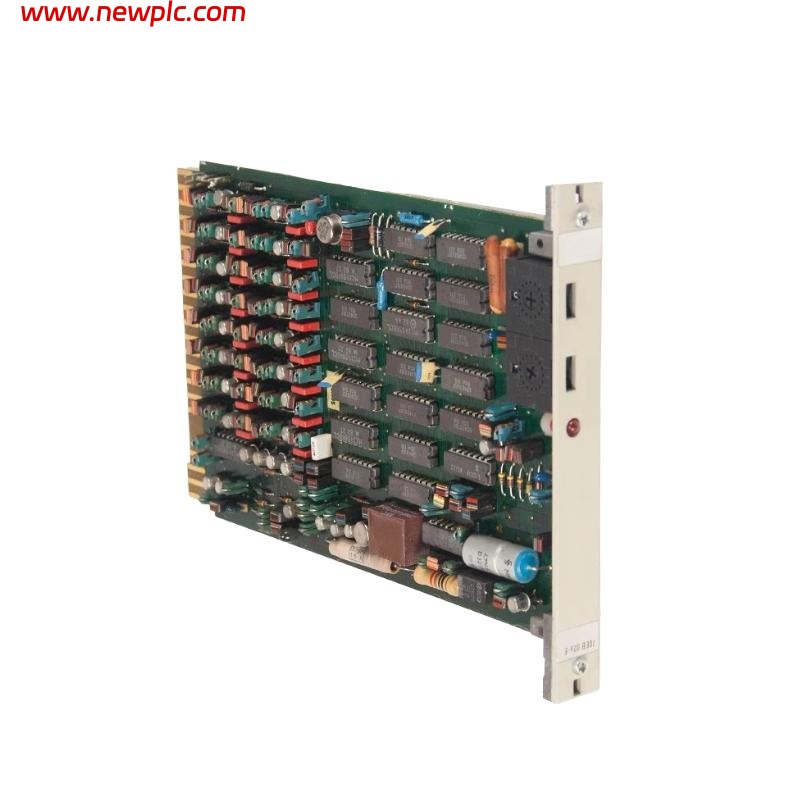

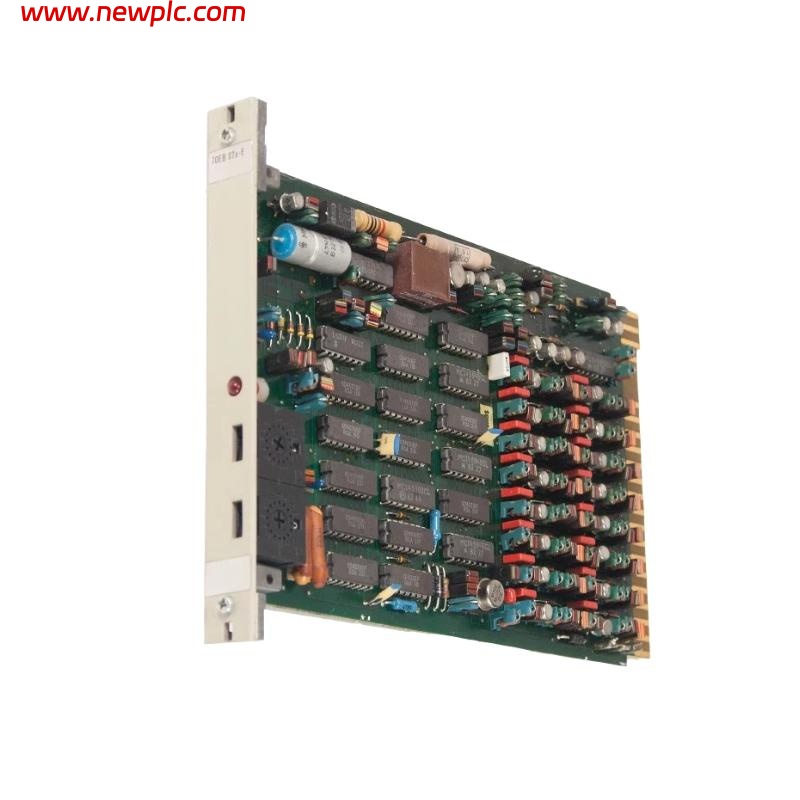

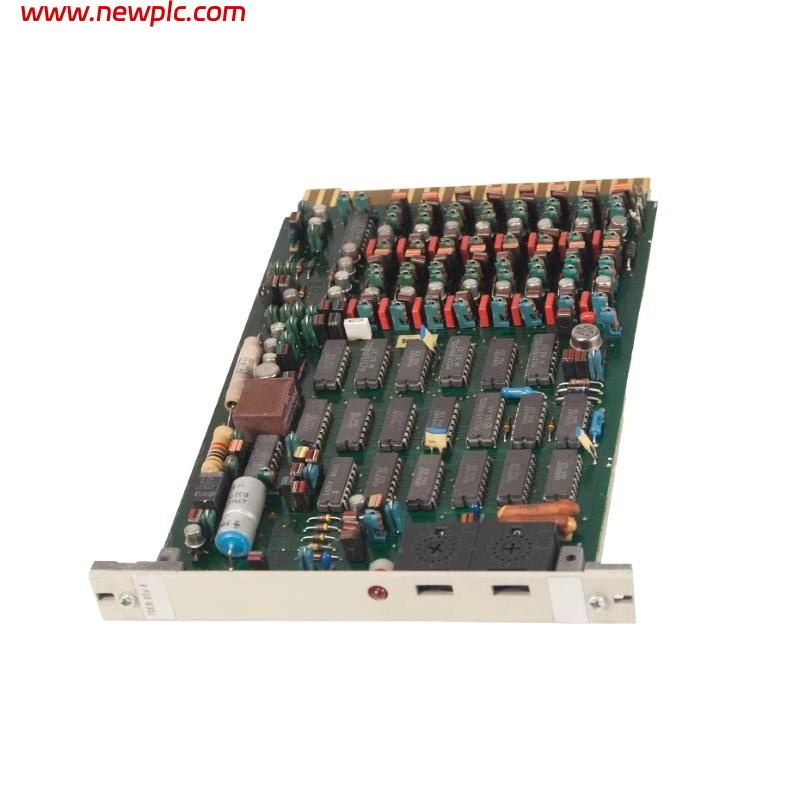

| Model | 70 EB 02a-E |
| Part Number | GJR319100R0004 |
| Product Type | Digital Input Module |
| System / Series | ABB Procontrol P13 / Advant / compatible I/O rack systems |
| Number of Input Channels | 32 (typical for P13 digital input modules) |
| Input Signal Type | 24 V DC, dry contact / open-collector compatible |
| Input Current | ~ 5 mA typical per channel |
| Isolation Voltage | 1500 V DC between input and system |
| Response Time | ~ 1 ms (or per system bus timing) |
| Diagnostics | Open circuit, short circuit detection |
| Mounting | Rack / slot insertion in I/O cabinet |
| Material / Housing | Metal frame and industrial-grade plastic cover |
| Dimensions | 120× 100 × 25 mm |
| Weight | 0.42 kg |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –25 °C to +70 °C |
| Humidity | 10 % to 95 % RH, non-condensing |
| Protection / Enclosure | IP20 (internal module) |
| Compliance | CE, RoHS, ABB internal quality standards |
| Application | Digital signal acquisition, alarm & status input in control systems |
FAQ
FAQ
Q1: What is the main function of the ABB 70 EB 02a-E module?
It collects digital input signals from field devices and transmits them to the control system.
Q2: Which systems is it compatible with?
It is compatible with ABB Procontrol P13, Advant, and related rack-based automation systems.
Q3: How many input channels does it support?
It supports up to 32 isolated digital input channels.
Q4: What is the input voltage range?
It operates with 24 V DC input signals, compatible with dry contact or open-collector types.
Q5: Does it have diagnostic capabilities?
Yes, it supports open circuit and short circuit fault detection.
Q6: How is the module installed?
It is slot-mounted within ABB I/O rack systems.
Q7: What is the response time of this module?
The typical response time is approximately 1 millisecond.
Q8: Does the module impact cabinet ventilation?
No, it is designed to fit standard rack dimensions without affecting airflow.
