Technical Specifications
| Item | Description |
|---|---|

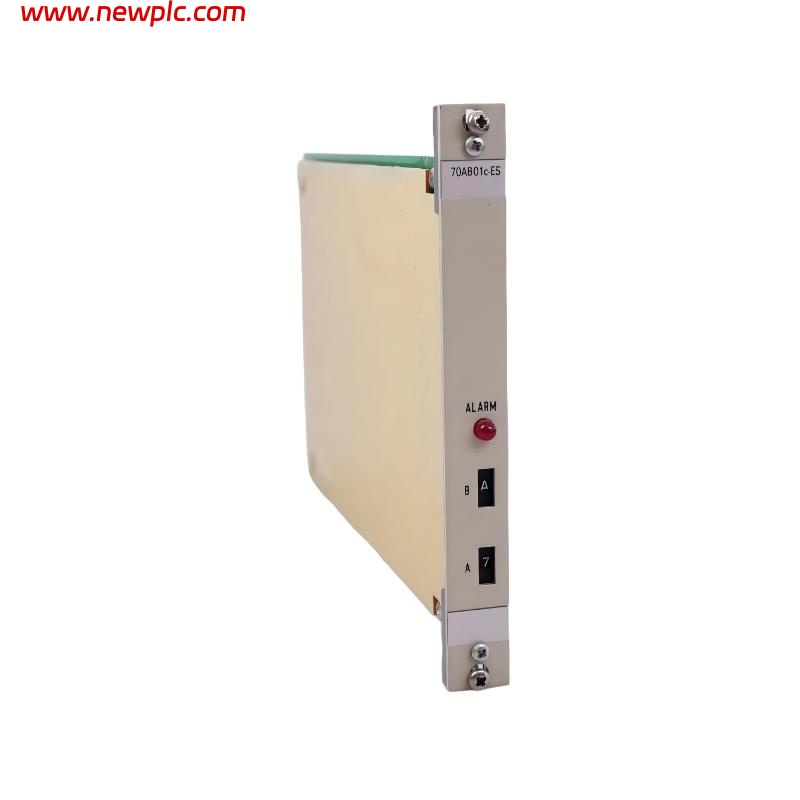

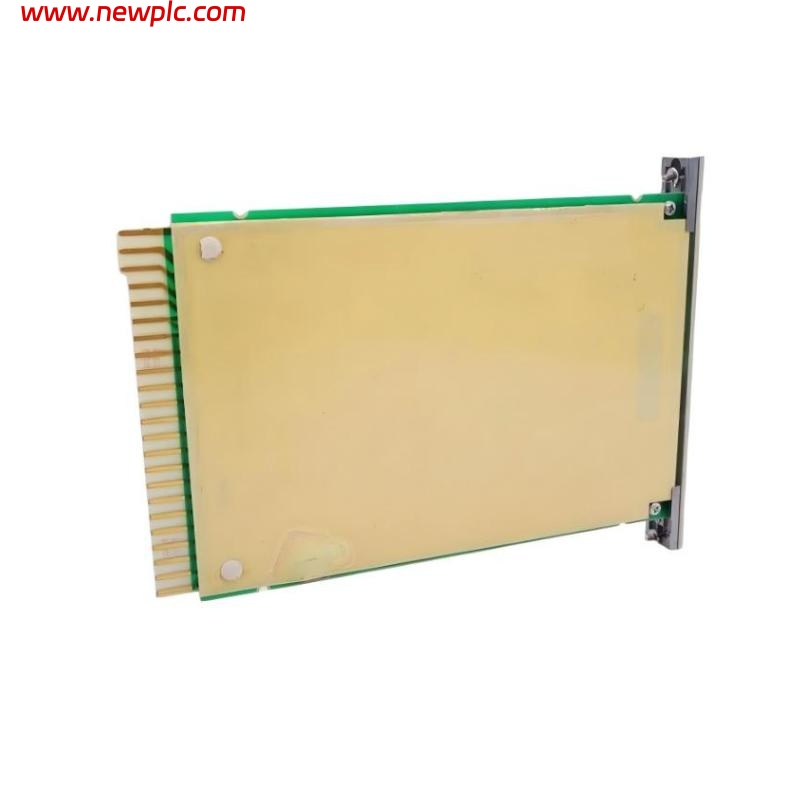

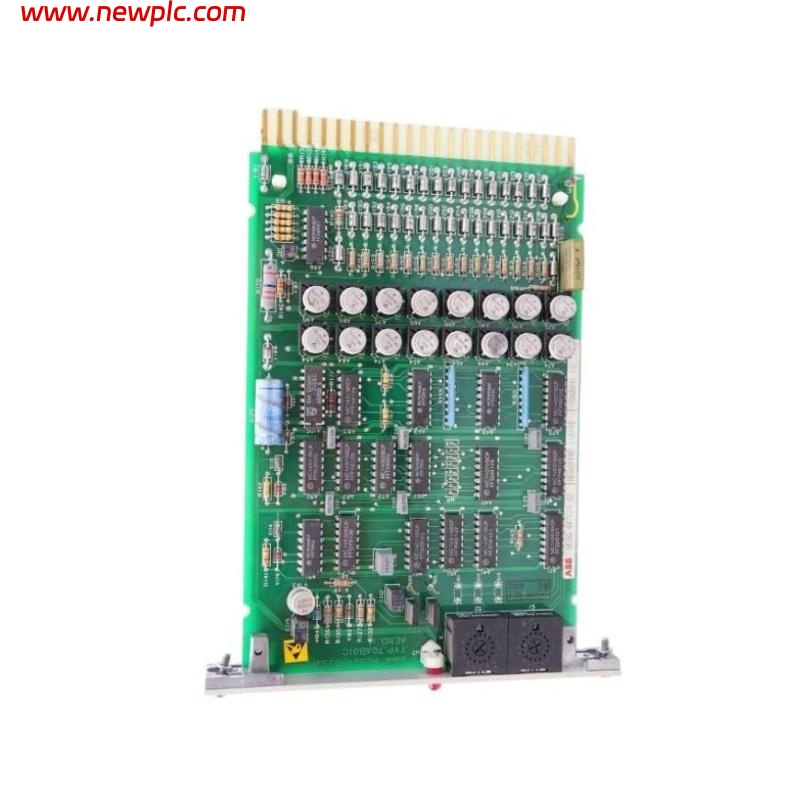

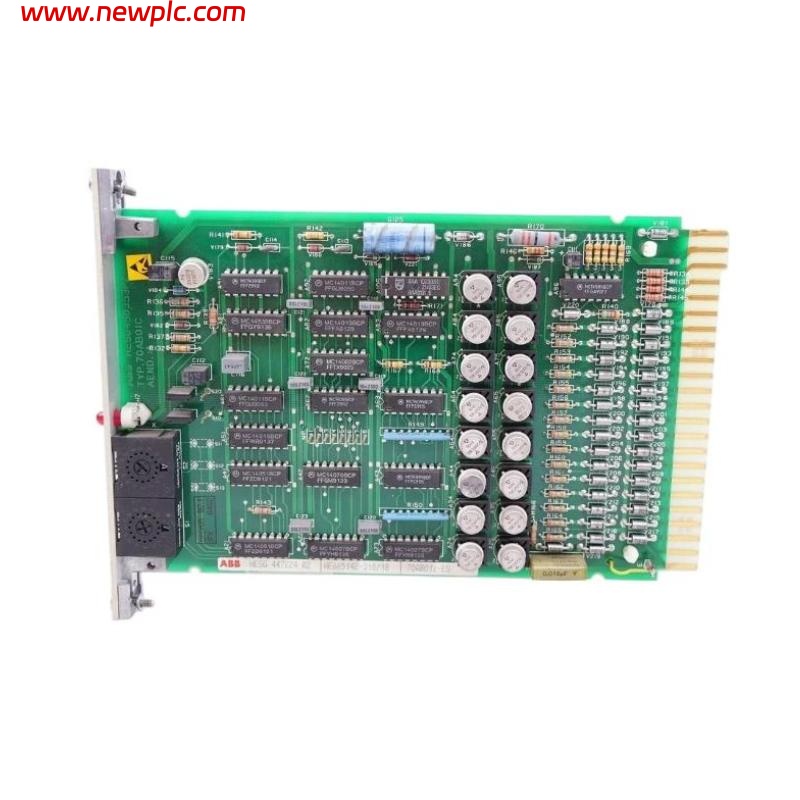

| Model | 70AB01C-ES / HESG447224R2 |
| Product Type | Output Module |
| System Compatibility | ABB industrial control and protection systems |
| Output Type | Digital output for relays, alarms, and actuators |
| Output Voltage | 24 VDC (system-dependent) |
| Output Load Capability | Supports relay coils, light-duty actuators, and alarm devices |
| Isolation | Output channels are electrically isolated from system electronics |
| Response Time | Fast response suitable for protection and control applications |
| Communication | Via rack backplane to the controller |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Method | Rack-mounted plug-in module |
| Dimensions | 180 x 120 x 90 mm |
| Weight | 1.5 kg |
FAQ
FAQ
Q1: What is the main function of the 70AB01C-ES output module?
A1: It provides digital output signals for controlling relays, alarms, and actuators.
Q2: What is the output voltage?
A2: Typically 24 VDC, depending on the system configuration.
Q3: Does the module have isolation protection?
A3: Yes, the outputs are isolated from the system electronics.
Q4: Is it suitable for high-speed control applications?
A4: Yes, it has a fast response suitable for protection and control.
Q5: Can it directly drive relays?
A5: Yes, it supports relay coils and light-duty actuators.
Q6: How is the module installed?
A6: By plugging it into the designated ABB system rack slot.
Q7: Does it require an external power supply?
A7: No, it is powered through the system backplane.
Q8: Can it be replaced in the field?
A8: Yes, replacement can be performed during maintenance shutdowns.
