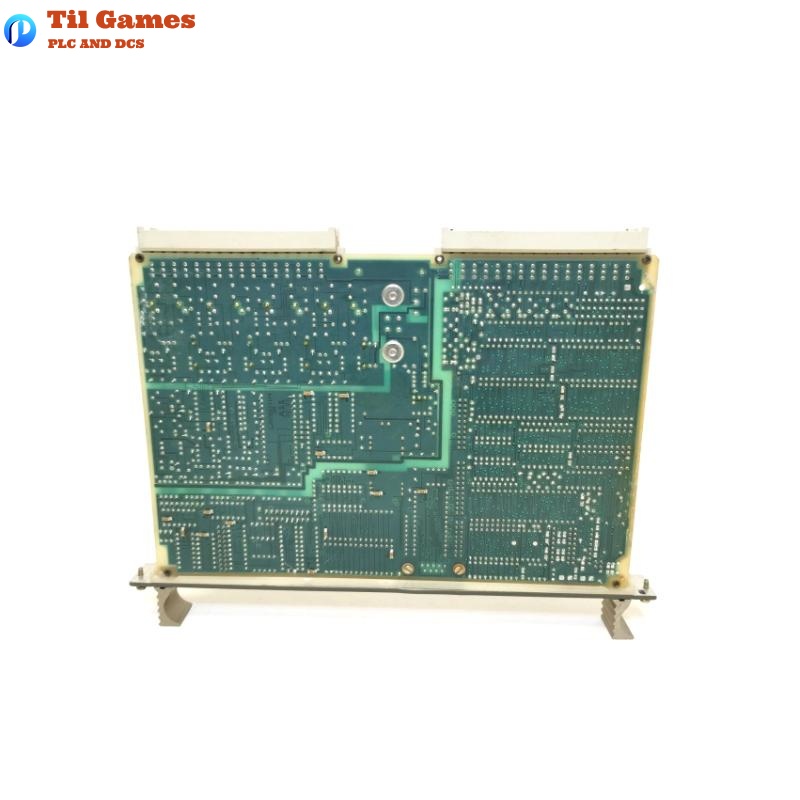

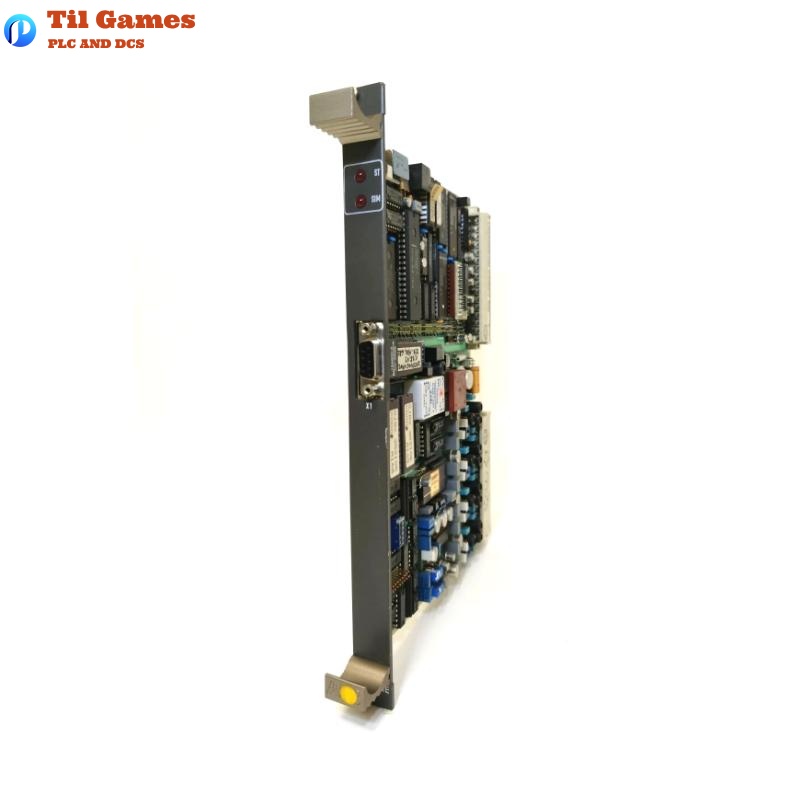

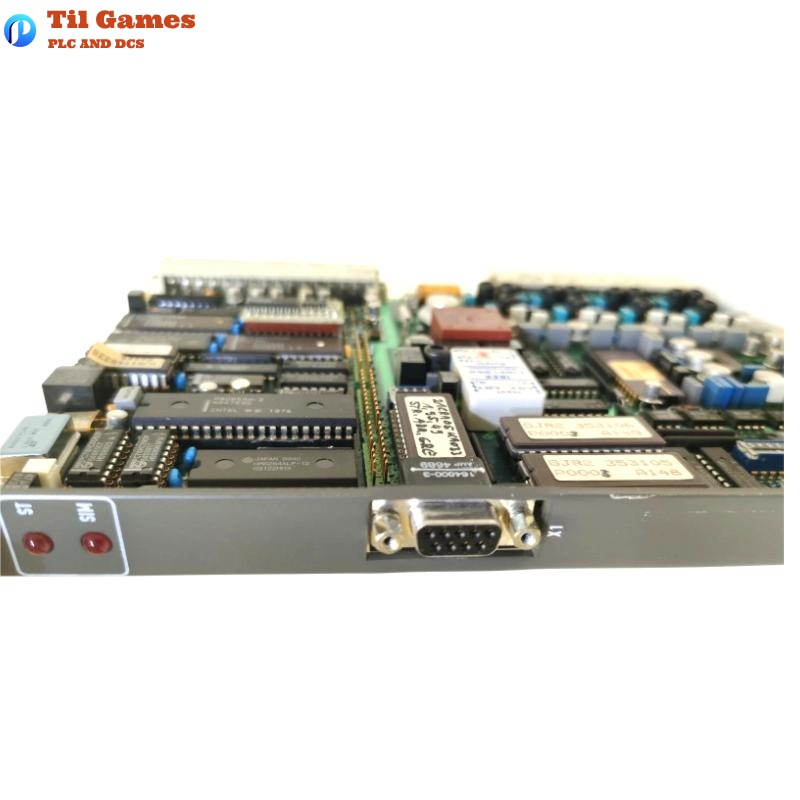

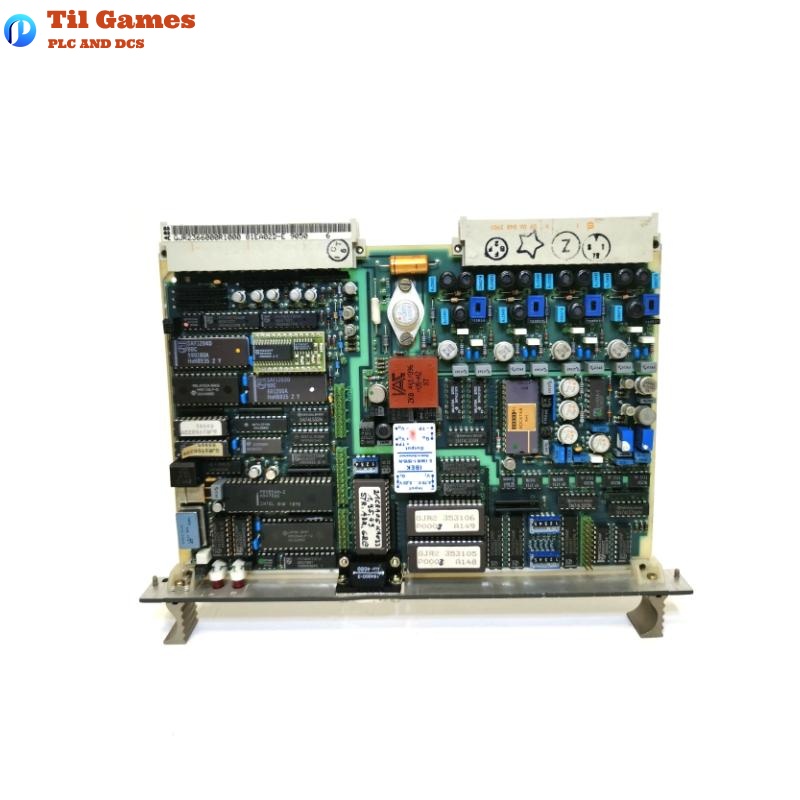

Technical Specifications
| Parameter | Description |
|---|---|
| Model | 81EA02E/R1013 (compatible with R1010 / R1011) |
| Input Signal Type | 0/4…20 mA, 0…10 V |
| Input Channels | 4 channels |
| Input Resistance (Current) | 100 Ω |
| Input Resistance (Voltage) | 100 kΩ |
| Input Range (Current) | 0–20 mA, max 50 mA |
| Input Range (Voltage) | 0–10 V, max ±45 V (<10ms) |
| Output Type | Passive current output (A11/A12), max 100 Ω load, <25 mA |
| Resolution | 12 Bit |
| Total Error (Incl. Aging) | <0.7% (0–20 mA), <0.82% (4–20 mA), <0.47% (0–10 V) |
| Input Scan Time | 50 ms (12.5 ms per value) |
| Power Supply | +5V (bus), +24V (process), max power 7.88 W |
| Module Dimensions | 18 × 197 × 261 mm |
| Module Weight | 0.6 kg |
| Isolation | Opto-isolated inputs/outputs, EMC protected |
| Supported Accessories | Battery Pack 89NB02, RAM Clear Module 89PL01 |
| Analog Filtering | Non-linear filter supported, 5.6 Hz cutoff, 20 dB/dec rise |
| Correction & Limit | Flow, level, pressure, temperature corrections; thresholds |
| Common-Mode Rejection | 60 dB |
| Common-Mode Voltage Range | -12 V to +12 V |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of analog signals does the 81EA02E module accept?
A1: It accepts both 0/4…20 mA current signals and 0…10 V voltage signals.
Q2: Does the module provide electrical isolation?
A2: Yes, optical isolation is implemented between the process and bus sides.
Q3: Is there a self-diagnosis function available?
A3: Yes, it performs internal monitoring of communication and signal processing.
Q4: Can threshold values be configured via software?
A4: Yes, threshold limits can be set through the control system and saved in PROM.
Q5: Does the module supply power to 2-wire transmitters?
A5: Yes, it provides internal +24V for powering 4…20 mA 2-wire transmitters.
Q6: What is the accuracy of the analog inputs?
A6: Typical error is 0.08% (0–20 mA) and 0.05% (0–10 V) at 25°C.
Q7: Can each channel be configured individually?
A7: Yes, each channel can be independently configured for current or voltage input.
Q8: Are signal correction and non-linear compensation supported?
A8: Yes, R1011/R1013 versions support functions such as KOR1/KOR2/NIV.
