Technical Specifications
| Parameter | Value |
|---|---|

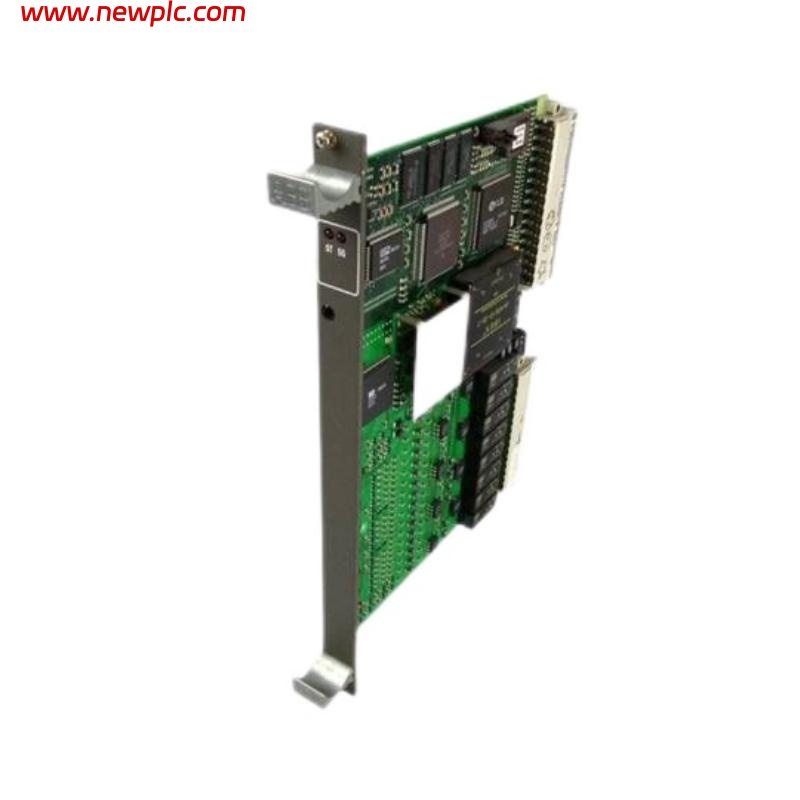

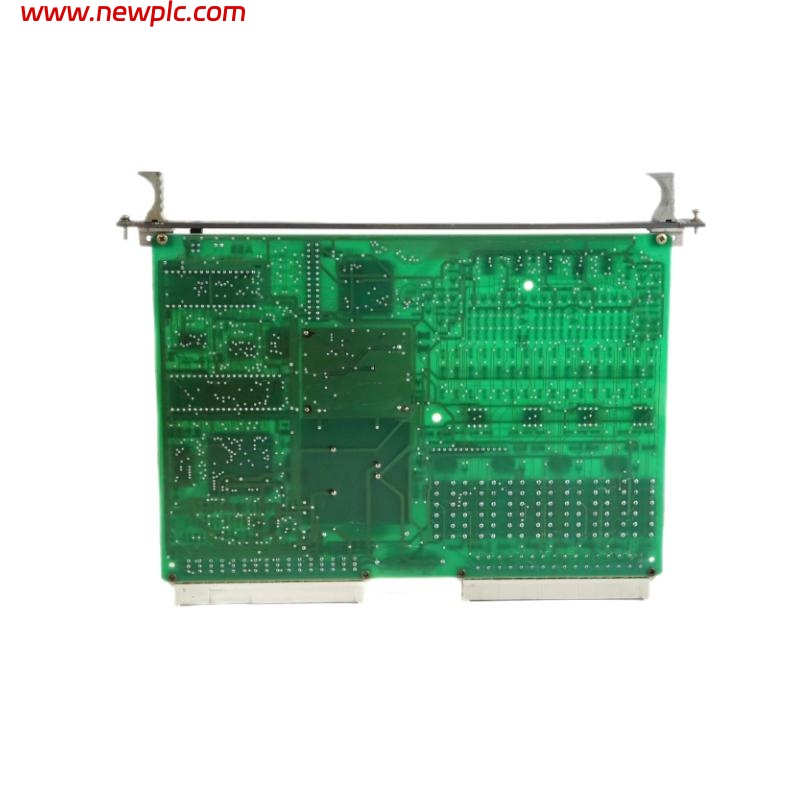

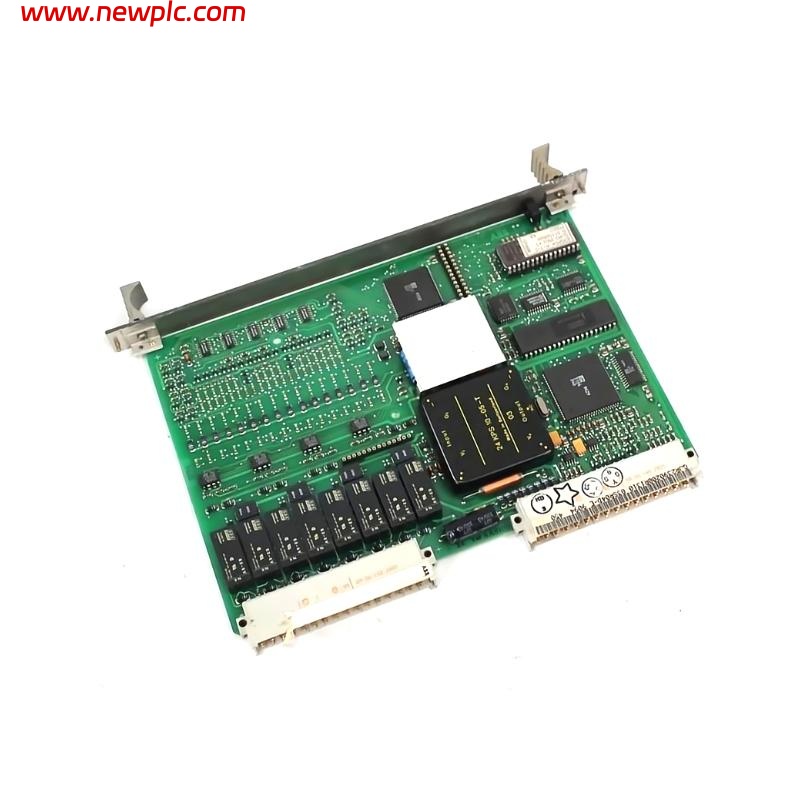

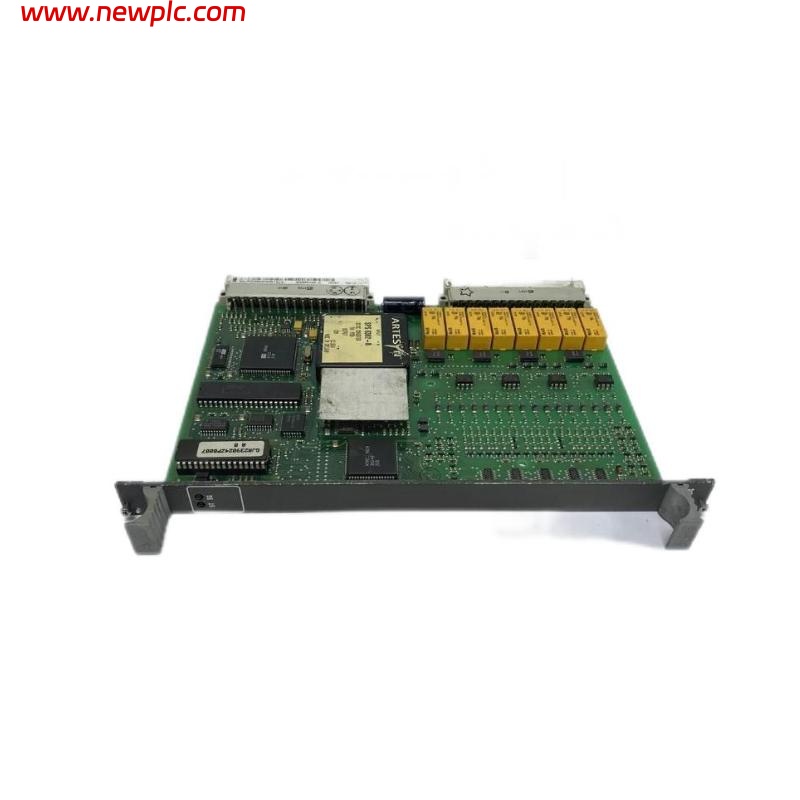

| Model | 83SR04E |
| Ordering Number | GJR2390200R1310 |
| Type | Control and Display Unit for Motor Relay |
| Key Function | Central processing, human-machine interface (HMI) |
| Power Supply | Via base unit (e.g., 24-250V AC/DC) |
| Communication | RS485, Modbus RTU. Profibus-DP (optional) |
| Mounting | Panel mounting onto base unit |
| Protection (Front) | IP54 |
| Operating Temperature | -25°C to +70°C |
| Dimensions | 160 x 120 x 45mm |
| Weight | 0.65 kg |
FAQ
FAQ
Q: Can this control unit work alone?
A: No. It must be installed onto a compatible ABB motor relay base unit to operate.
Q: What communication protocols does it support?
A: It standardly supports Modbus RTU via RS485. Profibus-DP is an optional add-on module.
Q: How to configure a new unit?
A: Use ABB’s PST software to transfer settings from the old unit or configure it manually.
Q: What does the IP54 rating mean?
A: It is dust protected and resistant to water splashes from any direction, suitable for harsh environments.
Q: What to check if the display is blank?
A: 1. Check if the base unit has power. 2. Ensure the control unit is fully seated and locked into the base.
Q: Is it compatible with non-ABB devices?
A: No, it is designed exclusively for specific ABB motor protection systems.
Q: Will settings be lost after power loss?
A: No, all configurations are stored in non-volatile memory.
Q: Is hot-swapping supported?
A: Possible in theory, but powering off the system before replacement is strongly recommended to avoid faults.
