Technical Specifications
| Parameter Category | Technical Description |
|---|---|

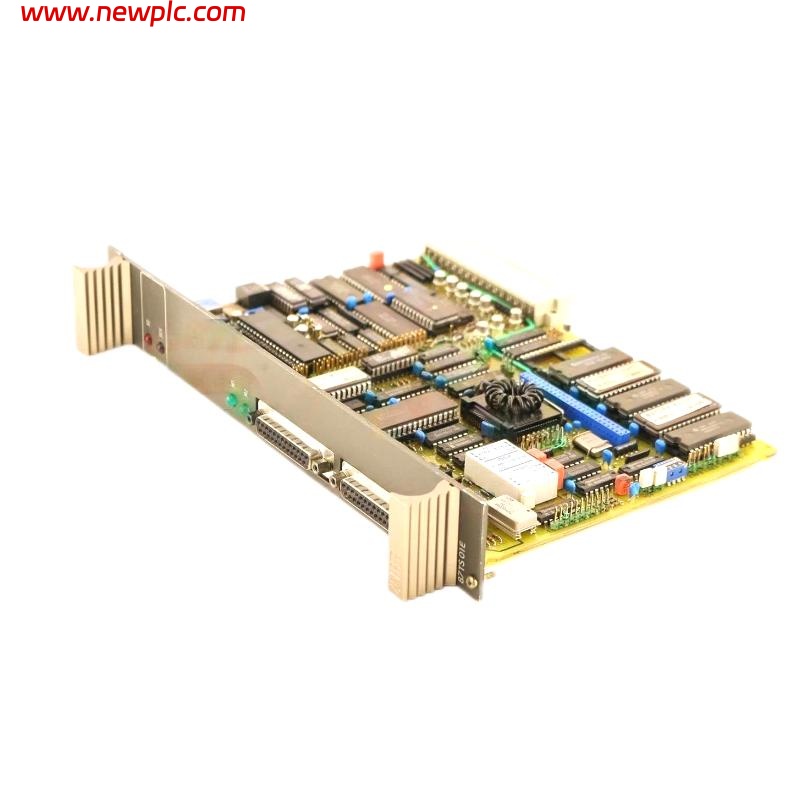

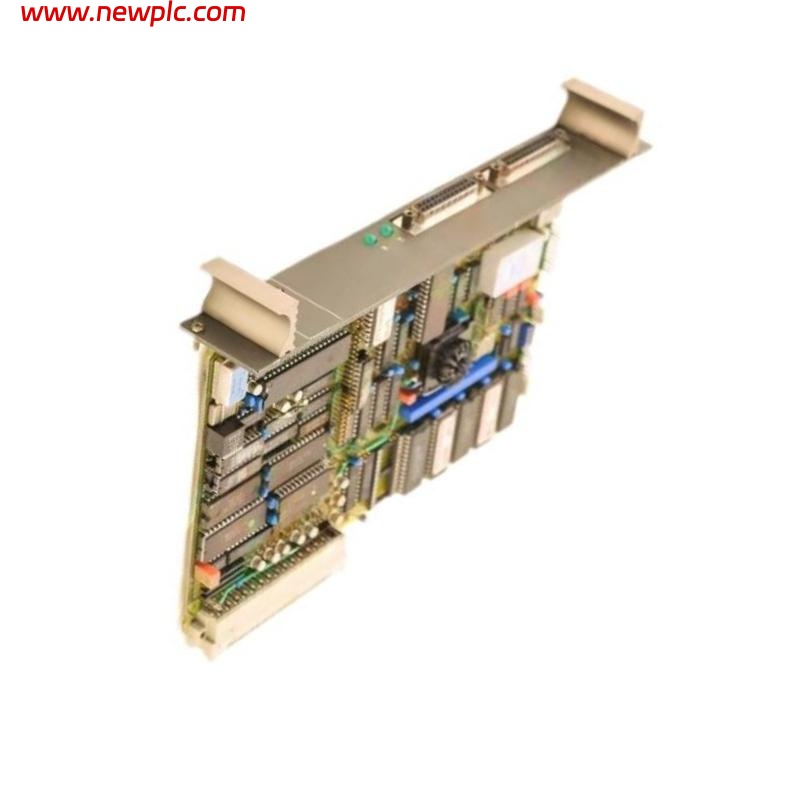

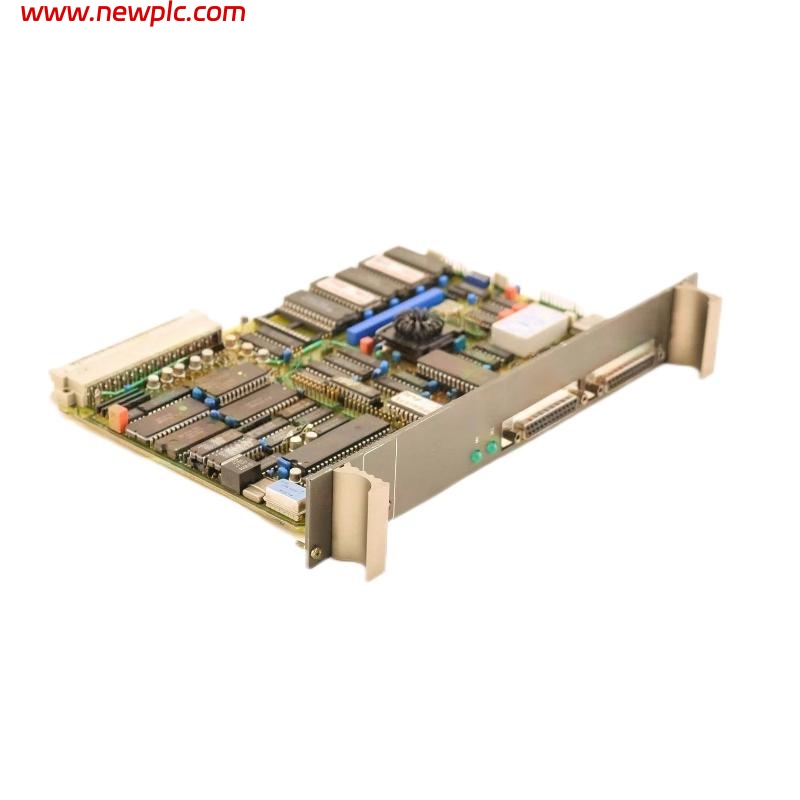

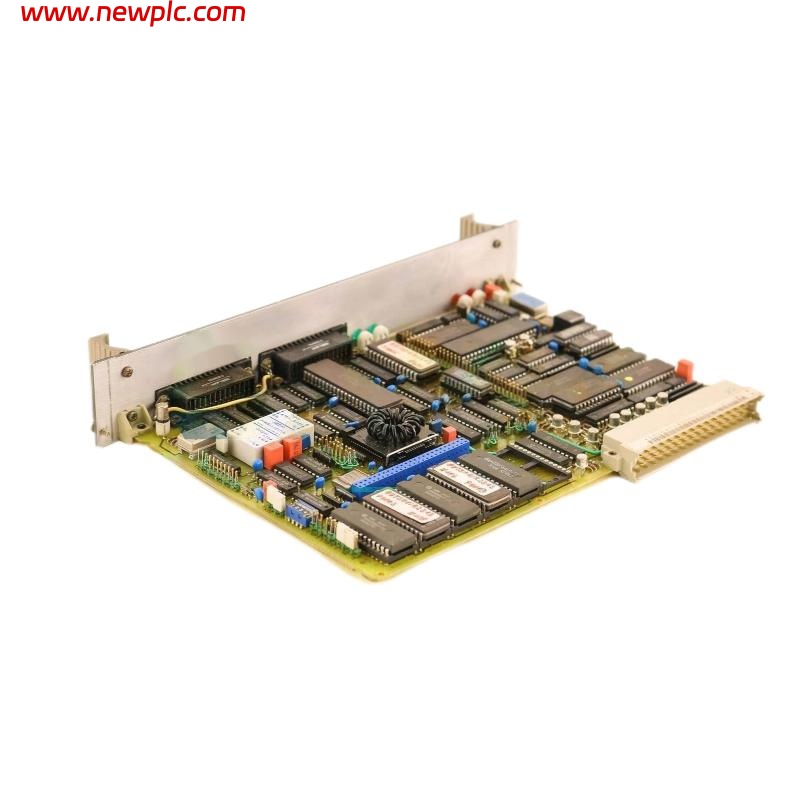

| Product Model | ABB 87TS01E GJR2368900R2340 Coupler Module |
| Function | Provides signal isolation, distribution, and bus coupling to ensure safe communication |
| Input Signal Types | Digital / Analog signals (application-dependent) |
| Output Signal Types | Isolated digital/analog signals, supports multi-channel output |
| Communication Ports | RS485 / System bus interface |
| Power Requirement | DC 24 V control supply, power consumption ≤ 6 W |
| Isolation Level | ≥ 1.5 kV, compliant with IEC 60255 standard |
| EMC Compliance | Meets IEC/EN 61000 industrial EMC standards |
| Response Time | ≤ 5 ms |
| Operating Modes | Point-to-point communication / Bus coupling |
| Self-Diagnostic | Supports interface and channel monitoring |
| Redundancy Support | Supports redundant configuration with parallel operation |
| Operating Environment | Operating: -10 ~ +55°C; Storage: -40 ~ +85°C; Humidity: 95% non-condensing |
| EMC Standard | CE, FCC compliant |
| Dimensions | 105 × 110 × 40 mm |
| Weight | 0.15 kg |
FAQ
FAQ
Q1: What types of input and output signals are supported?
A1: Both digital and analog signals with galvanic isolation are supported.
Q2: How does the module communicate with the system bus?
A2: It communicates via RS485 or a dedicated system bus interface.
Q3: What is the isolation voltage rating?
A3: The isolation level is ≥ 1.5 kV, compliant with IEC 60255.
Q4: What is the typical response time of the module?
A4: The response time is ≤ 5 ms, suitable for real-time control.
Q5: Does the module support redundancy?
A5: Yes, it can operate in parallel with redundant coupler modules.
Q6: What are the power supply specifications?
A6: DC 24 V power supply with consumption ≤ 6 W.
Q7: Does the module feature self-diagnostics?
A7: Yes, it has built-in self-diagnostic functions for monitoring channels and interfaces.
Q8: What environmental conditions can the module operate in?
A8: Operating temperature: -10 ~ +55°C; Storage: -40 ~ +85°C; Humidity: up to 95% non-condensing.
