Technical Specifications
| Parameter | Description |
|---|---|

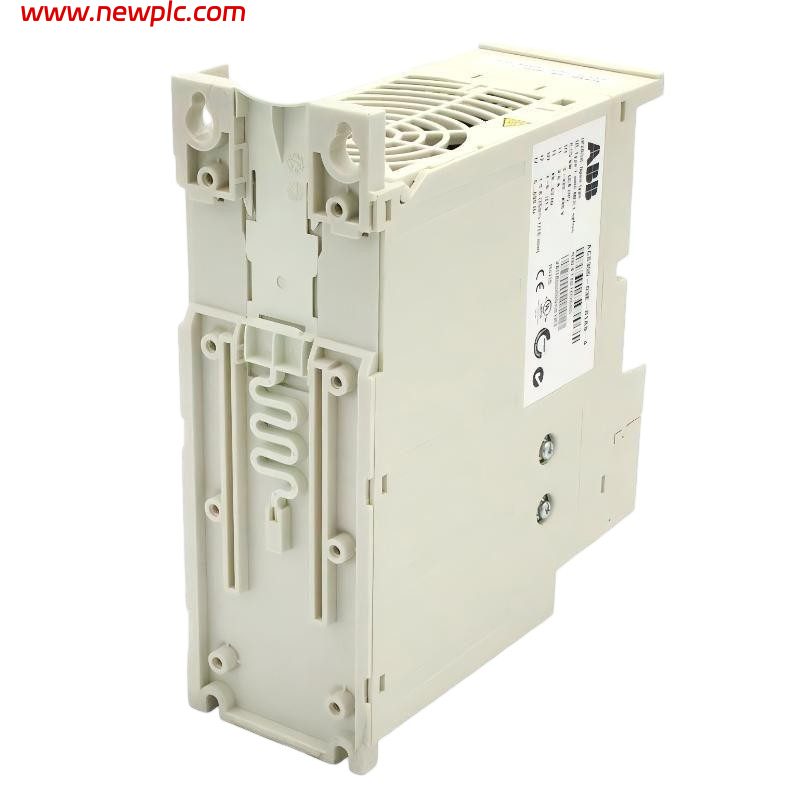

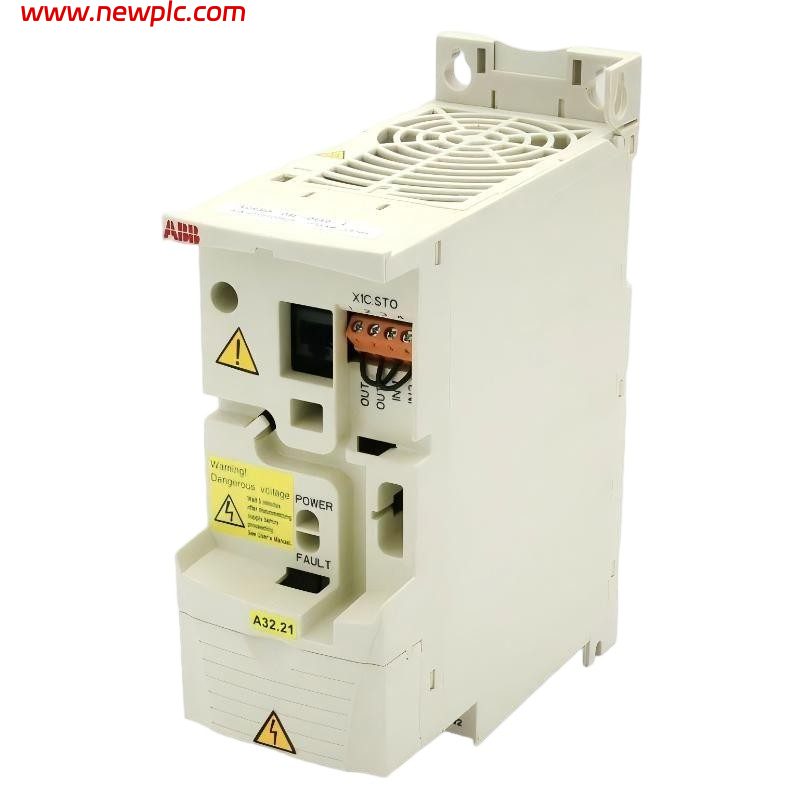

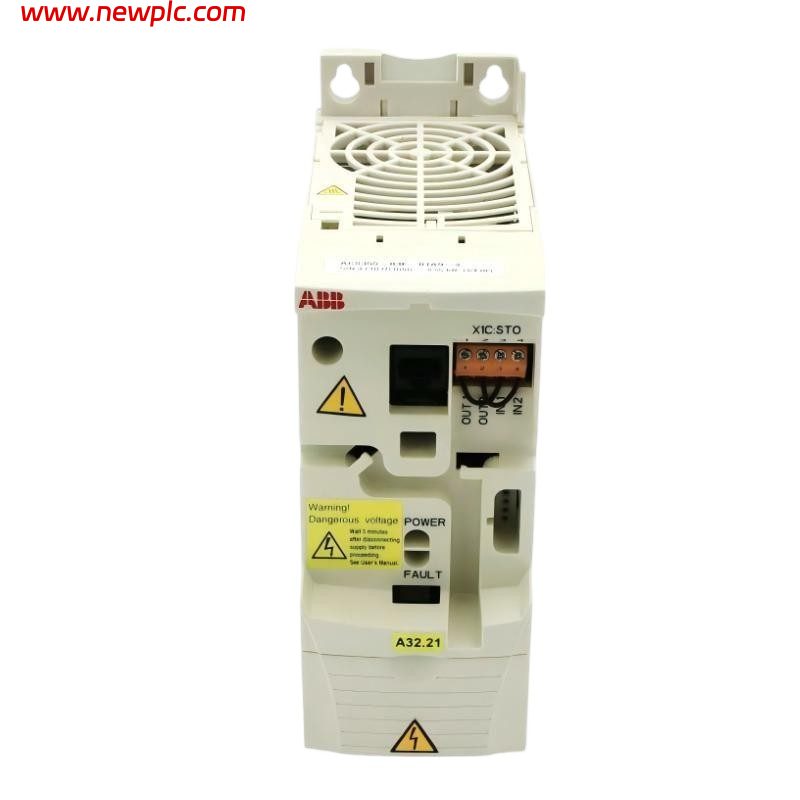

| Product Name | ABB ACS355 Machinery Drive |
| Part Number | ACS355-03E-01A2-4 |
| Product ID | 3AUA0000058182 |
| Product Type | Low Voltage AC Machinery Drive (Variable Frequency Drive, VFD) |
| Manufacturer | ABB |
| Series | ACS355 Machinery Drives |
| Function | Variable frequency drive for precise speed and torque control of AC induction and permanent magnet motors |
| Application | Food & beverage, material handling, lifting, textile, printing, rubber & plastics, woodworking, conveyors, pumps, and fans |
| Rated Motor Power | 0.37 kW (0.5 HP) |
| Rated Output Current | 1.2 A |
| Input Voltage | 3 × 380–480 VAC (-15% / +10%) |
| Input Frequency | 48–63 Hz |
| Output Frequency | 0–599 Hz |
| Motor Control Method | Scalar (V/f) and Sensorless Vector Control |
| Communication | Built-in Modbus RTU (RS-485); optional fieldbus adapters |
| Safety Function | Safe Torque Off (STO) |
| EMC Filter | Integrated EMC filter |
| Cooling Method | Fan-cooled |
| Protection Rating | IP20 (UL Open Type) |
| Mounting Type | Wall-mounted |
| Operating Temperature | -10°C to +40°C (without derating) |
| Certifications | CE, UL, cUL, RoHS |
| Dimensions | 239 × 70 × 161 mm |
| Weight | 1.7 kg |
FAQ
FAQ
Q1: What is the ABB ACS355-03E-01A2-4?
A1: It is a low-voltage AC variable frequency drive (VFD) designed for machinery applications requiring accurate motor speed and torque control.
Q2: What motor size is it designed for?
A2: It is rated for 0.37 kW (0.5 HP) motors with a nominal output current of 1.2 A.
Q3: What input power does it require?
A3: It operates from a 3-phase 380–480 VAC, 48–63 Hz power supply.
Q4: Which motor control methods are supported?
A4: It supports both Scalar (V/f) control and Sensorless Vector Control for AC induction and permanent magnet motors.
Q5: Does it support industrial communication?
A5: Yes. It includes Modbus RTU via the built-in RS-485 interface and supports optional fieldbus adapters.
Q6: What safety feature is integrated?
A6: The drive includes the Safe Torque Off (STO) safety function to enhance machine safety.
Q7: What are its physical dimensions?
A7: 239 × 70 × 161 mm.
Q8: What is its weight?
A8: 1.7 kg.
