Technical Specifications
| Parameter | Description |
|---|---|

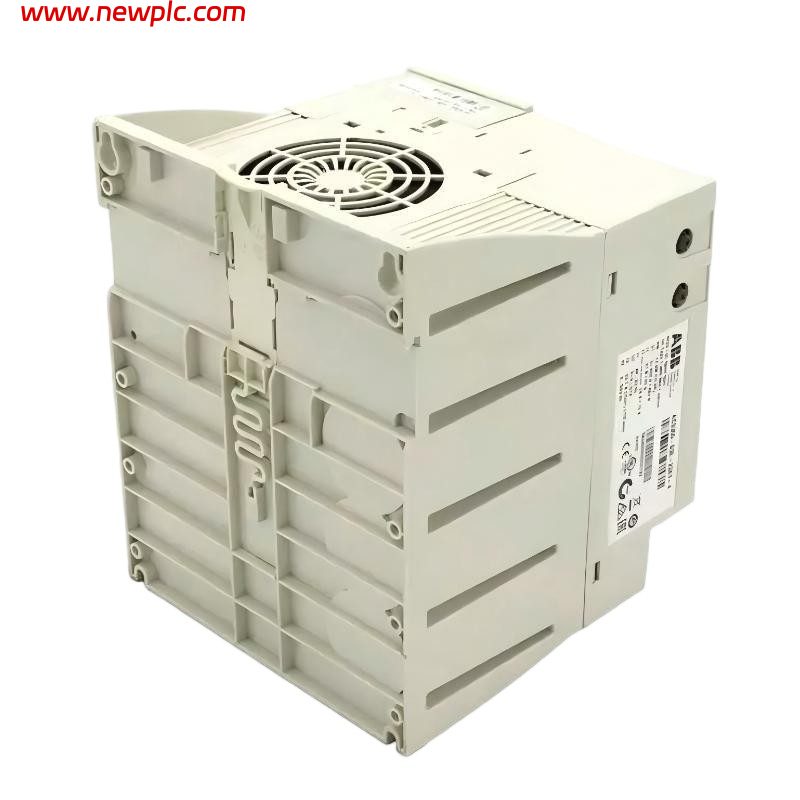

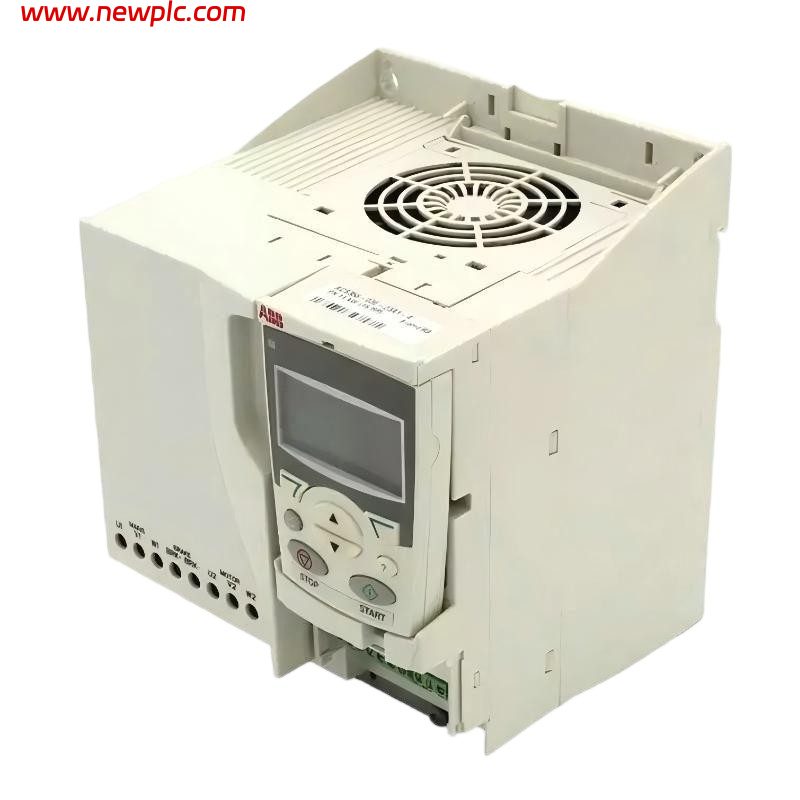

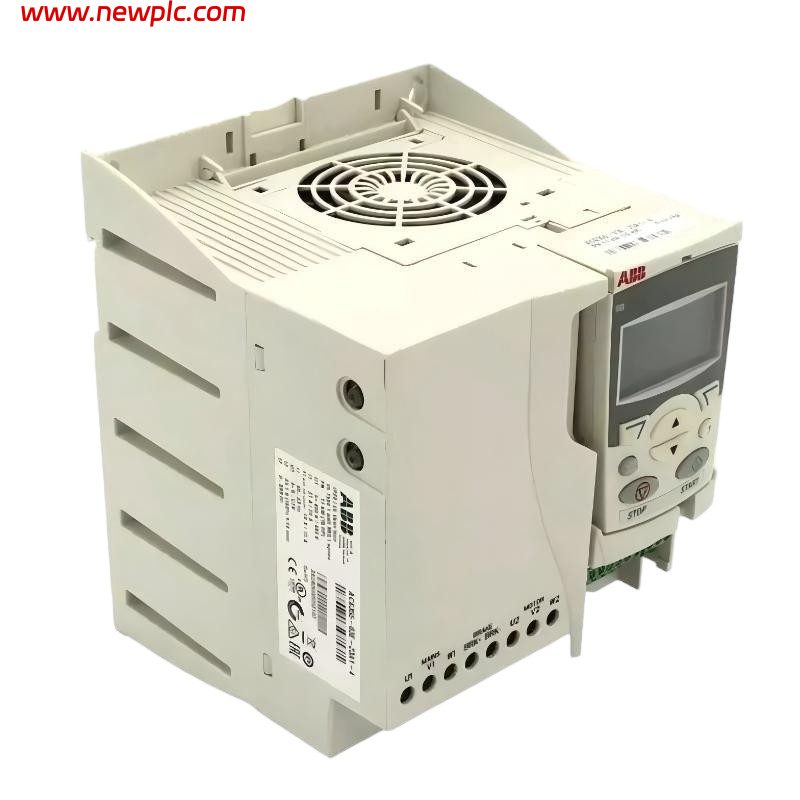

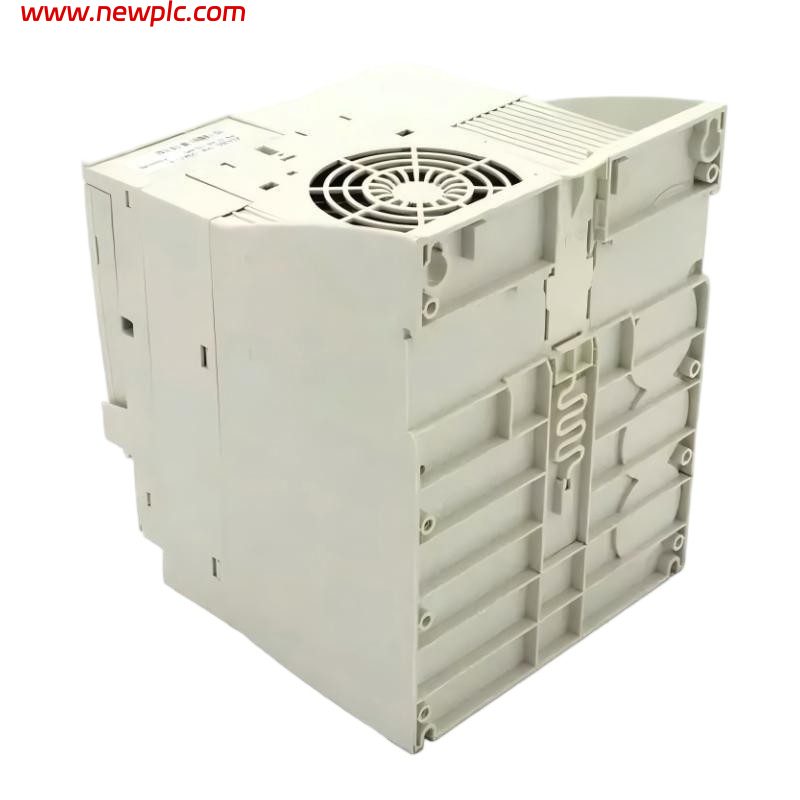

| Product Name | ABB ACS355 Machinery Drive |
| Part Number | ACS355-03E-23A1-4 |
| Product ID | 3ABD0000058252 |
| Product Type | Low Voltage AC Machinery Drive (Variable Frequency Drive, VFD) |
| Manufacturer | ABB |
| Series | ACS355 Machinery Drives |
| Function | Variable frequency drive for precise speed and torque control of AC induction and permanent magnet motors |
| Application | Food & Beverage, Material Handling, Lifting, Textile, Printing, Rubber & Plastics, Woodworking, Packaging, Conveyors, Pumps, Fans, and General Industrial Automation |
| Rated Motor Power | 11 kW (15 HP) |
| Rated Output Current | 23.1 A |
| Input Voltage | 3 × 380–480 VAC (-15% / +10%) |
| Input Frequency | 47.5–63 Hz |
| Output Frequency | 0–600 Hz |
| Motor Control Method | Scalar (V/f) and Sensorless Vector Control |
| Communication | Built-in Modbus RTU (RS-485); optional fieldbus adapters |
| Safety Function | Safe Torque Off (STO) |
| Braking Chopper | Built-in |
| EMC Filter | Integrated EMC filter |
| Protection Rating | IP20 (UL Open Type) |
| Cooling Method | Fan-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R3 |
| Operating Temperature | -10°C to +40°C (without derating) |
| Certifications | CE, UL, cUL, RoHS |
| Dimensions | 236 × 169 × 169 mm |
| Weight | 3.6 kg |
FAQ
FAQ
Q1: What is the ABB ACS355-03E-23A1-4?
A1: It is a low-voltage AC machinery drive (VFD) designed for precise speed and torque control of AC induction and permanent magnet motors.
Q2: What motor size is it designed for?
A2: It is rated for 11 kW (15 HP) motors with a nominal output current of 23.1 A.
Q3: What input power does it require?
A3: It operates from a 3-phase 380–480 VAC, 47.5–63 Hz power supply.
Q4: Which motor control methods are supported?
A4: It supports both Scalar (V/f) and Sensorless Vector Control for AC induction and permanent magnet motors.
Q5: Does it support industrial communication?
A5: Yes. It features a built-in Modbus RTU (RS-485) interface and supports optional fieldbus communication adapters.
Q6: What safety features are included?
A6: The drive includes Safe Torque Off (STO), a built-in braking chopper, and an integrated EMC filter to improve machine safety and simplify installation.
Q7: What are the physical dimensions?
A7: 236 × 169 × 169 mm.
Q8: What is its weight?
A8: 3.6 kg.
