Technical Specifications
| Parameter | Description |
|---|---|

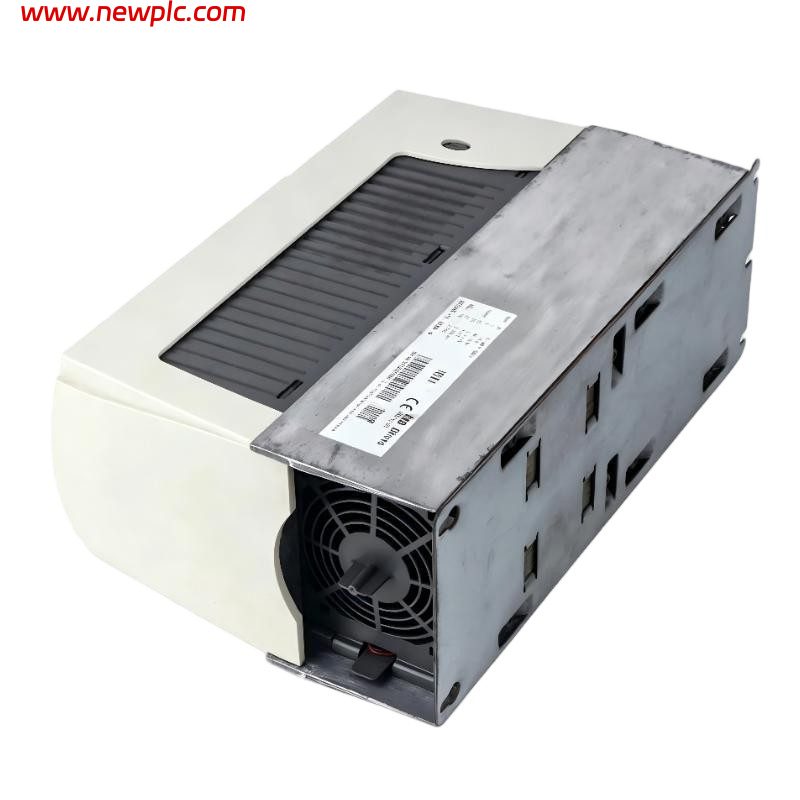

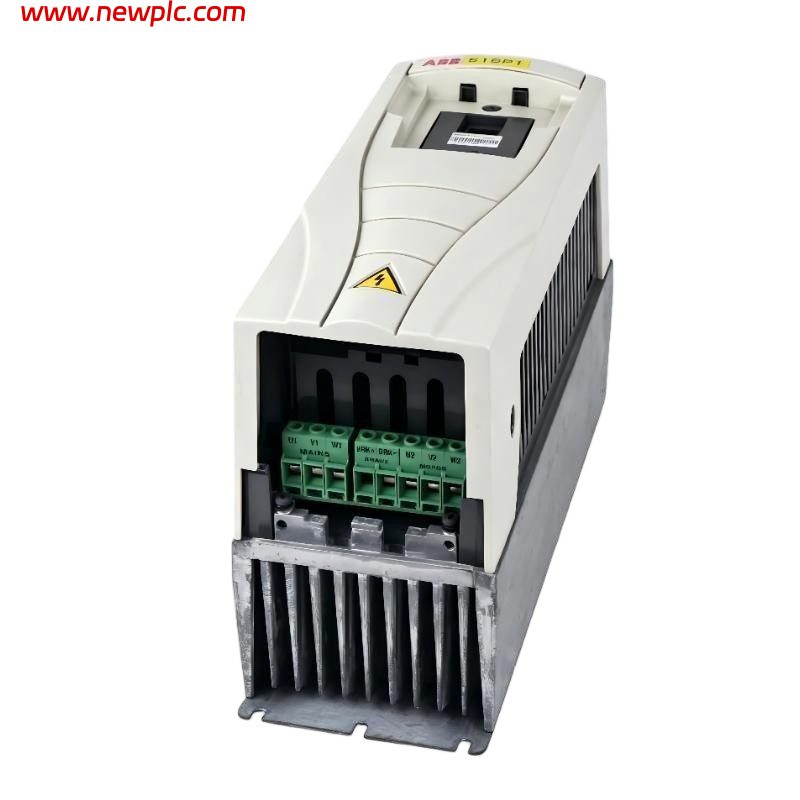

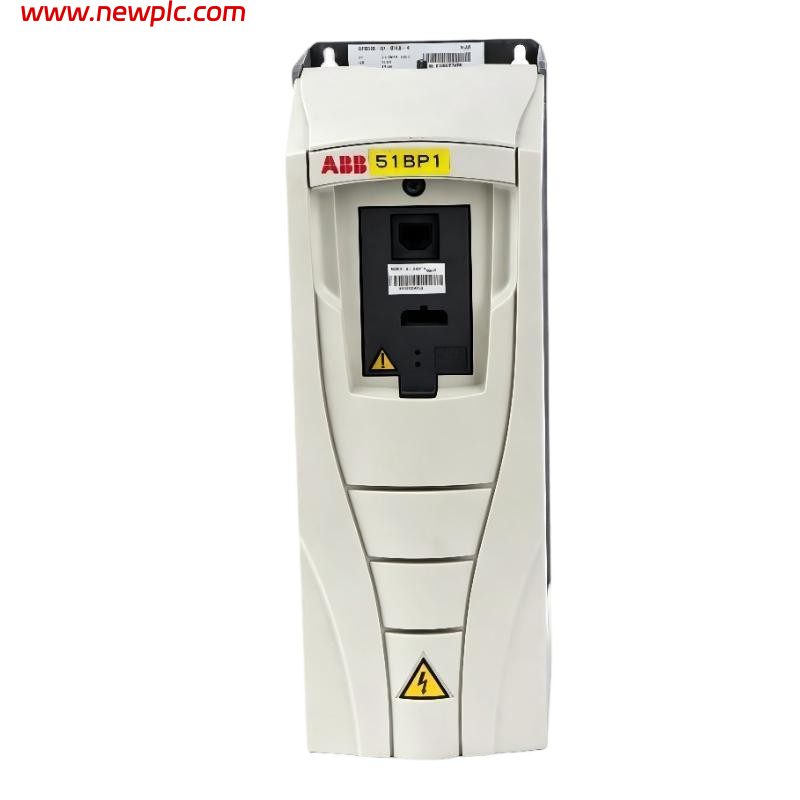

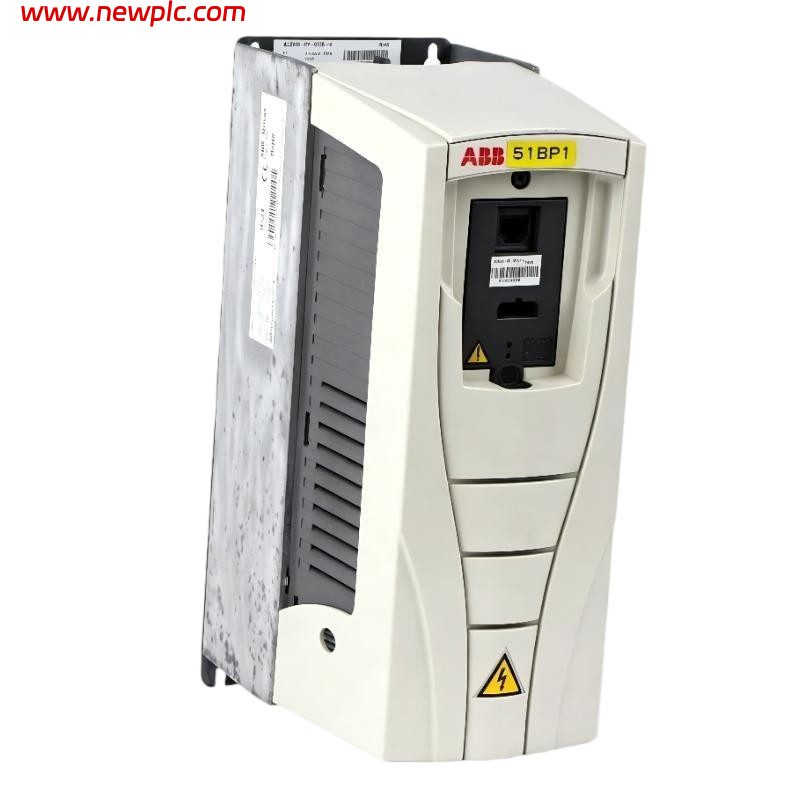

| Product Name | ABB ACS510 Standard Drive |
| Part Number | ACS510-01-012A-4 |
| Product ID | 3ABD00015746-D |
| Product Type | Low Voltage AC Drive (Variable Frequency Drive, VFD) |
| Manufacturer | ABB |
| Series | ACS510 Standard Drives |
| Function | Variable frequency drive optimized for variable torque applications such as pumps and fans |
| Application | HVAC systems, Water & Wastewater, Pumps, Fans, Compressors, Conveyors, and General Industrial Automation |
| Rated Motor Power | 5.5 kW (7.5 HP) |
| Rated Output Current | 11.9 A |
| Apparent Output Power | 8.3 kVA |
| Input Voltage | 3 × 380–480 VAC (±10%) |
| Input Frequency | 47.5–63 Hz |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–500 Hz |
| Motor Control Method | Scalar (V/Hz) Control with Flux Optimization |
| Communication | Built-in Modbus RTU (RS-485); optional PROFIBUS DP, DeviceNet, CANopen, EtherNet/IP, and other fieldbus adapters |
| Built-in Features | PID Controller, Pump & Fan Functions, Multi-Pump Control, EMC Filter, RFI Filter |
| Protection Rating | IP21 (NEMA Type 1) |
| Cooling Method | Fan-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R1 |
| Operating Temperature | -10°C to +40°C (without derating) |
| Efficiency | Up to 97.2% |
| Certifications | CE, UL, cUL, IEC 61800 |
| Dimensions | 365 × 225 × 465 mm |
| Weight | 6.1 kg |
