Technical Specifications
| Parameter | Description |
|---|---|

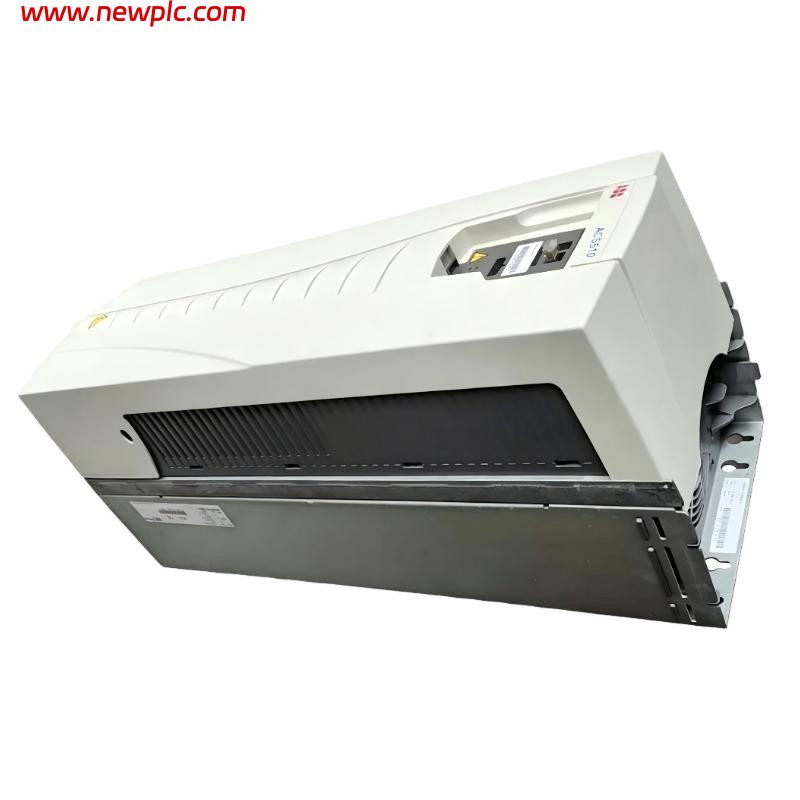

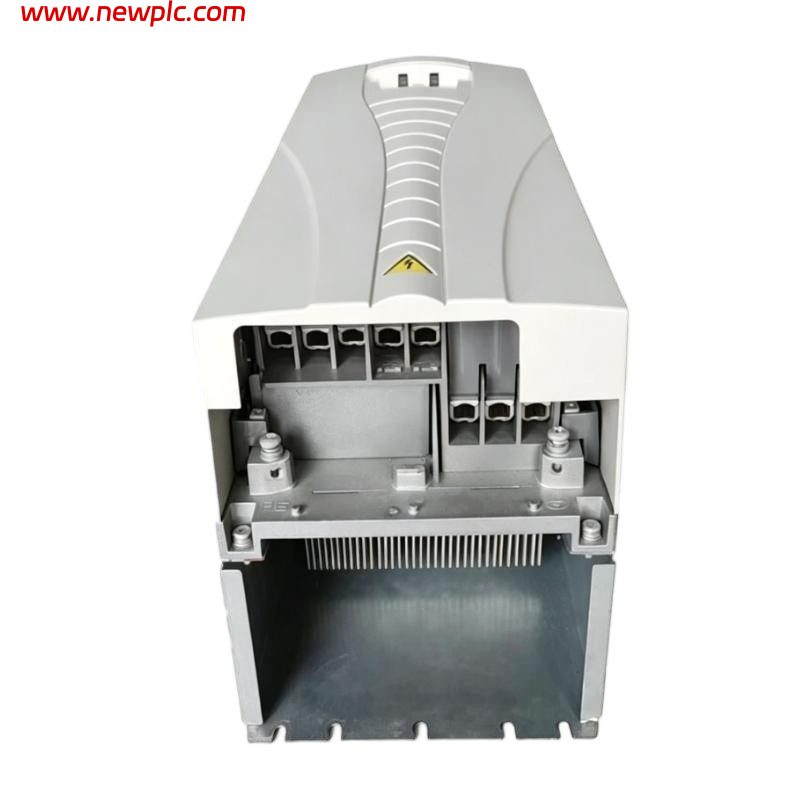

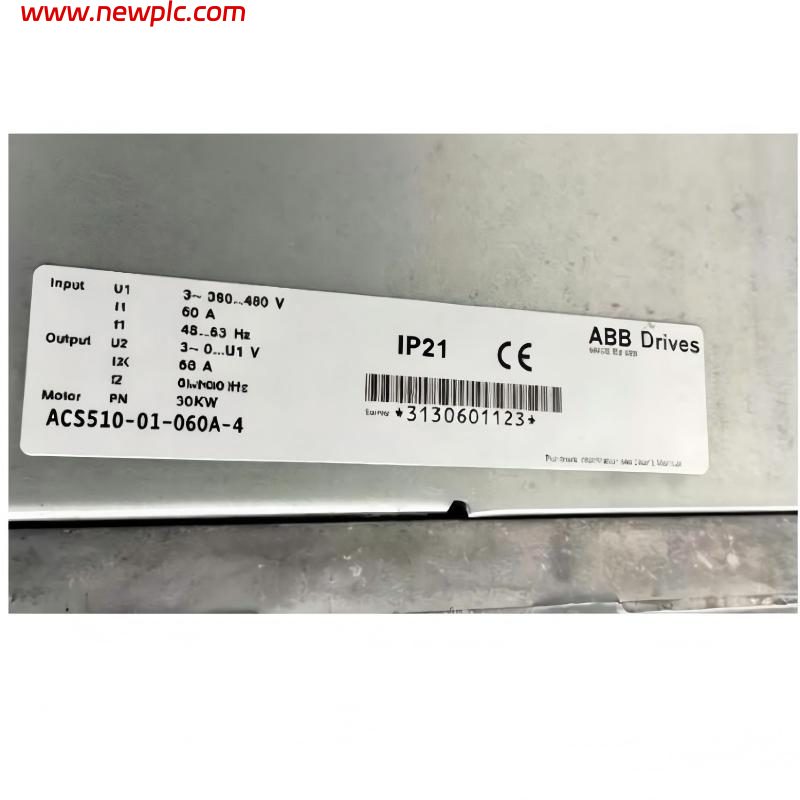

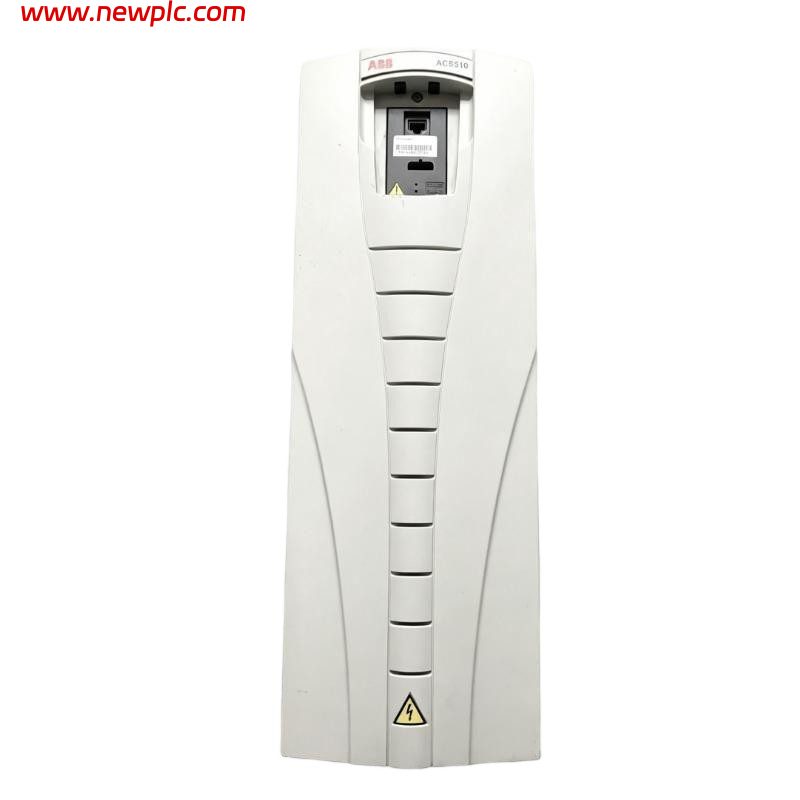

| Product Name | ABB ACS510 Standard Drive |
| Part Number | ACS510-01-060A-4 |
| Product ID | 3ABD00015752-S |
| Product Type | Low Voltage AC Drive (Variable Frequency Drive, VFD) |
| Manufacturer | ABB |
| Series | ACS510 Standard Drives |
| Function | Variable frequency drive optimized for variable torque applications such as pumps and fans |
| Application | HVAC Systems, Water & Wastewater, Pumps, Fans, Compressors, Conveyors, and General Industrial Automation |
| Rated Motor Power | 30 kW (40 HP) |
| Rated Output Current | 60 A |
| Apparent Output Power | 39 kVA |
| Input Voltage | 3 × 380–480 VAC (±10%) |
| Input Frequency | 47.5–63 Hz |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–500 Hz |
| Motor Control Method | Scalar (V/Hz) Control with Flux Optimization |
| Communication | Built-in Modbus RTU (RS-485); optional PROFIBUS DP, DeviceNet, CANopen, EtherNet/IP, and other fieldbus adapters |
| Built-in Features | PID Controller, Pump & Fan Functions, Multi-Pump Control, Swinging Choke, EMC/RFI Filter |
| Protection Rating | IP21 (NEMA Type 1) |
| Cooling Method | Fan-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R4 |
| Operating Temperature | -10°C to +40°C (without derating) |
| Efficiency | IE2 / Up to 97.5% |
| Certifications | CE, UL, cUL, IEC 61800, RoHS |
| Dimensions | 723 × 257 × 306 mm |
| Weight | 22.5 kg |
FAQ
FAQ
Q1: What is the ABB ACS510-01-060A-4?
A1: The ABB ACS510-01-060A-4 is a low-voltage AC variable frequency drive designed for HVAC systems, pumps, fans, and other variable torque applications, providing efficient motor speed control and energy savings.
Q2: What motor size can this drive control?
A2: It is rated for 30 kW (40 HP) three-phase AC motors with a continuous output current of 60 A.
Q3: What input power does the drive require?
A3: The drive operates from a three-phase 380–480 VAC power supply with an input frequency range of 47.5–63 Hz.
Q4: Which motor control method does it use?
A4: It utilizes Scalar (V/Hz) control with flux optimization, making it ideal for pumps, fans, compressors, and other variable torque loads.
Q5: Does it support industrial communication?
A5: Yes. The drive includes a built-in Modbus RTU (RS-485) interface and supports optional communication adapters for PROFIBUS DP, DeviceNet, CANopen, EtherNet/IP, and other industrial fieldbus protocols.
Q6: What built-in application features are included?
A6: It features PID controllers, pump and fan control functions, multi-pump control, a swinging choke, integrated EMC/RFI filters, and energy optimization functions that simplify installation and reduce operating costs.
Q7: What are the physical dimensions of the drive?
A7: The dimensions are 723 × 257 × 306 mm.
Q8: What is the weight of the drive?
A8: The net weight is approximately 22.5 kg.
