Technical Specifications
| Parameter | Description |
|---|---|

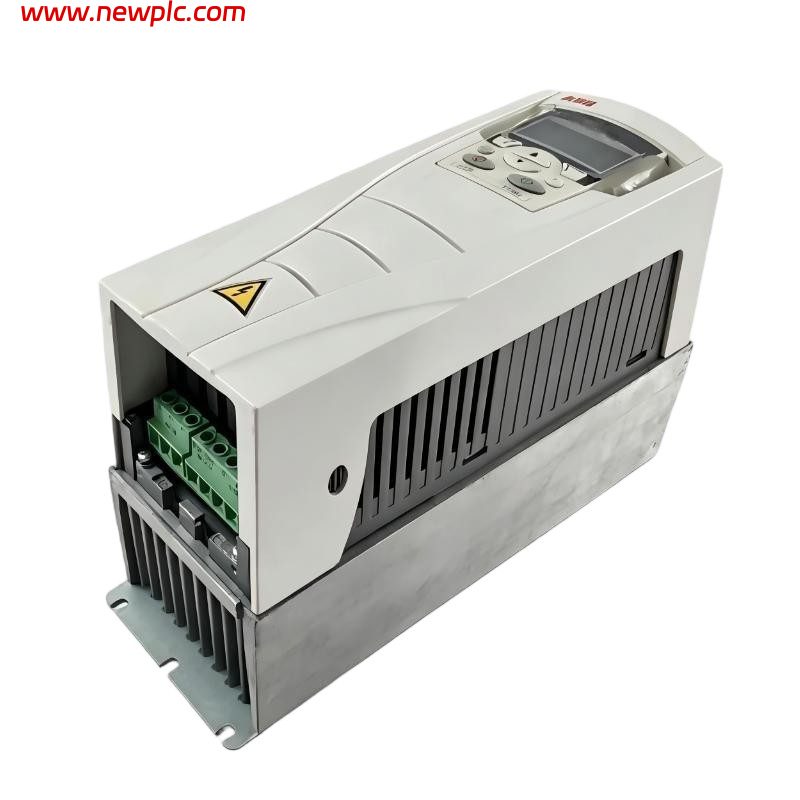

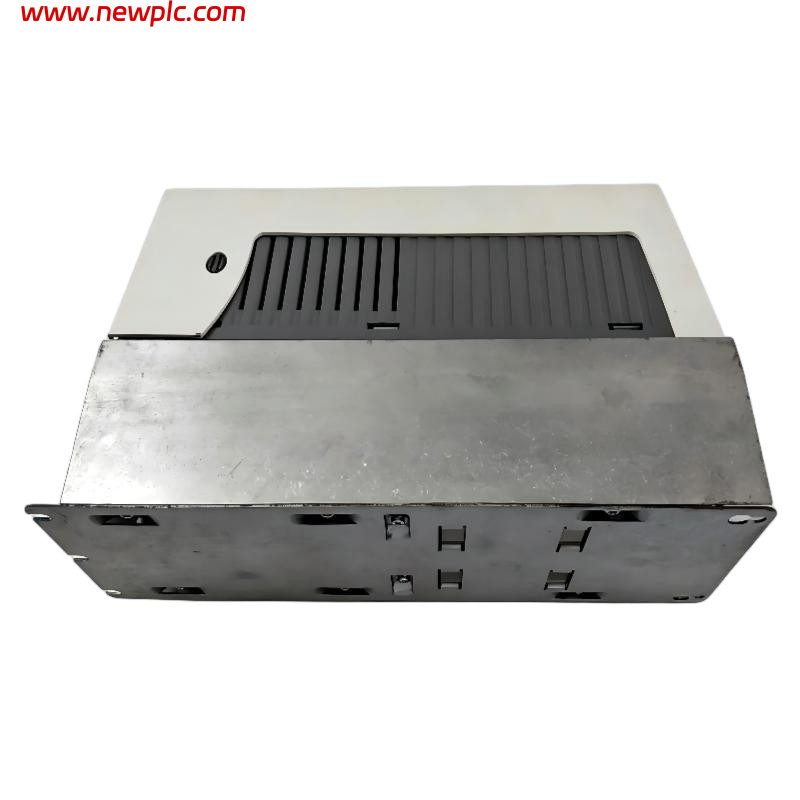

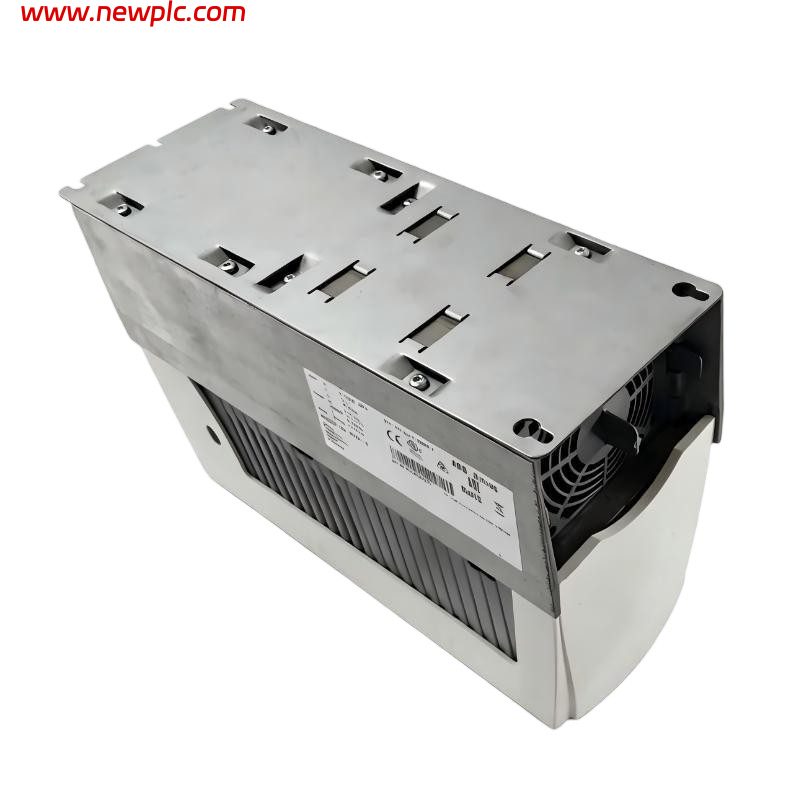

| Product Name | ABB ACS550 General Purpose Drive |
| Part Number | ACS550-01-012A-4 |
| Product ID | 3AUA0000002420-D |
| Product Type | Low Voltage AC Drive (Variable Frequency Drive, VFD) |
| Manufacturer | ABB |
| Series | ACS550 |
| Function | General-purpose AC drive for precise motor speed and torque control |
| Application | Pumps, Fans, HVAC Systems, Conveyors, Compressors, Mixers, and General Industrial Automation |
| Rated Motor Power | 5.5 kW (7.5 HP) |
| Rated Output Current | 11.9 A |
| Heavy-Duty Output Current | 8.8 A |
| Input Voltage | 3 × 380–480 VAC (±10%) |
| Input Frequency | 48–63 Hz |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–500 Hz |
| Motor Control Method | Scalar (V/Hz) and Sensorless Vector Control |
| Communication | Built-in Modbus RTU (RS-485); optional PROFIBUS DP, DeviceNet, CANopen, EtherNet/IP adapters |
| Built-in Features | PID Controller, EMC Filter, Braking Chopper, Assistant Control Panel Support, Energy Optimizer |
| Protection Rating | IP21 (NEMA Type 1) |
| Cooling Method | Fan-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R1 |
| Operating Temperature | -10°C to +40°C (without derating) |
| Certifications | CE, UL, cUL, IEC 61800, RoHS |
| Dimensions | 465 × 225 × 365 mm |
| Weight | 6.1 kg |
FAQ
FAQ
Q1: What is the ABB ACS550-01-012A-4?
A1: The ABB ACS550-01-012A-4 is a general-purpose low-voltage AC drive designed to provide efficient motor control for pumps, fans, HVAC equipment, conveyors, compressors, and other industrial applications.
Q2: What motor size can this drive control?
A2: It is rated for 5.5 kW (7.5 HP) motors under normal-duty operation, with a rated output current of 11.9 A. Under heavy-duty operation, it supports 4 kW (5 HP) motors with an output current of 8.8 A.
Q3: What input power does the drive require?
A3: The drive operates from a three-phase 380–480 VAC power supply with an input frequency range of 48–63 Hz.
Q4: Which motor control methods are supported?
A4: It supports both Scalar (V/Hz) control and Sensorless Vector Control, providing stable and efficient performance across a wide range of industrial applications.
Q5: What communication interfaces are available?
A5: The drive includes a built-in Modbus RTU (RS-485) interface and supports optional communication modules for PROFIBUS DP, DeviceNet, CANopen, and EtherNet/IP networks.
Q6: What built-in features does the drive provide?
A6: It includes a PID controller, built-in EMC filter, integrated braking chopper, assistant control panel support, and energy optimization functions for simplified commissioning and improved efficiency.
Q7: What are the physical dimensions of the drive?
A7: The drive measures 465 × 225 × 365 mm.
Q8: What is the weight of the drive?
A8: The net weight is 6.1 kg.
