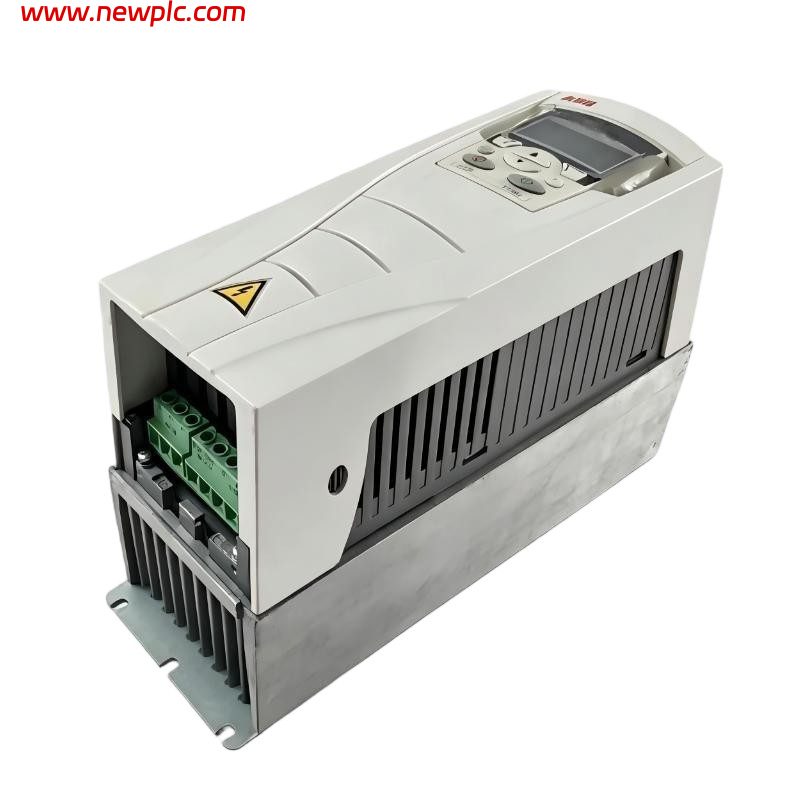

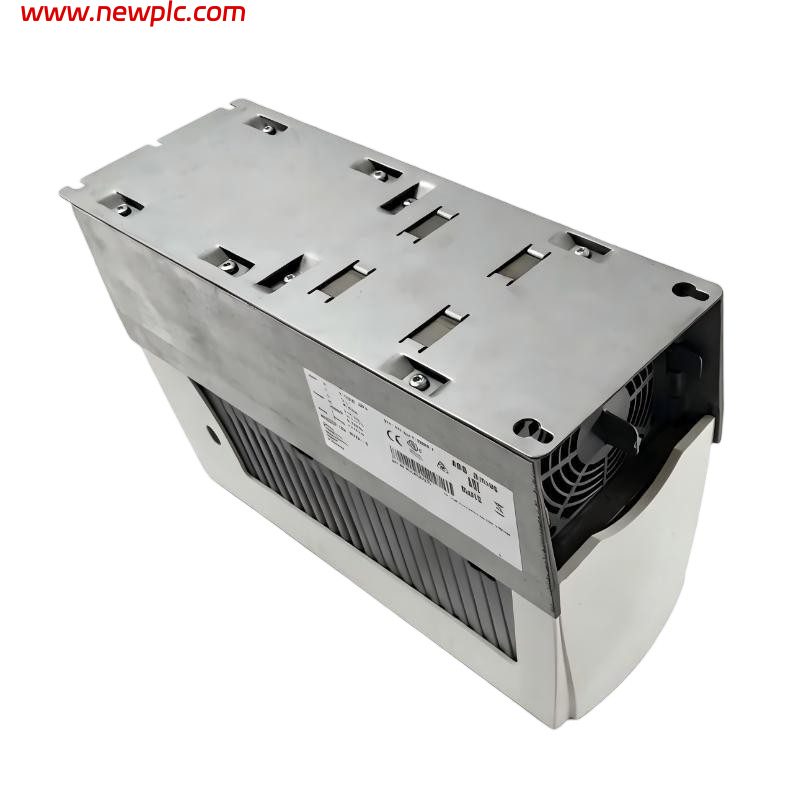

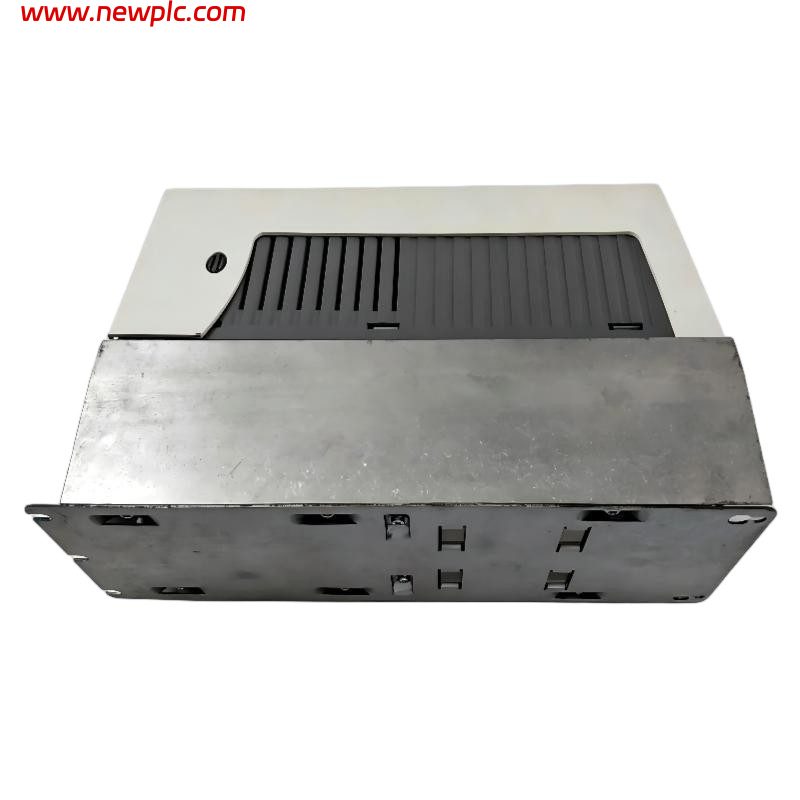

ABB ACS550-01-072A-4 3AUA0000002547-D Low Voltage AC Drive

FAQ

Q1: What is the ABB ACS550-01-072A-4?
A1: The ABB ACS550-01-072A-4 is a wall-mounted general-purpose AC variable frequency drive designed for pumps, fans, HVAC systems, conveyors, compressors, mixers, and other industrial motor control applications.

Q2: What motor size can this drive control?
A2: It is rated for 37 kW (50 HP) motors under normal-duty operation with a continuous output current of 72 A. Under heavy-duty operation, it supports 30 kW (40 HP) motors with an output current of 59 A.

Q3: What input power does the drive require?
A3: The drive operates from a three-phase 380–480 VAC power supply with an input frequency range of 48–63 Hz.

Q4: Which motor control methods are supported?
A4: It supports both Scalar (V/Hz) control and Sensorless Vector Control, providing reliable speed regulation, efficient energy usage, and stable motor performance for both variable and constant torque applications.

Q5: What communication interfaces are available?
A5: The drive includes a built-in Modbus RTU (RS-485) interface and supports optional communication modules for PROFIBUS DP, DeviceNet, CANopen, EtherNet/IP, and other industrial fieldbus protocols.

Q6: What built-in features does the drive provide?
A6: Standard features include a PID controller, swinging choke for harmonic reduction, integrated EMC filter, assistant control panel support, and energy optimization functions for simplified commissioning and efficient operation.

Q7: What are the physical dimensions of the drive?
A7: The drive measures 800 × 300 × 415 mm (H × W × D).

Q8: What is the weight of the drive?
A8: The net weight is 22.82 kg.

3AUA0000002547-D ABB ACS550-01-072A-4
