Technical Specifications
| Parameter | Description |
|---|---|

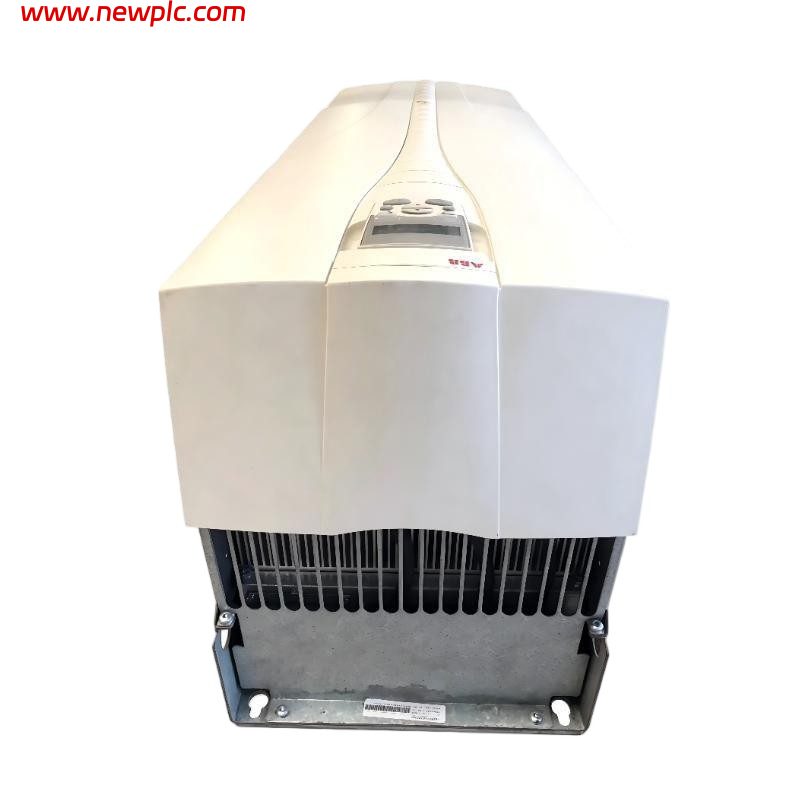

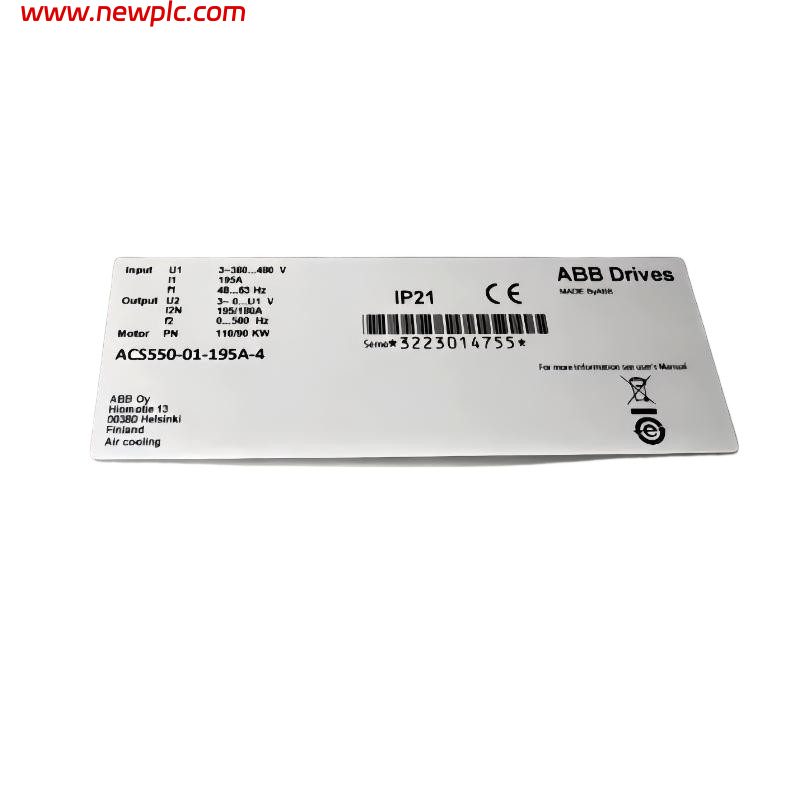

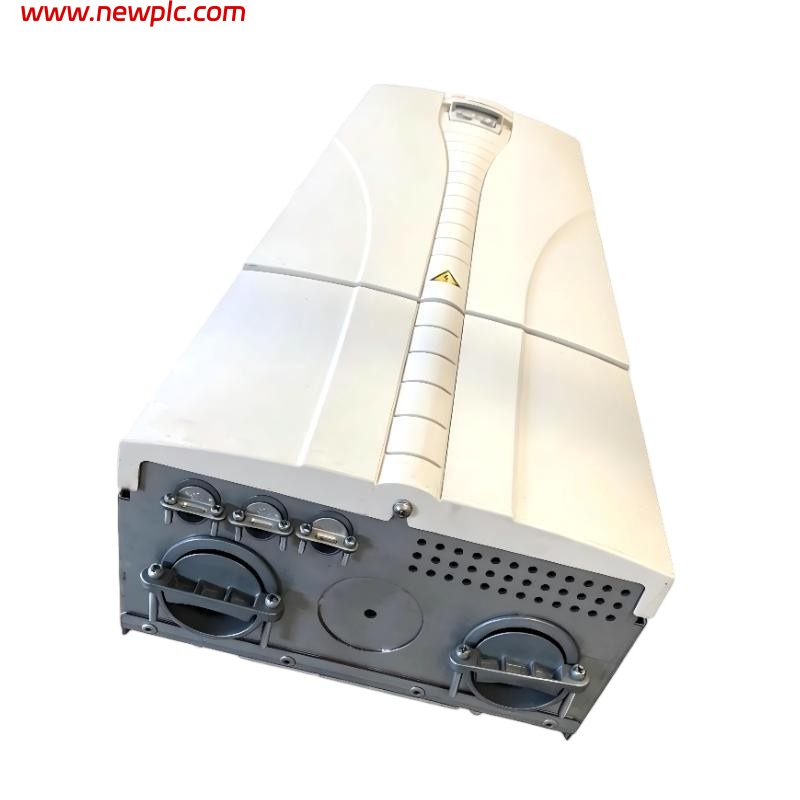

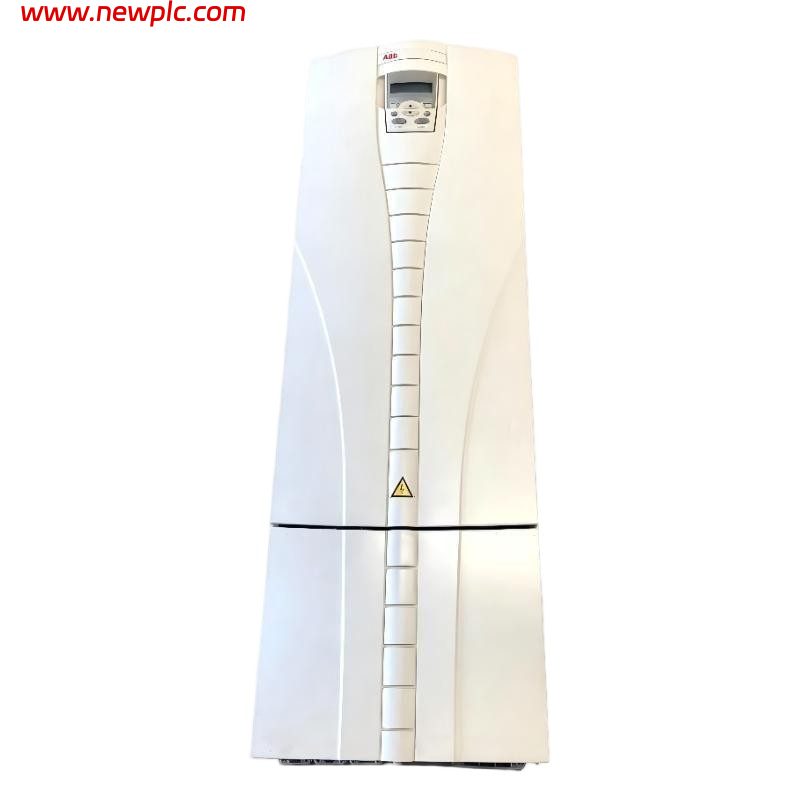

| Product Name | ABB ACS550 General Purpose Drive |
| Part Number | ACS550-01-195A-4 |
| Product ID | 3ABD68294479 |
| Product Type | Low Voltage AC Drive (Variable Frequency Drive, VFD) |
| Manufacturer | ABB |
| Series | ACS550 |
| Function | General-purpose AC drive for precise motor speed and torque control |
| Application | Pumps, Fans, HVAC Systems, Conveyors, Compressors, Mixers, and General Industrial Automation |
| Rated Motor Power | 110 kW (150 HP) |
| Heavy-Duty Motor Power | 90 kW (125 HP) |
| Rated Output Current | 205 A |
| Heavy-Duty Output Current | 162 A |
| Input Voltage | 3 × 380–480 VAC (±10%) |
| Input Frequency | 47.5–63 Hz |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–500 Hz |
| Motor Control Method | Scalar (V/Hz) and Sensorless Vector Control |
| Communication | Built-in Modbus RTU (RS-485); optional PROFIBUS DP, DeviceNet, CANopen, EtherNet/IP communication adapters |
| Built-in Features | PID Controller, Swinging Choke, EMC Filter, Built-in Braking Chopper, Assistant Control Panel Support, Energy Optimizer |
| Protection Rating | IP21 (NEMA Type 1) |
| Cooling Method | Fan-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R6 |
| Operating Temperature | -10°C to +40°C (without derating) |
| Certifications | CE, UL, cUL, IEC 61800, RoHS |
| Dimensions | 888 × 302 × 400 mm (H × W × D) |
| Weight | 69 kg |
FAQ
FAQ
Q1: What is the ABB ACS550-01-195A-4?
A1: The ABB ACS550-01-195A-4 is a wall-mounted general-purpose AC variable frequency drive designed for controlling pumps, fans, compressors, conveyors, mixers, HVAC equipment, and other industrial motor applications.
Q2: What motor size can this drive control?
A2: It supports 110 kW (150 HP) motors in normal-duty applications with a rated output current of 205 A. In heavy-duty applications, it supports 90 kW (125 HP) motors with a continuous output current of 162 A.
Q3: What input power does the drive require?
A3: The drive operates from a three-phase 380–480 VAC power supply with an input frequency range of 47.5–63 Hz.
Q4: Which motor control methods are supported?
A4: The drive supports both Scalar (V/Hz) and Sensorless Vector Control, providing reliable speed regulation, high starting torque, and energy-efficient operation across a wide range of industrial applications.
Q5: What communication interfaces are available?
A5: It includes a built-in Modbus RTU (RS-485) interface and supports optional communication adapters for PROFIBUS DP, DeviceNet, CANopen, EtherNet/IP, and other industrial fieldbus protocols.
Q6: What built-in features does the drive provide?
A6: Standard features include a PID controller, swinging choke for harmonic reduction, integrated EMC filter, built-in braking chopper, assistant control panel support, and energy optimization functions for efficient motor control.
Q7: What are the physical dimensions of the drive?
A7: The drive measures 888 × 302 × 400 mm (H × W × D) and uses an R6 frame for wall-mounted installation.
Q8: What is the weight of the drive?
A8: The net weight of the drive is 69 kg.
