Technical Specifications
| Parameter | Description |
|---|---|

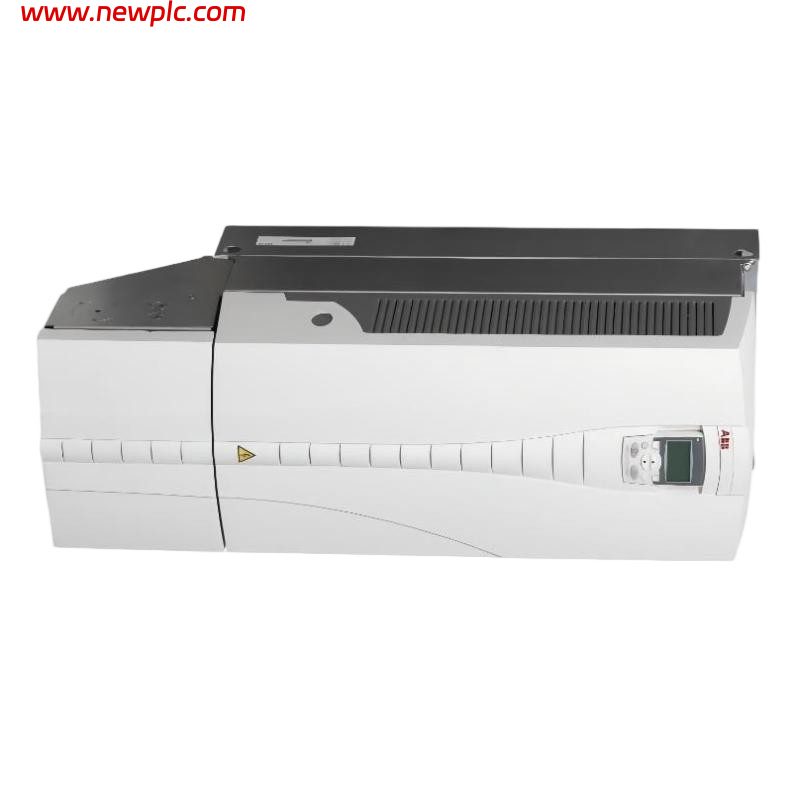

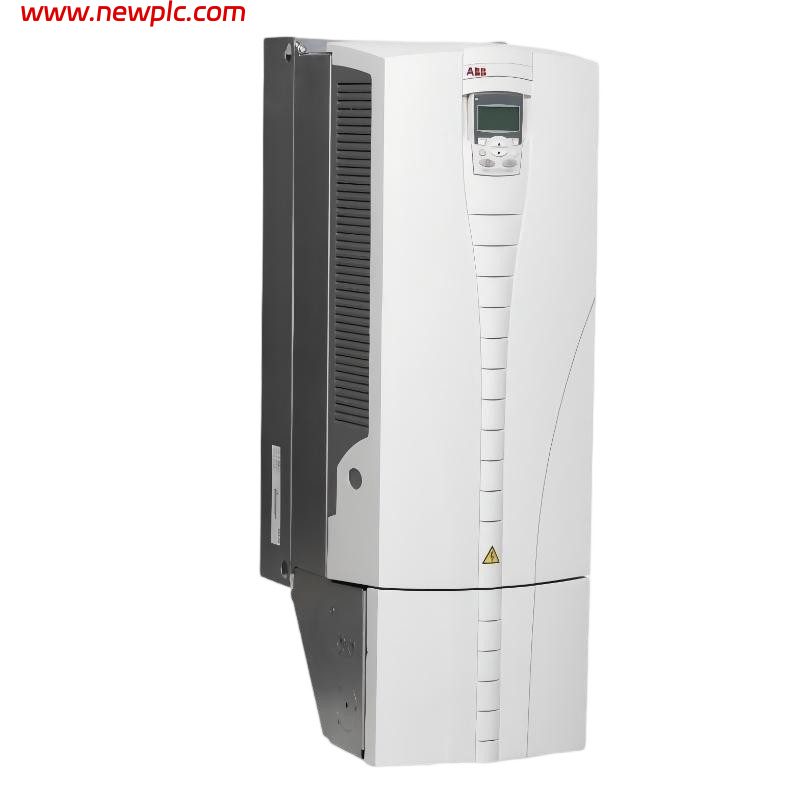

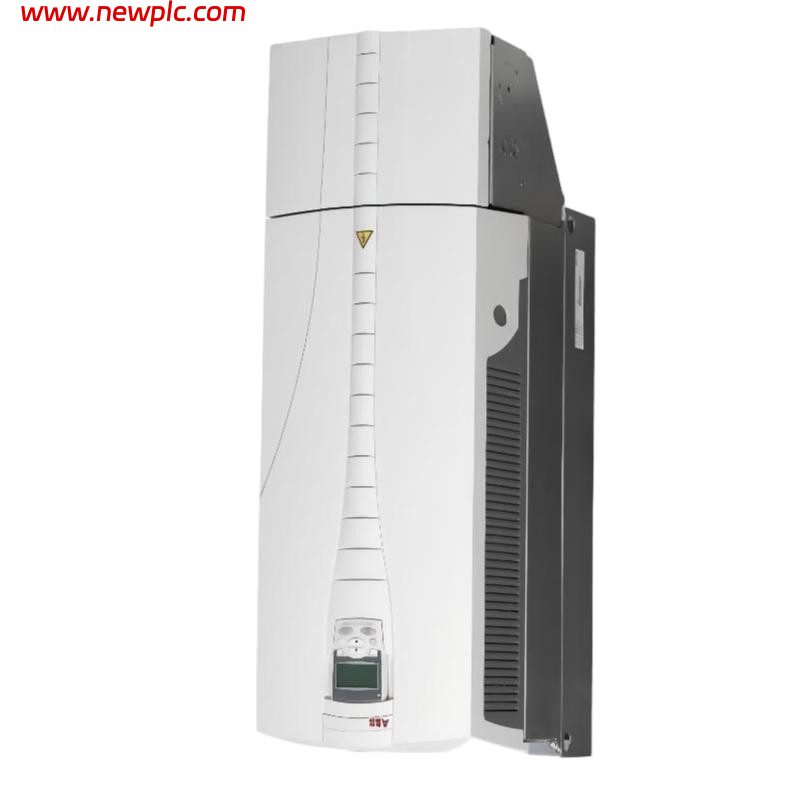

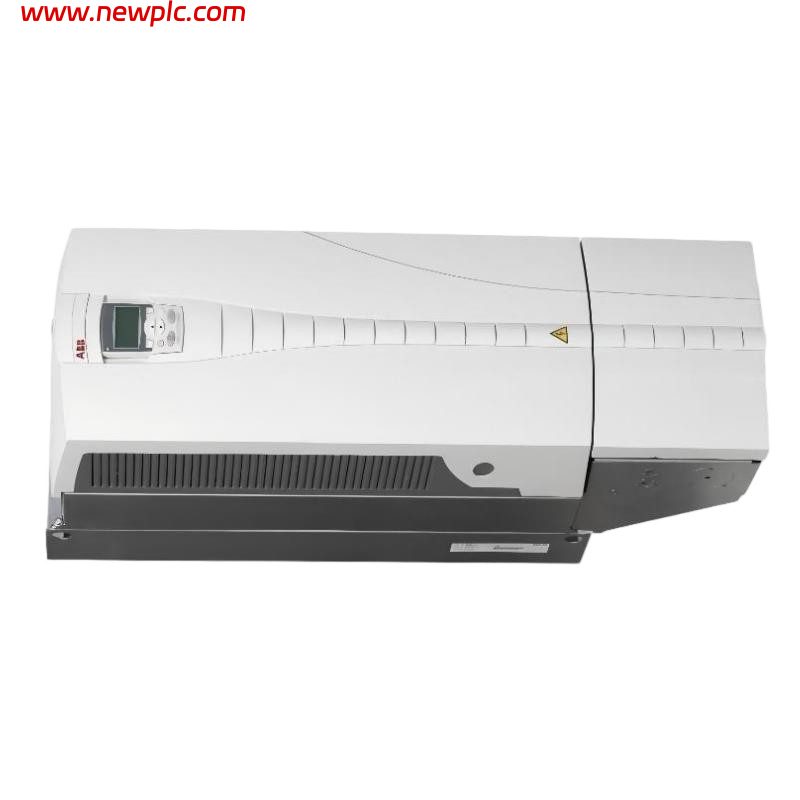

| Product Name | ABB ACS550 General Purpose Drive |
| Part Number | ACS550-01-290A-4 |
| Product ID | 3AUA0000026919-E |
| Equivalent Standard Product ID | 3AUA0000026919-D |
| Product Type | Low Voltage AC Drive (Variable Frequency Drive, VFD) |
| Manufacturer | ABB |
| Series | ACS550 |
| Function | General-purpose AC drive for precise motor speed and torque control |
| Application | Pumps, Fans, HVAC Systems, Conveyors, Compressors, Mixers, and General Industrial Automation |
| Rated Motor Power | 160 kW (215 HP) |
| Heavy-Duty Motor Power | 132 kW (175 HP) |
| Rated Output Current | 290 A |
| Heavy-Duty Output Current | 246 A |
| Input Voltage | 3 × 380–480 VAC (±10%) |
| Input Frequency | 48–63 Hz |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–500 Hz |
| Motor Control Method | Scalar (V/Hz) and Sensorless Vector Control |
| Communication | Built-in Modbus RTU (RS-485); optional PROFIBUS DP, DeviceNet, CANopen, EtherNet/IP communication adapters |
| Built-in Features | PID Controller, Swinging Choke, EMC Filter, Assistant Control Panel Support, Energy Optimizer |
| Protection Rating | IP21 (NEMA Type 1) |
| Cooling Method | Fan-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R6 |
| Operating Temperature | -10°C to +40°C (without derating) |
| Certifications | CE, UL, cUL, IEC 61800, RoHS |
| Dimensions | 979 × 302 × 400 mm (H × W × D) |
| Weight | 80 kg |
FAQ
FAQ
Q1: What is the ABB ACS550-01-290A-4?
A1: The ABB ACS550-01-290A-4 is a wall-mounted general-purpose AC variable frequency drive designed for pumps, fans, HVAC systems, compressors, conveyors, and other industrial motor control applications.
Q2: What does Product ID 3AUA0000026919-E mean?
A2: 3AUA0000026919-E is an ABB product identifier for the ACS550-01-290A-4. The -E suffix generally represents an ordering or regional variant. The electrical ratings, mechanical dimensions, and core functionality are equivalent to the standard 3AUA0000026919-D version unless ABB documentation specifies otherwise.
Q3: What motor size can this drive control?
A3: It supports 160 kW (215 HP) motors in normal-duty applications with a rated output current of 290 A. For heavy-duty operation, it supports 132 kW (175 HP) motors with a continuous output current of 246 A.
Q4: What input power does the drive require?
A4: The drive operates from a three-phase 380–480 VAC power supply with an input frequency range of 48–63 Hz.
Q5: Which motor control methods are supported?
A5: The drive supports both Scalar (V/Hz) control and Sensorless Vector Control, providing reliable speed regulation, high starting torque, and energy-efficient motor operation.
Q6: What communication interfaces are available?
A6: It includes a built-in Modbus RTU (RS-485) interface and supports optional communication adapters for PROFIBUS DP, DeviceNet, CANopen, and EtherNet/IP.
Q7: What are the physical dimensions of the drive?
A7: The drive measures 979 × 302 × 400 mm (H × W × D) and uses an R6 frame for wall-mounted installation.
Q8: What is the weight of the drive?
A8: The net weight of the drive is 80 kg.
