Technical Specifications
| Parameter | Description |
|---|---|

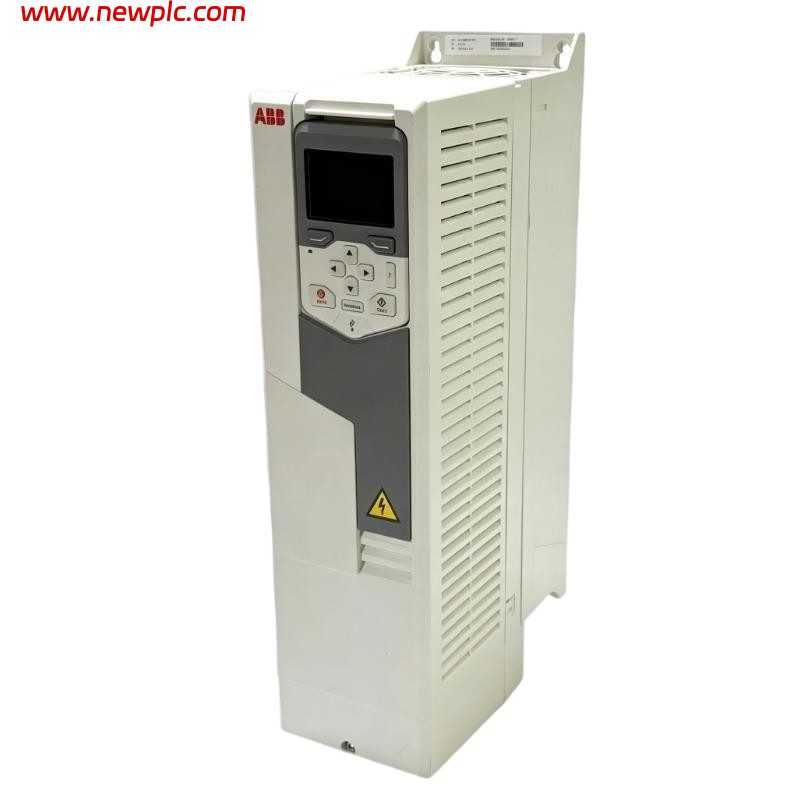

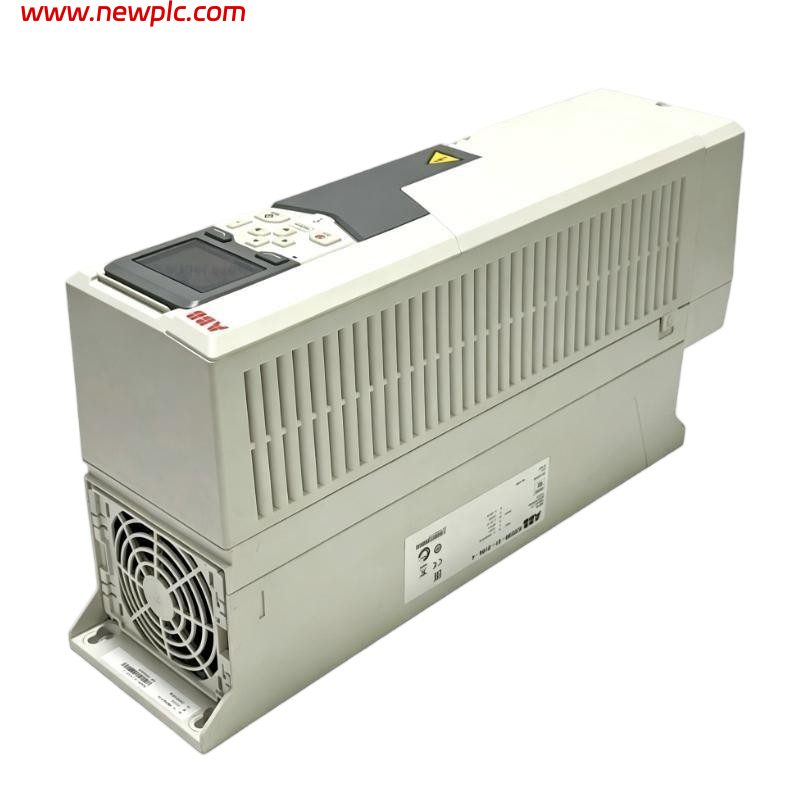

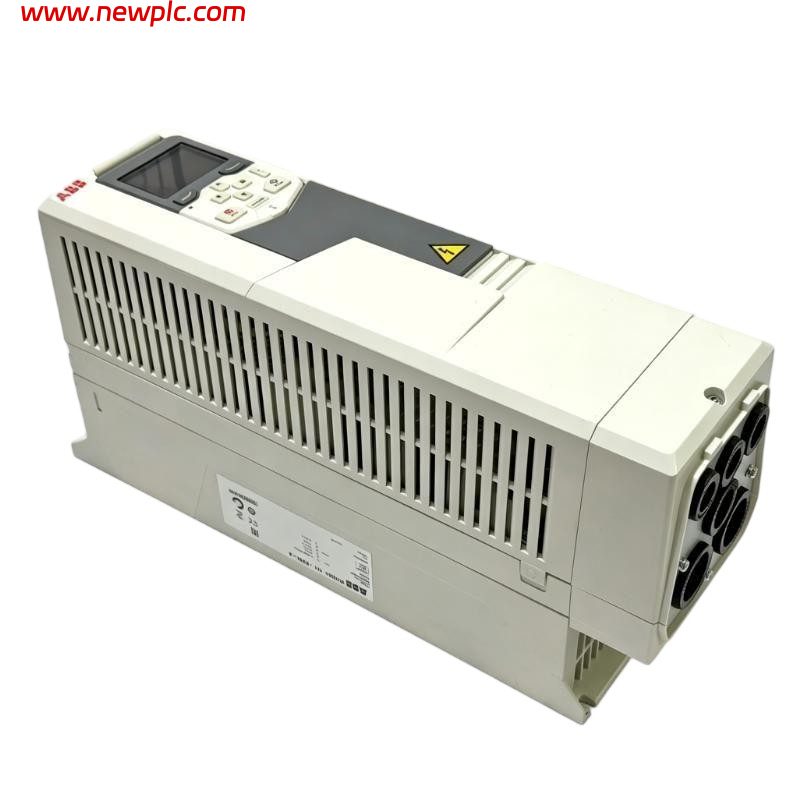

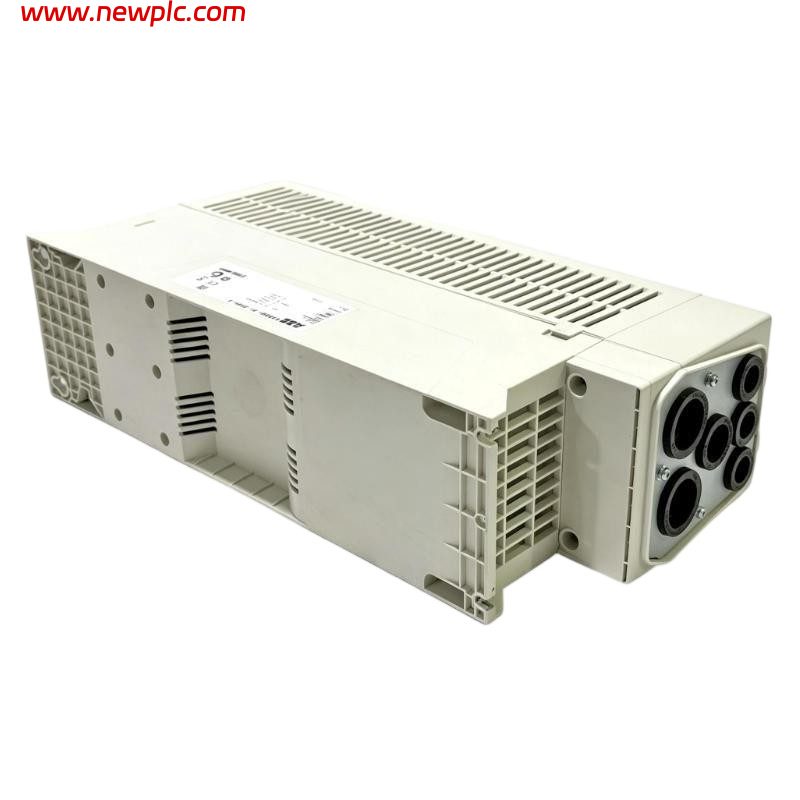

| Product Name | ABB ACS580 General Purpose Drive |
| Part Number | ACS580-01-018A-4 |
| Product ID | 3AXD50000038959 |
| Product Type | Low Voltage AC Drive (Variable Frequency Drive, VFD) |
| Manufacturer | ABB |
| Series | ACS580 |
| Function | General-purpose AC drive for variable and constant torque applications |
| Application | Pumps, Fans, Compressors, Conveyors, Extruders, Centrifuges, Mixers, and Industrial Machinery |
| Rated Motor Power | 7.5 kW (10 HP) |
| Rated Output Current | 17 A |
| Heavy-Duty Output Current | 12.6 A |
| Input Voltage | 3 × 380–480 VAC |
| Input Frequency | 47.5–63 Hz |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–500 Hz |
| Motor Control Method | Sensorless Vector Control and Scalar (V/Hz) Control |
| Communication | Built-in Modbus RTU (RS-485); optional PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, CANopen adapters |
| Built-in Features | Safe Torque Off (STO), PID Controller, EMC Filter, DC Choke, Energy Optimizer, Adaptive Programming, Assistant Control Panel |
| Protection Rating | IP21 (NEMA Type 1) |
| Cooling Method | Fan-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R2 |
| Operating Temperature | -15°C to +50°C (derating may apply) |
| Certifications | CE, UL, cUL, RoHS, IEC 61800 |
| Dimensions | 473 × 125 × 229 mm (H × W × D) |
| Weight | 6.6 kg |
FAQ
FAQ
Q1: What is the ABB ACS580-01-018A-4?
A1: The ABB ACS580-01-018A-4 is a low-voltage general-purpose AC drive designed for controlling motors in applications such as pumps, fans, compressors, conveyors, mixers, and other industrial equipment.
Q2: What does Product ID 3AXD50000038959 represent?
A2: 3AXD50000038959 is the ABB product identification number for the ACS580-01-018A-4 frequency converter.
Q3: What motor size can this drive control?
A3: This drive is rated for 7.5 kW (10 HP) motors with a normal-duty output current of 17 A.
Q4: What power supply does the drive require?
A4: The drive requires a three-phase 380–480 VAC input supply with a frequency range of 47.5–63 Hz.
Q5: What control methods are supported?
A5: The ACS580 supports Sensorless Vector Control and Scalar V/Hz Control, providing stable motor speed regulation and efficient operation.
Q6: What communication options are available?
A6: The drive includes built-in Modbus RTU (RS-485) communication and supports optional industrial fieldbus modules including PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, and CANopen.
Q7: What are the physical dimensions of the drive?
A7: The dimensions are 473 × 125 × 229 mm (H × W × D).
Q8: What is the weight of the drive?
A8: The net weight of the ACS580-01-018A-4 is 6.6 kg.
