Technical Specifications
| Parameter | Description |
|---|---|

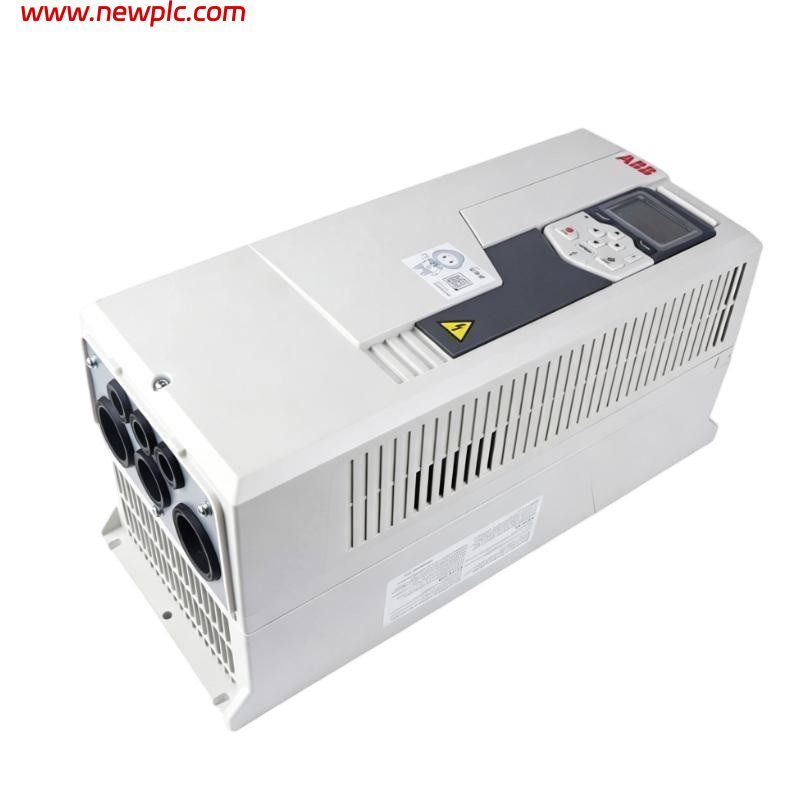

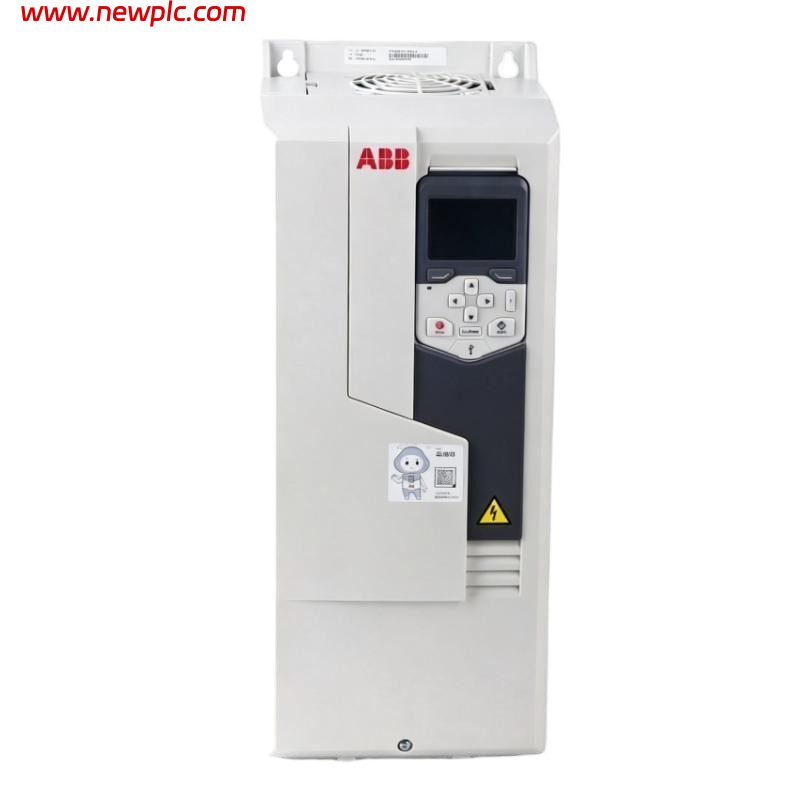

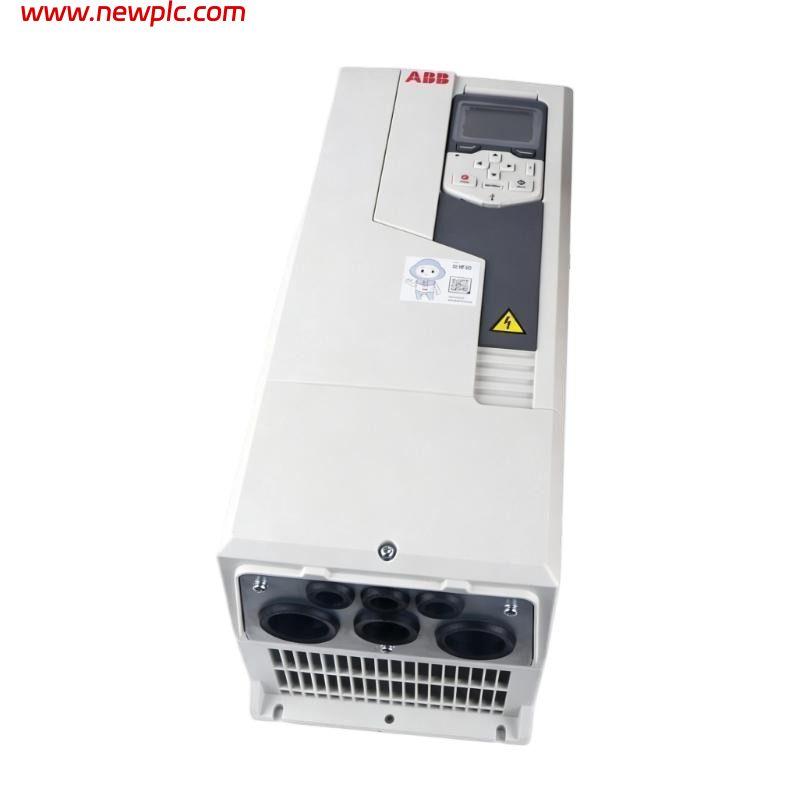

| Product Name | ABB ACS580 General Purpose Drive |
| Part Number | ACS580-01-046A-4 |
| Product ID | 3AXD50000038963 |
| Equivalent Product ID | 3ABD50000038963 |
| Product Type | Low Voltage AC Variable Frequency Drive (VFD) |
| Manufacturer | ABB |
| Series | ACS580 |
| Function | General-purpose AC drive for variable and constant torque applications |
| Application | Pumps, Fans, Compressors, Conveyors, Extruders, Centrifuges, Mixers, Material Handling, Food & Beverage, Textile, and General Industrial Automation |
| Rated Motor Power | 22 kW (30 HP) |
| Rated Output Current | 45 A |
| Heavy-Duty Output Current | 37 A |
| Input Voltage | 3 × 380–480 VAC (±10%) |
| Input Frequency | 47.5–63 Hz |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–500 Hz |
| Motor Control Method | Sensorless Vector Control and Scalar (V/Hz) Control |
| Built-in Communication | Modbus RTU (RS-485) |
| Optional Communication | PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, CANopen |
| Built-in Features | Safe Torque Off (STO), PID Controller, EMC Filter, DC Choke, Energy Optimizer, Adaptive Programming, Assistant Control Panel |
| Protection Rating | IP21 (NEMA Type 1) |
| Cooling Method | Fan-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R3 |
| Operating Temperature | -15°C to +50°C |
| Certifications | CE, UL, cUL, IEC 61800, RoHS |
| Dimensions | 490 × 203 × 229 mm (H × W × D) |
| Weight | 11.8 kg |
FAQ
FAQ
Q1: What is the ABB ACS580-01-046A-4?
A1: The ABB ACS580-01-046A-4 is a wall-mounted low-voltage AC variable frequency drive designed for general-purpose motor control in applications such as pumps, fans, compressors, conveyors, mixers, extruders, centrifuges, and other industrial machinery.
Q2: What does Product ID 3AXD50000038963 represent?
A2: 3AXD50000038963 is the current ABB Product ID for the ACS580-01-046A-4. It supersedes the earlier Product ID 3ABD50000038963 while maintaining the same electrical specifications, dimensions, and functionality.
Q3: What motor size can this drive control?
A3: The drive is rated for 22 kW (30 HP) motors with a normal-duty output current of 45 A. In heavy-duty applications, it provides a continuous output current of approximately 37 A.
Q4: What input power does the drive require?
A4: It operates from a three-phase 380–480 VAC power supply with an input frequency range of 47.5–63 Hz and provides an output frequency range of 0–500 Hz.
Q5: Which motor control methods are supported?
A5: The ACS580 supports Sensorless Vector Control and Scalar (V/Hz) Control, delivering reliable speed regulation and efficient operation for both variable- and constant-torque loads.
Q6: What communication options are available?
A6: Standard communication includes Modbus RTU (RS-485). Optional communication modules support PROFINET IO, EtherNet/IP, PROFIBUS DP, DeviceNet, CAN, and other industrial fieldbus protocols.
Q7: What are the physical dimensions of the drive?
A7: The ACS580-01-046A-4 has net dimensions of 490 × 203 × 229 mm (H × W × D) and uses the R3 frame size for wall-mounted installation.
Q8: What is the weight of the drive?
A8: The official ABB specification lists a net weight of 11.8 kg for Product ID 3AXD50000038963. Some distributor websites may show packaged weights around 13.8 kg, but the ABB datasheet specifies 11.8 kg as the net product weight.
