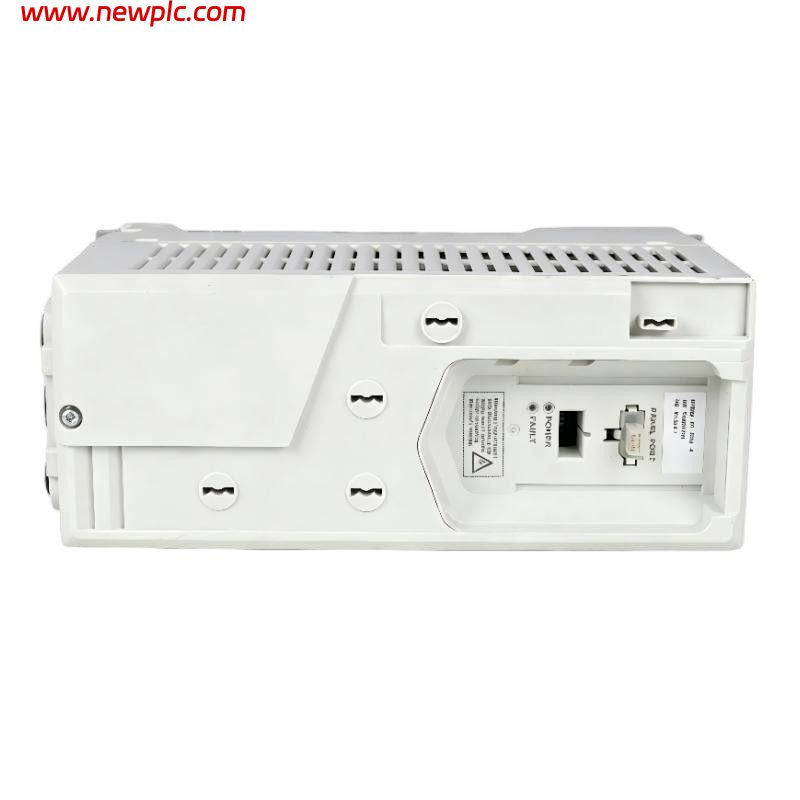

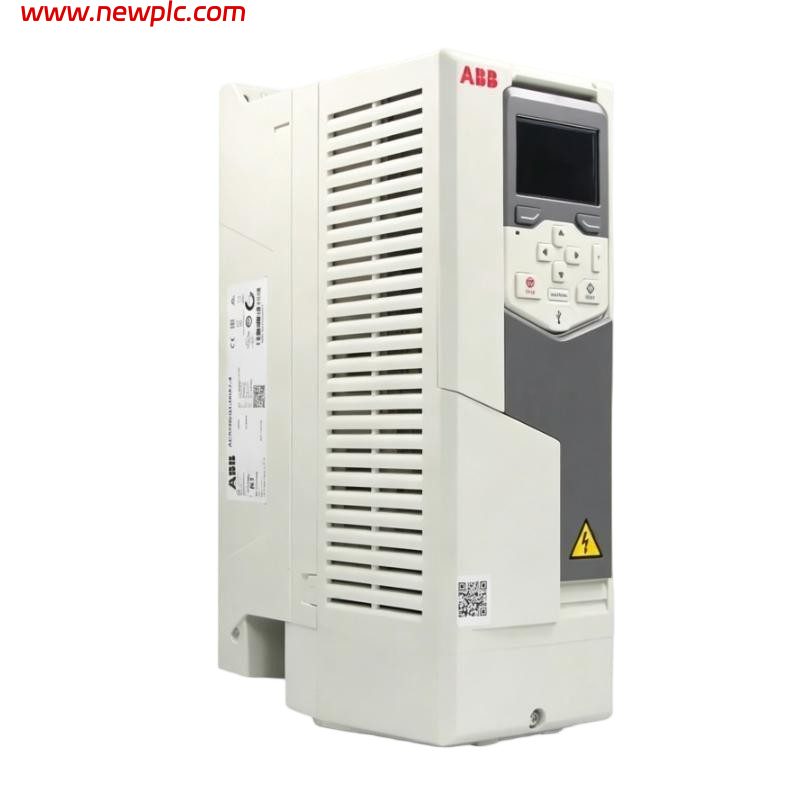

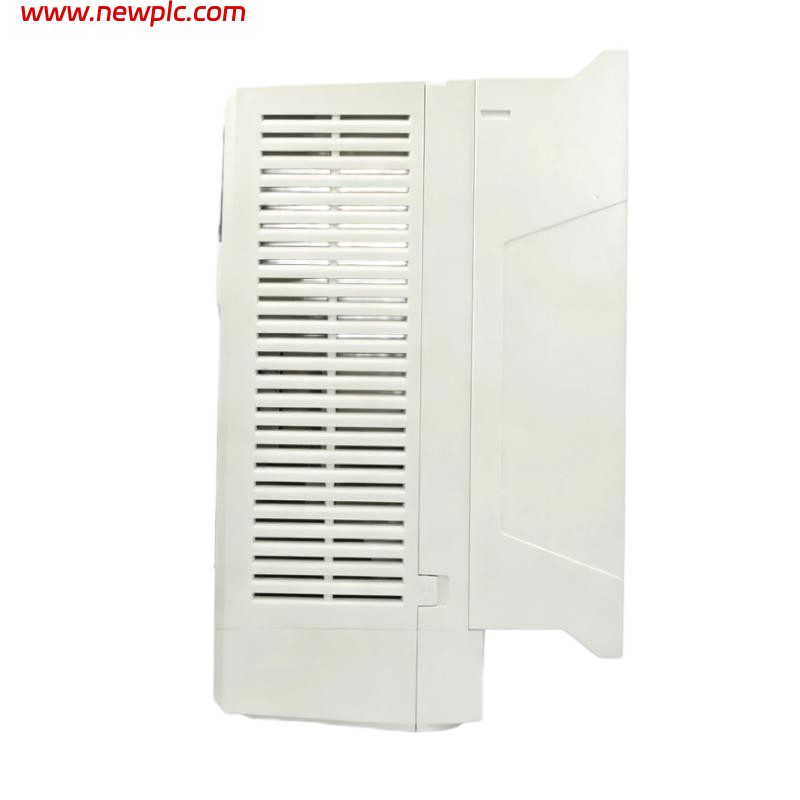

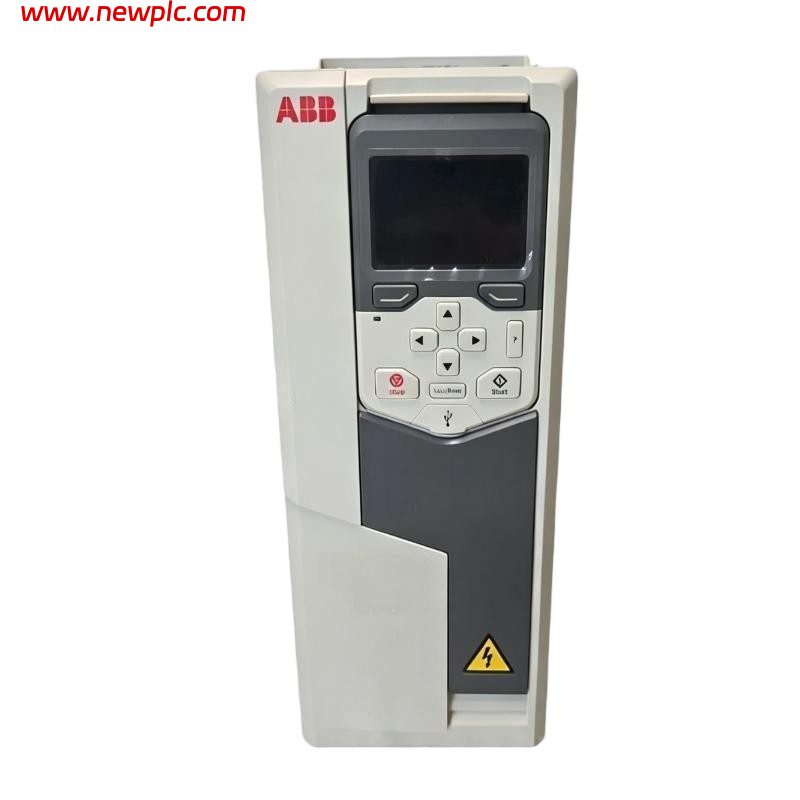

ABB ACS580-01-05A7-4 3AXD50000038940 Low Voltage AC Variable Frequency Drive (VFD)

FAQ

Q1: What is the ABB ACS580-01-05A7-4?
A1: The ABB ACS580-01-05A7-4 is a wall-mounted general-purpose AC drive for controlling pumps, fans, compressors, conveyors, mixers, extruders, centrifuges, and other industrial applications. It includes built-in features that simplify installation and commissioning.

Q2: What does Product ID 3AXD50000038940 represent?
A2: 3AXD50000038940 is the current ABB Product ID for the ACS580-01-05A7-4. It replaces the earlier Product ID 3ABD50000038940 while maintaining the same electrical specifications and functionality.

Q3: What motor size can this drive control?
A3: The drive is rated for 2.2 kW (3 HP) motors with a 5.6 A continuous output current under normal-duty conditions. In heavy-duty operation, the continuous output current is 4.0 A.

Q4: What input power does the drive require?
A4: It operates from a three-phase 380–480 VAC power supply with an input frequency range of 47.5–63 Hz and provides an adjustable output frequency from 0 to 500 Hz.

Q5: Which motor control methods are supported?
A5: The ACS580 supports Sensorless Vector Control and Scalar (V/Hz) Control, providing stable speed regulation and efficient motor operation for both variable- and constant-torque applications.

Q6: What communication options are available?
A6: The drive includes built-in Modbus RTU (RS-485) communication and supports optional communication adapters for PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, and CANopen.

Q7: What are the physical dimensions of the drive?
A7: The ACS580-01-05A7-4 has net dimensions of 373 × 125 × 223 mm (H × W × D) and uses the compact R1 frame for wall-mounted installation.

Q8: What is the weight of the drive?
A8: The official ABB specification lists a net weight of 5.7 kg for Product ID 3AXD50000038940. Shipping weight may be higher because it includes the packaging materials.
