Technical Specifications
| Parameter | Description |
|---|---|

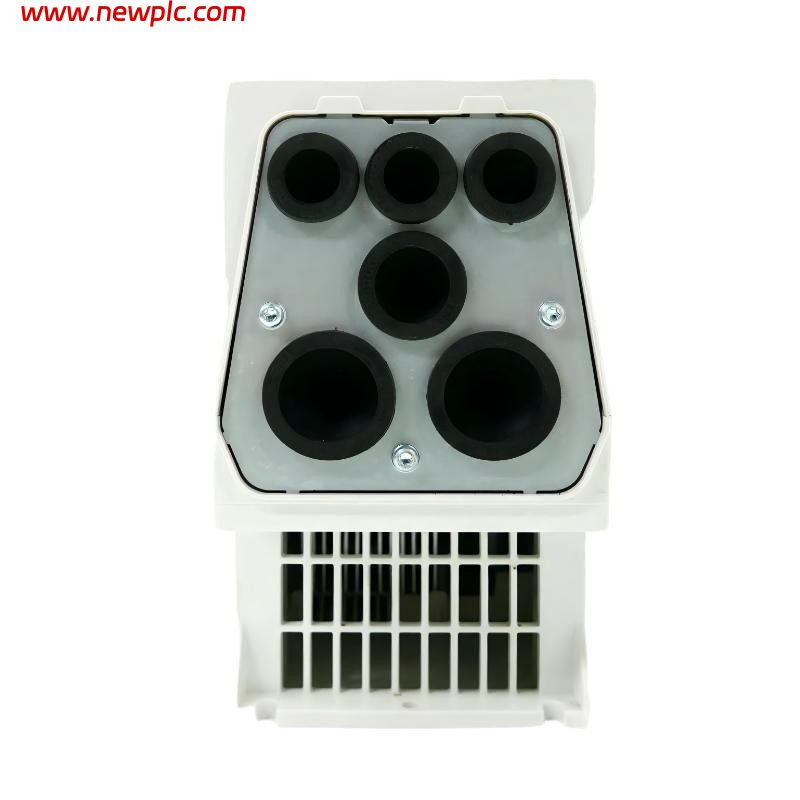

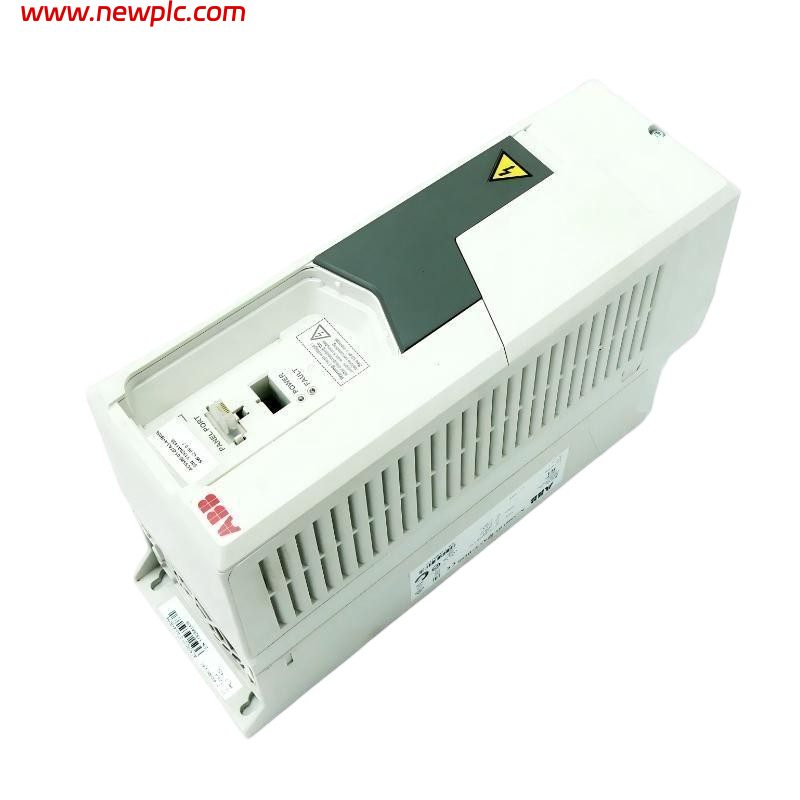

| Product Name | ABB ACS580 General Purpose Drive |
| Part Number | ACS580-01-07A3-4 |
| Product ID | 3AXD50000038951 |
| Equivalent Product ID | 3ABD50000038951 |
| Product Type | Low Voltage AC Variable Frequency Drive (VFD) |
| Manufacturer | ABB |
| Series | ACS580 |
| Function | General-purpose AC drive for variable and constant torque applications |
| Application | Pumps, Fans, Compressors, Conveyors, Mixers, Extruders, Centrifuges, Material Handling, Food & Beverage, Textile, HVAC, and Agriculture |
| Rated Motor Power | 3 kW (4 HP) |
| Rated Output Current | 7.2 A |
| Light-Overload Output Current | 6.8 A |
| Heavy-Duty Output Current | 5.6 A |
| Input Voltage | 3 × 380–480 VAC (±10%) |
| Input Frequency | 47.5–63 Hz |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–500 Hz |
| Motor Control Method | Sensorless Vector Control and Scalar (V/Hz) Control |
| Built-in Communication | Modbus RTU (RS-485) |
| Optional Communication | PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, CANopen |
| Built-in Features | Safe Torque Off (STO), PID Controller, EMC Filter (Class C2), DC Choke, Energy Optimizer, Adaptive Programming, Assistant Control Panel |
| Protection Rating | IP21 (UL Type 1) |

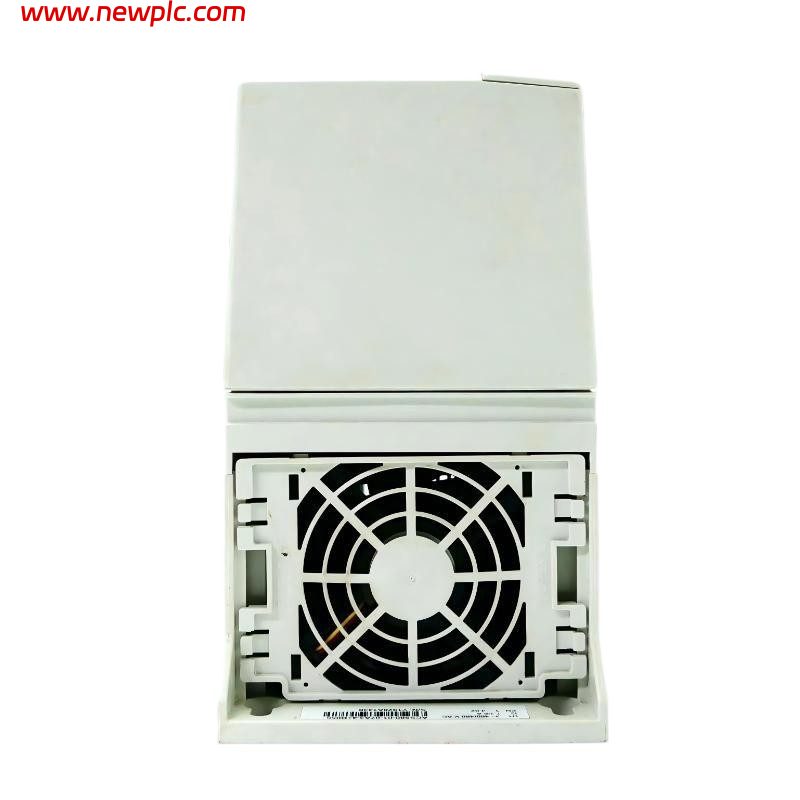

| Cooling Method | Fan-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R1 |
| Operating Temperature | -15°C to +50°C (derating above +40°C) |
| Certifications | CE, UL, cUL, IEC 61800, RoHS |
| Dimensions | 373 × 125 × 223 mm (H × W × D) |
| Weight | 4.6 kg |
FAQ
FAQ
Q1: What is the ABB ACS580-01-07A3-4?
A1: The ABB ACS580-01-07A3-4 is a wall-mounted, general-purpose AC variable frequency drive designed for pumps, fans, compressors, conveyors, mixers, extruders, centrifuges, and many other industrial applications. It features integrated control functions for quick installation and commissioning.
Q2: What does Product ID 3AXD50000038951 represent?
A2: 3AXD50000038951 is the current ABB product ID for the ACS580-01-07A3-4. It replaces the earlier product ID 3ABD50000038951 while maintaining the same electrical ratings and functionality.
Q3: What motor size can this drive control?
A3: The drive is rated for 3 kW (4 HP) motors with a normal-duty output current of 7.2 A. It also supports 6.8 A in light-overload mode and 5.6 A in heavy-duty applications.
Q4: What input power does the drive require?
A4: The drive operates from a three-phase 380–480 VAC power supply at 47.5–63 Hz and provides an adjustable output frequency from 0 to 500 Hz.
Q5: Which motor control methods are supported?
A5: The ACS580 supports both Sensorless Vector Control and Scalar (V/Hz) Control, providing reliable and efficient motor control for variable- and constant-torque applications.
Q6: What communication interfaces are available?
A6: The drive includes built-in Modbus RTU (RS-485) communication and supports optional communication adapters for PROFINET IO, EtherNet/IP, PROFIBUS DP, DeviceNet, and CANopen.
Q7: What are the physical dimensions of the drive?
A7: The ACS580-01-07A3-4 measures 373 × 125 × 223 mm (H × W × D) and is housed in the compact R1 frame with an IP21 enclosure.
Q8: What is the weight of the drive?
A8: The official ABB product specification lists a net weight of 4.6 kg for Product ID 3AXD50000038951. Shipping weight may be higher depending on the packaging used.
