Technical Specifications
| Parameter | Description |
|---|---|

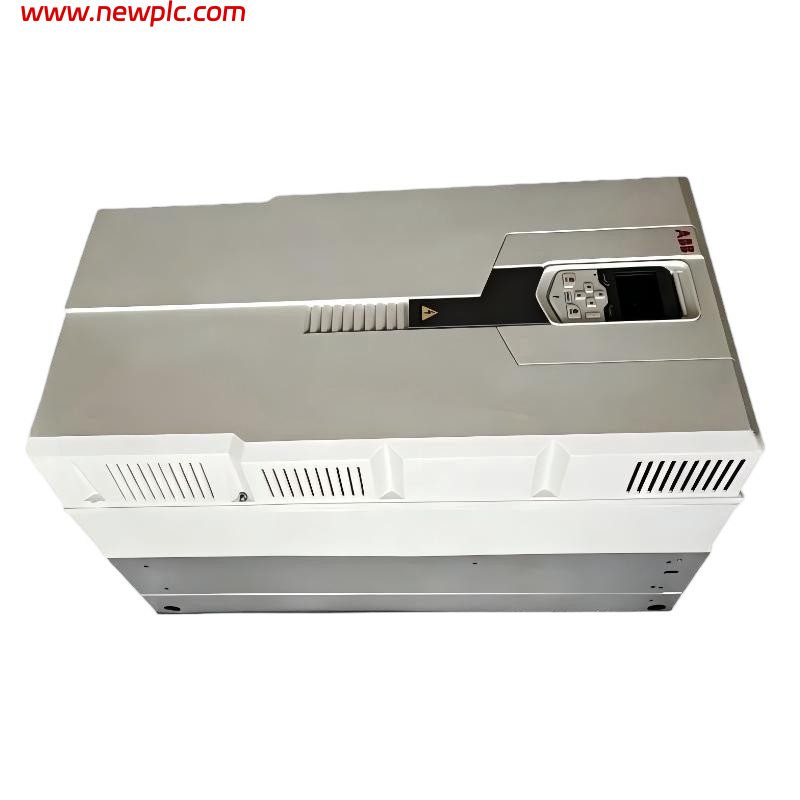

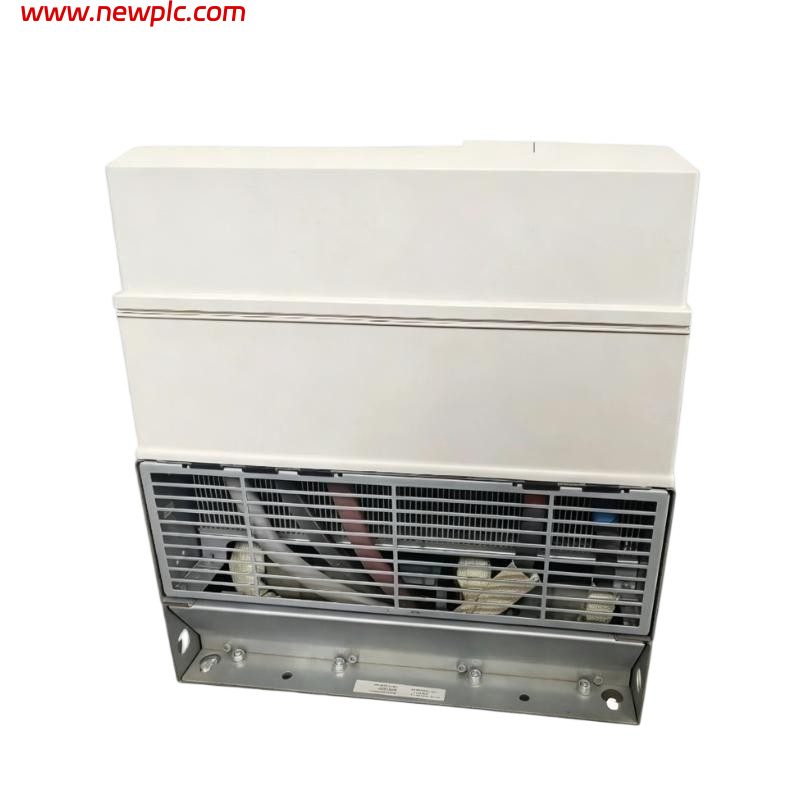

| Product Name | ABB ACS580 General Purpose Drive |
| Part Number | ACS580-01-363A-4 |
| Product ID | 3AUA0000080509 |
| Equivalent Product ID | 3ABD00037932-D |
| Product Type | Low Voltage AC Variable Frequency Drive (VFD) |
| Manufacturer | ABB |
| Series | ACS580 |
| Function | General-purpose AC drive for variable and constant torque applications |
| Application | Pumps, Fans, Compressors, Conveyors, Mixers, Extruders, Centrifuges, Material Handling, Food & Beverage, Textile, HVAC, and Agriculture |
| Rated Motor Power | 200 kW (270 HP) |
| Rated Output Current | 363 A |
| Light-Overload Output Current | 345 A |
| Heavy-Duty Output Current | 293 A |
| Heavy-Duty Motor Power | 160 kW (215 HP) |
| Input Voltage | 3 × 380–480 VAC (±10%) |
| Input Frequency | 47.5–63 Hz |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–500 Hz |
| Motor Control Method | Sensorless Vector Control and Scalar (V/Hz) Control |
| Built-in Communication | Modbus RTU (RS-485) |
| Optional Communication | PROFINET IO, EtherNet/IP, PROFIBUS DP, DeviceNet, CANopen |
| Built-in Features | Safe Torque Off (STO), EMC Filter (Class C2), DC Choke, PID Controller, Energy Optimizer, Adaptive Programming, Assistant Control Panel |
| Protection Rating | IP21 (UL Type 1) |
| Cooling Method | Fan-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R9 |
| Operating Temperature | -15°C to +50°C (derating above +40°C) |
| Certifications | CE, UL, cUL, IEC 61800, RoHS |
| Dimensions | 955 × 380 × 418 mm (H × W × D) |
| Weight | 98 kg |
FAQ
FAQ
Q1: What is the ABB ACS580-01-363A-4?
A1: The ABB ACS580-01-363A-4 is a low-voltage general-purpose AC variable frequency drive designed to provide reliable speed and torque control for three-phase AC motors in industrial applications such as pumps, fans, compressors, conveyors, mixers, and material handling systems.
Q2: What does Product ID 3AUA0000080509 represent?
A2: 3AUA0000080509 is the current ABB Product ID for the ACS580-01-363A-4. It replaces the legacy Product ID 3ABD00037932-D while maintaining the same electrical specifications and functionality.
Q3: What motor size is this drive designed for?
A3: The drive is rated for 200 kW (270 HP) motors under normal-duty conditions with a continuous output current of 363 A. Under heavy-duty conditions, it supports 160 kW (215 HP) motors with a continuous output current of 293 A.
Q4: What input power does the ACS580-01-363A-4 require?
A4: It operates from a three-phase 380–480 VAC supply at 47.5–63 Hz and delivers an adjustable output frequency from 0 to 500 Hz.
Q5: Which motor control methods are supported?
A5: The drive supports both Sensorless Vector Control and Scalar (V/Hz) Control, delivering precise speed regulation and high starting torque without requiring an encoder.
Q6: What communication interfaces are available?
A6: The ACS580 includes Modbus RTU (RS-485) as standard and supports optional communication adapters for PROFINET IO, EtherNet/IP, PROFIBUS DP, DeviceNet, and CANopen.
Q7: What are the physical dimensions of the drive?
A7: The drive uses the R9 frame and measures 955 × 380 × 418 mm (H × W × D), allowing convenient wall-mounted installation in industrial control panels.
Q8: What is the weight of the drive?
A8: The ACS580-01-363A-4 has a net weight of approximately 98 kg. The total shipping weight may vary depending on the packaging and accessories included.
