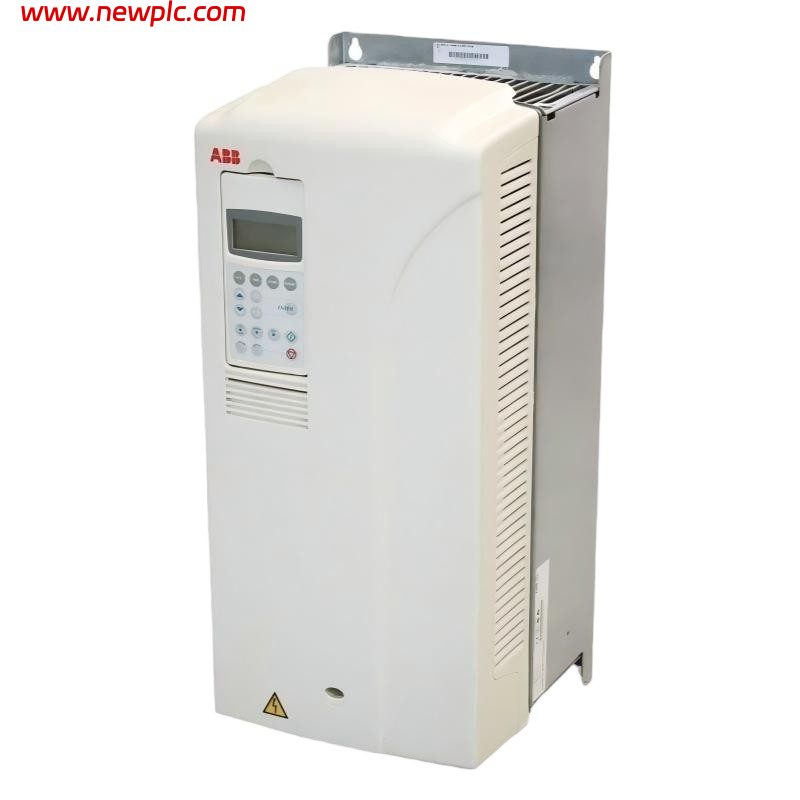

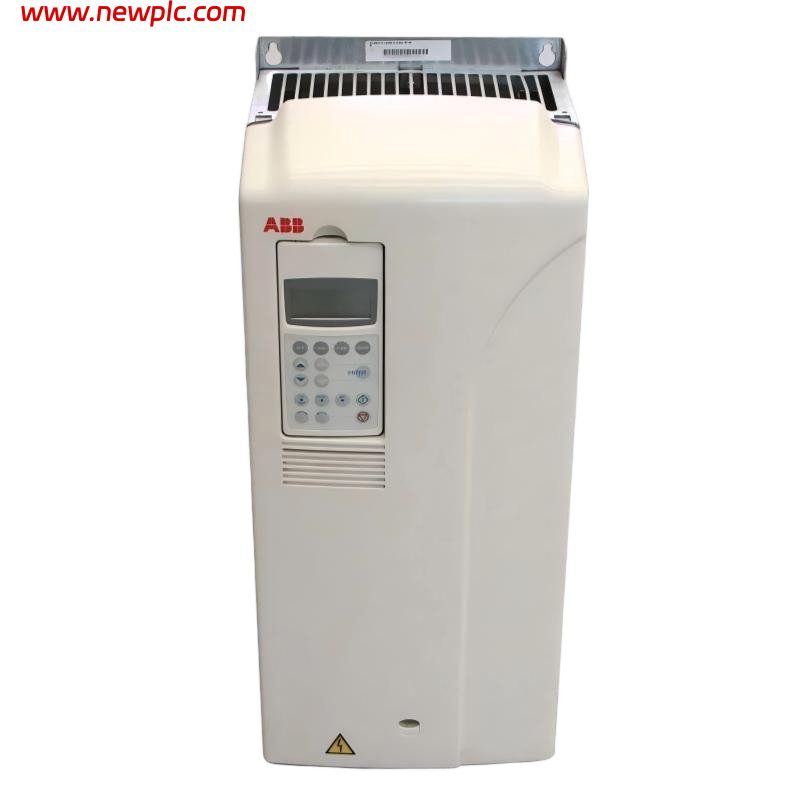

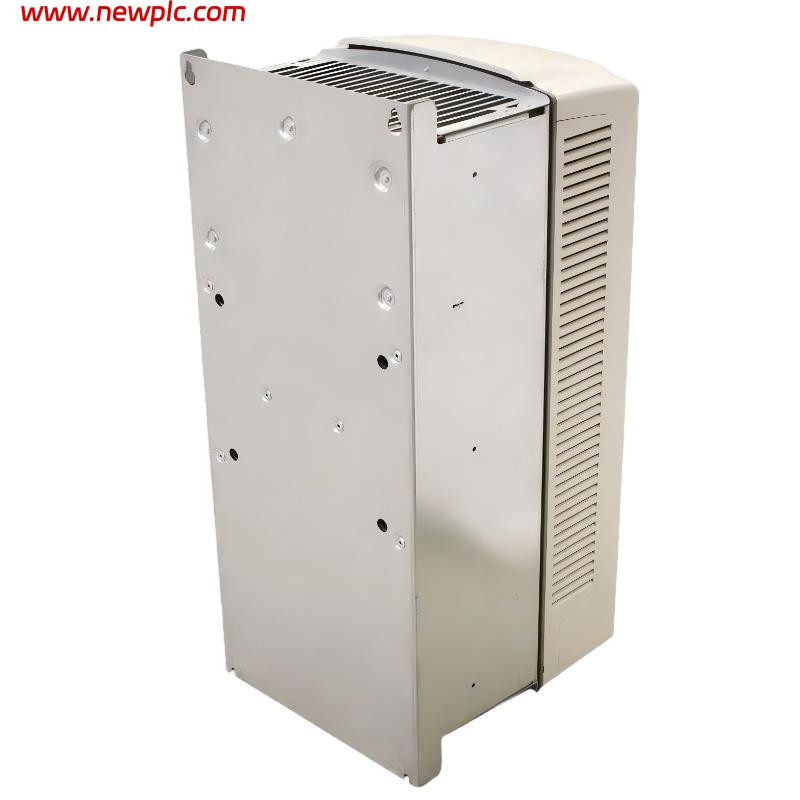

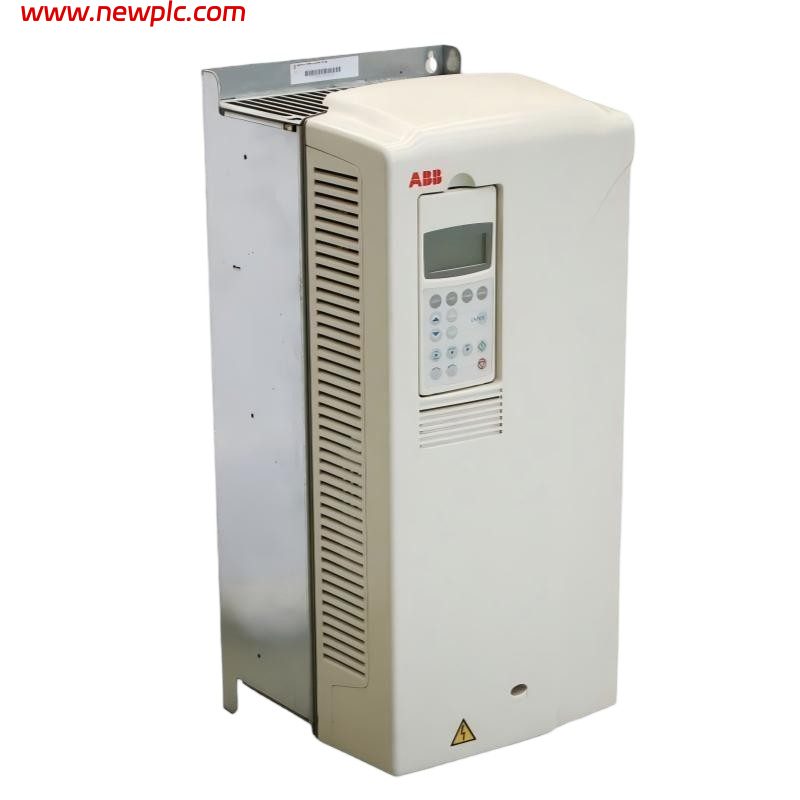

ABB ACS800-01-0040-3 64576461 Low Voltage AC Variable Frequency Drive (VFD)

FAQ

Q1: What is the ABB ACS800-01-0040-3?
A1: The ABB ACS800-01-0040-3 is a wall-mounted industrial AC variable frequency drive designed for demanding motor control applications. It uses ABB’s Direct Torque Control (DTC) technology to deliver high-performance speed and torque regulation.

Q2: What does Product ID 64576461 represent?
A2: 64576461 is the official ABB Product ID for the ACS800-01-0040-3 drive. It identifies the 380–415 V, 37 kW wall-mounted ACS800 industrial drive.

Q3: What motor size can this drive control?
A3: Under normal-duty operation, the drive is rated for 37 kW (50 HP) motors with a continuous output current of 72 A. For light-overload applications it supports 30 kW (40 HP) motors at 69 A, while heavy-duty operation is rated for 22 kW (30 HP) motors at 49 A.

Q4: What input power supply is required?
A4: The drive operates from a three-phase 380–415 VAC power supply with an input frequency range of 48–63 Hz.

Q5: Which motor control technology does it use?
A5: The ACS800 series features ABB’s Direct Torque Control (DTC) technology, providing fast torque response, accurate speed regulation, and excellent dynamic performance without requiring an encoder in many applications.

Q6: What communication options are available?
A6: The drive supports optional communication modules for PROFIBUS DP, DeviceNet, CANopen, Modbus RTU, and Ethernet-based industrial networks, allowing seamless integration into automation systems.

Q7: What are the physical dimensions of the drive?
A7: The ACS800-01-0040-3 uses the R5 frame and measures 739 × 265 × 286 mm (H × W × D).

Q8: What is the weight of the drive?
A8: The drive has a net weight of 34 kg, making it suitable for wall-mounted industrial installations.

64576461 ABB ACS800-01-0040-3
